Electric Builder's Hoist

OBHW1000

Electric Builder's Hoist

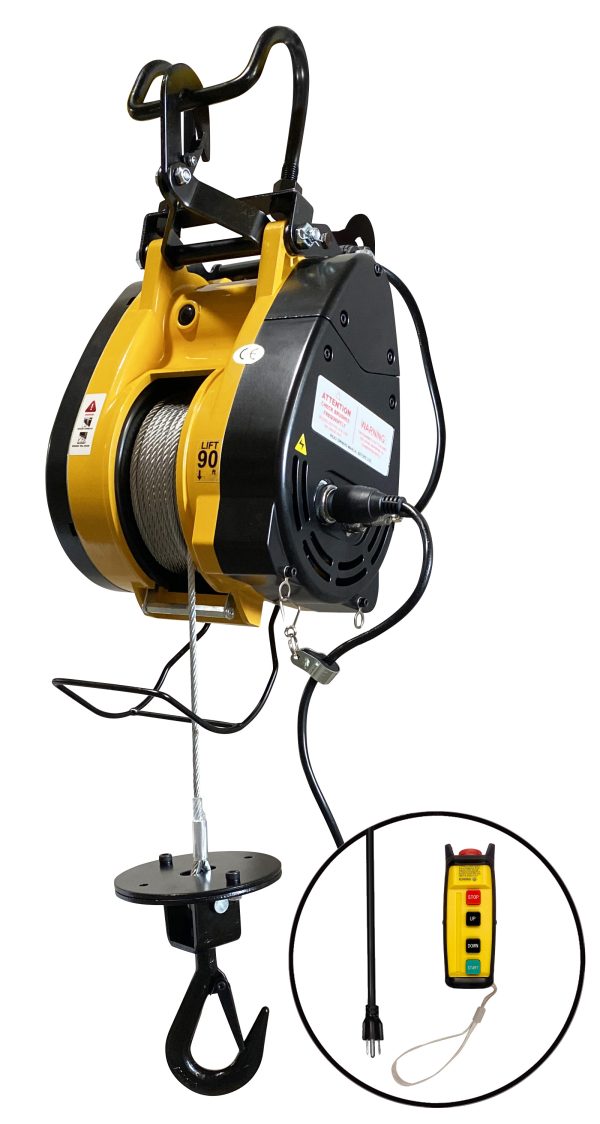

1000 lb Electric Builder’s Hoist with 90 ft of lift & wireless adapter

Standards – CE, FCC

The Electric Builder’s Hoist by OZ Lifting Products combines power with flexibility, offering a substantial 1000 lb lifting capacity. This advanced hoist can be operated using either a wired pendant or a user-friendly wireless remote, providing maximum convenience and control. With a 2 1/2 hp motor and a 360-degree swivel hook, it ensures efficient and versatile lifting operations. The compact design, dynamic braking system, and built-in upper and lower limit switches enhance safety and stability. Ideal for industrial settings, the OBHW1000 runs on a standard 115V power source and holds CE and FCC certifications, guaranteeing exceptional performance and safety.

  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding
  • Galvanized wire rope with 360-degree weighted swivel hook includes safety latch
  • Quick-release pendant and power cords
  • Standard 115V power source-compatible
  • Individual serial number and test certificate
  • Choose between a standard corded pendant (OBH) for easy operation or a wireless remote (OBHW) for added versatility and freedom of movement

OBHW1000

1000 lb Electric Builder’s Hoist with 90 ft of lift & wireless adapter

    Videos

    Photos

    Add-Ons

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Full Drum Lifting Capacity –  lb (kg) 1000 (454.55)
    Motor Voltage 115/1/60
    Speed - FPM (mpm) 37 (11.28)
    Motor (HP) 2.41
    Motor KW 1800W/17.5A
    Lifting Height - ft (m) 90 (27.43)
    Wire Rope - in (mm) 1/4 (25.4/101.6)
    Net Weight - lb (kg) 73 (33.18)
    Power Cord Length - ft (m) 15 (4.57)
    Pendant length - ft (m) 65 (19.81)
    Full Load (amps) 15.5
    Duty Cycle (min) 15 (25%)
    Wireless YES
    Height (A) - in (mm) 28.50 (723.90)
    Width (B) - in (mm) 10.50 (266.70)
    Depth (C) - in (mm) 12 (304.80)
    Hanger Width (D) - in (mm) 5.50 (139.70)
    Hanger Opening (E) - in (mm) 2 (50.80)
    Hook Opening (F) - in (mm) 1.50 (38.10)
    ASME Duty Classes Service Classification Description
    H1 Infrequent or Standby Idle 1-6 months, use for installations and/or maintenance
    H2 Light Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time
    H3 Standard General machining, randomly distributed loads, total running time ≤25% of working period
    H4 Heavy High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period
    H5 Severe Bulk material handling with attachments, approach continuous operation
