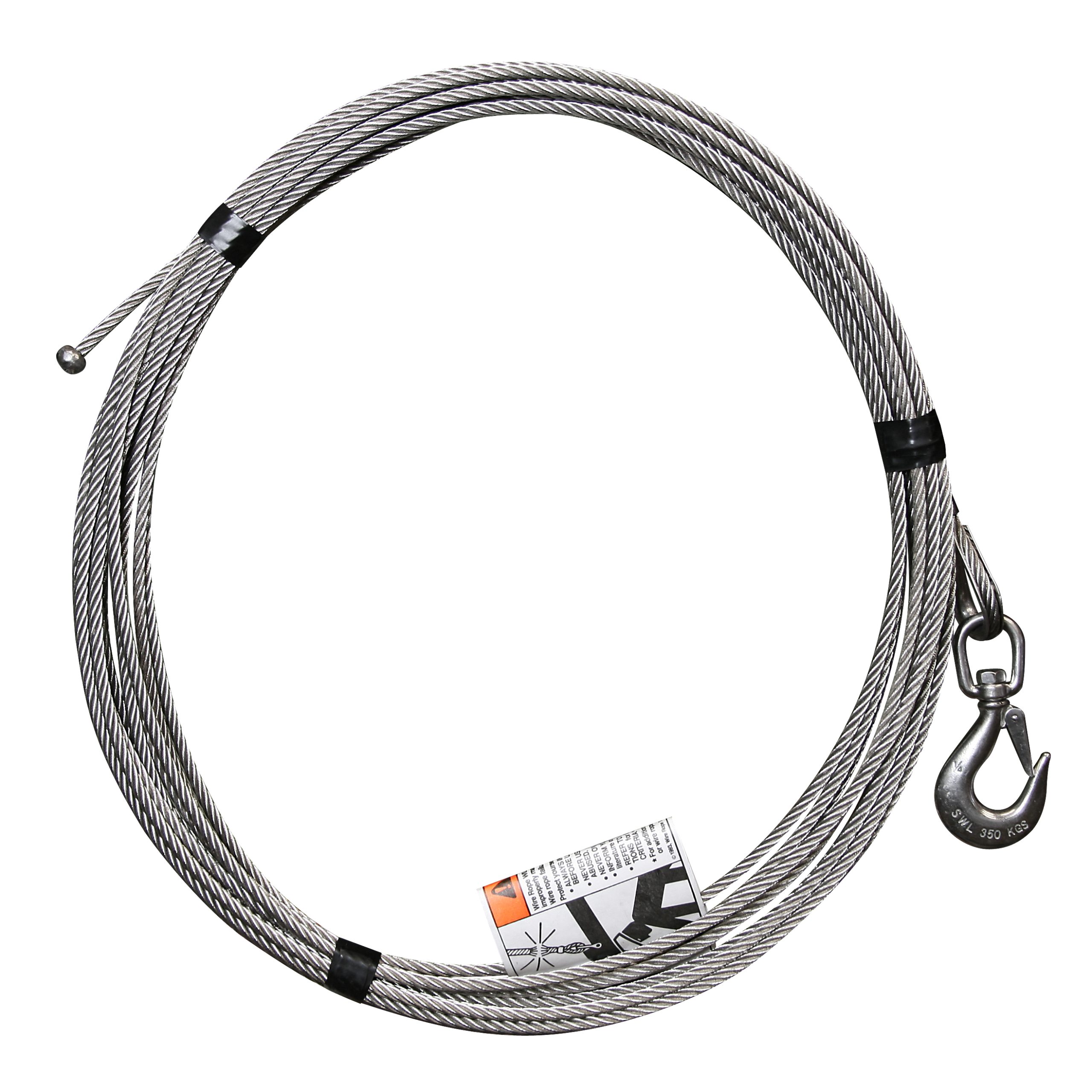

Wire Rope Assembly

The 3/16” and 1/4” diameter wire rope assemblies are available in galvanized or stainless steel finish, with custom lengths of lift up to 100’. They can be supplied with either a bare end or ball end fitting and all assemblies include a swivel hook with safety latch. The ball end fitting is to be used with manual brake winches for easy installation and added safety. The bare end wire rope assemblies may be used with either a manual brake winch or electric winch.

3/16” and 1/4” diameter wire rope available
Custom lengths available which can provide up to 100’ of lift length
Bare end or ball end fitting and swivel hook with latch come standard
Ball end fitting provides a safe installation for added safety
Swivel hook with safety latch which allows load to rotate 360°

Select Your Rope Assembly

OZUSAGAL.25-55B

1/4″ x 55′ – USA galvanized cable assembly with swivel hook

OZGAL.19-10B

3/16″ x 10′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-20B

3/16″ x 20′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-30B

3/16″ x 30′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-40B

3/16″ x 40′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-50B

3/16″ x 50′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-60B

3/16″ x 60′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-70B

3/16″ x 70′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-80B

3/16″ x 80′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-100B

3/16″ x 100′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZSS.19-10B

3/16″ x 10′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-20B

3/16″ x 20′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-30B

3/16″ x 30′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-40B

3/16″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-50B

3/16″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-60B

3/16″ x 60′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-70B

3/16″ x 70′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-80B

3/16″ x 80′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.19-100B

3/16″ x 100′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-10B

1/4″ x 10′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-15B

1/4″ x 15′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-20B

1/4″ x 20′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-25B

1/4″ x 25′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-30B

1/4″ x 30′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-35B

1/4″ x 35′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-40B

1/4″ x 40′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-45B

1/4″ x 45′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-50B

1/4″ x 50′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZGAL.25-55B

1/4″ x 55′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

OZSS.25-10B

1/4″ x 10′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-15B

1/4″ x 15′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-20B

1/4″ x 20′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-25B

1/4″ x 25′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-30B

1/4″ x 30′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-35B

1/4″ x 35′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-40B

1/4″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-45B

1/4″ x 45′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-50B

1/4″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZSS.25-55B

1/4″ x 55′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

OZGAL.19-10

3/16″ x 10′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-20

3/16″ x 20′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-30

3/16″ x 30′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-40

3/16″ x 40′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-50

3/16″ x 50′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-60

3/16″ x 60′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-70

3/16″ x 70′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-80

3/16″ x 80′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZGAL.19-90

3/16″ x 90′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZSS.19-10

3/16″ x 10′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

OZSS.19-20

3/16″ x 20′ lift – Stainless steel cable assembly with bare end with swivel hook with latch
