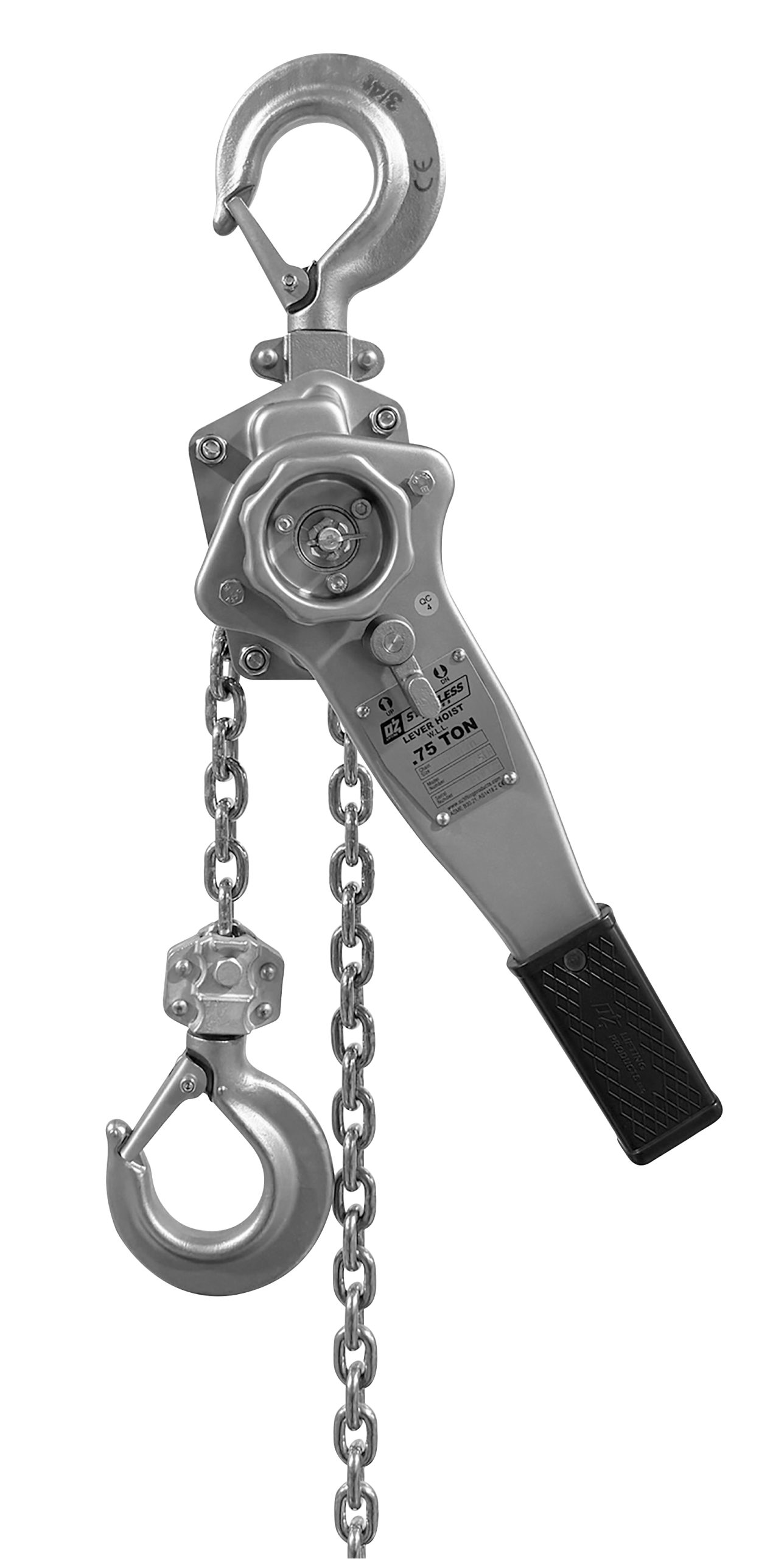

The Stainless Steel Lever Hoist by OZ Lifting Products is the first of its kind on the market in North America, setting the standard for lifting solutions in harsh and demanding environments. Available in capacities ranging from 0.25 to 3 tons, this hoist is crafted from Type 304 stainless steel, using food-grade grease that meets NSF H1 standards, offering exceptional corrosion resistance and durability. Designed for industries where hygiene and corrosion-resistance are critical, such as wastewater treatment, food production, pharmaceuticals, and oil refineries, this hoist delivers reliable performance even after extended periods of inactivity in corrosive conditions. The enclosed gearing protects internal components from contamination, while the Weston-style braking system ensures secure load control and operator safety.
Engineered for ease of use, the Stainless Steel Lever Hoist features double-reduction gearing, which requires minimal effort for lifting and pulling tasks. The ergonomic stainless steel handle, equipped with a non-slip rubber grip, allows for comfortable operation in confined spaces, and the 360-degree handle rotation provides maximum flexibility. The freewheel feature enables quick chain adjustments when not under load, making it a versatile tool for various applications. Additionally, the hoist is equipped with forged alloy steel hooks that swivel 360° for easier attachment and positioning.
Each hoist is traceable with a permanently attached stainless steel ID tag and a unique serial number, along with a corresponding test certificate documenting performance and compliance with safety standards. Maintenance is straightforward, with quick disassembly for easy servicing. This hoist meets CE, ASME/ANSI B30.21, AS1418.2, and NSF H1 standards, ensuring top-tier safety and quality in demanding environments, and comes with a free spare set of latches for added convenience.
316 and 316 stainless steel options. Call us at 800.749.1064 for details.
| OZSS025-XXLH | OZSS075-XXLH | OZSS150-XXLH | OZSS300-XXLH | ||
|---|---|---|---|---|---|
| Safe Working Lift – tons | 0.25 | 0.75 | 1.5 | 3 | |
| Headroom – in (mm) | 11.22 (284.99) | 14.96 (379.98) | 16.73 (424.94) | 19.76 (501.90) | |
| Effort on lever to lift full load – lb (kg) | 20.20 (9.18) | 28.10 (12.77) | 41.50 (18.86) | 42.70 (19.41) | |
| Falls of Chain | 1 | 1 | 1 | 2 | |
| Load Chain Diameter – in (mm) | 0.16 (4.00) | 0.24 (6.00) | 0.31 (8.00) | 0.31 (8.00) | |
| Dimensional Information – in (mm) | A | 11.22 (284.99) | 14.96 (379.98) | 14.96 (379.98) | 19.76 (501.90) |
| B | 3.86 (98.04) | 5.83 (148.08) | 5.91 (150.11) | 7.68 (195.07) | |
| C | 3.94 (100.08) | 5.67 (146.30) | 6.61 (167.89) | 6.61 (167.89) | |
| D | 6.10 (154.94) | 11.42 (290.07) | 16.34 (415.04) | 16.34 (415.04) | |
| E | 2.40 (60.96) | 3.43 (87.12) | 3.74 (95.00) | 3.74 (95.00) | |
| Hook-opening, Upper & Lower – in (mm) | F | 0.92 (23.37) | 1.21 (30.73) | 1.38 (35.05) | 1.38 (35.05) |
| Net Weight of Head Only – lb (kg) | 4.84 (2.20) | 12.54 (5.70) | 20.35 (9.25) | 28.71 (13.05) |
