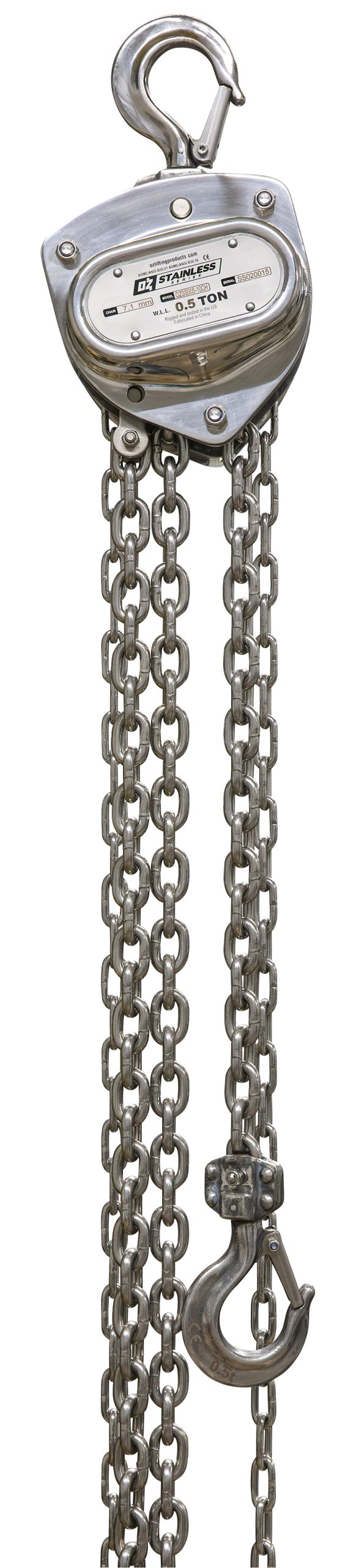

Stainless Chain Hoist

Standards – CE, AS1418.2, ASME B30.21, ASME B30.16

Elevate your lifting operations with our Stainless Steel Chain Hoist, designed for exceptional performance and reliability, especially in corrosive environments. Featuring a unique hand wheel design, this hoist allows the hand chain to feed directly into the wheel sprocket from various angles, eliminating the risk of jamming and enabling smooth operation even from the side or above the load. Its minimal load lifting effort ensures you can handle heavy loads with 20% to 35% less effort compared to competitors, making it ideal for frequent and demanding lifting or pulling tasks.

Constructed with Type 304 stainless steel, our hoist is engineered for durability and resistance against corrosion, ensuring longevity and rugged performance in tough environments. The fully enclosed gearing system protects the internal components from contamination and debris, while the forged stainless steel hooks with bolt and lock nut safety latches facilitate easy maintenance and increased safety. Additionally, the hoist’s stainless steel hand and load chain, combined with food-grade grease, meet NSF H1 standards for applications in food processing environments.

Versatile and user-friendly, this hoist features a low headroom design for optimal lift in restricted spaces and a weather-proof load holding brake with a unique twin pawl design for secure load retention. All gears and shafts run on roller bearings for smooth, maintenance-free operation, and stainless steel riveted ID tags ensure clear identification. With a free spare set of latches included and easy disassembly for maintenance, our Stainless Steel Chain Hoist offers unmatched convenience and reliability for your lifting needs.

CUSTOM OPTIONS AVAILABLE

Capacities available: up to 10 ton (80 ft lift) and up to 20 ton (40 ft lift).
304 stainless standard with 316 and 316L options. Call us at 800.749.1064 for details.

Select Your Hoist

Compare Models

OZSS025-CHOZSS005-CHOZSS010-CHOZSS020-CH OZSS030-CHOZSS050-CH
Safe Working Load (tons)0.250.51235
Falls of Chain111223
Effort to Lift S.W.L (lbs)456767747474
Load Chain Diameter (mm)477799
Product Dimensions (in) A9.8414.814.816.7322.2427.95
B4.296.776.777.569.0614.37
C4.135.945.955.956.817.44
Hook-opening, Upper & Lower (in)D1.061.021.021.331.531.61
E1.261.571.571.962.162.55
Net Weight of Head Only (lbs)8.8216.316.322.934.766.1
