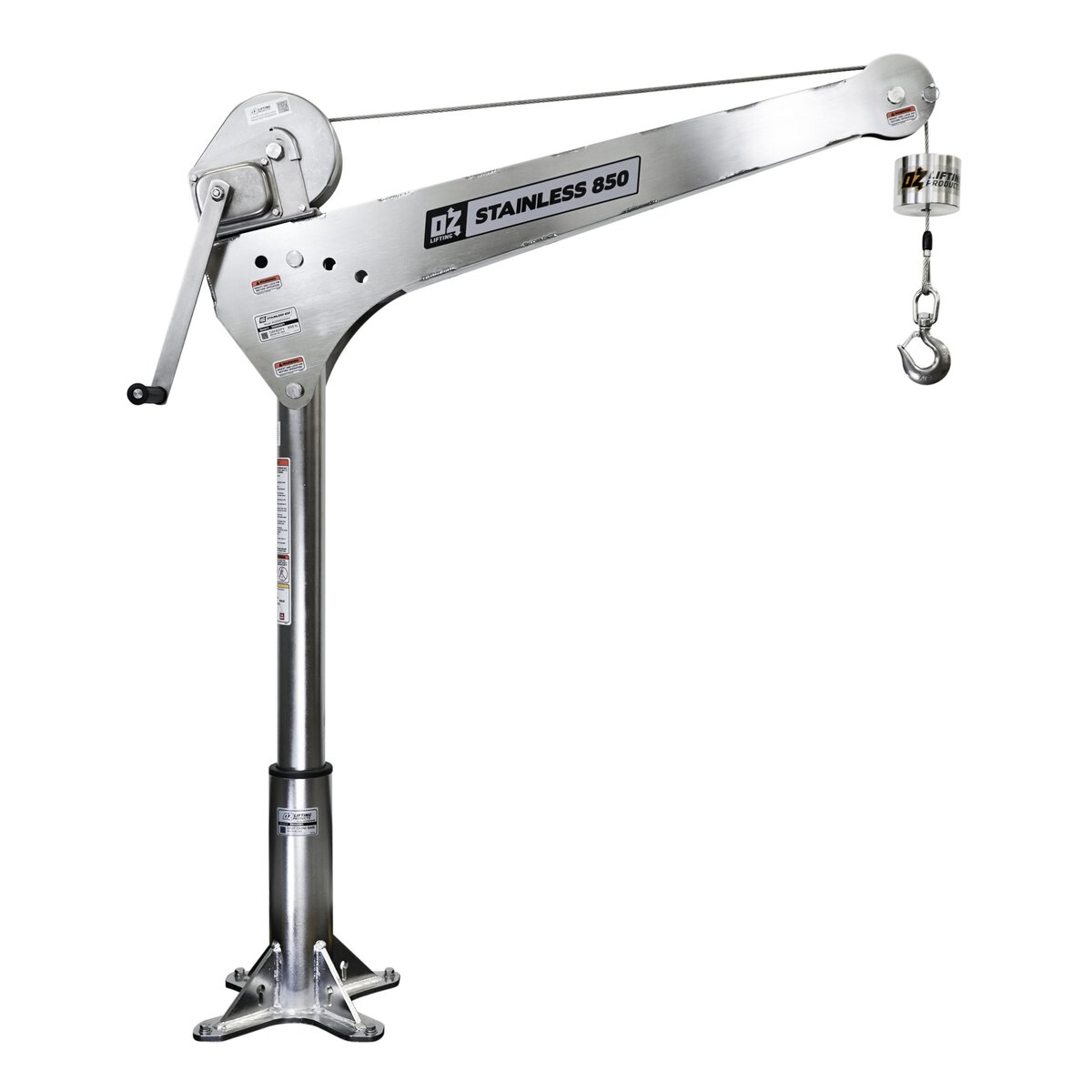

Stainless Davit Crane

Engineered for demanding environments, the Stainless Davit Crane delivers exceptional corrosion resistance, durability, and performance where it matters most. Constructed from 304 stainless steel with a RoHS-compliant electropolished finish, this crane is built to withstand harsh conditions across industries such as wastewater treatment, chemical processing, pharmaceuticals, food processing, and beyond.

With 850 or 1500 lb. capacity models, the Stainless Davit features four boom height adjustments and full 360-degree rotation, giving operators the flexibility and control needed for precise lifting. Quick Connect pins allow for fast, tool-free assembly, while a range of winch options, including manual stainless steel brake winches and AC or DC electric configurations, ensures adaptability to your specific application.

Designed with safety and reliability at its core, each unit is individually tested and certified at 125% and built with a 2.5:1 safety factor. Food-grade grease meeting NSF H1 standards and a stainless steel ID tag further reinforce its suitability for hygienic and washdown environments.

Elevate your lifting operations with the Stainless Davit Crane, where corrosion resistance meets uncompromising performance in the toughest conditions.

NOTE: Wire or synthetic rope assembly, headache ball, bases, and mast extensions sold separately.

  • 850 and 1500 lb. capacity rating
  • 304 stainless steel construction
  • RoHS-compliant, electropolished finish
  • Food-grade grease meets NSF H1 standards, suitable for food processing
  • 4 boom height adjustments
  • 360-degree rotation
  • Quick connect pins – no tools required for assembly and installation
  • Manual DIN-rated stainless steel brake winch with integrated Weston brake
  • AC & DC winch options available
  • Mast extension, pedestal, wall mount, socket, and wheel bases sold separately
  • 2.5:1 safety factor, individually tested and certified at 125%
  • Stainless steel ID tag

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifitng solution

Select Your Product:

Compare Models

Stainless Product Weight Comparison
OZSS850DAVOZSS1500DAV
Boom - lb (kg)35 (16)49 (22)
Mast - lb (kg)29 (13)50 (23)
Net - lb (kg)64 (29)99 (45)
Load Ratings
OZSS850DAV - lb (kg)OZSS1500DAV - lb (kg)
3/16" stainless steel wire or synthetic rope1/4" stainless steel wire rope or 3/16" synthetic rope
Position 1 (0º)First Layer500 (226)1000 (453)
Mid Drum500 (226)1000 (453)
Full Drum500 (226)850 (385)
Position 2 (15º)First Layer600 (272)1200 (544)
Mid Drum600 (272)1200 (544)
Full Drum600 (272)850 (385)
Position 3 (30º)First Layer700 (317)1300 (590)
Mid Drum700 (317)1250 (566)
Full Drum700 (317)850 (385)
Position 4 (45º)First Layer850 (385)1500 (680)
Mid Drum850 (385)1250 (566)
Full Drum850 (385)850 (385)
Crane Reaction/Moments
OZSS850DAVOZSS1500DAV
Mast Moments - in-lb22,80045,600
Mast Moment - N-m2,5765,153
Suggested Bolt Size1/2" Grade 5 (M12)5/8" Grade 5 (M16)
Floor Mount BaseAxial Force per Bolt - lb (N)1,140 (5,071)1,573 (6,997)
Wall Mount BaseAxial Force per Bolt - lb (N)861 (3,830)1,573 (6,997)
Shear Force per Bolt - lb (N)709 (3,154)1,162 (5,169)
