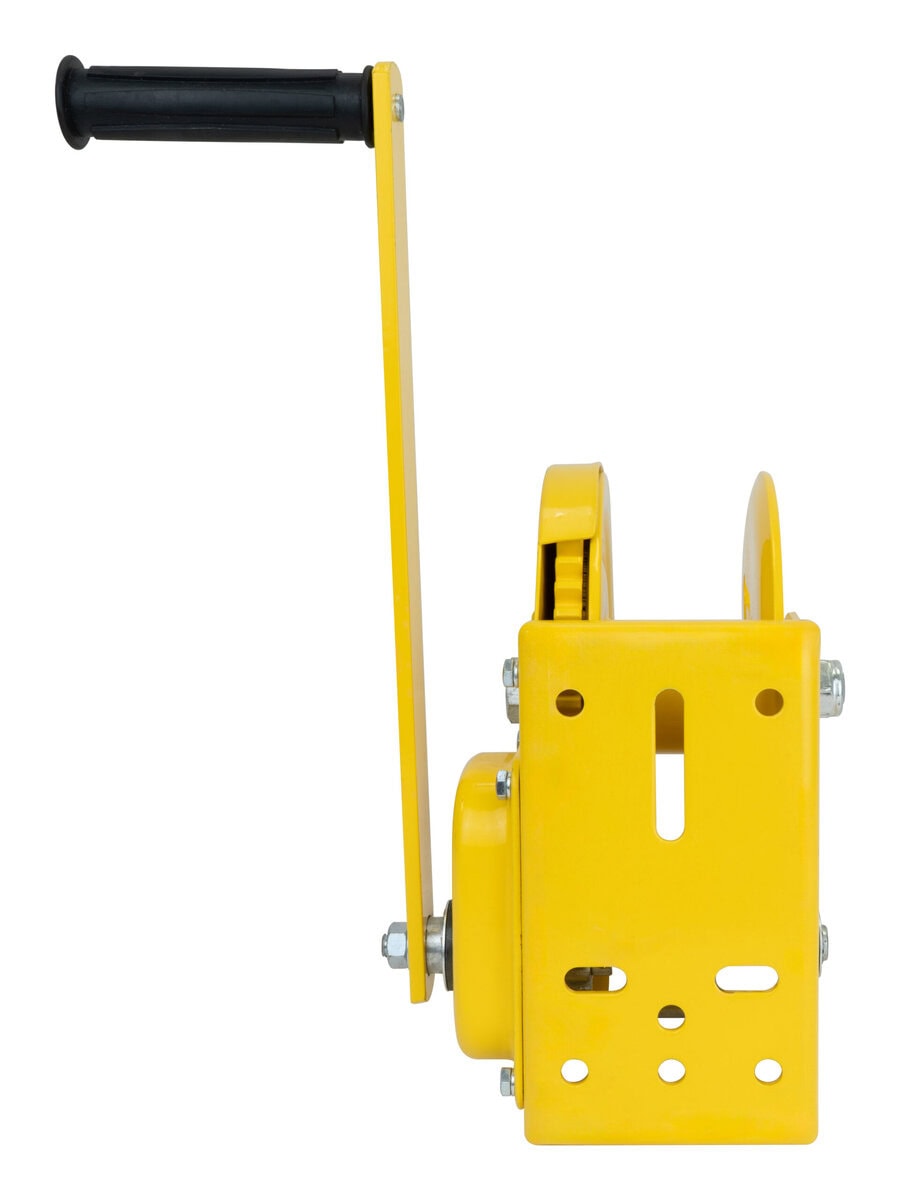

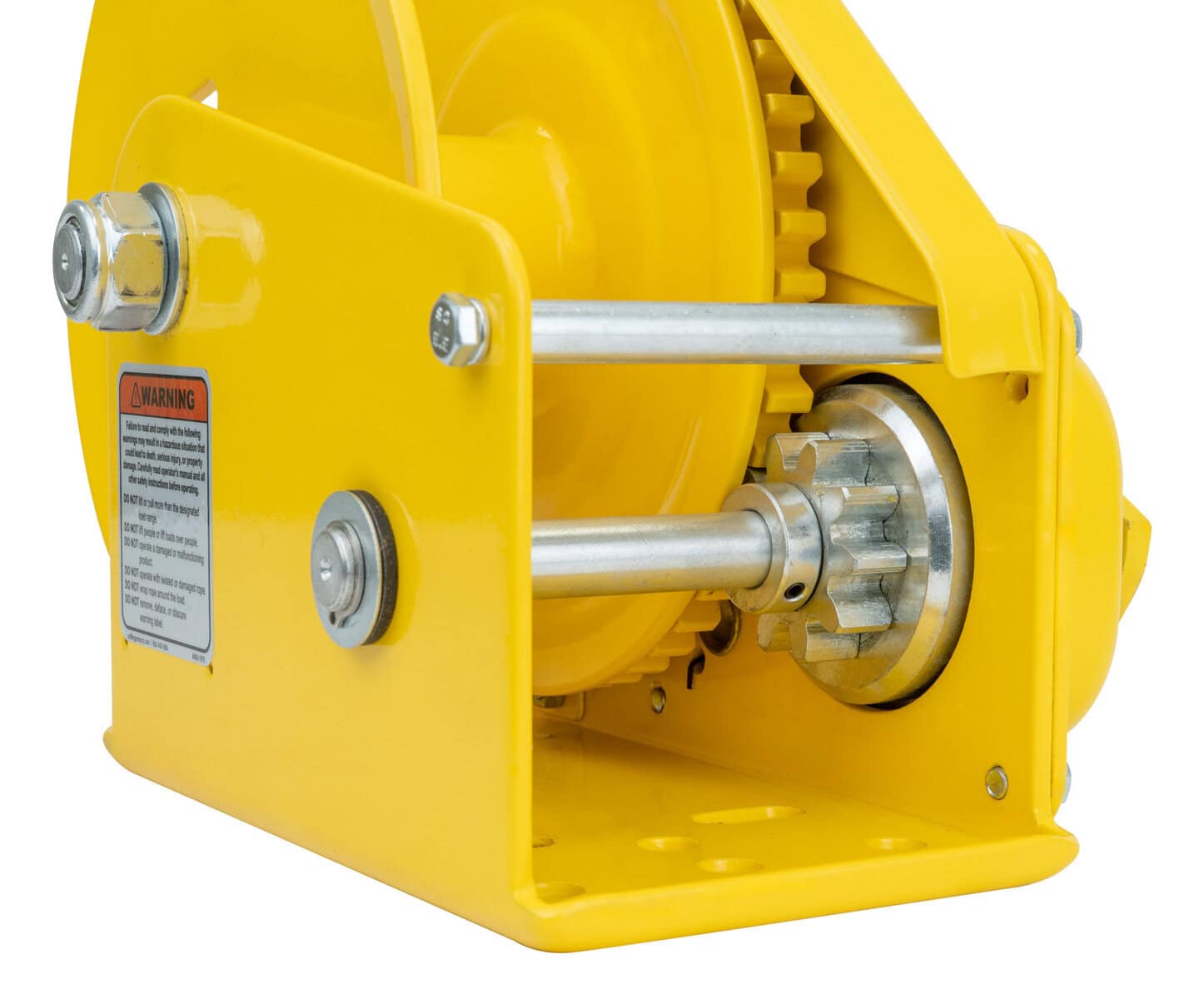

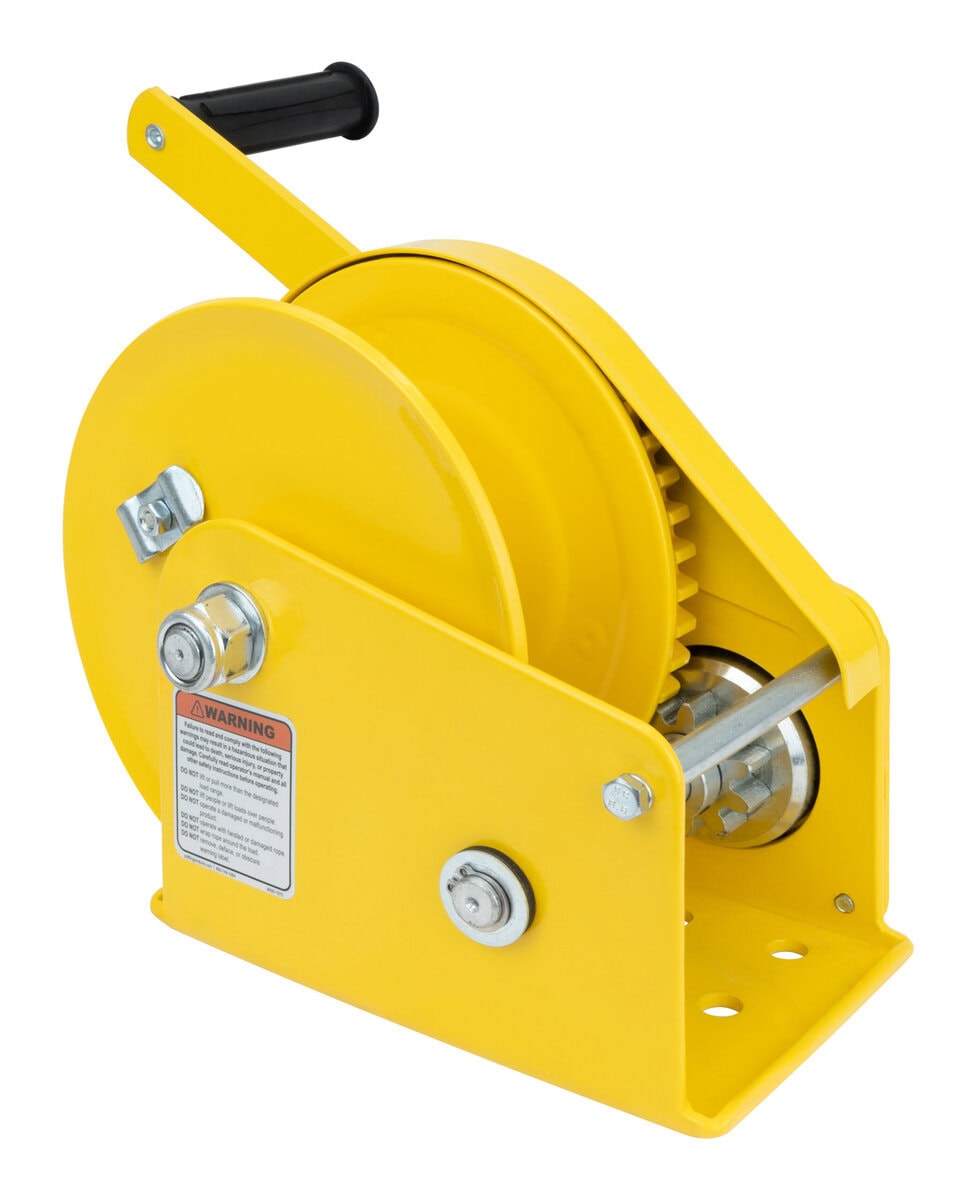

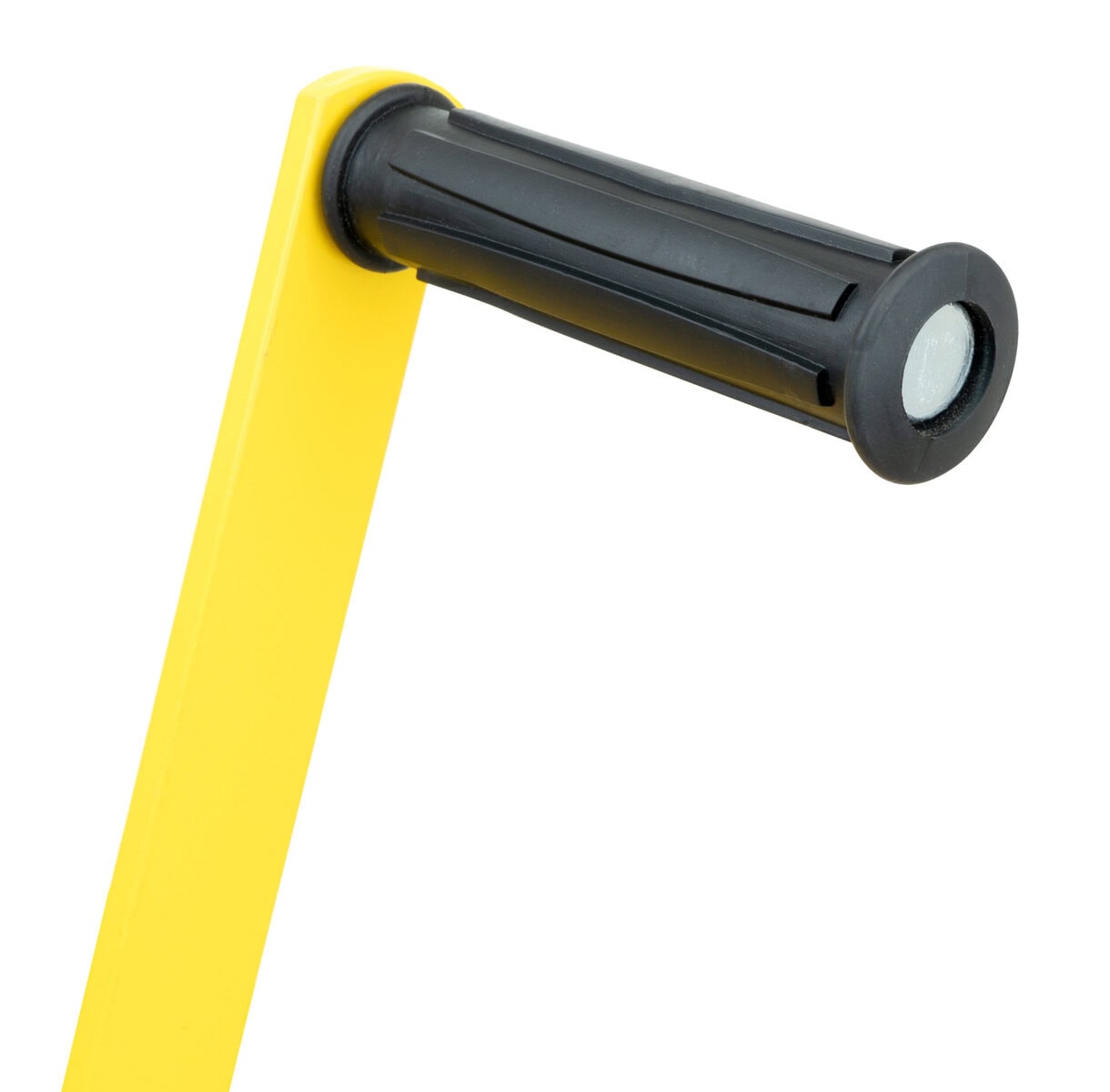

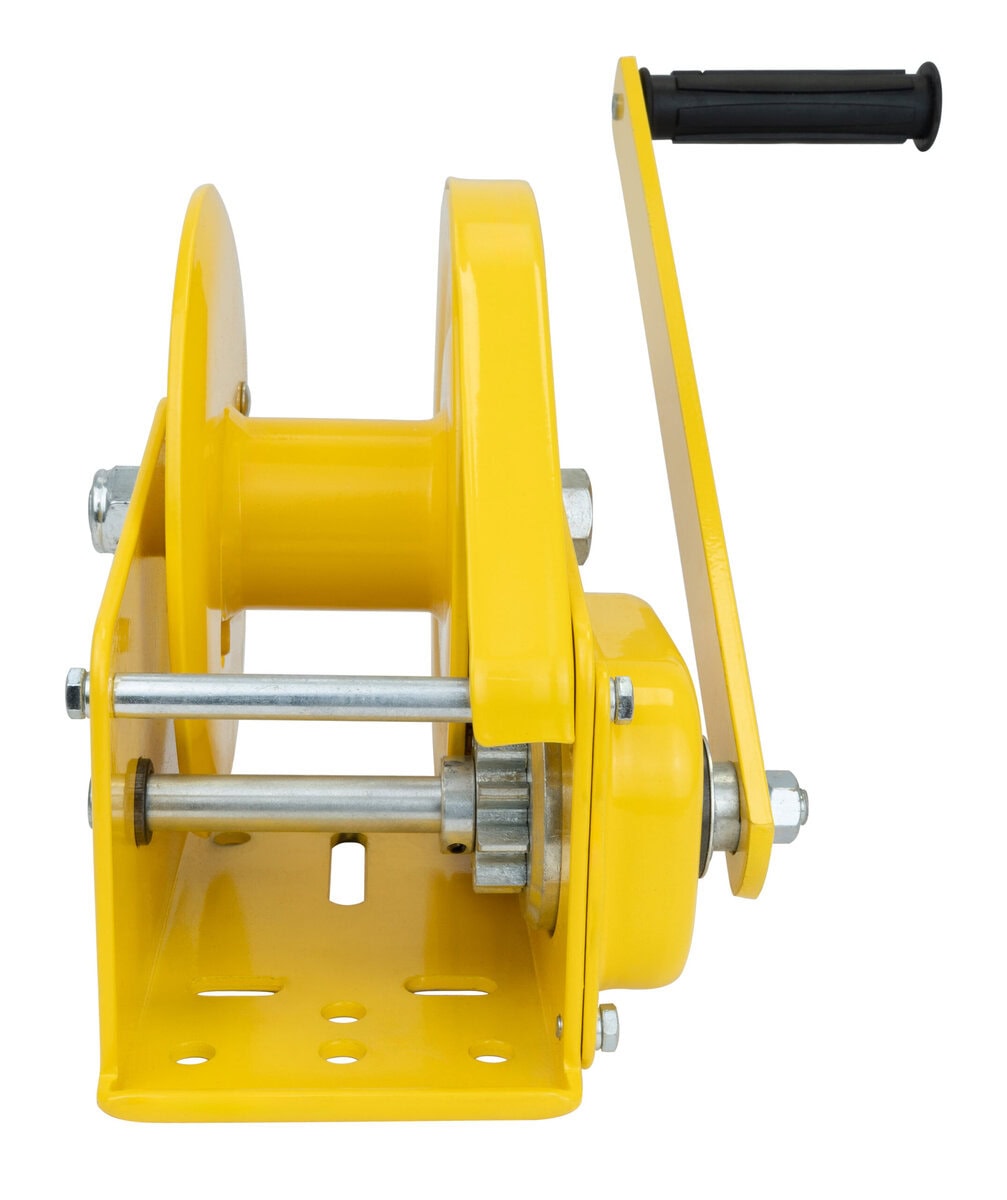

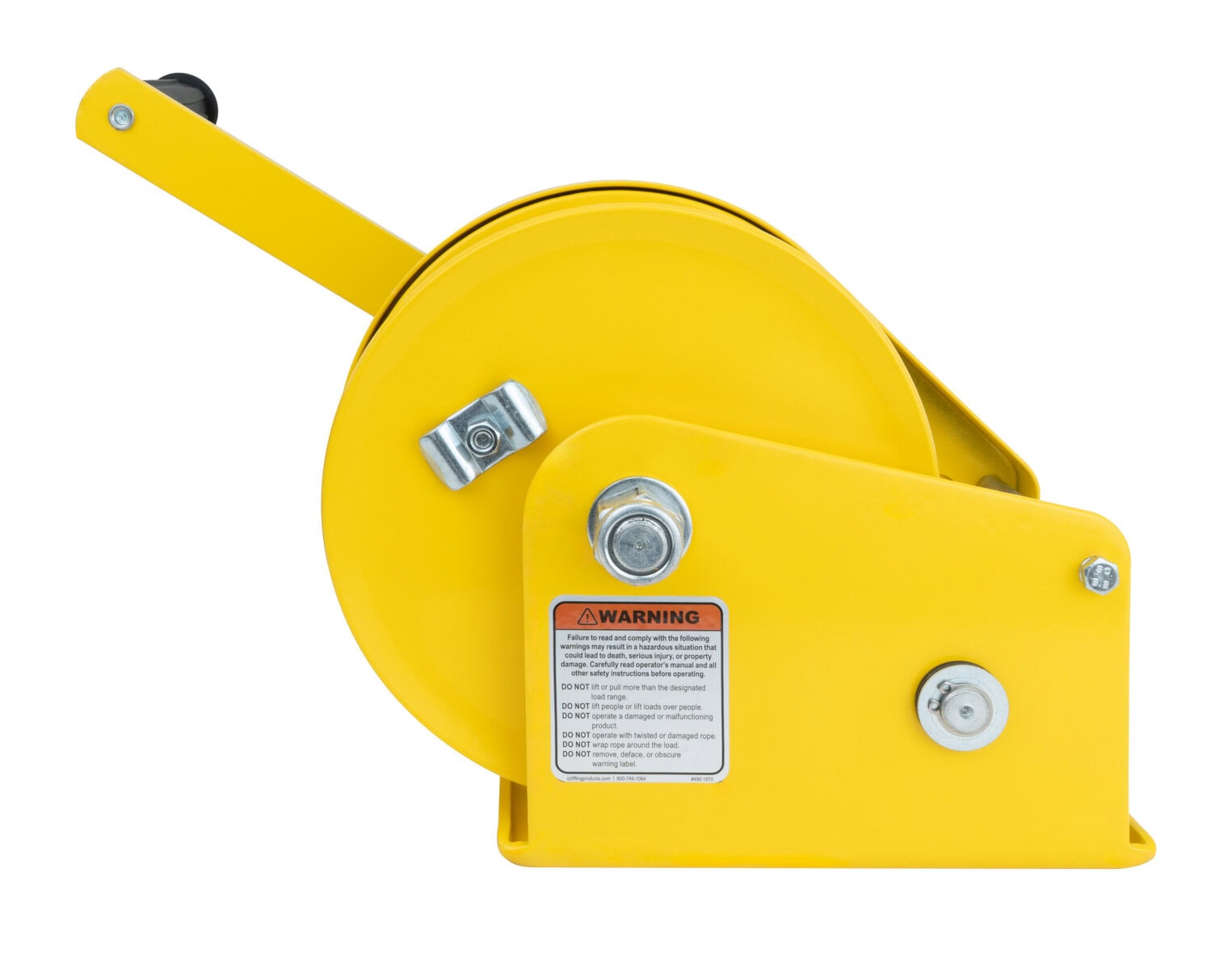

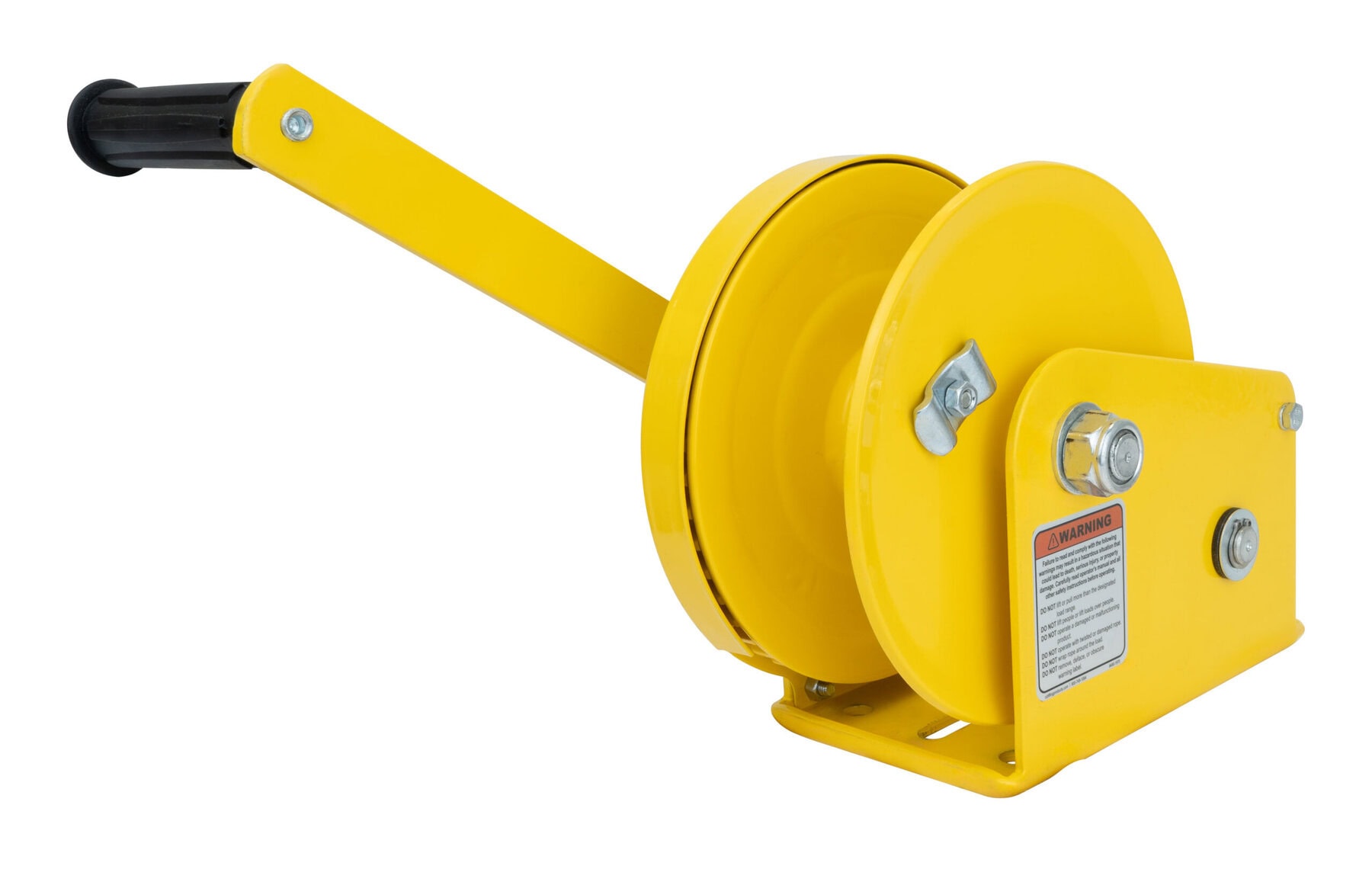

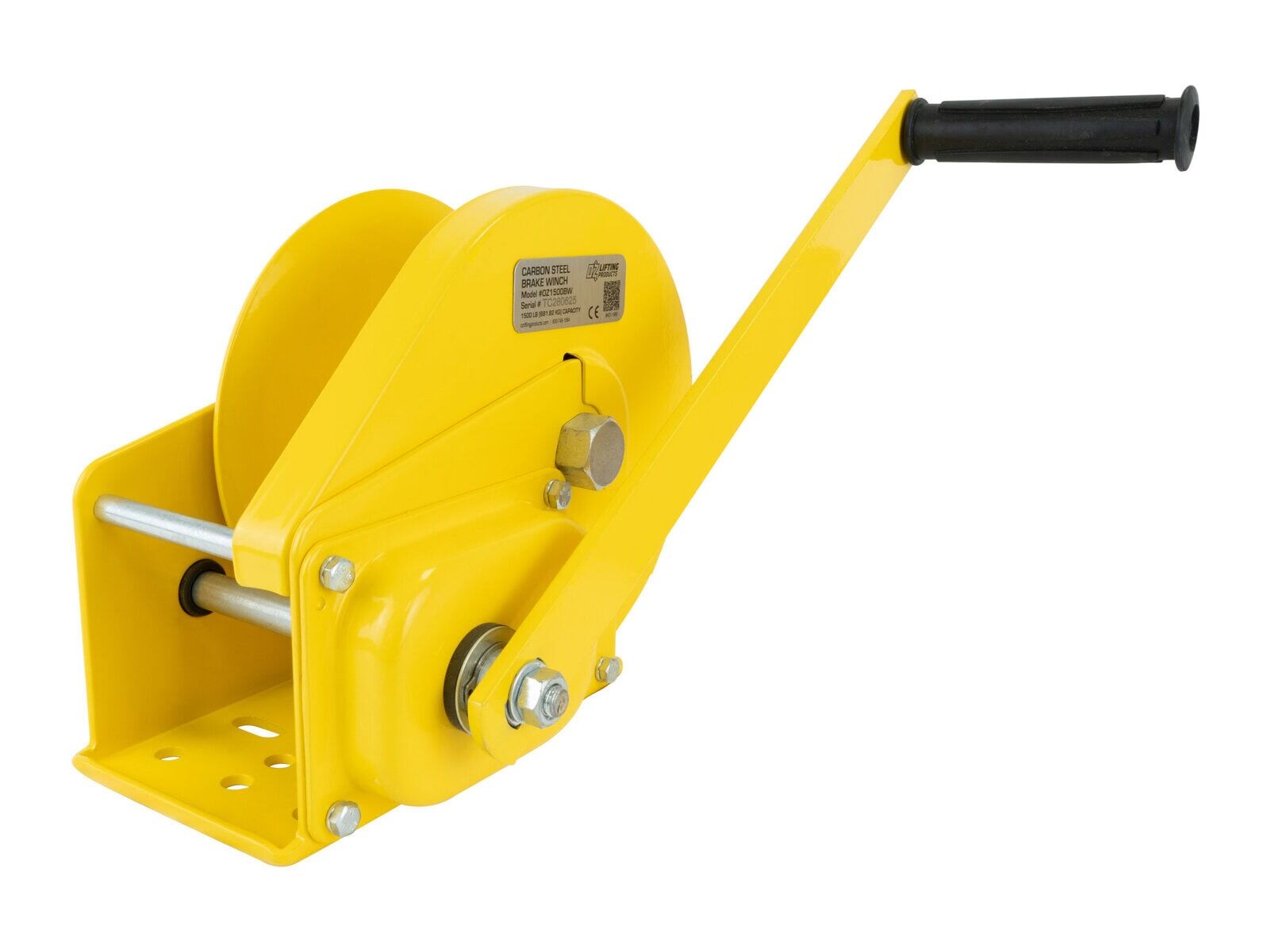

Designed for heavier lifting needs, the Carbon Steel Brake Winch with a 1500 lb capacity combines robust construction with exceptional functionality. This industrial-grade winch features an ergonomic rubber handle and a weatherproof Weston brake, ensuring safety and ease of use in any environment. The high gear ratio and large diameter drum enhance its performance, while multiple frame mounting positions allow for flexible installation across different applications.
Tell us about your needs and we will match you with the ideal lifting solution
| Cable/Drum Capacity | |||
| First layer - ft (m) | Mid drum - ft (m) | Full drum - ft (m) | |
| Based on 3/16" wire rope | 7 (2.13) | 66 (20.12) | 140 (42.67) |
| Based on 1/4" wire rope | 5 (1.52) | 27 (8.23) | 89 (27.13) |
| Load Rating - lb (kg) | 1500 (681.82) | 1250 (568.18) | 750 (340.91) |
| Capacity - lb (kg) | 1500 (681.82) | |
| Gear Ratio | 5:01 | |
| Dimensional Information - in (mm) | A | 7.73 (196.34) |
| B | 9.36 (237.74) | |
| C | 4.21 (106.93) | |
| D | 12.68 (322.07) | |
| E | 1.06 (26.92) | |
| F | 10.63 (270) | |
| G | 2.30 (58.42) | |
| H | 4.29 (108.97) | |
| I | 2.38 (60.45) | |
| J | 7 (177.80) | |
| K | 15.31 (388.87) | |
| L | 6.89 (175.01) | |
| M | 0.14 (3.56) | |
| Net weight - lb (kg) | 17 (7.73) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
