OZWINHND2 Downloads

Brake Winches

OZWINHND2

DL Brake Winch

2500 lb carbon steel hand winch (Drill drive adapter included)

Standard – CE

Oz Product Made in the USA Badge

The OZ Lifting Products DL Carbon Steel Brake Winches are heavy-duty, industrial-grade solutions engineered for demanding lifting tasks. With a substantial 2500 lb capacity and constructed entirely from durable steel, these winches boast a compact design that facilitates multiple mounting options. Each unit features an ergonomic rubber handle and includes a drill drive adapter, allowing for effortless powered operation. The automatic weatherproof Weston brake provides reliable stopping capability, while fully enclosed, solid machined gears enhance overall durability. Designed with a dual cable anchor point, large diameter drum, and high gear ratio, these winches are adaptable for a wide range of applications. Each winch is equipped with an ID tag for straightforward identification and comes with an individual test certificate and serial number for traceability. Meeting CE safety standards and proudly made in the USA, these winches are the ideal choice for efficient and safe lifting operations.

  • All-steel construction
  • Automatic weatherproof Weston brake
  • Compact design
  • Dual cable anchor point
  • Ergonomic rubber handle
  • Large diameter drum
  • Multiple frame mounting positions
  • Fully-enclosed gearing
  • High gear ratio
  • Solid machined gear
  • Test certificate & serial number

OZWINHND2

2500 lb carbon steel hand winch (Drill drive adapter included)

    Videos

    Photos

    Add-Ons

    Drawings

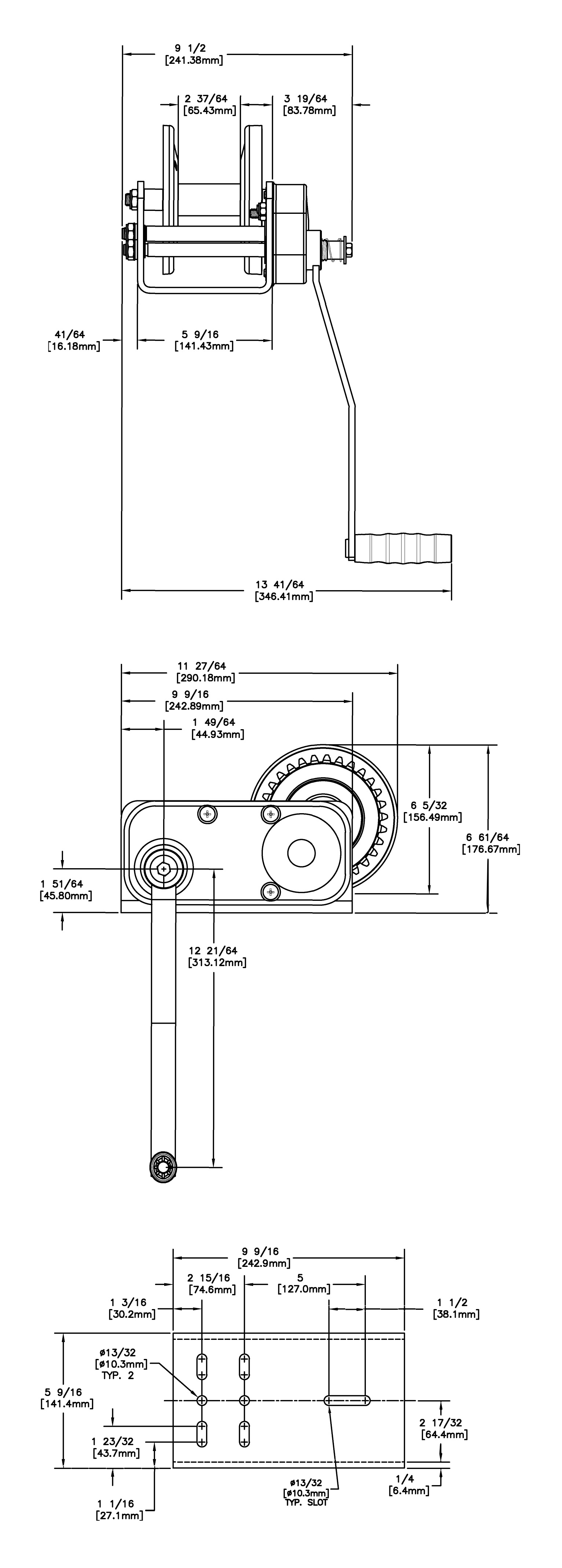

    Dimensional Drawing 1

    Specs & Ratings

    Cable/Drum Capacity
    First layer - ft (m) Mid drum - ft (m) Full drum - ft (m)
    Based on 5/16" wire rope 7 (2.13) 42 (12.80) 45 (13.72)
    Load Rating - lb (kg) 2500 (1136.36) 2000 (909.09) 1550 (704.55)
    Capacity - lb (kg) 2500 (1136.36)
    Gear Ratio 17.3:1
    Dimensional Information - in (mm) A 6.95 (176.53)
    B 11.42 (290.07)
    C 5.56 (141.22)
    D 12.33 (313.18)
    E 1.39 (35.31)
    F 13.64 (346.46)
    G 2.42 (61.47)
    H 4 (101.60)
    I 2.50 (63.50)
    J 6.16 (156.46)
    K 17.48 (443.99)
    L 8.86 (225.04)
    M 0.25 (6.35)
    Net weight - lb (kg) 24 (10.91)
    Cable not included

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
