Electric Builder's Hoist

OBHW500

Electric Builder's Hoist

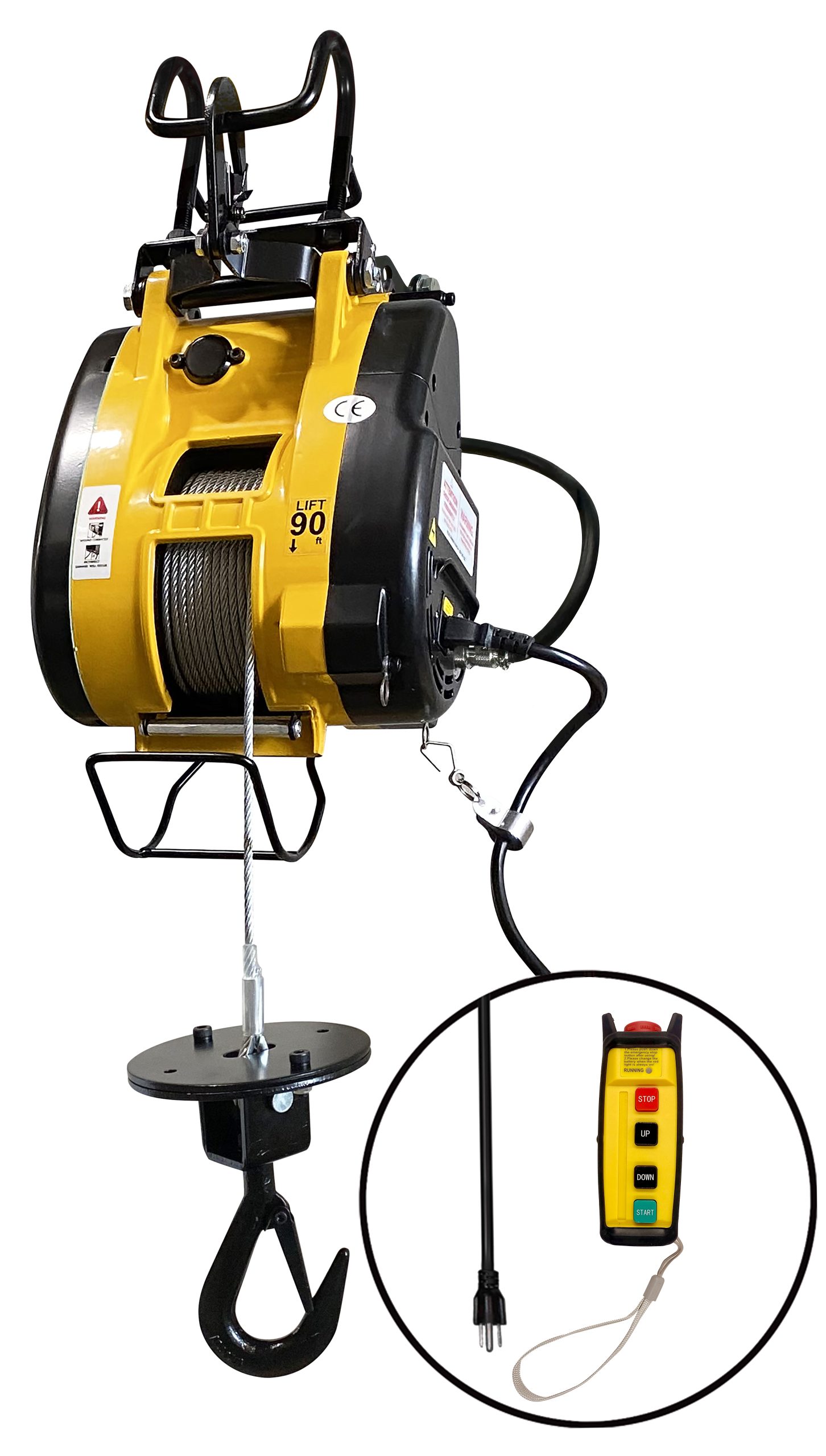

500 lb Electric Builder’s Hoist with 90 ft of lift & wireless adapter

Standards – CE, FCC

Experience the ultimate in lifting convenience with the Electric Builder’s Hoist by OZ Lifting Products. Offering a 500 lb lifting capacity, this versatile hoist can be controlled via a wired pendant or an intuitive wireless remote, allowing for flexibility and ease of use. Its 2 1/2 hp motor ensures powerful and reliable performance, while the 360-degree swivel hook provides maximum maneuverability. Designed with a compact footprint and featuring a dynamic braking system, the OBHW500 guarantees smooth and secure operation. Enhanced with upper and lower limit switches for added safety, this hoist is perfect for industrial applications and operates seamlessly on a standard 115V power source. CE and FCC certifications further affirm its exceptional quality and safety.

  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding
  • Galvanized wire rope with 360-degree weighted swivel hook includes safety latch
  • Quick-release pendant and power cords
  • Standard 115V power source-compatible
  • Individual serial number and test certificate
  • Choose between a standard corded pendant (OBH) for easy operation or a wireless remote (OBHW) for added versatility and freedom of movement

OBHW500

500 lb Electric Builder’s Hoist with 90 ft of lift & wireless adapter

    Videos

    Photos

    Add-Ons

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Full Drum Lifting Capacity –  lb (kg) 500 (227.27)
    Motor Voltage 115/1/60
    Speed - FPM (mpm) 75 (22.86)
    Motor (HP) 1.74
    Motor KW 1300W/15.5A
    Lifting Height - ft (m) 90 (27.43)
    Wire Rope - in (mm) 3/16 (76.2/406.4)
    Net Weight - lb (kg) 54 (24.55)
    Power Cord Length - ft (m) 15 (4.57)
    Pendant length - ft (m) 65 (19.81)
    Full Load (amps) 17.5
    Duty Cycle (min) 15 (25%)
    Wireless YES
    Height (A) - in (mm) 26.77 (679.96)
    Width (B) - in (mm) 9.50 (241.30)
    Depth (C) - in (mm) 7.88 (200.15)
    Hanger Width (D) - in (mm) 4.50 (114.30)
    Hanger Opening (E) - in (mm) 2 (50.80)
    Hook Opening (F) - in (mm) 1.62 (41.15)
    ASME Duty Classes Service Classification Description
    H1 Infrequent or Standby Idle 1-6 months, use for installations and/or maintenance
    H2 Light Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time
    H3 Standard General machining, randomly distributed loads, total running time ≤25% of working period
    H4 Heavy High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period
    H5 Severe Bulk material handling with attachments, approach continuous operation
