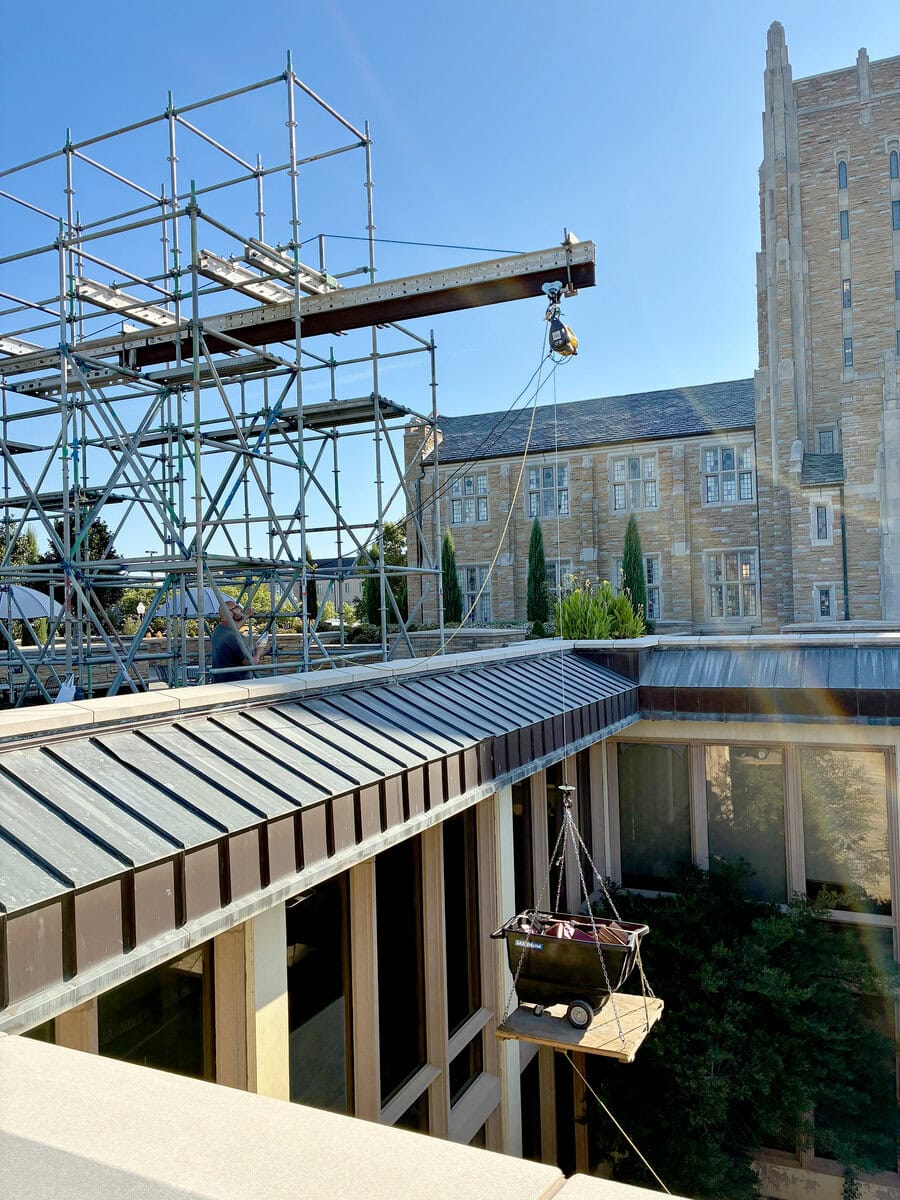

Elevate your lifting game with the Electric Builder’s Hoist from OZ Lifting Products. Engineered for industrial-grade performance, this robust hoist features a 500 lb lifting capacity and is equipped with a reliable wired pendant for precise control. Powered by a 2 1/2 hp motor, it delivers smooth and efficient lifting with a 360-degree swivel hook for versatile operation. The compact design and advanced dynamic braking system ensure stable and secure handling, while the integrated upper and lower limit switches provide added safety. Ideal for demanding job sites, the OBH500 operates on a standard 115V power source and meets CE and FCC standards for quality and safety.
Tell us about your needs and we will match you with the ideal lifting solution
| Full Drum Lifting Capacity – lb (kg) | 500 (227.27) |
| Motor Voltage | 115/1/60 |
| Speed - FPM (mpm) | 75 (22.86) |
| Motor (HP) | 1.74 |
| Motor KW | 1300W/15.5A |
| Lifting Height - ft (m) | 90 (27.43) |
| Wire Rope - in (mm) | 3/16 (76.2/406.4) |
| Net Weight - lb (kg) | 54 (24.55) |
| Power Cord Length - ft (m) | 15 (4.57) |
| Pendant length - ft (m) | 65 (19.81) |
| Full Load (amps) | 17.5 |
| Duty Cycle (min) | 15 (25%) |
| Wireless | NO |
| Height (A) - in (mm) | 26.77 (679.96) |
| Width (B) - in (mm) | 9.50 (241.30) |
| Depth (C) - in (mm) | 7.88 (200.15) |
| Hanger Width (D) - in (mm) | 4.50 (114.30) |
| Hanger Opening (E) - in (mm) | 2 (50.80) |
| Hook Opening (F) - in (mm) | 1.62 (41.15) |
| ASME Duty Classes | Service Classification | Description |
| H1 | Infrequent or Standby | Idle 1-6 months, use for installations and/or maintenance |
| H2 | Light | Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time |
| H3 | Standard | General machining, randomly distributed loads, total running time ≤25% of working period |
| H4 | Heavy | High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period |
| H5 | Severe | Bulk material handling with attachments, approach continuous operation |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
