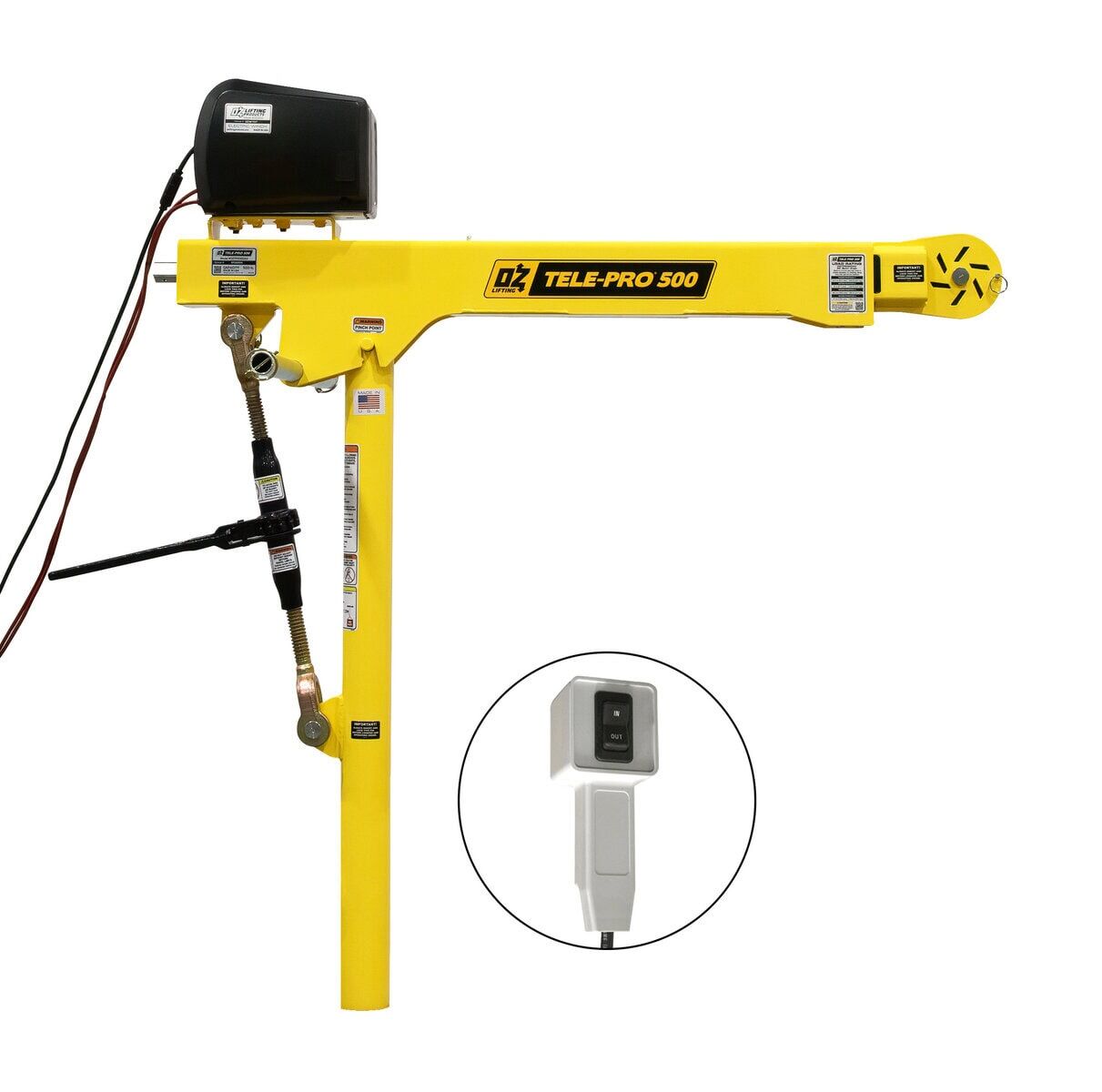

500 lb Tele-Pro® davit crane with 12V DC electric winch
500 lb Tele-Pro® davit crane with 12V DC electric winch - Image 2
500 lb Tele-Pro® davit crane with 12V DC electric winch - Image 3
500 lb Tele-Pro® davit crane with 12V DC electric winch - Image 4
500 lb Tele-Pro® davit crane with 12V DC electric winch - Image 5
500 lb Tele-Pro® davit crane with 12V DC electric winch - Image 6

OZTP500DAV-DCW Downloads

Download All
Download Icon
Tele-Pro-V2_OM_ENFRSP.pdf
Download Icon
Tele-Pro-Davit-Crane-V2.pdf
Download Icon
Application-Data-Sheet-1.pdf
Download Icon
Tele-Pro-500-OZTP500DAV-Davit-Crane-Specifications.pdf
Download Icon
OZTP500DAV.step
Download Icon
OZTP500DAV.pdf
Tele-Pro® Davit Crane

OZTP500DAV-DCW

Tele-Pro® Davit Crane

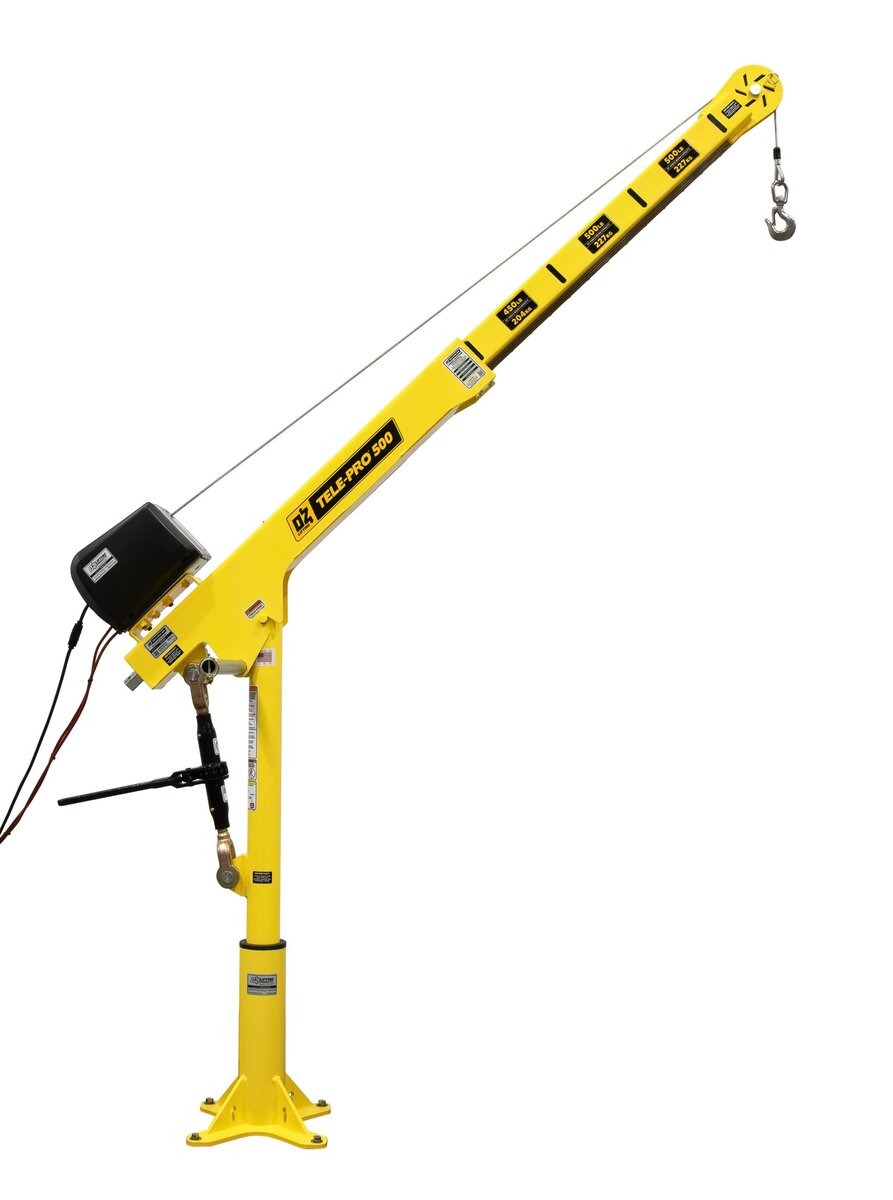

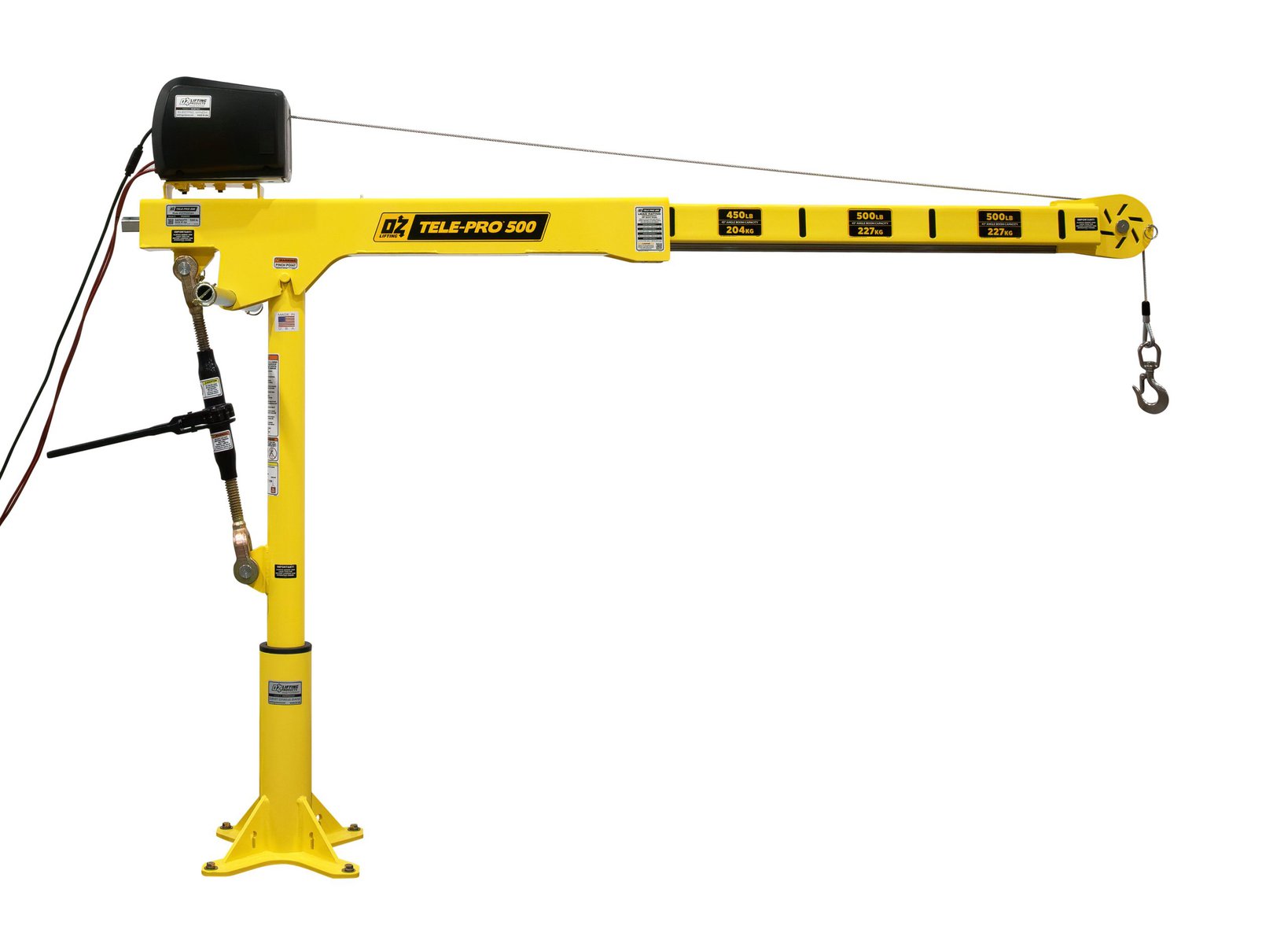

500 lb Tele-Pro® davit crane with 12V DC electric winch

Oz Product Patented Technology Badge  Oz Product Made in the USA Badge
The Tele-Pro® Davit Crane offers a 500 lb capacity and features a 12V DC electric winch. This model provides the versatility of DC power while benefiting from the crane’s patented telescoping boom for precise adjustments under load. With unmatched precision and control, 360-degree rotation, and easy no-tool assembly, it is designed to excel in various demanding lifting tasks.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

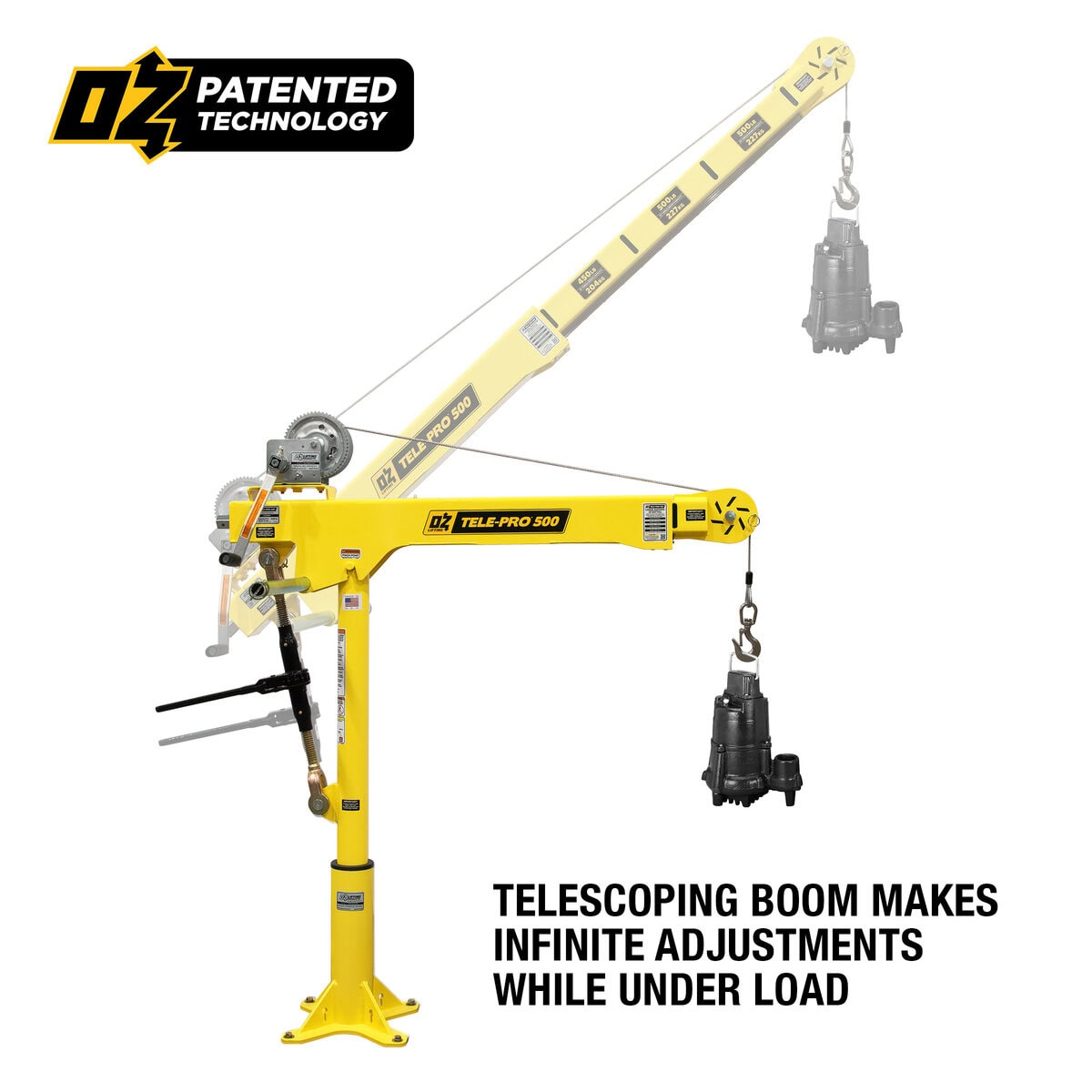

  • Telescoping boom makes infinite adjustments while under load
  • Smart Latch technology at boom/mast connection
  • Exterior-grade corrosion-resistant powder coat

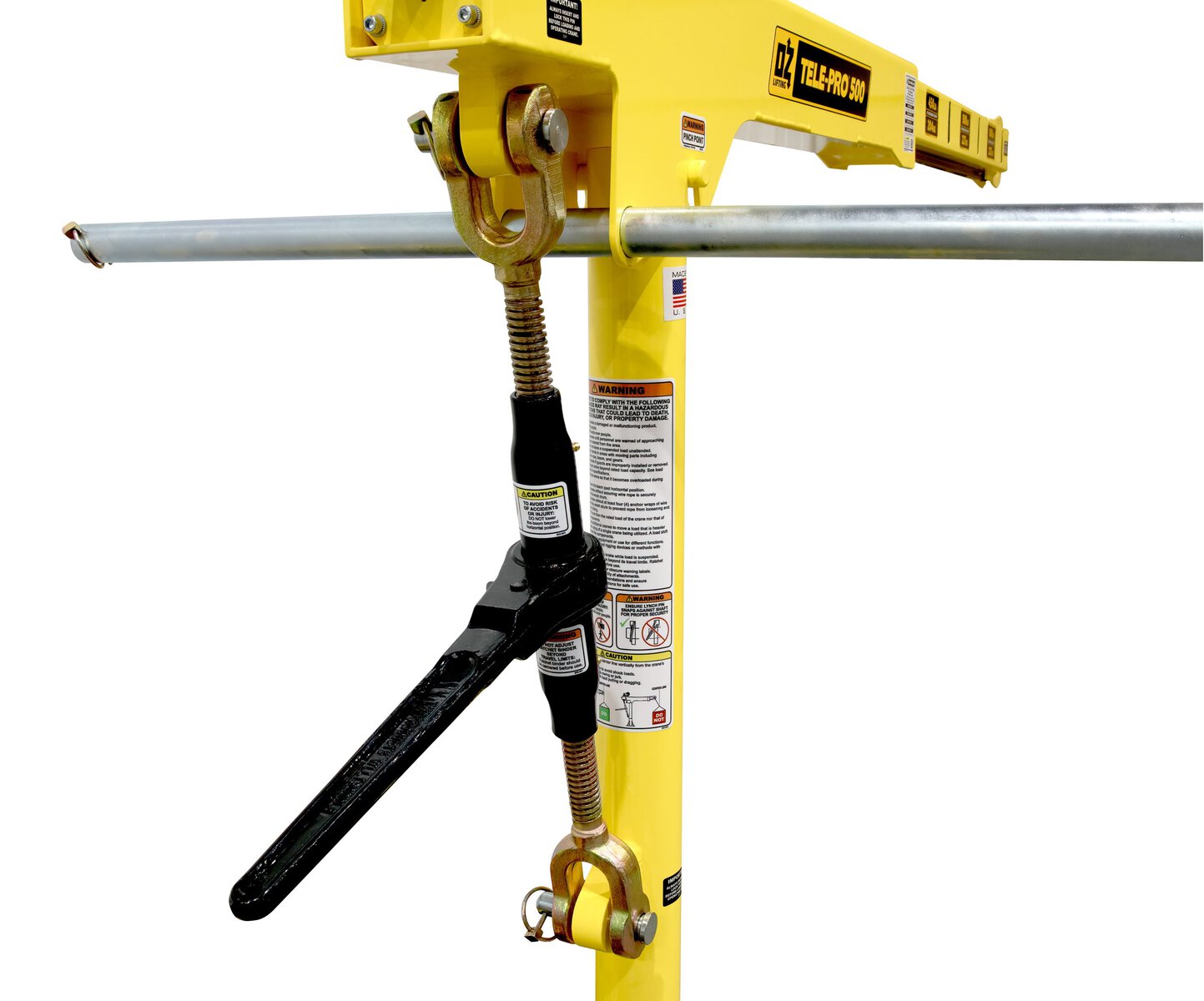

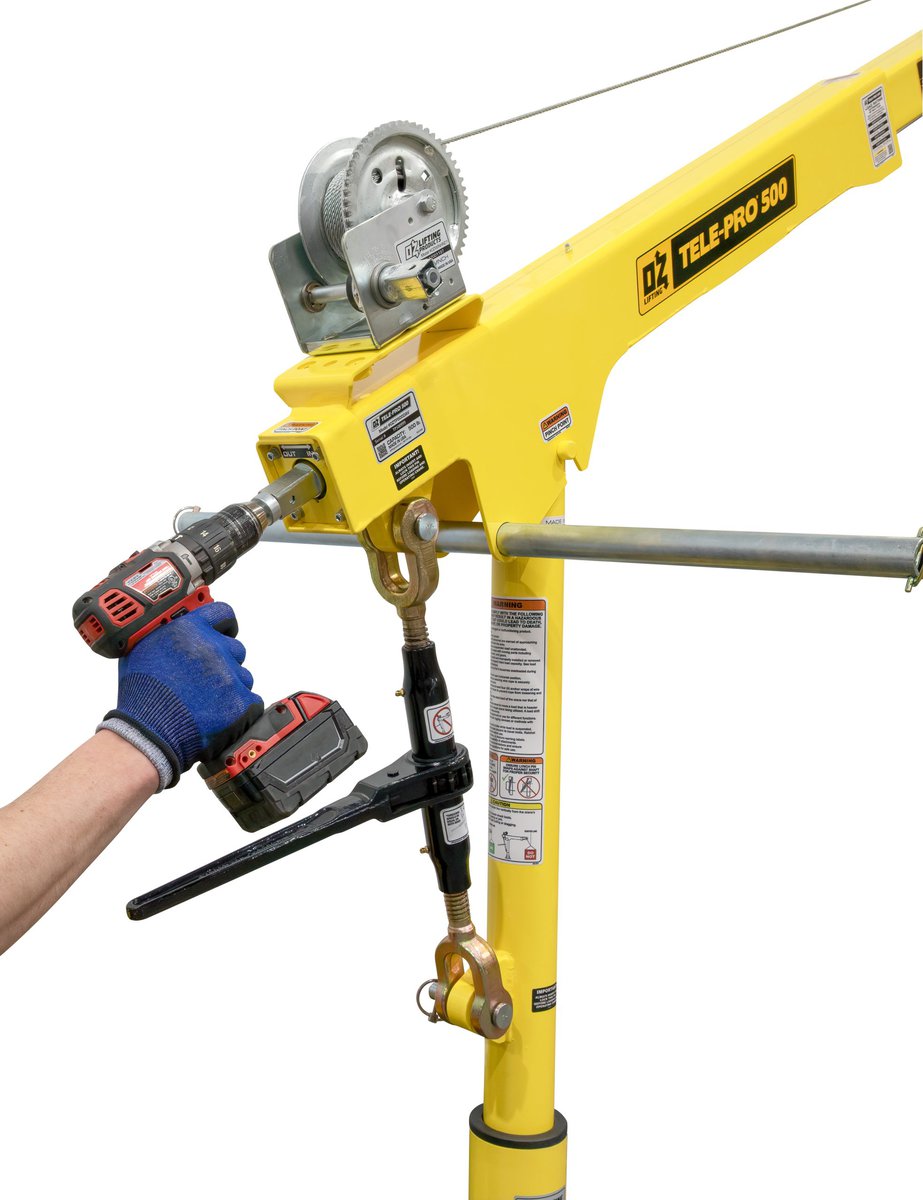

  • Ratchet binder adjusts boom under load
  • High-visibility dual load rating decals in both imperial and metric
  • 360-degree rotation
  • Fabricated by certified welders following strict AWS.D1.1 standards
  • No tools required for assembly and installation
  • 12V DC electric winch
  • Manual & AC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

Start Now

OZTP500DAV-DCW

500 lb Tele-Pro® davit crane with 12V DC electric winch

    Get Started
    Download Specs

    Photos

    Add-Ons

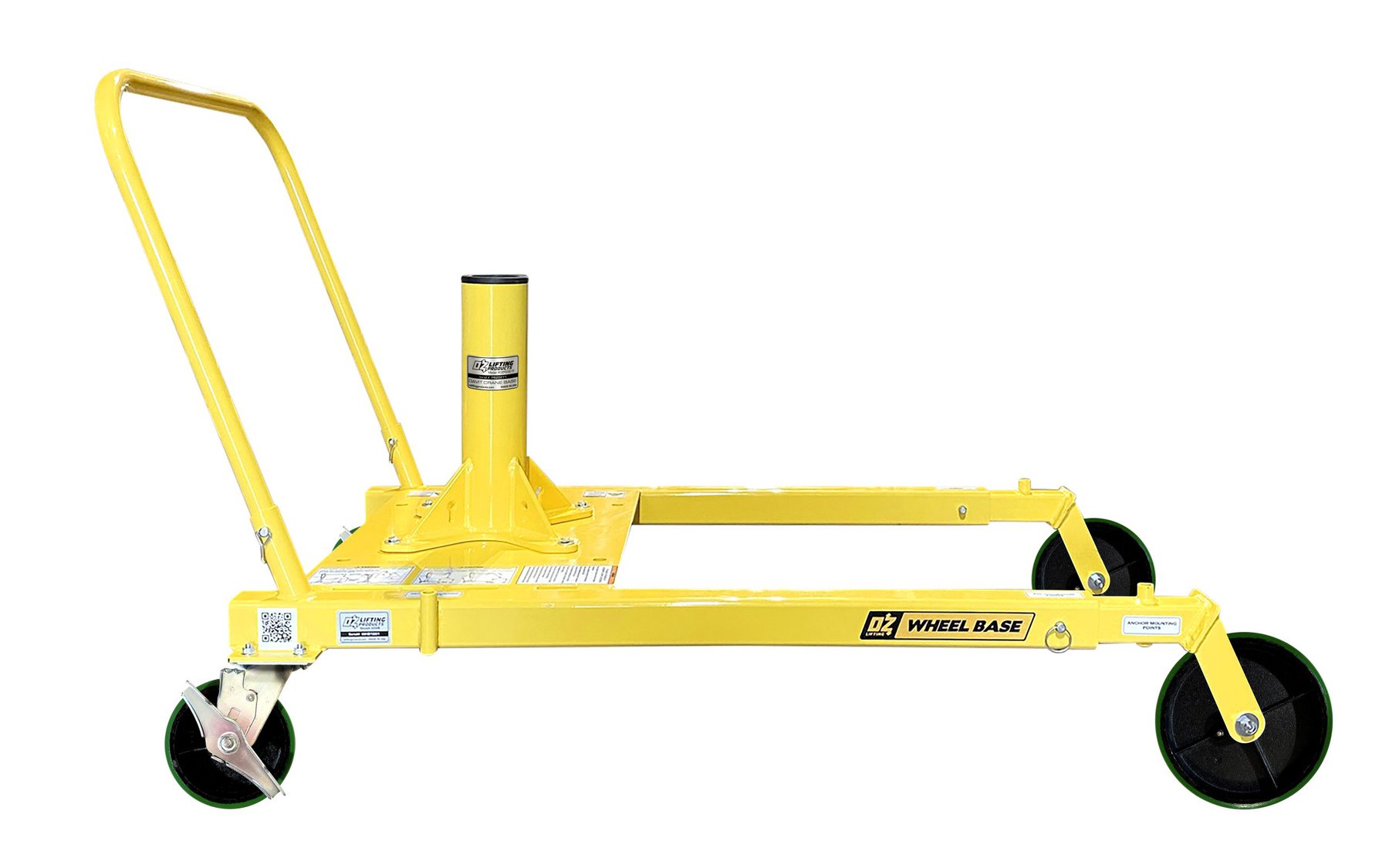

    OZWB2-TP

    Wheel Base for use with OZTP500DAV davit crane (Pedestal base and locking collar included)

    View Product

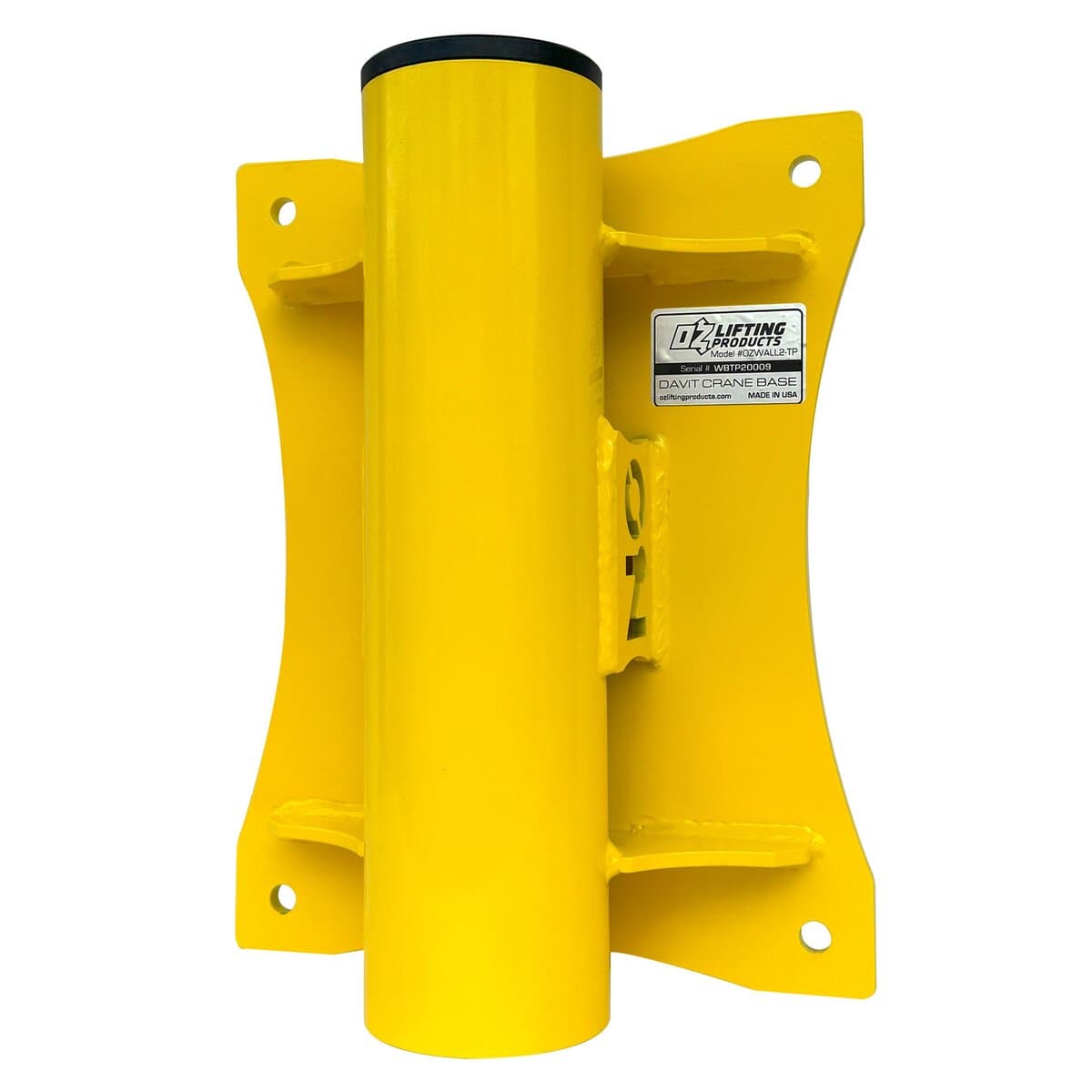

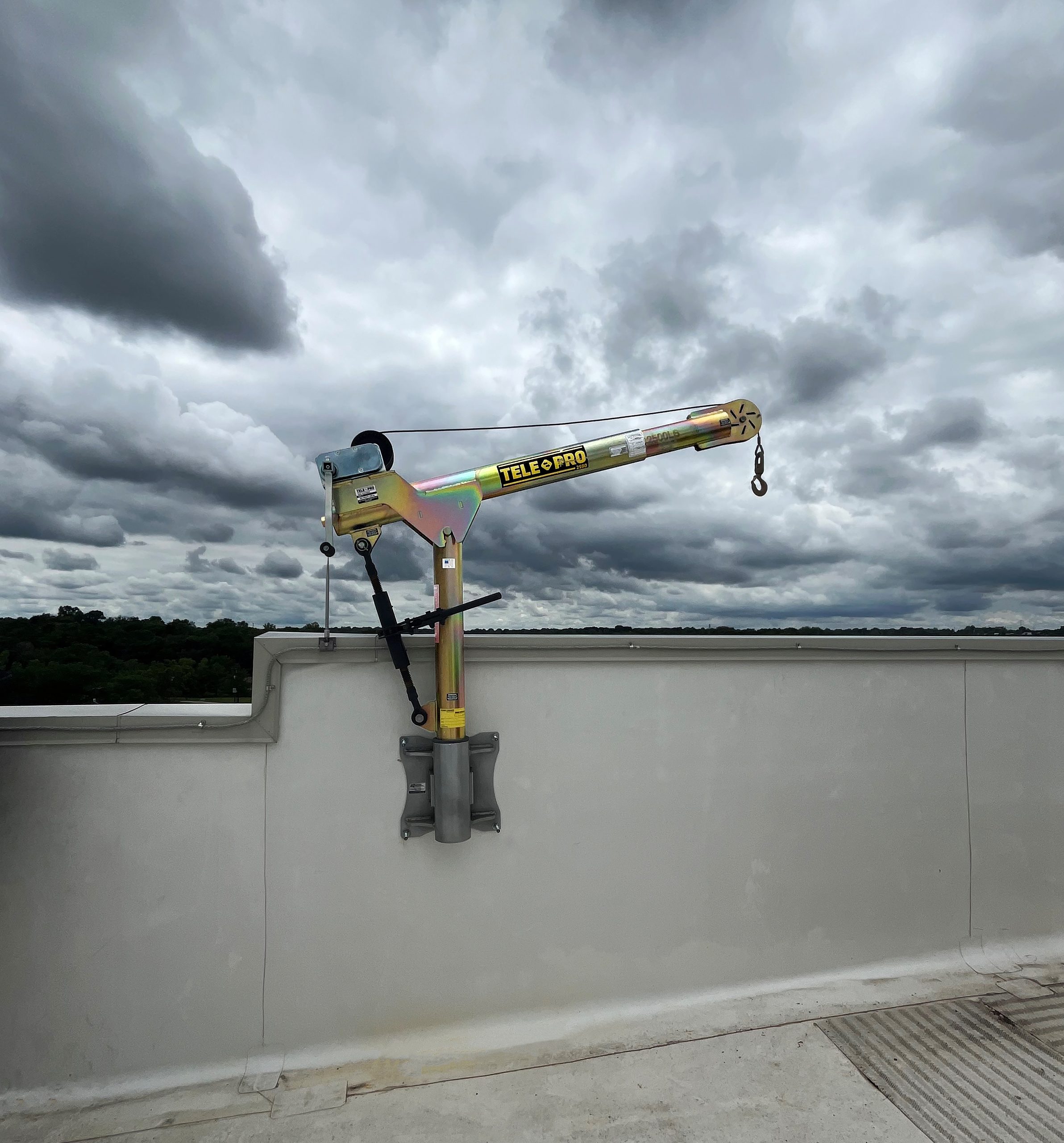

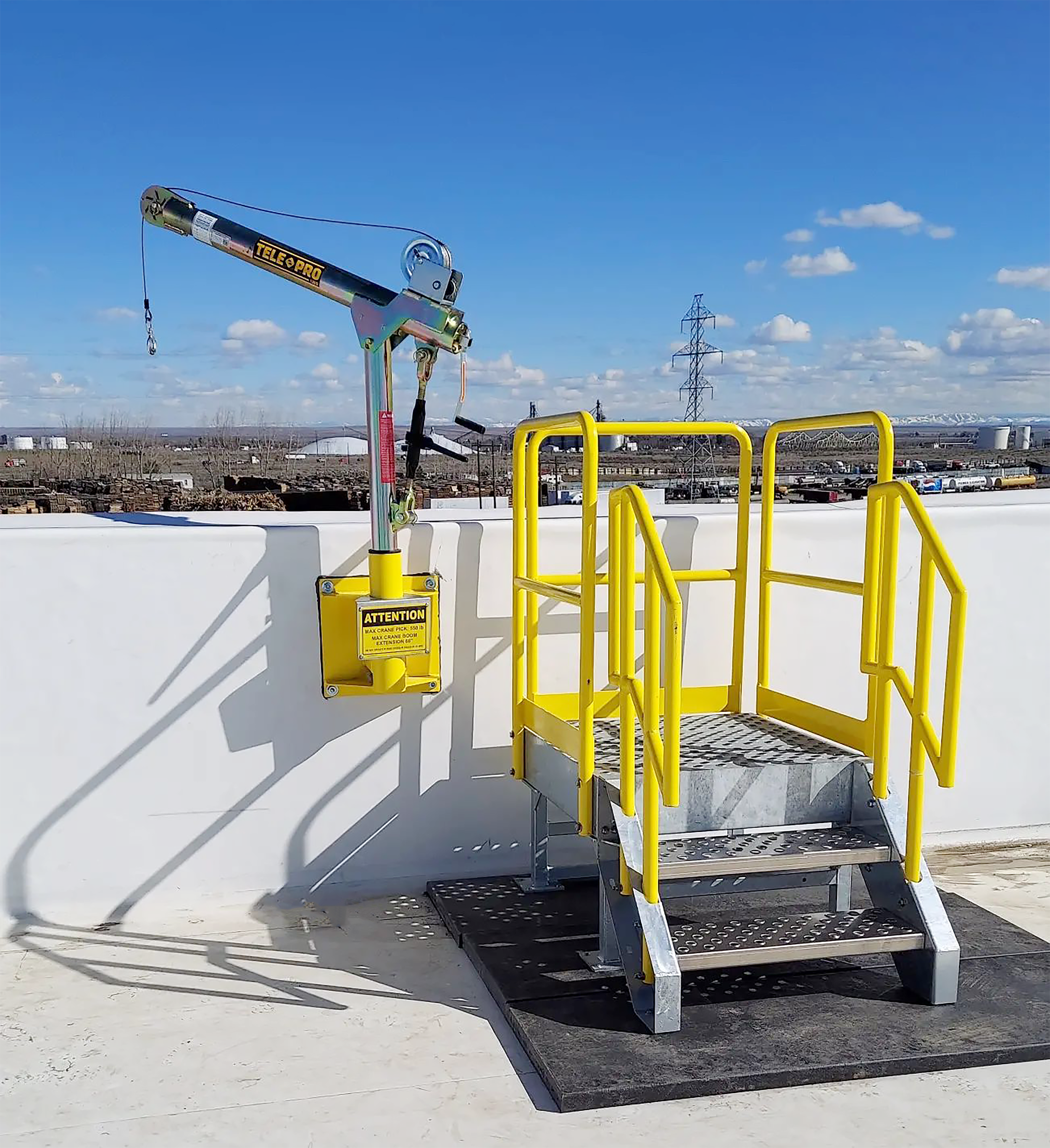

    OZWALL2-TP

    Wall mount base for OZTP500DAV Tele-Pro® davit crane

    View Product

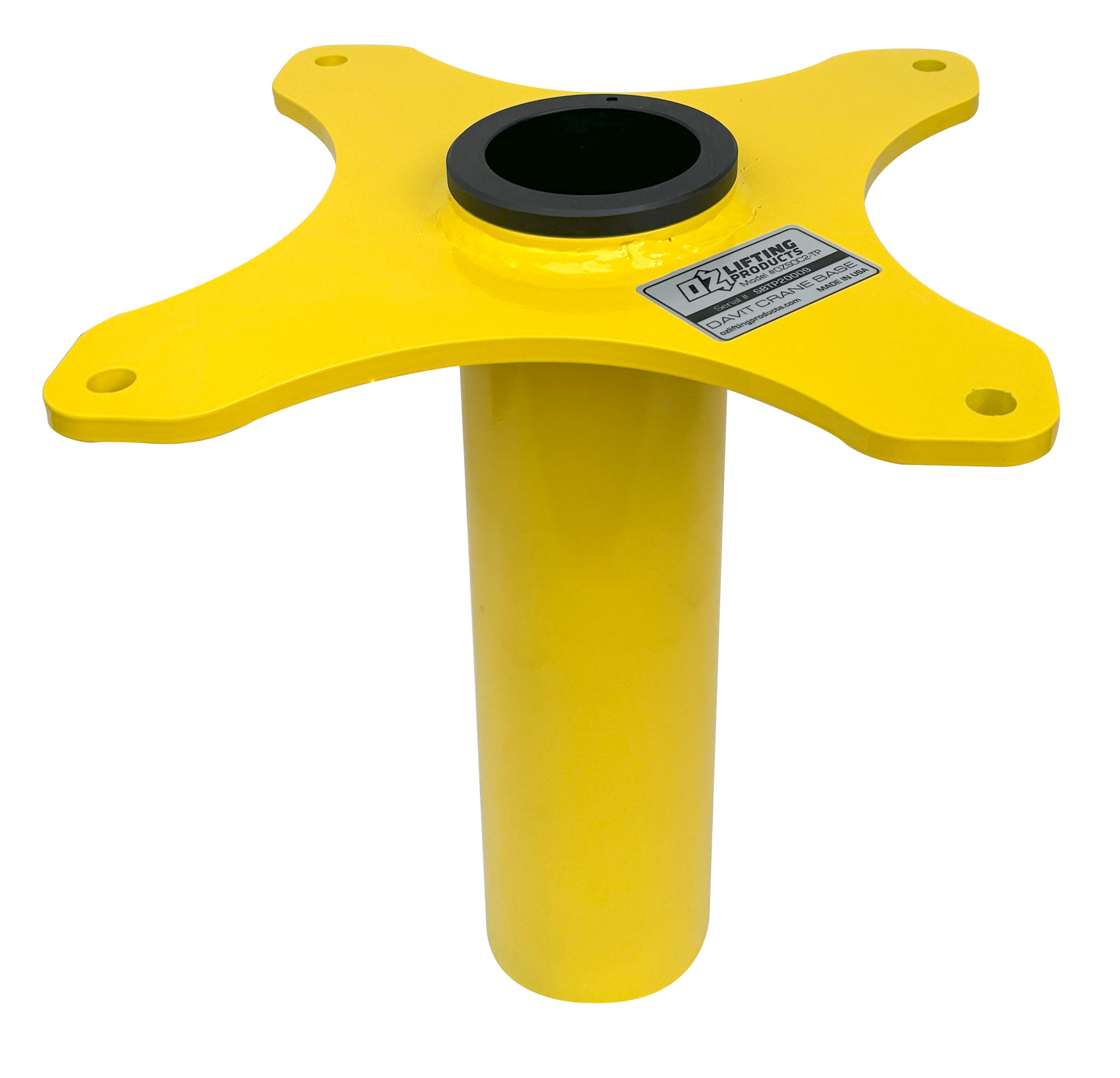

    OZSOC2-TP

    Socket base for OZTP500DAV Tele-Pro® davit crane

    View Product

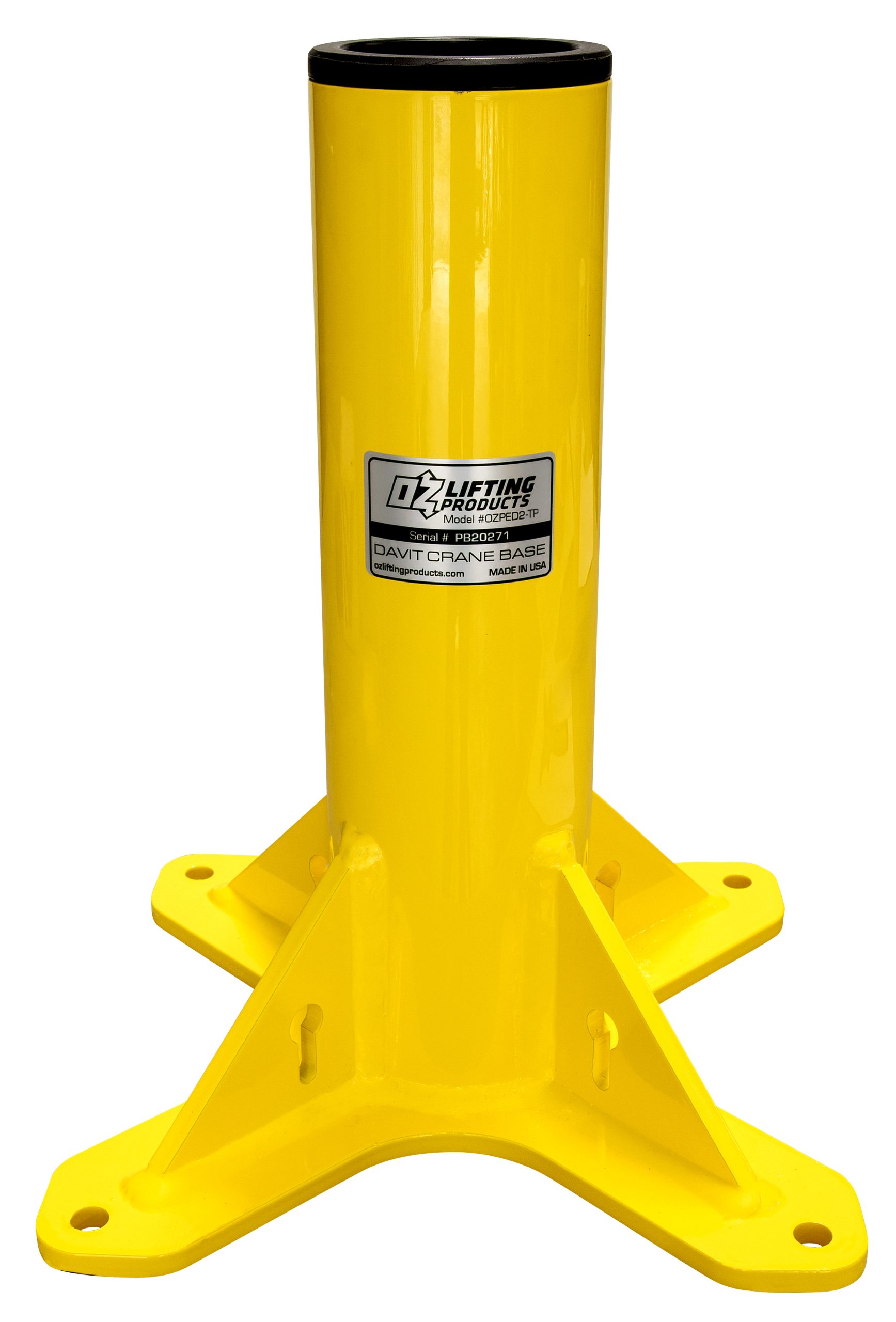

    OZPED2-TP

    Pedestal base for OZTP500DAV Tele-Pro® davit crane

    View Product

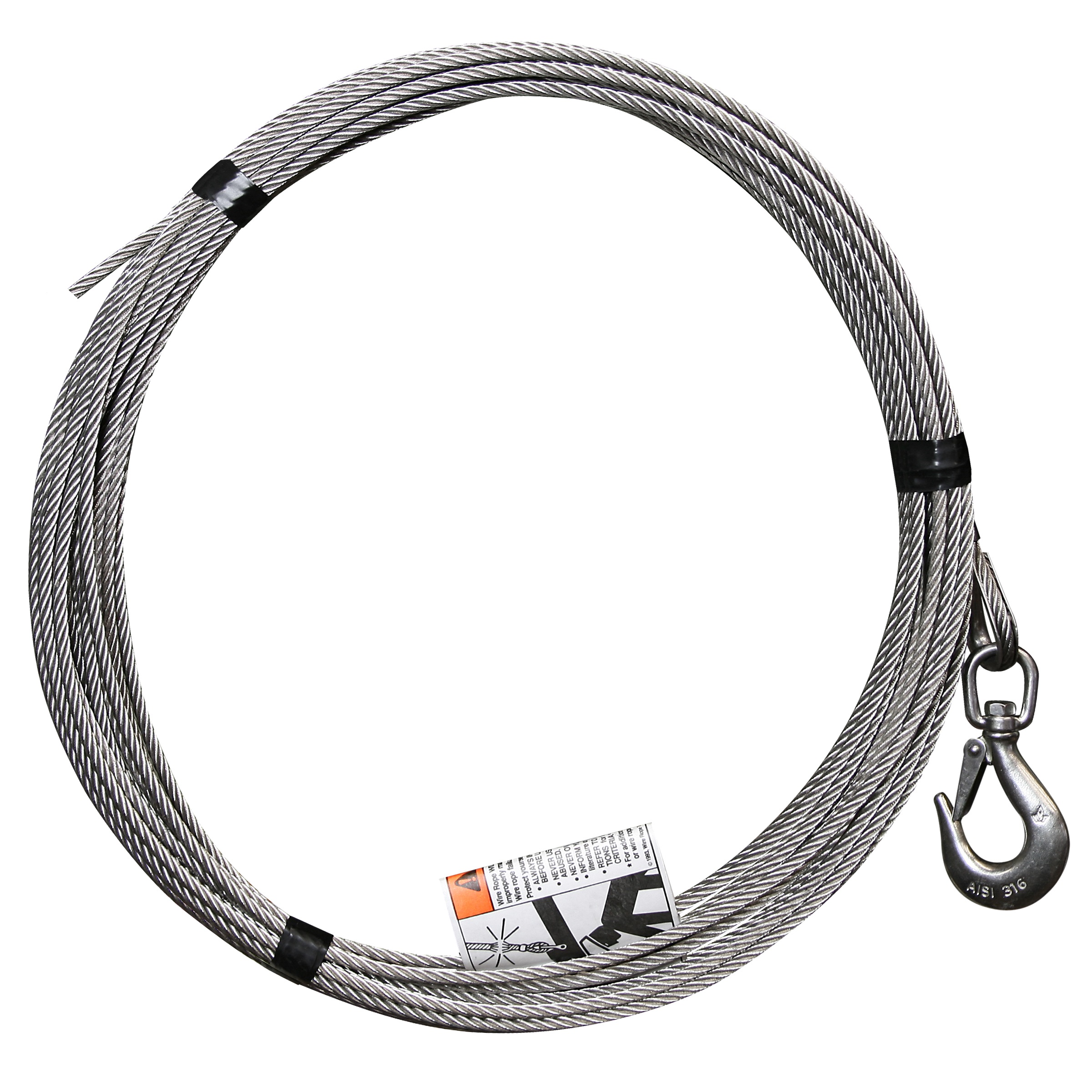

    OZSS.19-90

    3/16″ x 90′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-80

    3/16″ x 80′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

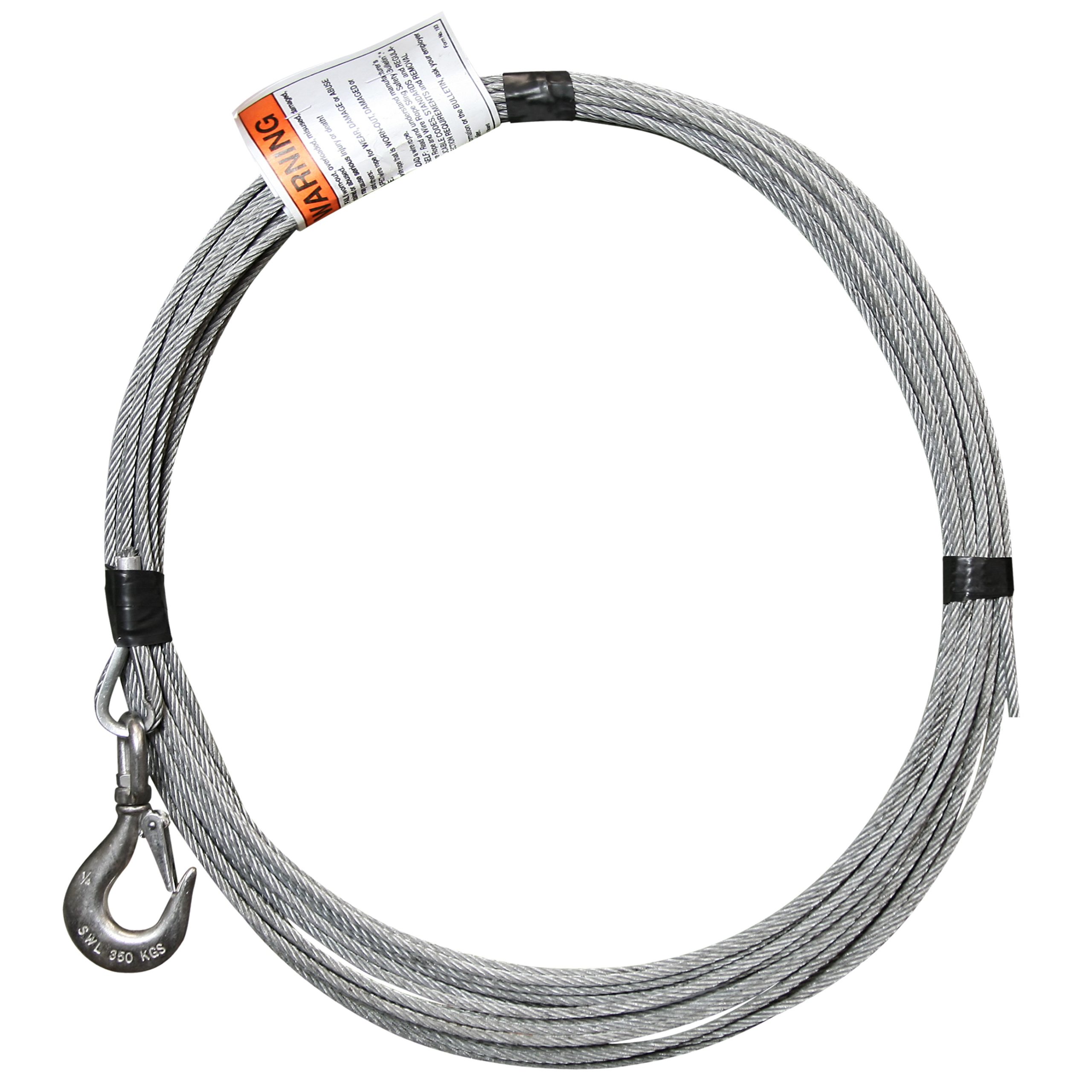

    OZGAL.19-80

    3/16″ x 80′ lift – Galvanized cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-70

    3/16″ x 70′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-60

    3/16″ x 60′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-50

    3/16″ x 50′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-40

    3/16″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-30

    3/16″ x 30′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-20

    3/16″ x 20′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-10

    3/16″ x 10′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZHB10

    10 lb headache ball for use with 3/16″ and 1/4″ wire rope

    View Product

    OZSS.25-45

    1/4″ x 45′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-40

    1/4″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-35

    1/4″ x 35′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-30

    1/4″ x 30′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-25

    1/4″ x 25′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-20

    1/4″ x 20′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-15

    1/4″ x 15′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-10

    1/4″ x 10′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    System Components

    Drawings

    Dimensional Drawing 1

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZTP500DAV - lb (kg) 88 (40) 23 (10.45) 111 (50.45)
    * Weights excluding winch
    Load Ratings
    Horizontal Boom Angle - Based on 3/16″ wire/synthetic rope
    First Layer Mid Drum Full Drum
    Boom Position 1 at 36” - lb (kg) 500 (227.27) 500 (227.27) 500 (227.27)
    Boom Position 2 at 46” - lb (kg) 430 (195.45) 430 (195.45) 430 (195.45)
    Boom Position 3 at 56” - lb (kg) 350 (159.09) 350 (159.09) 350 (159.09)
    Boom Position 4 at 66” - lb (kg) 300 (136.36) 300 (136.36) 300 (136.36)
    45° Boom Angle - Based on 3/16″ wire/synthetic rope
    First Layer Mid Drum Full Drum
    Boom Position 1 at 23” - lb (kg) 500 (227.27) 500 (227.27) 500 (227.27)
    Boom Position 2 at 30” - lb (kg) 500 (227.27) 500 (227.27) 500 (227.27)
    Boom Position 3 at 37” - lb (kg) 500 (227.27) 500 (227.27) 500 (227.27)
    Boom Position 4 at 44” - lb (kg) 450 (204.55) 450 (204.55) 450 (204.55)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZTP500DAV 21,879 2,472 1/2″ Grade 5 (M12)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZTP500DAV 1011 (459.55) 4,497 824 (374.55) 3,665 695 (315.91) 3,093

    Get a Custom Davit Crane Recommendation

    Tell us about your needs and we will match you with the ideal lifting solution

    Start Now

    IMPORTANT!

    Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
