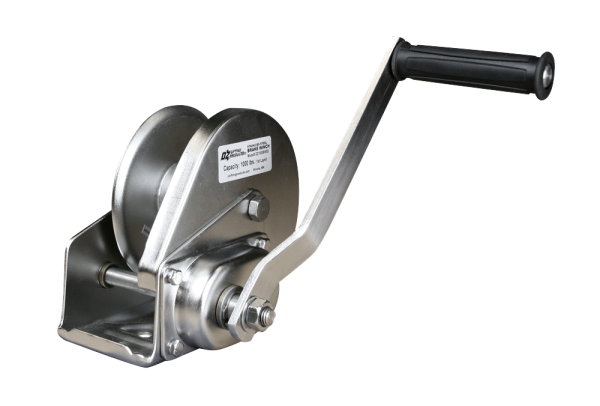

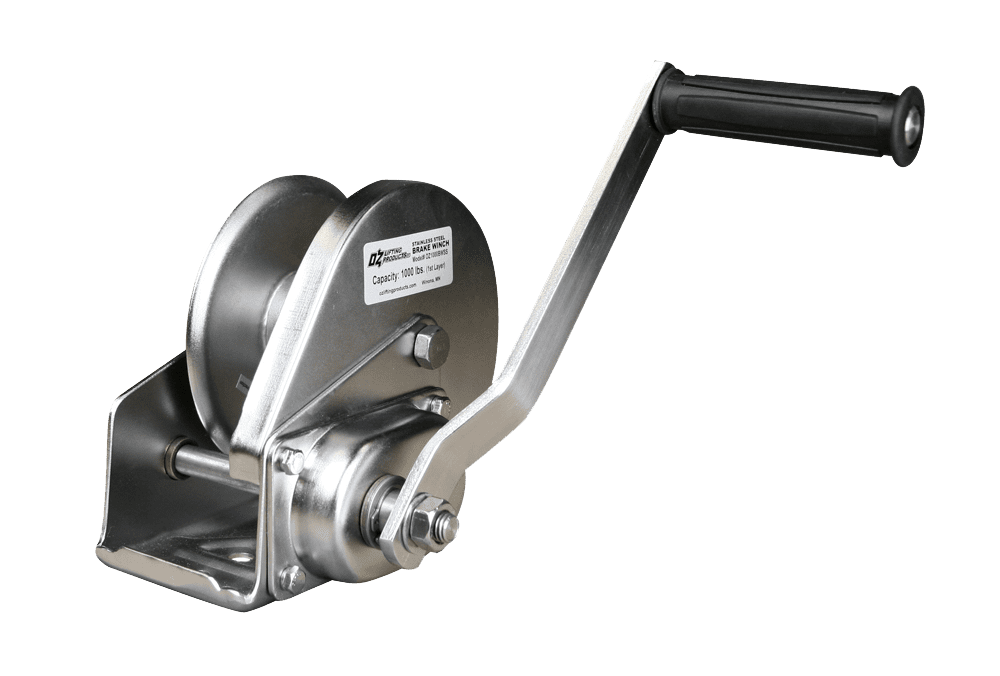

The Stainless Steel Brake Winch with a 1000 lb capacity is ideal for environments where corrosion resistance is crucial. With a rugged stainless steel build, this winch offers durability and reliability in demanding lifting applications. It features an ergonomic rubber handle for user comfort, an automatic weatherproof Weston brake for safety, and a high gear ratio that ensures efficient operation. Its versatile design allows for multiple frame mounting positions.
Tell us about your needs and we will match you with the ideal lifting solution
| Cable/Drum Capacity | |||
| First layer - ft (m) | Mid drum - ft (m) | Full drum - ft (m) | |
| Based on 1/8" wire rope | 7 (2.13) | 74 (22.56) | 140 (42.67) |
| Based on 3/16" wire rope | 5 (1.52) | 34 (10.36) | 75 (22.86) |
| Load Rating - lb (kg) | 1000 (454.55) | 750 (340.91) | 500 (227.27) |
| Capacity - lb (kg) | 1000 (454.55) | |
| Gear Ratio | 4.2:1 | |

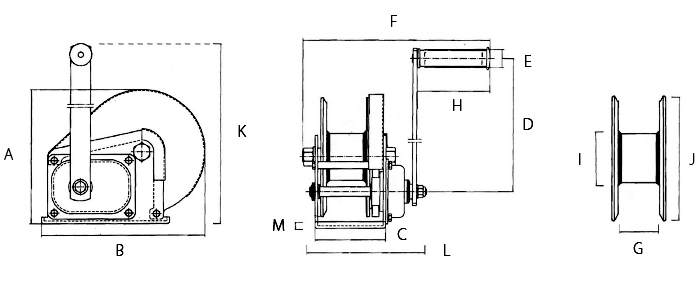

| Dimensional Information - in (mm) | A | 6.22 (157.99) |
| B | 7.20 (182.88) | |
| C | 3.46 (87.88) | |
| D | 8.26 (209.80) | |
| E | 1.06 (26.92) | |
| F | 10.43 (264.92) | |
| G | 1.98 (50.29) | |
| H | 4.29 (108.97) | |
| I | 1.59 (40.39) BW – 1.98 (50.29) BWSS | |
| J | 5.33 (135.38) | |
| K | 10.20 (259.08) | |
| L | 5.98 (151.89) | |
| M | 0.12 (3.05) | |
| Net weight - lb (kg) | 8 (3.64) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
