OZ1000BWSS-LH

Manual Stainless Steel Brake Winch

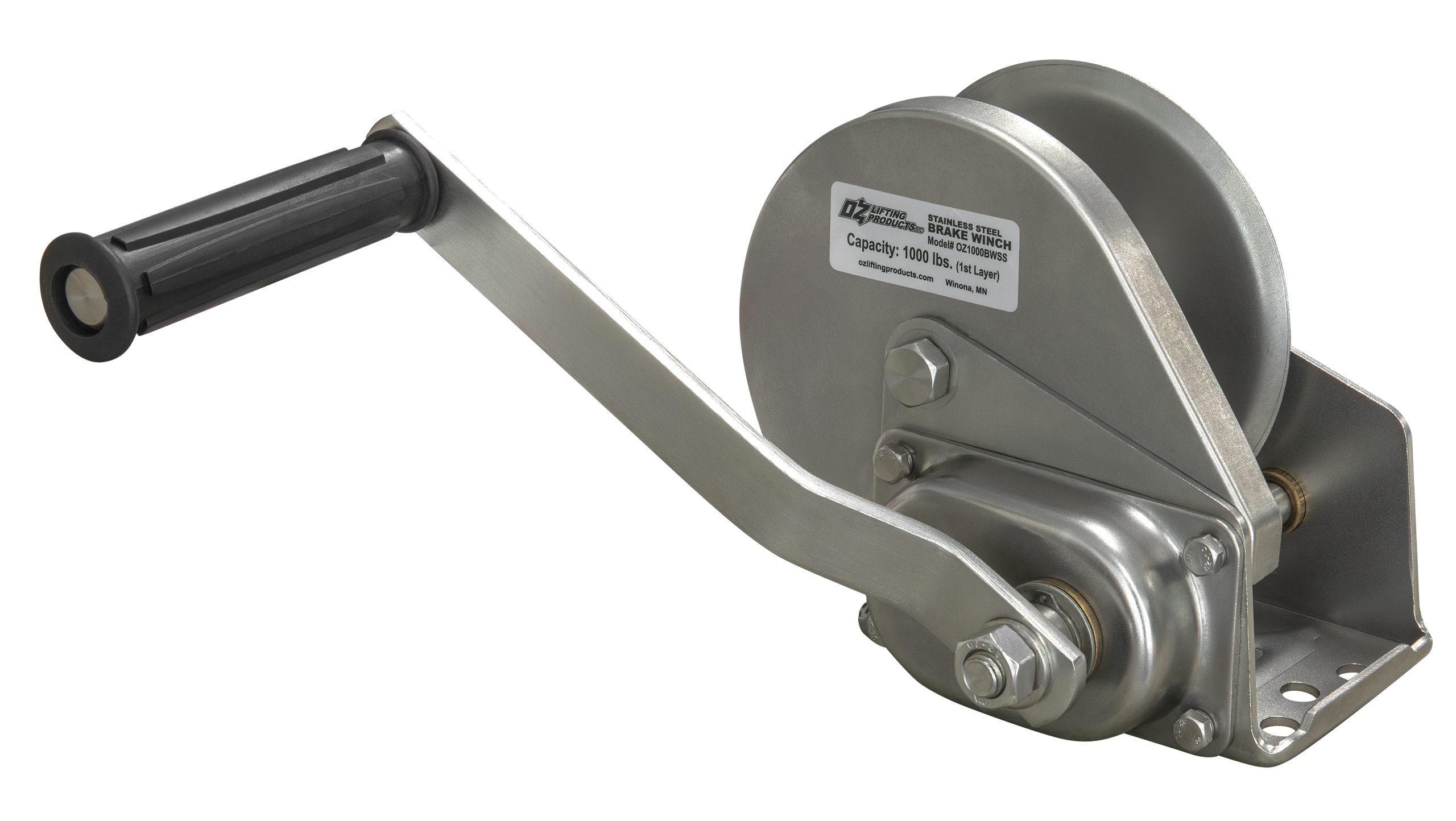

1000 lb stainless steel brake winch with left handed handle

Standards – CE

This left-handed Stainless Steel Brake Winch with a 1000 lb capacity is designed for specialized applications where left-hand operation is required. Featuring a durable stainless steel construction, it meets the highest standards for performance and longevity. The ergonomic rubber handle and automatic weatherproof Weston brake enhance usability, while the large diameter drum and dual cable anchor points provide versatility in various lifting scenarios.

  • All-steel construction
  • Automatic weatherproof Weston brake
  • Compact design
  • Dual cable anchor point
  • Ergonomic rubber handle
  • Large diameter drum
  • Multiple frame mounting positions
  • Fully-enclosed gearing
  • High gear ratio
  • Solid machined gear
  • Test certificate & serial number

OZ1000BWSS-LH

1000 lb stainless steel brake winch with left handed handle

    Get Started

    Videos

    Photos

    Add-Ons

    OZSS.19-70B

    3/16″ x 70′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-60B

    3/16″ x 60′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-50B

    3/16″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-40B

    3/16″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-30B

    3/16″ x 30′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-20B

    3/16″ x 20′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-10B

    3/16″ x 10′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Cable/Drum Capacity
    First layer - ft (m) Mid drum - ft (m) Full drum - ft (m)
    Based on 1/8" wire rope 7 (2.13) 74 (22.56) 140 (42.67)
    Based on 3/16" wire rope 5 (1.52) 34 (10.36) 75 (22.86)
    Load Rating - lb (kg) 1000 (454.55) 750 (340.91) 500 (227.27)
    Capacity - lb (kg) 1000 (454.55)
    Gear Ratio 4.2:1
    Dimensional Information - in (mm) A 6.22 (157.99)
    B 7.20 (182.88)
    C 3.46 (87.88)
    D 8.26 (209.80)
    E 1.06 (26.92)
    F 10.43 (264.92)
    G 1.98 (50.29)
    H 4.29 (108.97)
    I 1.90 (48.26) BW – 1.60 (40.64) BWSS
    J 5.33 (135.38)
    K 10.20 (259.08)
    L 5.98 (151.89)
    M 0.12 (3.05)
    Net weight - lb (kg) 8 (3.64)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
