DL Brake Winch

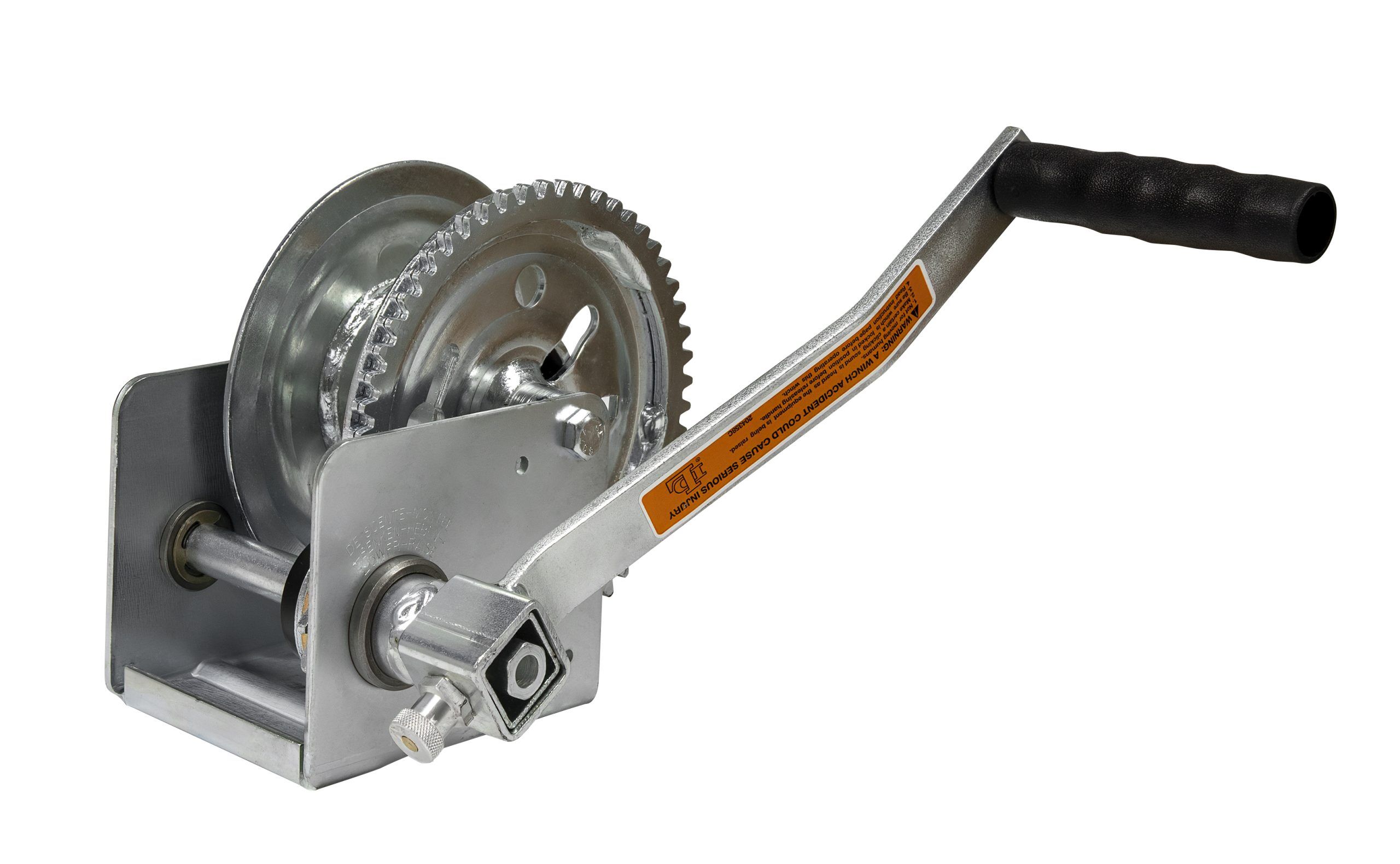

1200 lb carbon steel hand winch (Drill drive adapter included)

Standard – CE

Oz Product Made in the USA Badge

The OZ Lifting Products DL Carbon Steel Brake Winches are industrial-grade units designed to meet the rigorous demands of lifting applications. With a robust 1200 lb capacity and all-steel construction, these winches feature a compact design that allows for multiple frame mounting positions. Each winch includes an ergonomic rubber handle and comes equipped with a drill drive adapter for effortless operation. The automatic weatherproof Weston brake ensures reliable stopping power, while the fully enclosed, solid machined gears enhance durability. Additional features such as a dual cable anchor point, a large diameter drum, and a high gear ratio make these winches versatile for various applications. Each unit is accompanied by an ID tag for easy identification and includes an individual test certificate and serial number for traceability, all while meeting CE safety standards. Proudly made in the USA, these winches are engineered for efficiency and safety in any lifting task.

  • All-steel construction
  • Automatic weatherproof Weston brake
  • Compact design
  • Dual cable anchor point
  • Ergonomic rubber handle
  • Large diameter drum
  • Multiple frame mounting positions
  • Fully-enclosed gearing
  • High gear ratio
  • Solid machined gear
  • Test certificate & serial number

OZWINHND1

1200 lb carbon steel hand winch (Drill drive adapter included)

    Videos

    Photos

    Add-Ons

    Drawings

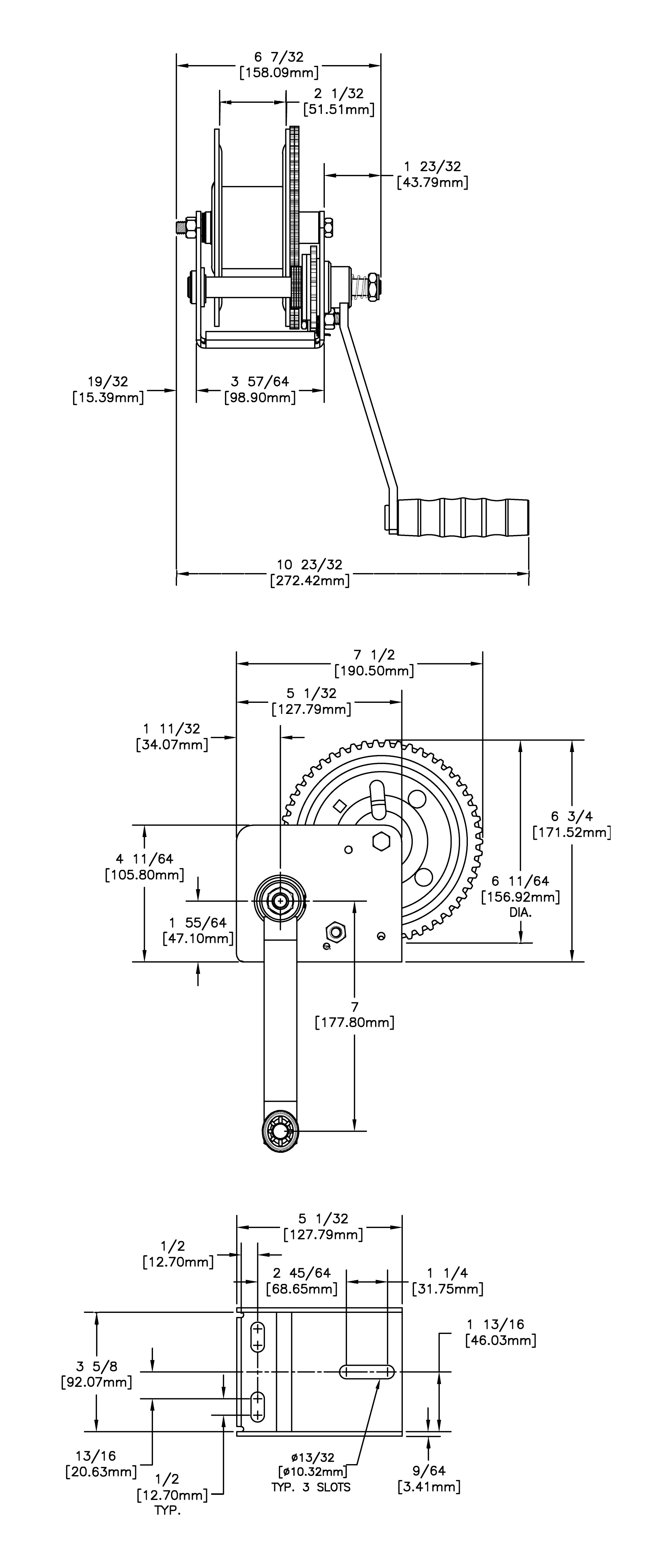

    Dimensional Drawing 1

    Specs & Ratings

    Cable/Drum Capacity
    First layer - ft (m) Mid drum - ft (m) Full drum - ft (m)
    Based on 3/16" wire rope 11 (3.35) 40 (12.19) 80 (24.38)
    Based on 1/4" wire rope 8 (2.44) 27 (8.23) 55 (16.76)
    Load Rating - lb (kg) 1200 (545.45) 875 (397.73) 550 (250)
    Capacity - lb (kg) 1200 (545.45
    Gear Ratio 5.4:1
    Dimensional Information - in (mm) A 6.75 (171.45)
    B 7.50 (190.50)
    C 3.89 (98.81)
    D 7 (177.80)
    E 1.15 (29.21)
    F 10.72 (272.288)
    G 2.03 (51.56)
    H 4 (101.60)
    I 2.50 (63.50)
    J 6.17 (156.72)
    K 11.89 (302.01)
    L 5.61 (142.49)
    M 0.15 (3.81)
    Net weight - lb (kg) 10 (4.55)
