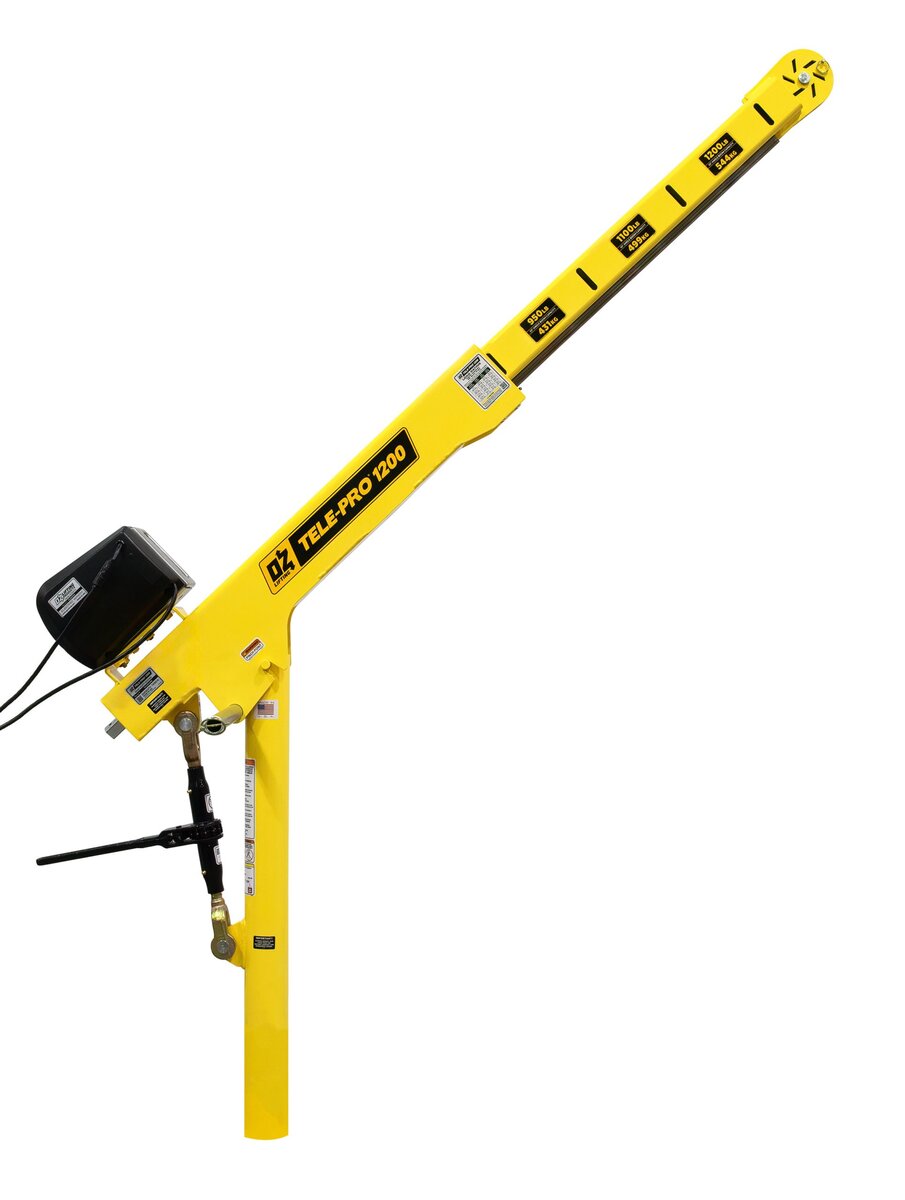

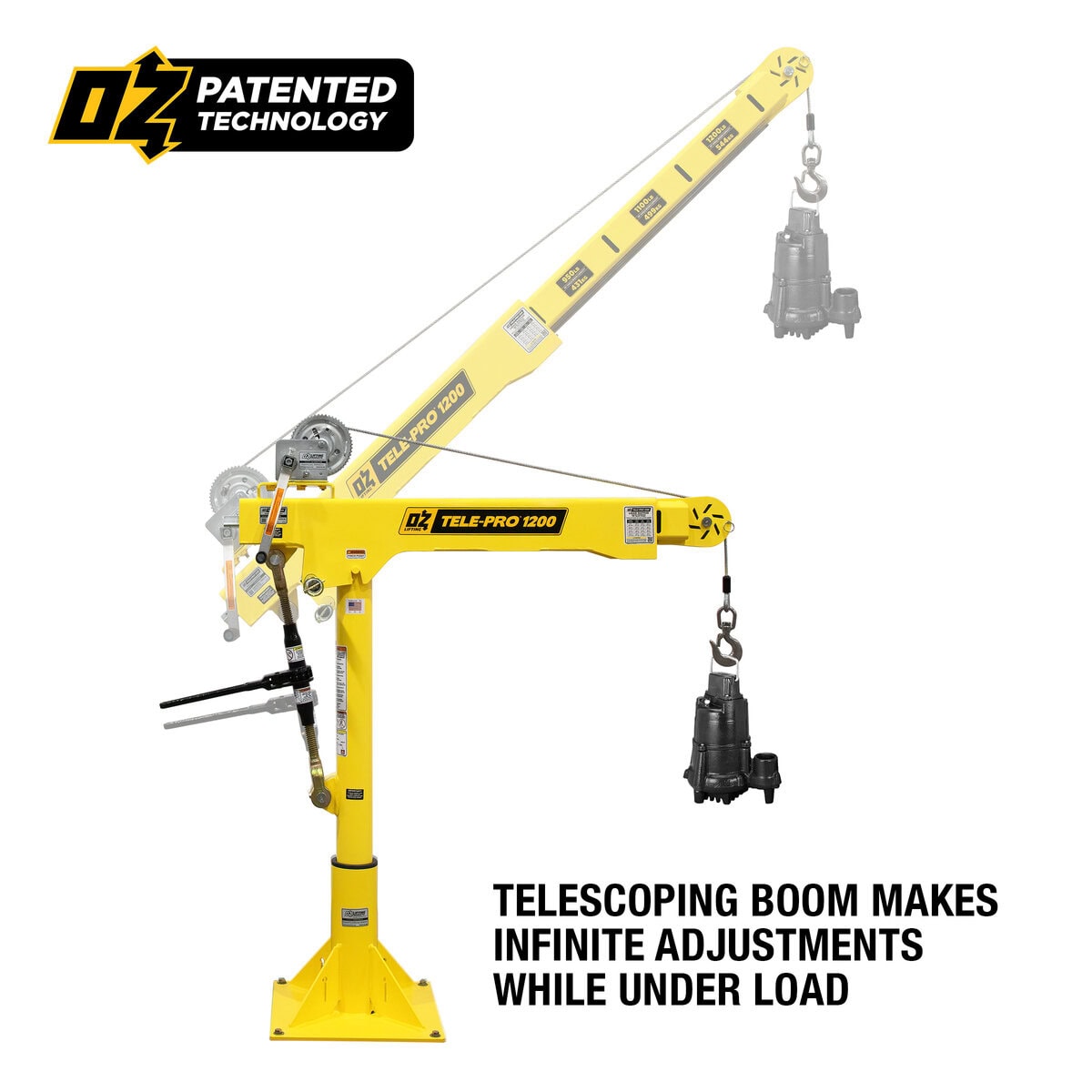

For powerful and efficient lifting, the Tele-Pro® Davit Crane is equipped with a 115V AC winch. Supporting a 1200 lb capacity, this model features the patented telescoping boom for accurate load adjustments. The crane’s unmatched precision and control, along with its 360-degree rotation and easy no-tool assembly, make it ideal for demanding environments.
NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.
Tell us about your needs and we will match you with the ideal lifting solution
| Product Weight | |||
| Boom | Mast | Net | |
| OZTP1200DAV - lb (kg) | 102 (46.36) | 36 (16.36) | 138 (62.73) |
| * Weights excluding winch |
| Load Ratings | |||
| Horizontal Boom Angle - Based on 3/16″ wire rope | |||
| First Layer | Mid Drum | Full Drum | |
| Boom Position 1 at 36” - lb (kg) | 800 (363.64) | 800 (363.64) | 550 (250) |
| Boom Position 2 at 46” - lb (kg) | 800 (363.64) | 800 (363.64) | 550 (250) |
| Boom Position 3 at 56” - lb (kg) | 750 (340.91) | 750 (340.91) | 550 (250) |
| Boom Position 4 at 66” - lb (kg) | 650 (295.45) | 650 (295.45) | 550 (250) |
| 45° Boom Angle - Based on 3/16″ wire rope | |||
| First Layer | Mid Drum | Full Drum | |
| Boom Position 1 at 23” - lb (kg) | 800 (363.64) | 800 (363.64) | 550 (250) |
| Boom Position 2 at 30.25” - lb (kg) | 800 (363.64) | 800 (363.64) | 550 (250) |
| Boom Position 3 at 37.25” - lb (kg) | 800 (363.64) | 800 (363.64) | 550 (250) |
| Boom Position 4 at 44.5” - lb (kg) | 800 (363.64) | 800 (363.64) | 550 (250) |
| Horizontal Boom Angle - Based on 1/4" wire or 3/16″ synthetic rope | |||
| First Layer | Mid Drum | Full Drum | |
| Boom Position 1 at 23” - lb (kg) | 1200 (545.45) | 875 (397.73) | 550 (250) |
| Boom Position 2 at 46” - lb (kg) | 900 (409.09) | 875 (397.73) | 550 (250) |
| Boom Position 3 at 56” - lb (kg) | 750 (340.91) | 750 (340.91) | 550 (250) |
| Boom Position 4 at 66” - lb (kg) | 650 (295.45) | 650 (295.45) | 550 (250) |
| 45° Boom Angle - Based on 1/4" wire or 3/16″ synthetic rope | |||
| First Layer | Mid Drum | Full Drum | |
| Boom Position 1 at 23” - lb (kg) | 1200 (545.45) | 875 (397.73) | 550 (250) |
| Boom Position 2 at 30.25” - lb (kg) | 1200 (545.45) | 875 (397.73) | 550 (250) |
| Boom Position 3 at 37.25” - lb (kg) | 1100 (500) | 875 (397.73) | 550 (250) |
| Boom Position 4 at 44.5” - lb (kg) | 950 (431.82) | 875 (397.73) | 550 (250) |
| Crane Reactions/Moments | ||||||
| Model | Mast Moments (in-lb) | Mast Moment (N-m) | Suggested Bolt Size | |||
| OZTP1200DAV | 45,639 | 5,157 | 5/8″ Grade 5 (M16) | |||
| Floor Mount Base | Wall Mount Base | |||||
| Model | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Shear Force per Bolt - lb (kg) | Shear Force per Bolt (N) |
| OZTP1200DAV | 1401 (636.82) | 6,231 | 1653 (751.36) | 7,353 | 1163 (528.64) | 5,173 |
Tell us about your needs and we will match you with the ideal lifting solution
IMPORTANT!
Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
WARNING: CANCER AND REPRODUCTIVE HARM
Some products may contain chemicals known to the state of California to cause cancer, or birth defect or reproductive harm. www.P65Warning.ca.gov
We want to hear about your project and answer any questions you may have.
Call us today at (507) 474-6250 or (800) 749-1064
Need an answer but don’t know who to talk to? Drop your questions in the form field. We’ll pass it along to our in-house experts, and an answer will be emailed to you shortly.
