OZ1500BWSS

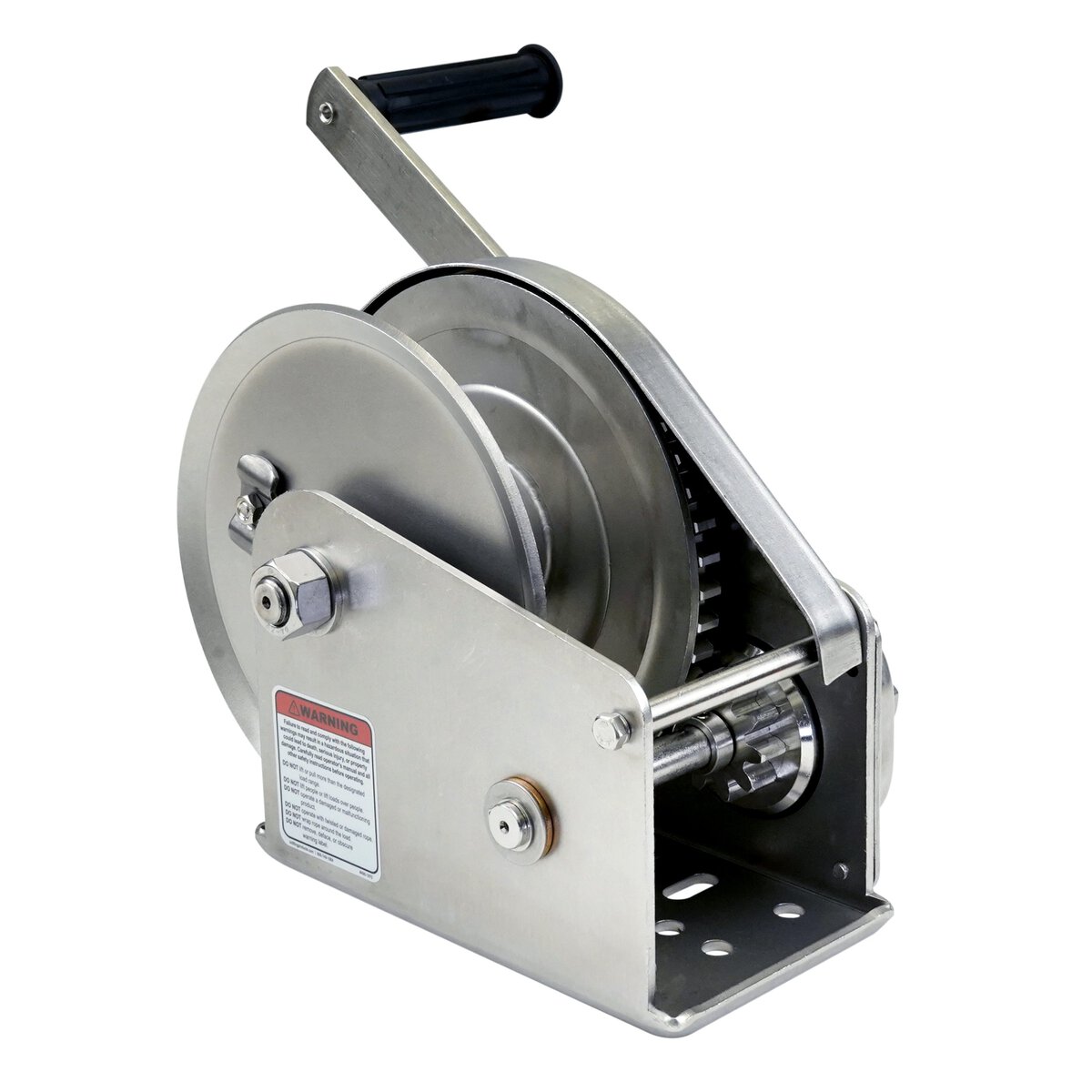

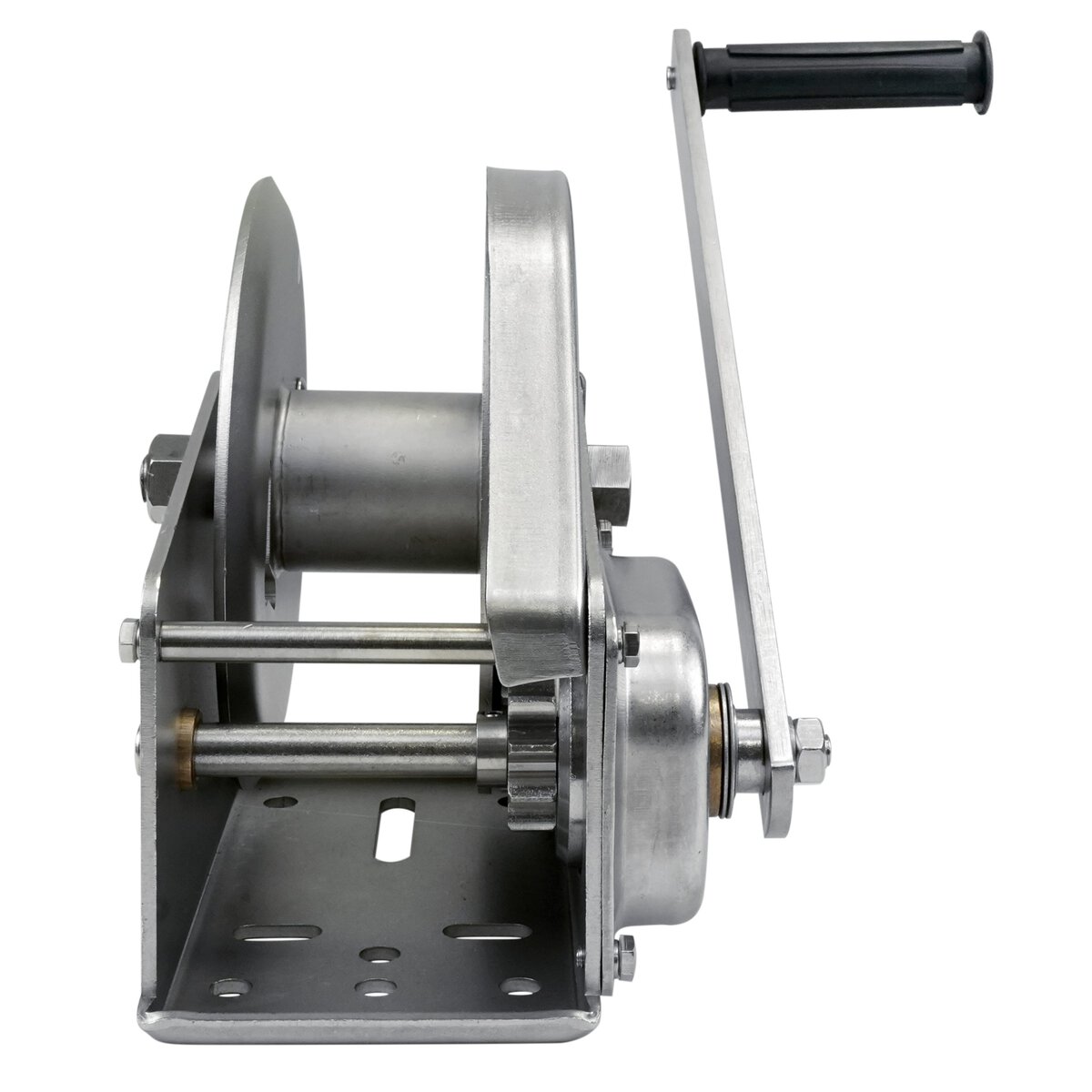

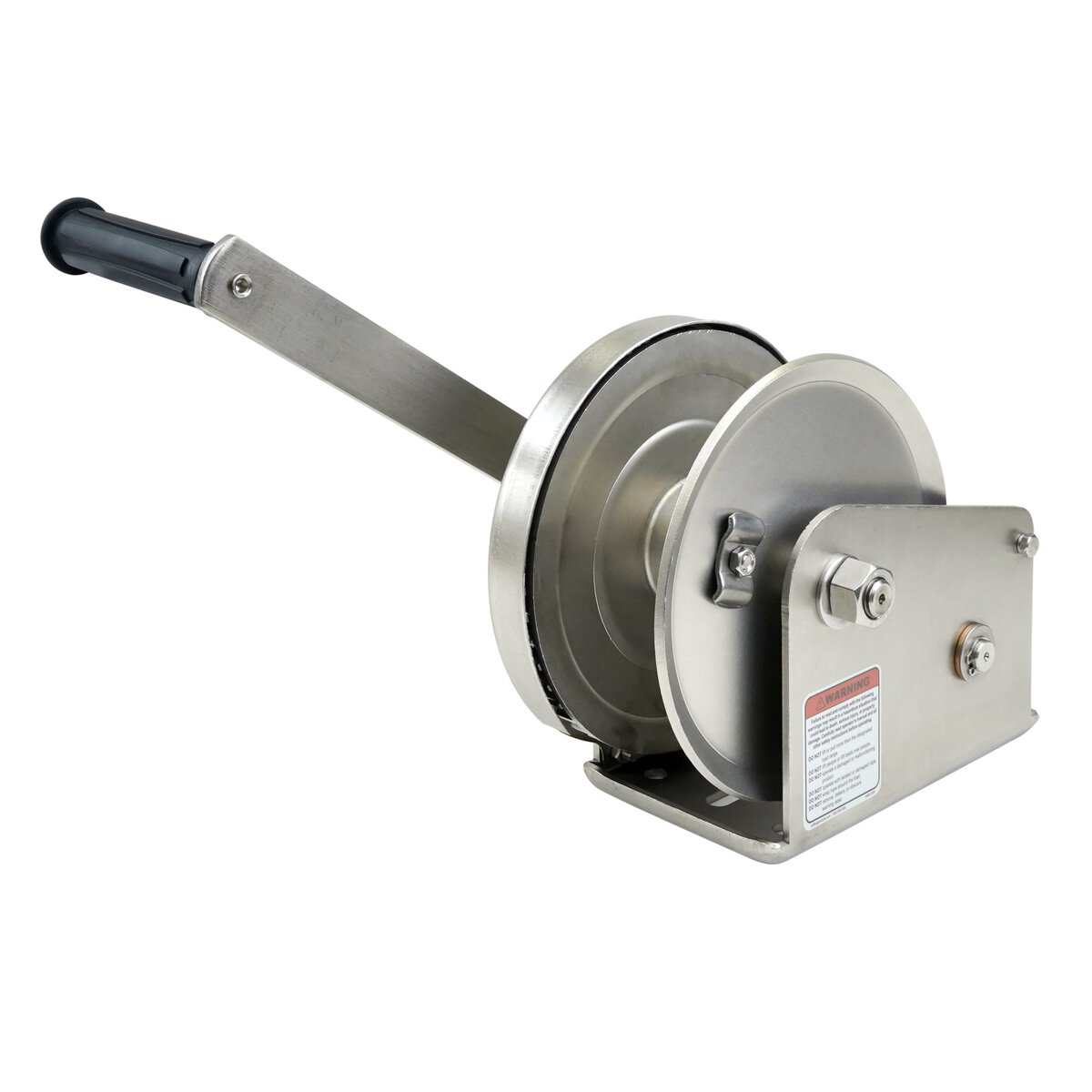

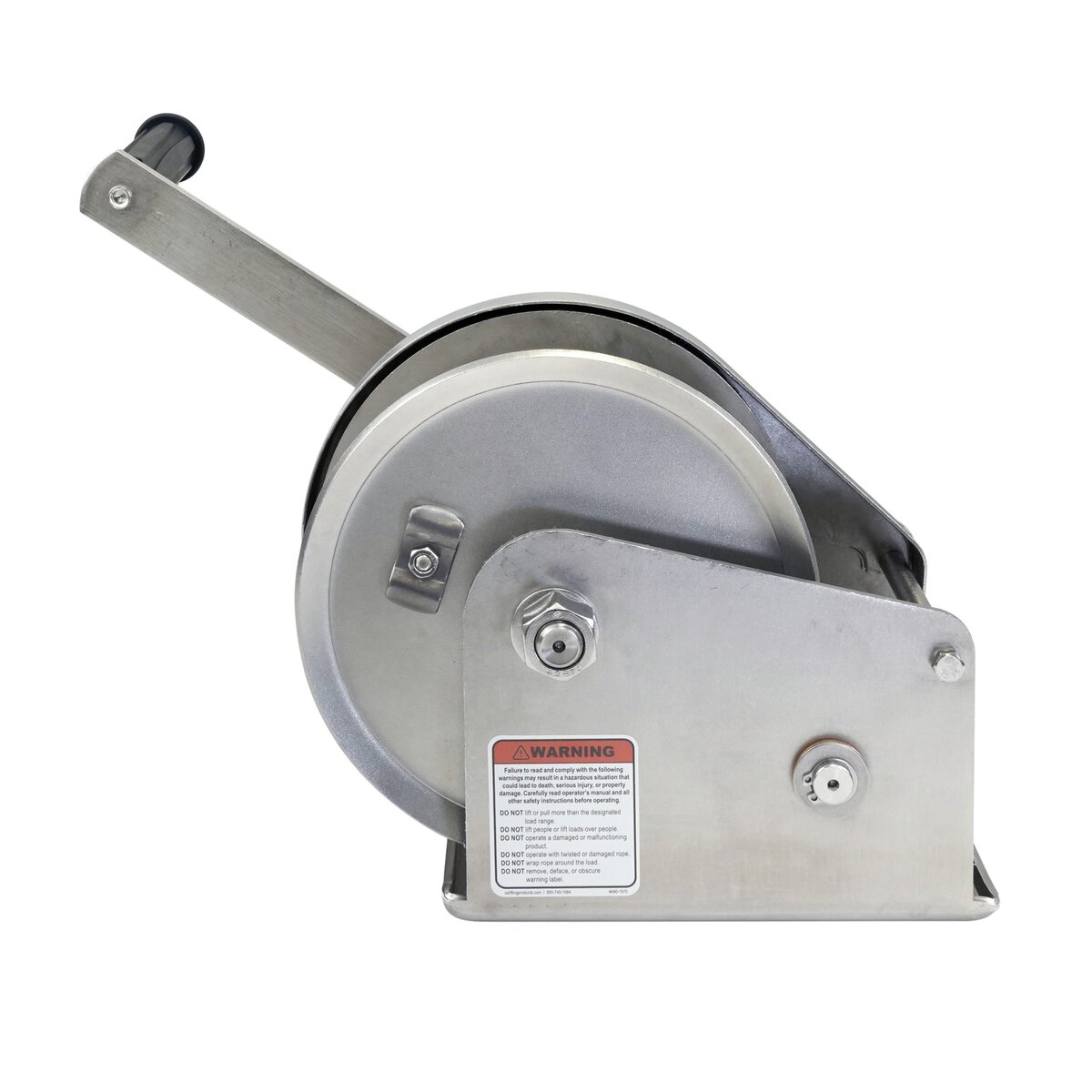

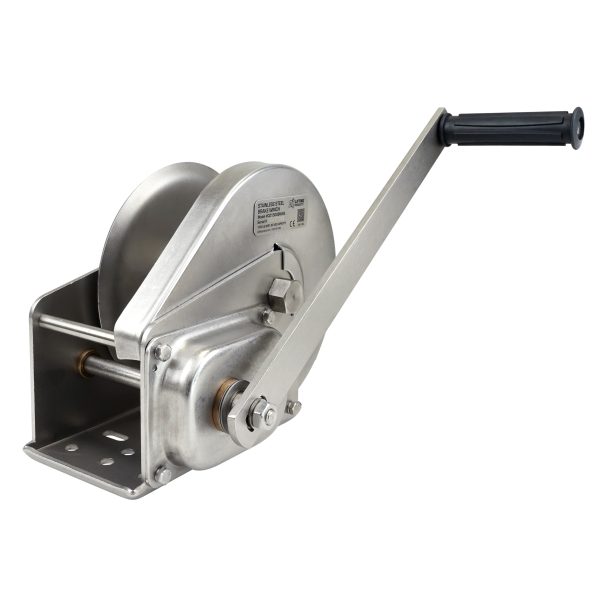

Manual Stainless Steel Brake Winch

1500 lb stainless steel brake winch with drill drive adaptor

Standards – CE

Engineered for increased lifting capacity, the Stainless Steel Brake Winch with a 1500 lb limit combines superior strength with corrosion resistance. This industrial-grade winch features a compact design for flexible mounting and an ergonomic rubber handle for ease of use. The automatic weatherproof Weston brake guarantees reliable performance, while the large diameter drum and dual cable anchor points make it suitable for a variety of lifting tasks.

  • All-steel construction
  • Automatic weatherproof Weston brake
  • Compact design

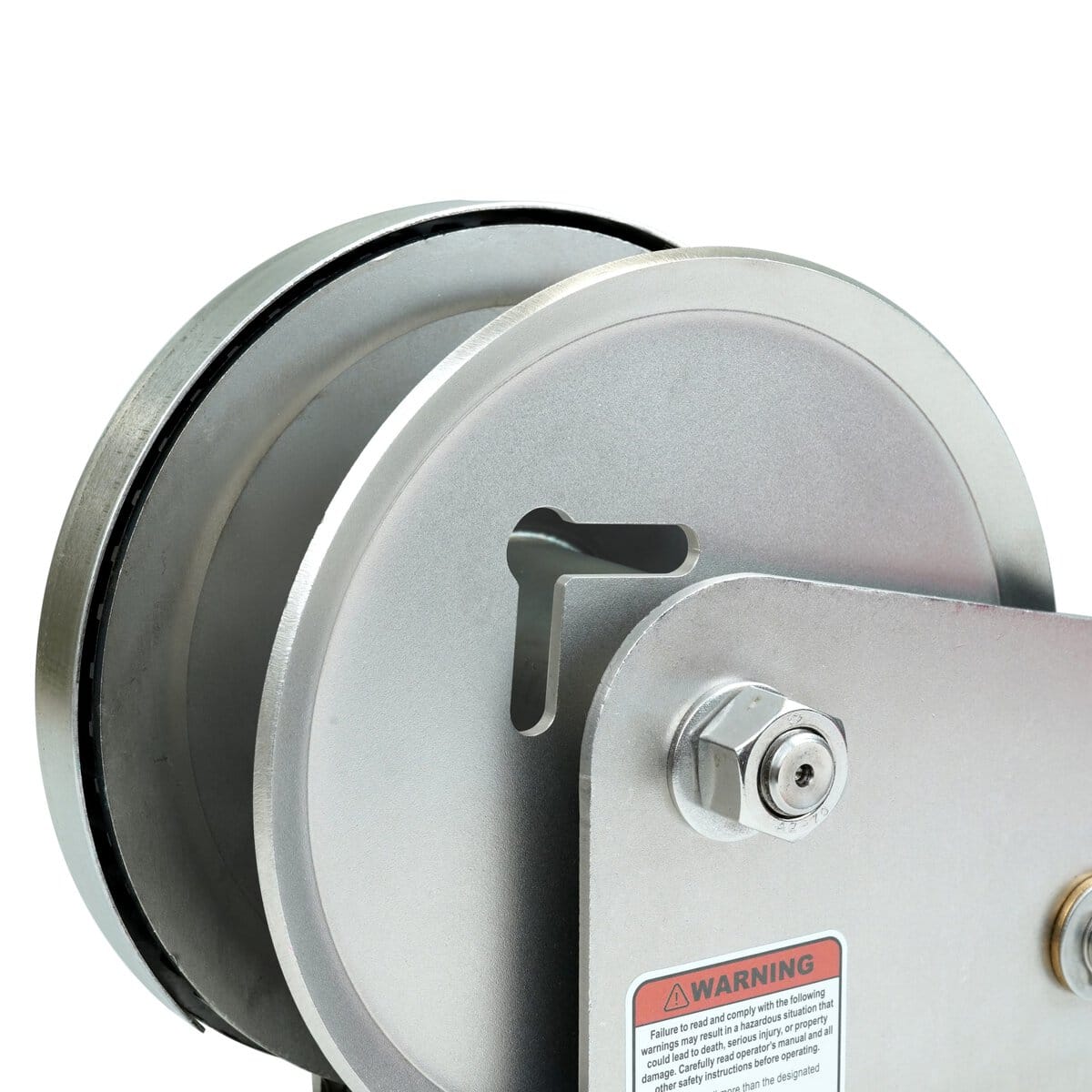

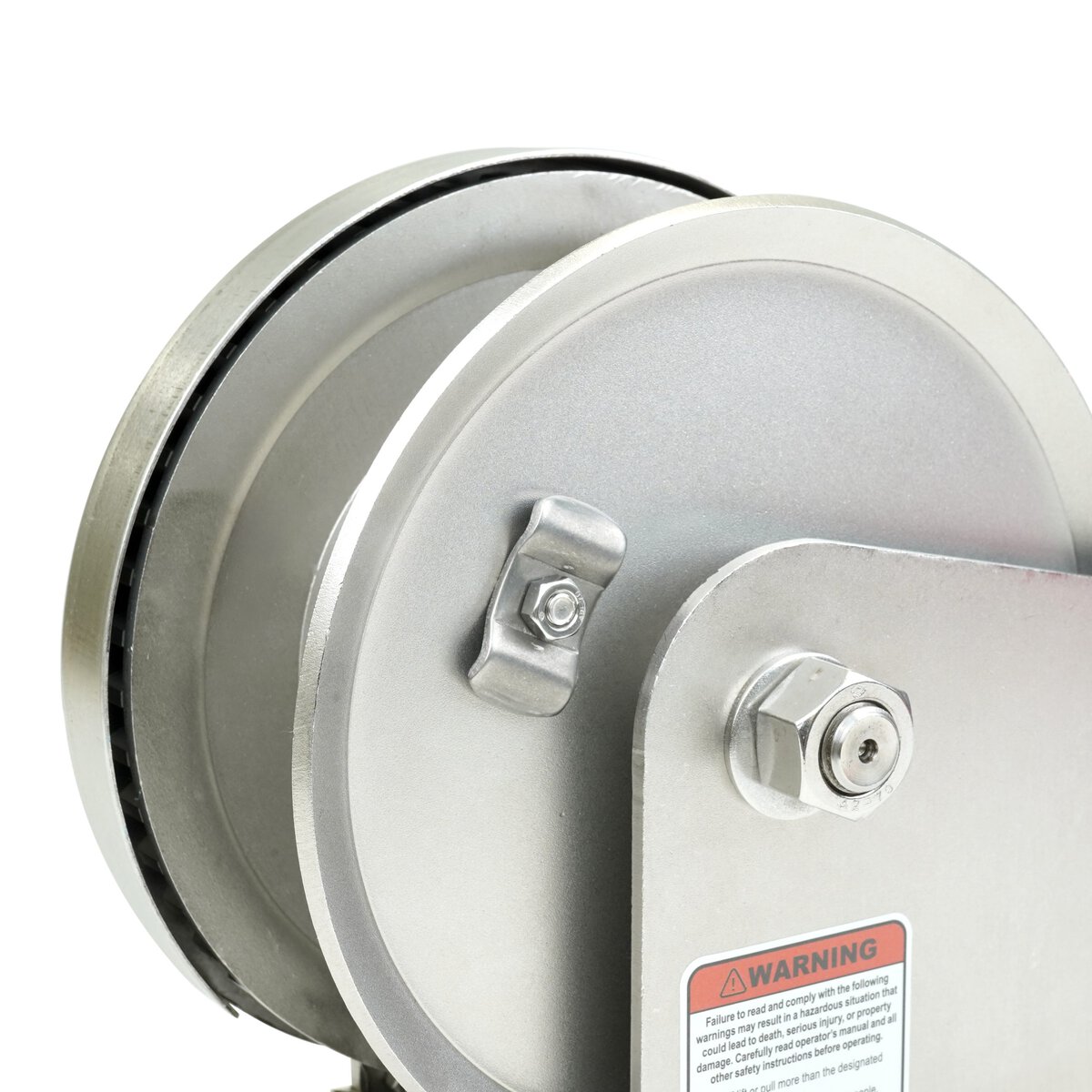

  • Dual cable anchor point

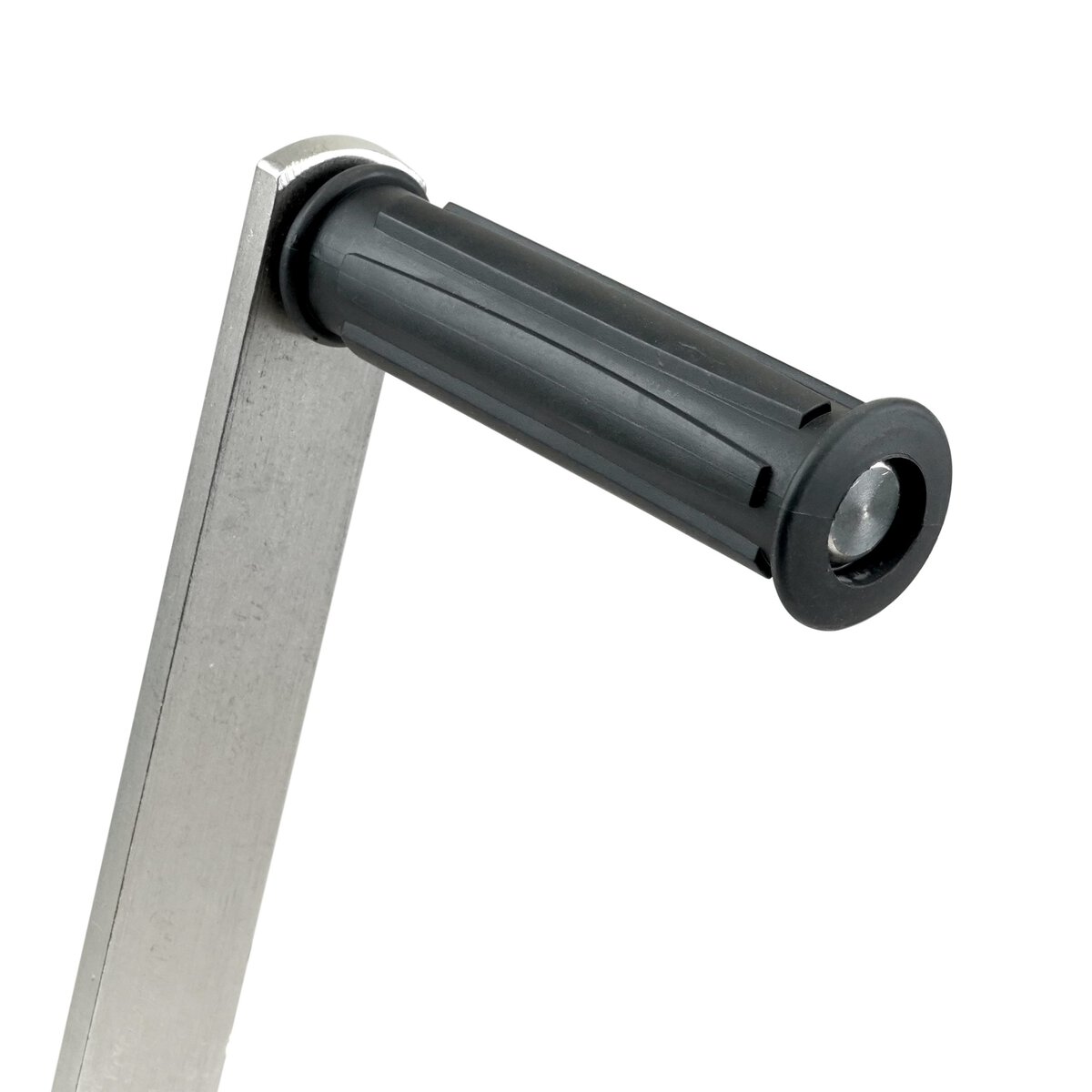

  • Ergonomic rubber handle
  • Large diameter drum

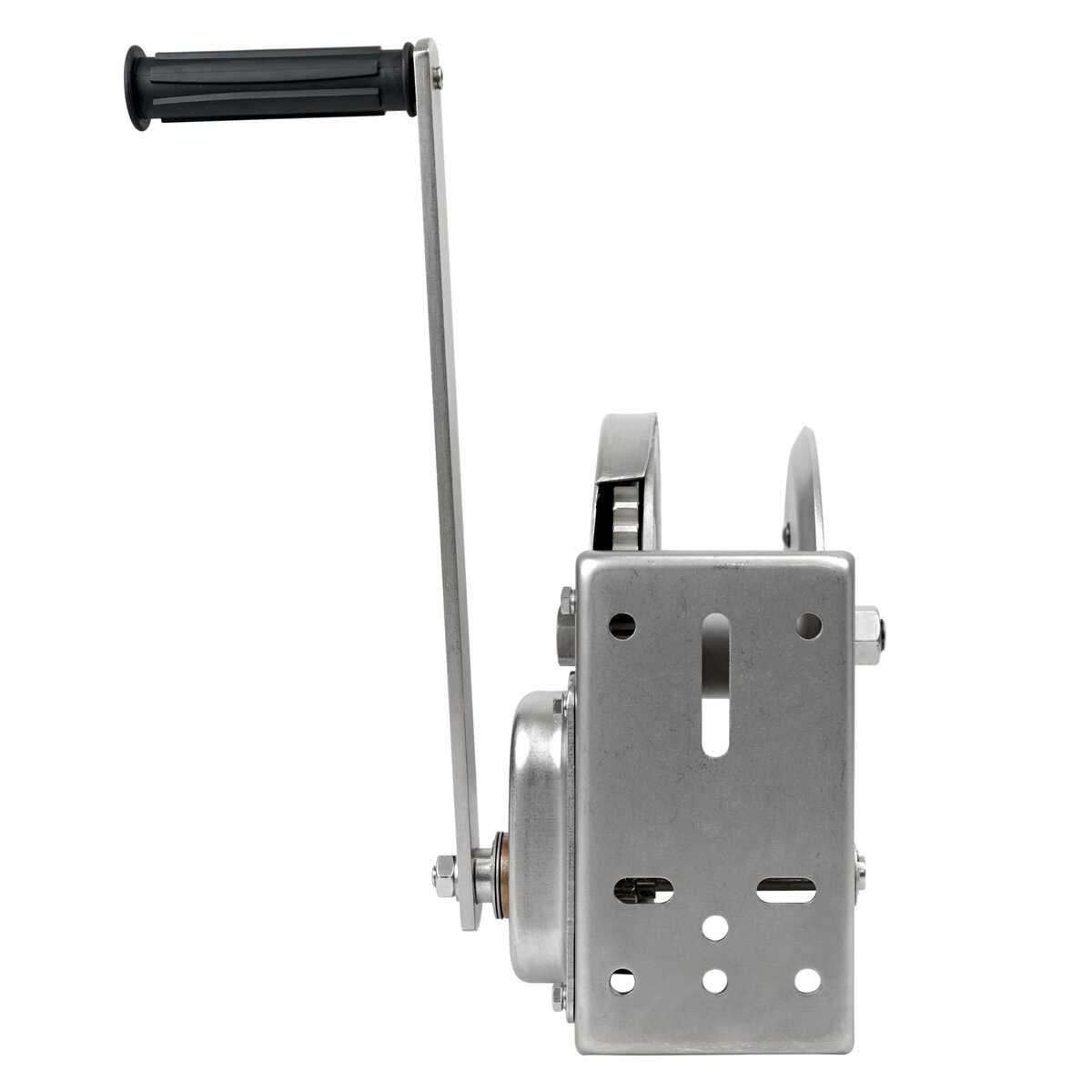

  • Multiple frame mounting positions
  • Fully-enclosed gearing
  • High gear ratio

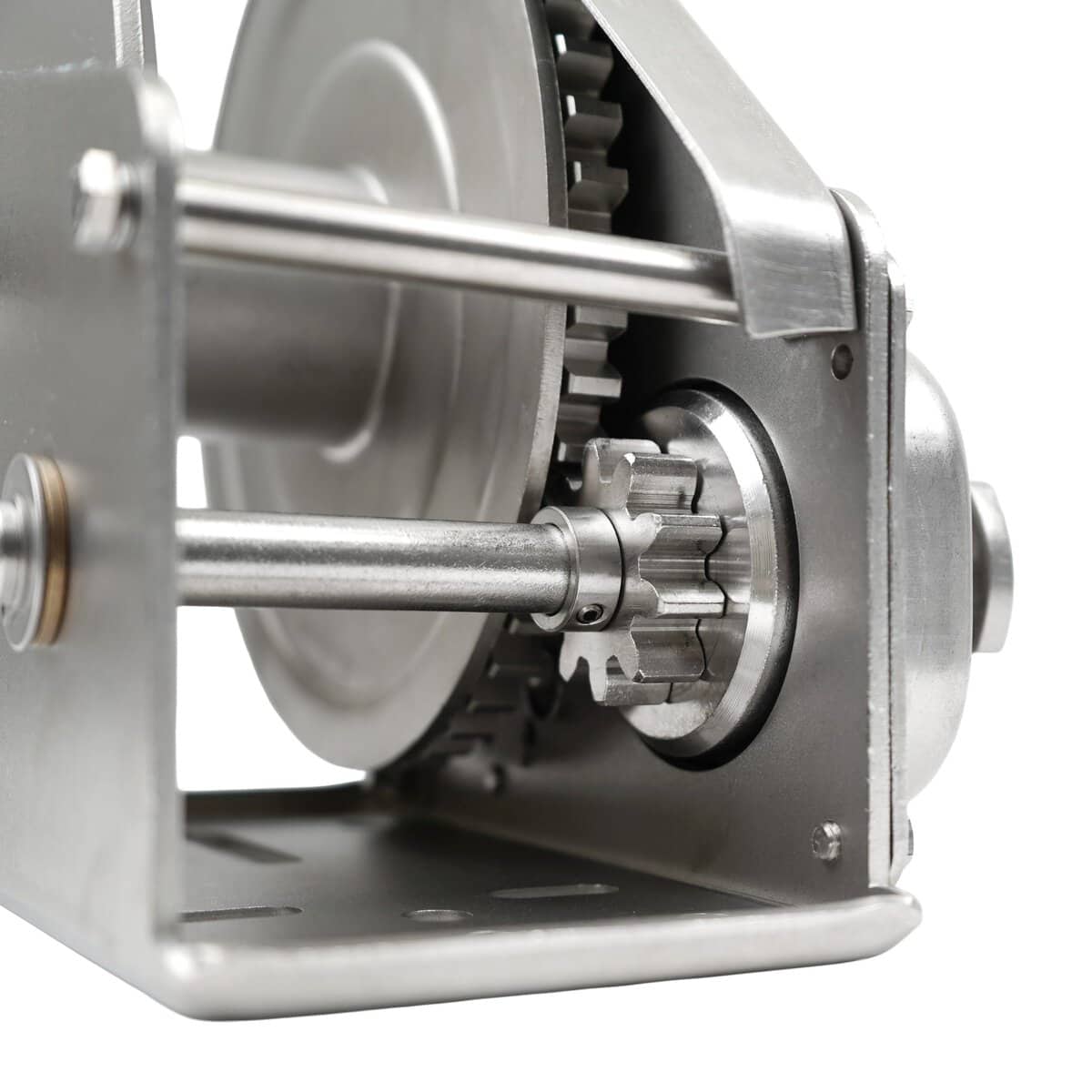

  • Solid machined gear

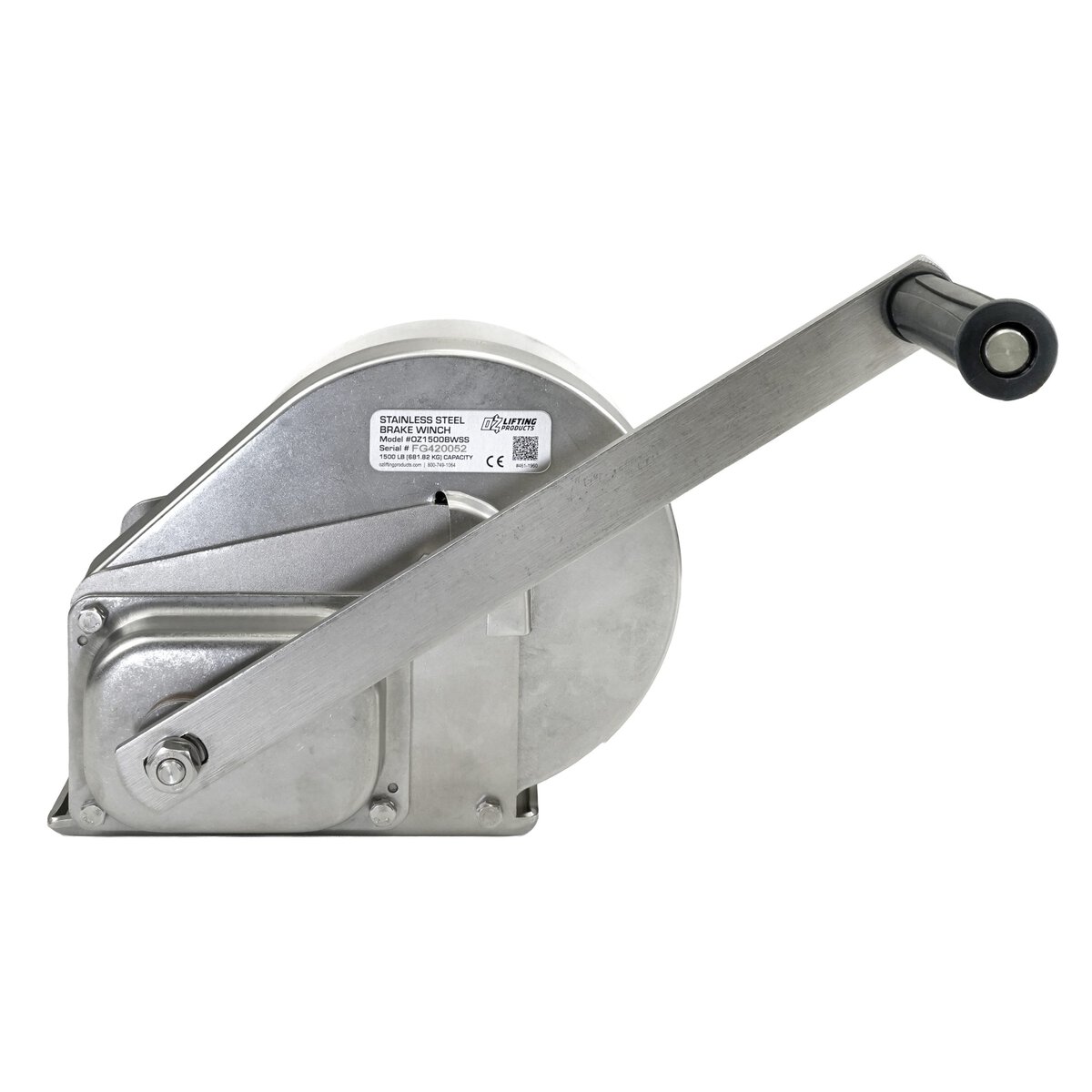

  • Test certificate & serial number

OZ1500BWSS

1500 lb stainless steel brake winch with drill drive adaptor

    Videos

    Photos

    Add-Ons

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Cable/Drum Capacity
    First layer - ft (m) Mid drum - ft (m) Full drum - ft (m)
    Based on 3/16" wire rope 7 (2.13) 66 (20.12) 140 (42.67)
    Based on 1/4" wire rope 5 (1.52) 27 (8.23) 89 (27.13)
    Load Rating - lb (kg) 1500 (681.82) 1250 (568.18) 750 (340.91)
    Capacity - lb (kg) 1500 (681.82)
    Gear Ratio 5:01
    Dimensional Information - in (mm) A 7.73 (196.34)
    B 9.36 (237.74)
    C 4.21 (106.93)
    D 12.68 (322.07)
    E 1.06 (26.92)
    F 10.63 (270)
    G 2.30 (58.42)
    H 4.29 (108.97)
    I 2.38 (60.45)
    J 7 (177.80)
    K 15.31 (388.87)
    L 6.89 (175.01)
    M 0.14 (3.56)
    Net weight - lb (kg) 17 (7.73)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
