Name: .25 T Stainless Steel Chain Hoist 30 ft lift | OZ Lifting Products
SKU: OZSS025-30CH

.25 T Stainless Steel Chain Hoist 30 ft lift

OZSS025-30CH Downloads

Download All

Stainless_Series_Chain_Hoist_OM_ENFRSP.pdf

Stainless-Chain-Hoists.pdf

OZSS025-30CH

Stainless Chain Hoist

.25 T Stainless Steel Chain Hoist 30 ft lift

Standards – CE, AS1418.2, ASME B30.21, ASME B30.16

The Stainless Steel Chain Hoist with a 0.25 T capacity is engineered from Type 304 stainless steel to provide exceptional durability in corrosive environments. This model offers smooth, effortless lifting with minimal effort, thanks to its robust design. It includes fully enclosed gearing and weather-proof brakes to ensure reliable performance and longevity, even in harsh conditions.

Type 304 stainless steel for superior durability and corrosion resistance in harsh environments
Food-grade grease meets NSF H1 standards, suitable for food processing environments
Unique hand wheel design prevents chain jamming and enables smooth operation from various angles
Fully enclosed gearing protects against contamination and debris
Double-reduction gearing for minimal lifting effort
Weather-proof load holding brake and twin pawl design for secure load retention
Forged stainless steel hooks with bolt and lock nut safety latches for easy maintenance and enhanced safety
Low headroom design maximizes lift in restricted spaces
All gears and shafts run on roller bearings for smooth, maintenance-free operation
Stainless steel ID tag with a unique serial number and test certificate for traceable performance
Quick disassembly allows for easy maintenance; see our YouTube video for details
Includes a free spare set of latches

OZSS025-30CH

.25 T Stainless Steel Chain Hoist 30 ft lift

Videos

Photos

Add-Ons

OZSS025-5LH

5ft Lift – Stainless Lever Hoist

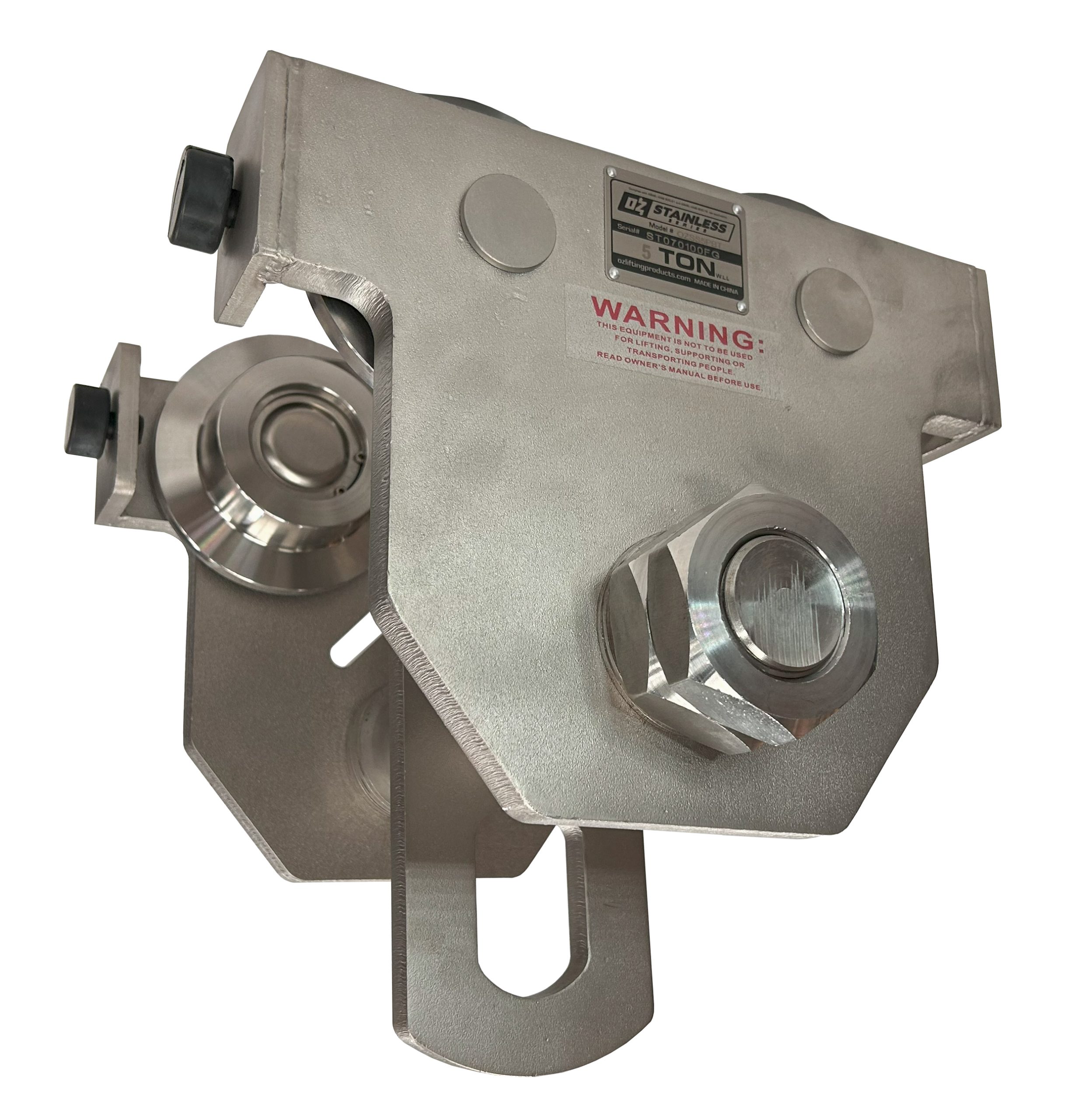

OZSS5PBT

5 T Stainless Steel Push Beam Trolley

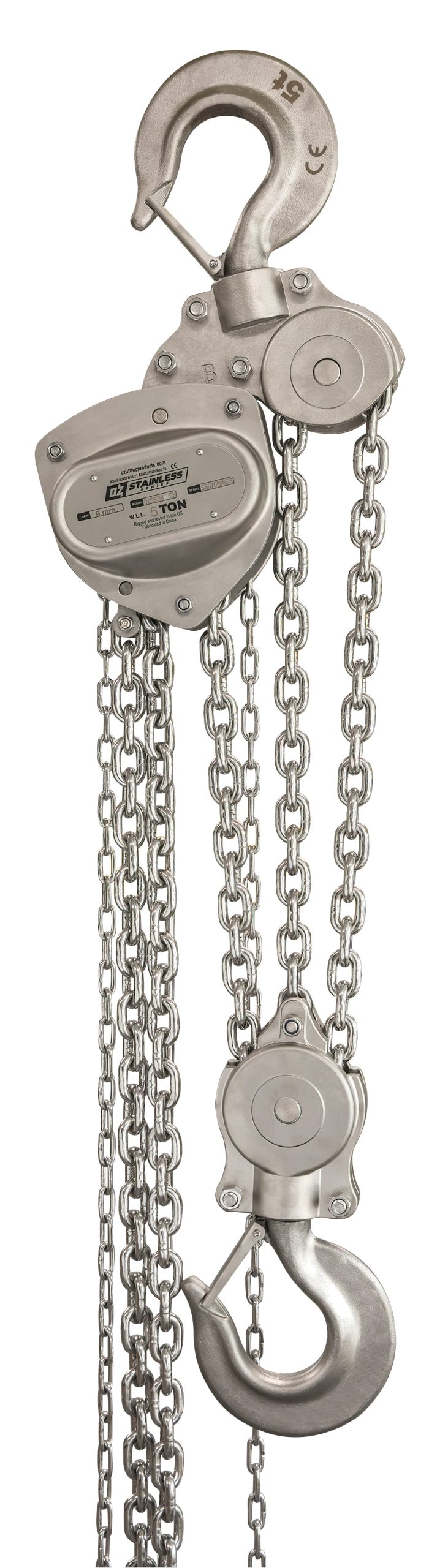

OZSS050-30CH

5 T Stainless Steel Chain Hoist 30 ft lift

OZSS050-20CH

5 T Stainless Steel Chain Hoist 20 ft lift

OZSS050-15CH

5 T Stainless Steel Chain Hoist 15 ft lift

OZSS050-10CH

5 T Stainless Steel Chain Hoist 10 ft lift

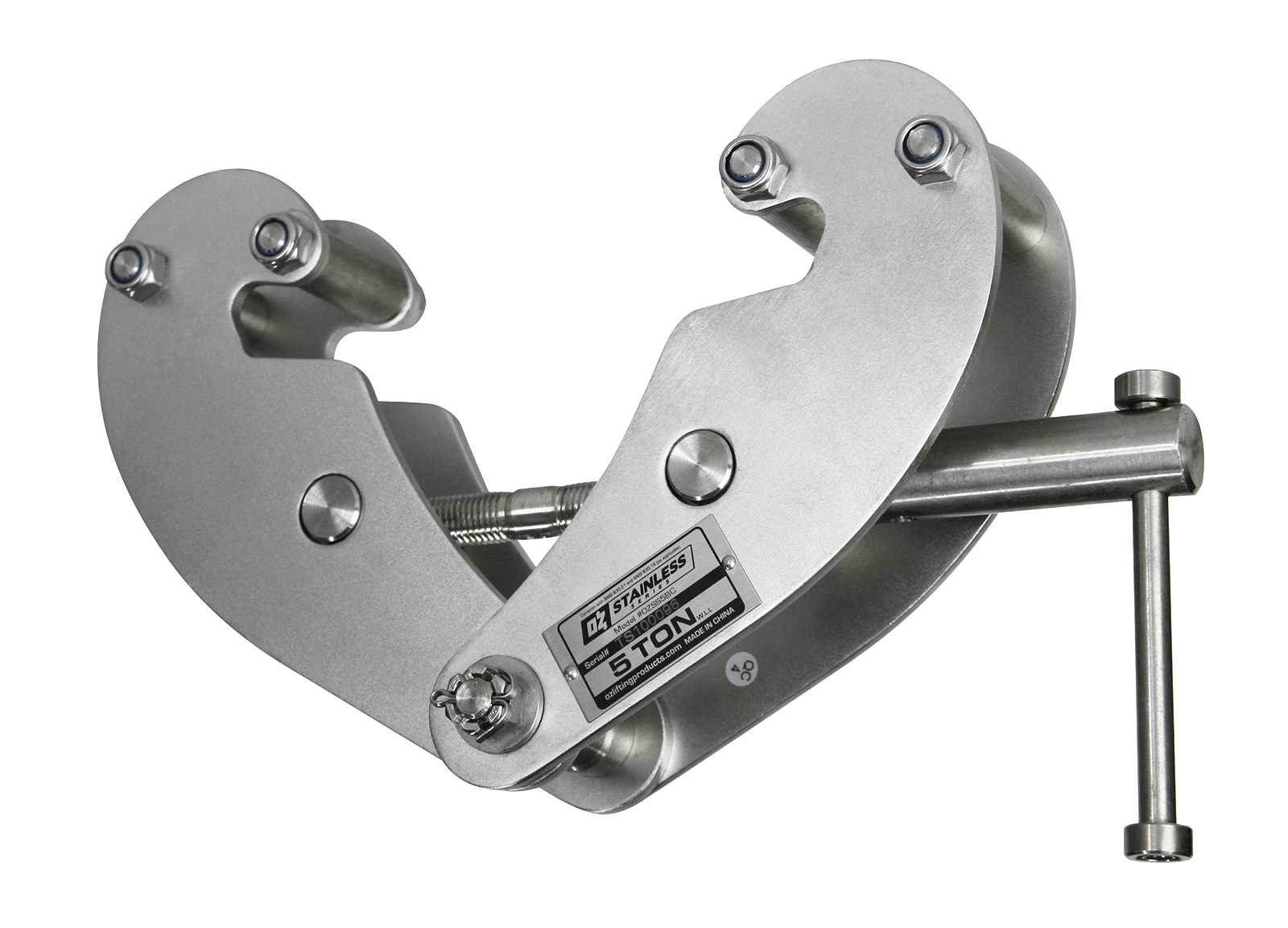

OZSS5BC

5 T Stainless Steel Beam Clamp

OZSS3PBT

3 T Stainless Steel Push Beam Trolley

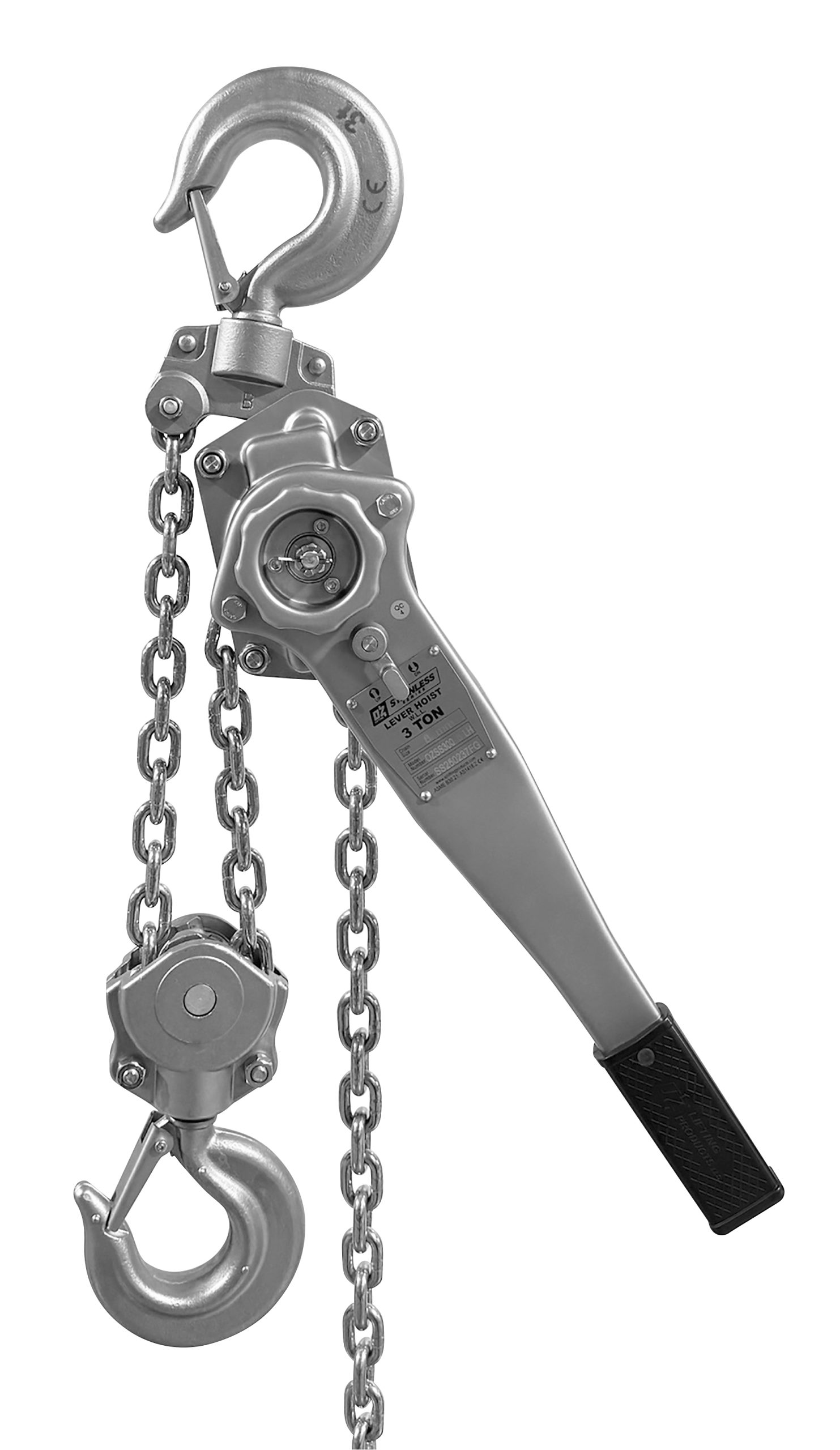

OZSS300LH

3 T Stainless Steel Lever Hoist head only

OZSS300-5LH

3 T Stainless Steel Lever Hoist 5 ft lift

OZSS300-20LH

3 T Stainless Steel Lever Hoist 20 ft lift

OZSS300-15LH

3 T Stainless Steel Lever Hoist 15 ft lift

OZSS300-10LH

3 T Stainless Steel Lever Hoist 10 ft lift

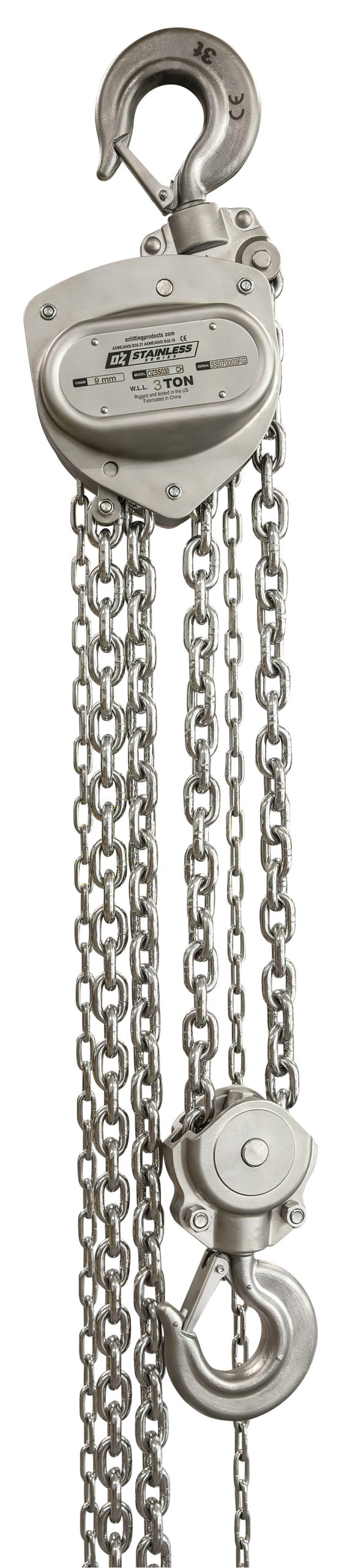

OZSS030-30CH

3 T Stainless Steel Chain Hoist 30 ft lift

OZSS030-20CH

3 T Stainless Steel Chain Hoist 20 ft lift

OZSS030-15CH

3 T Stainless Steel Chain Hoist 15 ft lift

OZSS030-10CH

3 T Stainless Steel Chain Hoist 10 ft lift

OZSS3BC

3 T Stainless Steel Beam Clamp

OZSS025-20LH

20ft Lift – Stainless Lever Hoist

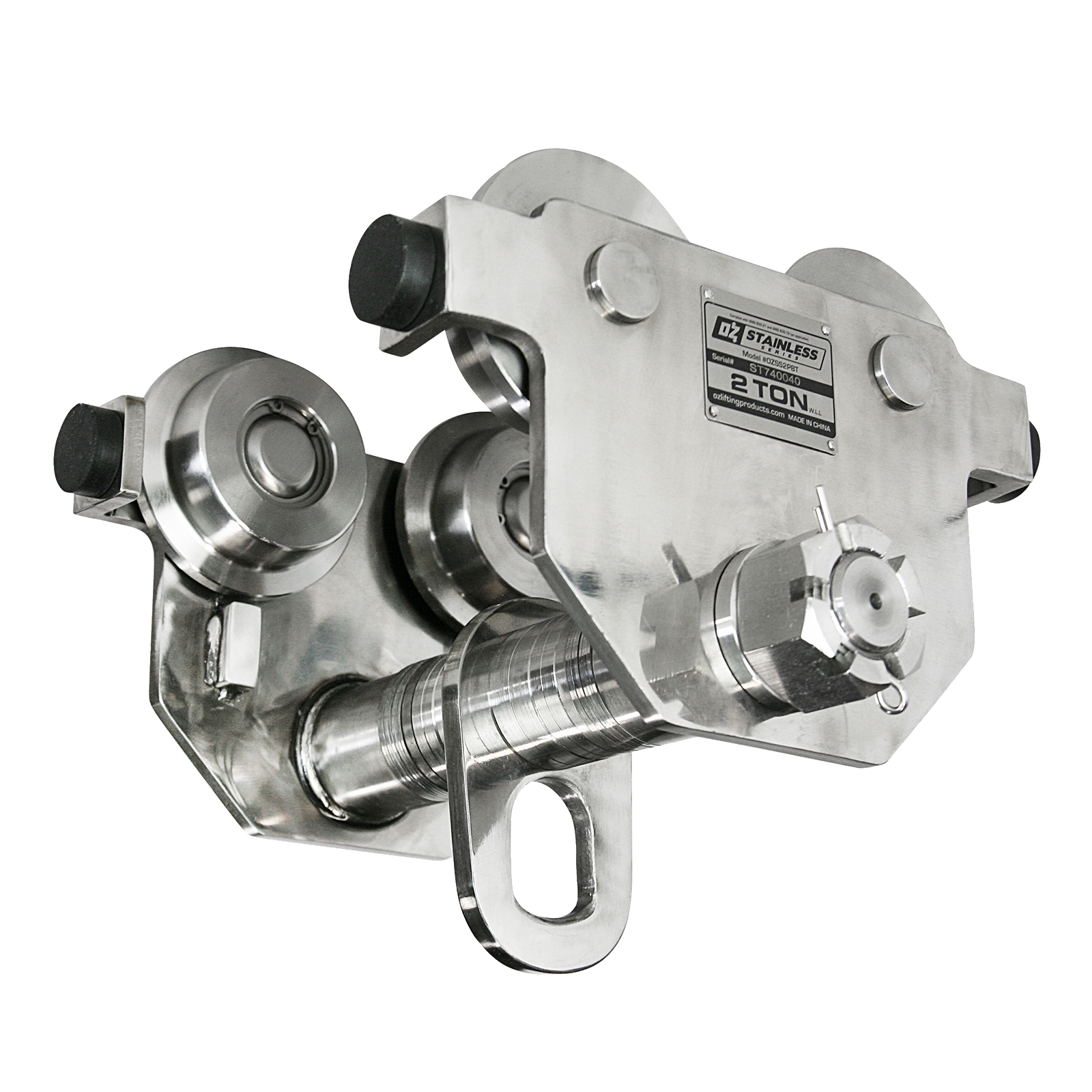

OZSS2PBT

2 T Stainless Steel Push Beam Trolley

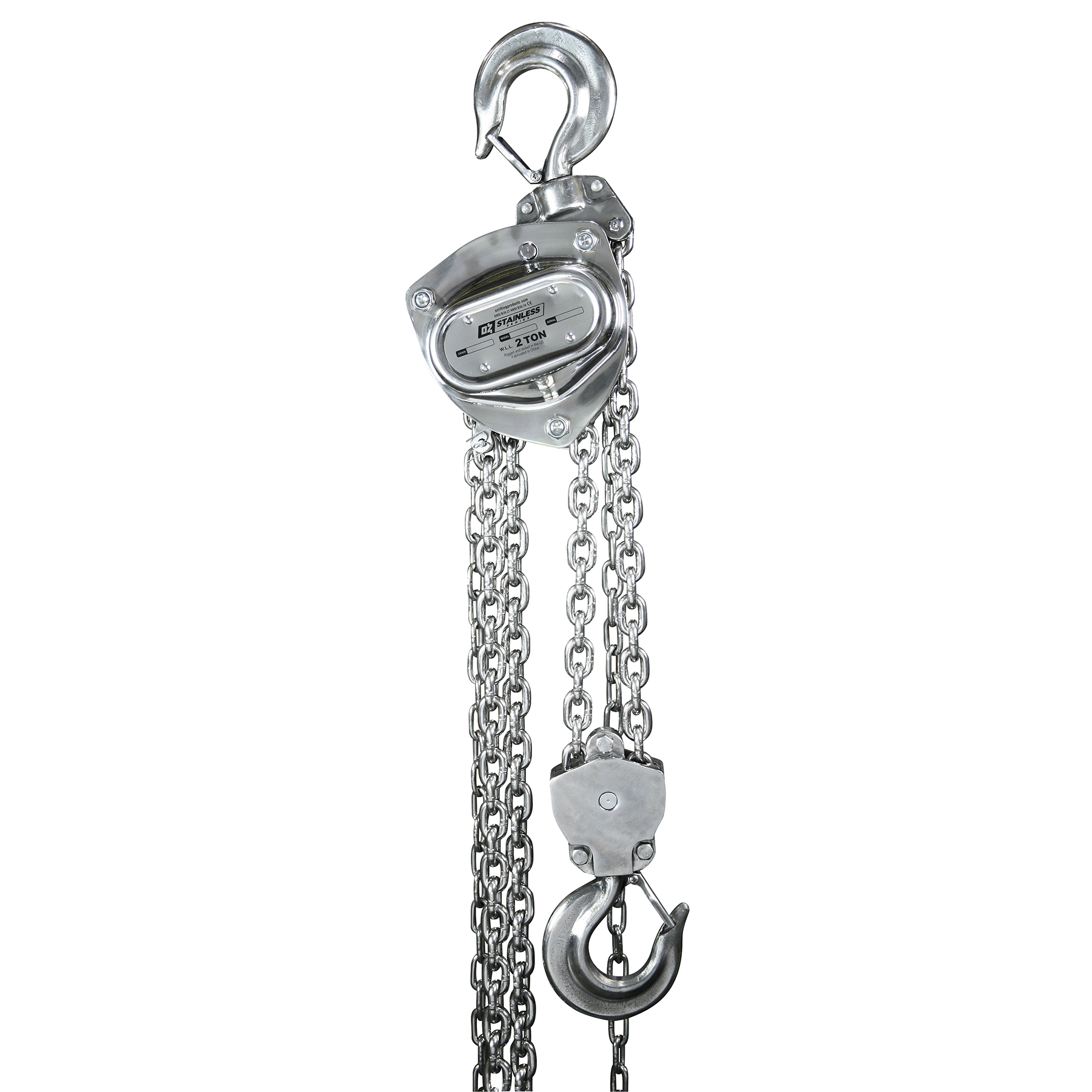

OZSS020-30CH

2 T Stainless Steel Chain Hoist 30 ft lift

OZSS020-20CH

2 T Stainless Steel Chain Hoist 20 ft lift

OZSS020-15CH

2 T Stainless Steel Chain Hoist 15 ft lift

OZSS020-10CH

2 T Stainless Steel Chain Hoist 10 ft lift

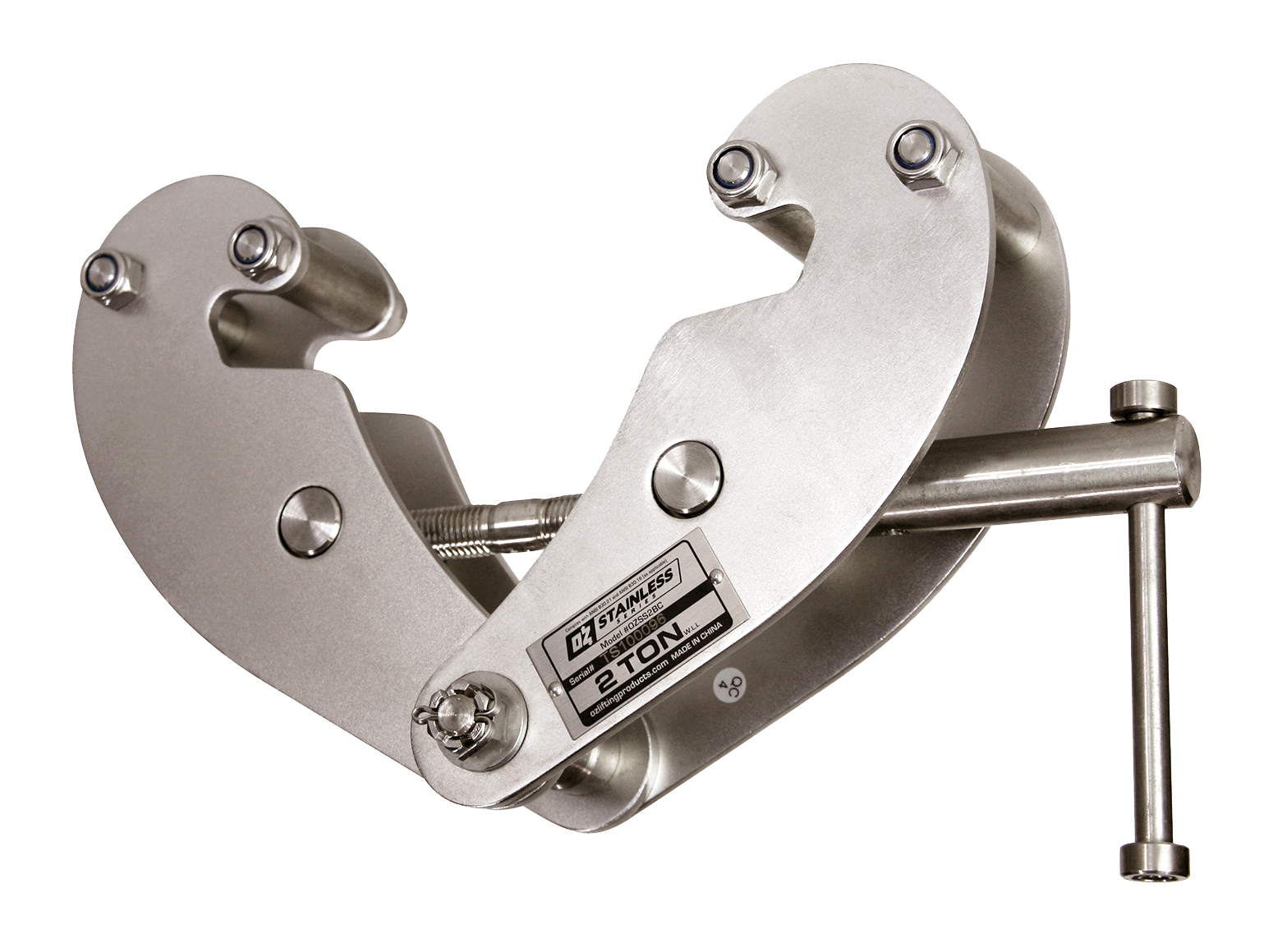

OZSS2BC

2 T Stainless Steel Beam Clamp

OZSS025-15LH

15ft Lift – Stainless Lever Hoist

OZSS025-10LH

10ft Lift – Stainless Lever Hoist

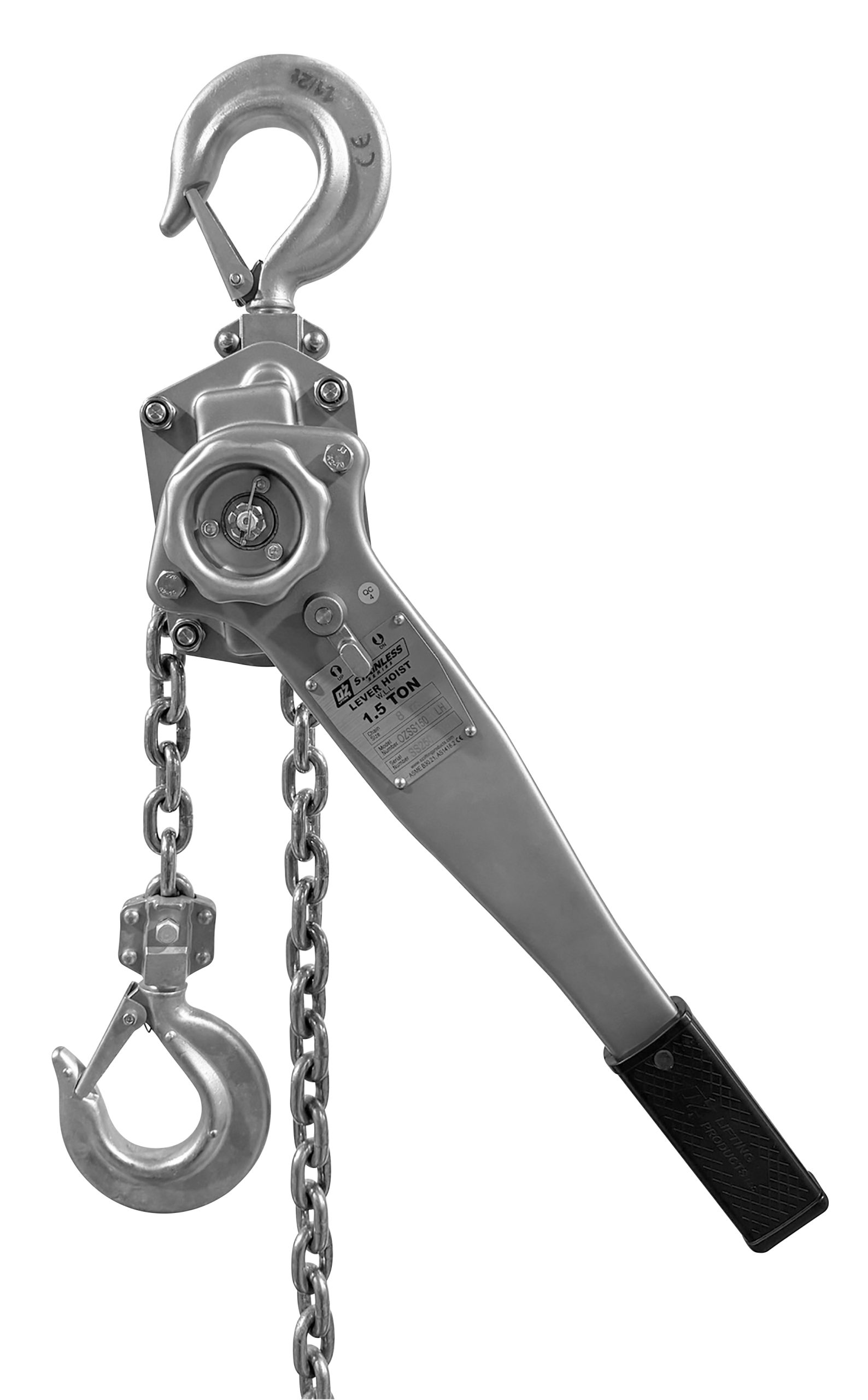

OZSS150LH

1.5 T Stainless Steel Lever Hoist head only

OZSS150-5LH

1.5 T Stainless Steel Lever Hoist 5 ft lift

OZSS150-20LH

1.5 T Stainless Steel Lever Hoist 20 ft lift

System Components

OZEXT1-TPSS

Mast extension in stainless steel for use with OZSS1500DAV (Adds 24 inches to height of davit crane)

OZSS1500DAV-DCW

1500 lb stainless steel davit crane with DC brake winch

OZSS1500DAV-ACW

1500 lb stainless steel davit crane with AC brake winch

OZSS850DAV-DCW

850 lb stainless steel davit crane with DC brake winch

OZSS850DAV-ACW

850 lb stainless steel davit crane with AC brake winch

OZIND025-30CH

.25 T Industrial Chain Hoist 30 ft

OZIND025-20CH

.25 T Industrial Chain Hoist 20 ft

OZIND025-15CH

.25 T Industrial Chain Hoist 15 ft

OZIND025-20LH

.25 T Industrial Lever Hoist 20 ft

OZIND025-15LH

.25 T Industrial Lever Hoist 15 ft

OZIND025-10LH

.25 T Industrial Lever Hoist 10 ft

OZIND300-20LH

3 T Industrial Lever Hoist 20 ft

OZIND300-15LH

3 T Industrial Lever Hoist 15 ft

OZIND300-10LH

3 T Industrial Lever Hoist 10 ft

OZWRH-SS

Wire rope holder in stainless steel

OZWRH

Wire rope keeper for use with any davit base

OZHB10-SS

10 lb. stainless steel headache ball for use with 3/16″ and 1/4″ stainless steel wire ropes

OZBACK2-SS

Backing plate in stainless steel, for use with OZWALL2-SS and OZWALL2-TPSS

OZBACK1-SS

Backing plate in stainless steel, for use with OZPED1-SS, OZPED1-TPSS, OZWALL1-SS, & OZWALL1-TPSS

OZEXT2-SS

Mast extension in stainless steel for use with OZSS850DAV (Adds 24 inches to height of davit crane)

OZWALL2-TPSS

Wall mount base in stainless steel, for use with OZTP500DAV davit cranes

OZWALL2-SS

Wall mount base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZSOC2-TPSS

Socket base in stainless steel, for use with OZTP500DAV davit cranes

OZSOC2-SS

Socket base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZPED2-TPSS

Pedestal base in stainless steel, for use with OZTP500DAV davit cranes

OZPED2-SS

Pedestal base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZWALL1-TPSS

Wall mount base in stainless steel, for use with OZSS1500DAV, OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZWALL1-SS

Wall mount base in stainless steel, for use with OZ1200DAV davit crane

OZSOC1-TPSS

Socket base in stainless steel, for use with OZSS1500DAV, OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZSOC1-SS

Socket base in stainless steel, for use with OZ1200DAV davit crane

Specs & Ratings

Capacity - Ton (kg)		0.25 (226.80)
Effort to Lift S.W.L - lb (kg)		45 (20.45)
Falls of Chain		1
Load Chain Diameter – in (mm)		0.16x0.47 (4x12)
Dimensional Information – in (mm)	A	9.84 (249.94)
	B	4.29 (108.97)
	C	4.13 (104.90)
Hook-opening, Upper & Lower -in (mm)	D	1.06 (26.92)
	E	1.26 (32.00)
Net Weight of Head Only – lb (kg)		8.82 (4.01)

IMPORTANT!

*Dimensions, weights, and illustrations are for reference only and subject to change without notice.

WARNING: CANCER AND REPRODUCTIVE HARM

Some products may contain chemicals known to the state of California to cause cancer, or birth defect or reproductive harm. www.P65Warning.ca.gov
