OZSS025-5LH Downloads

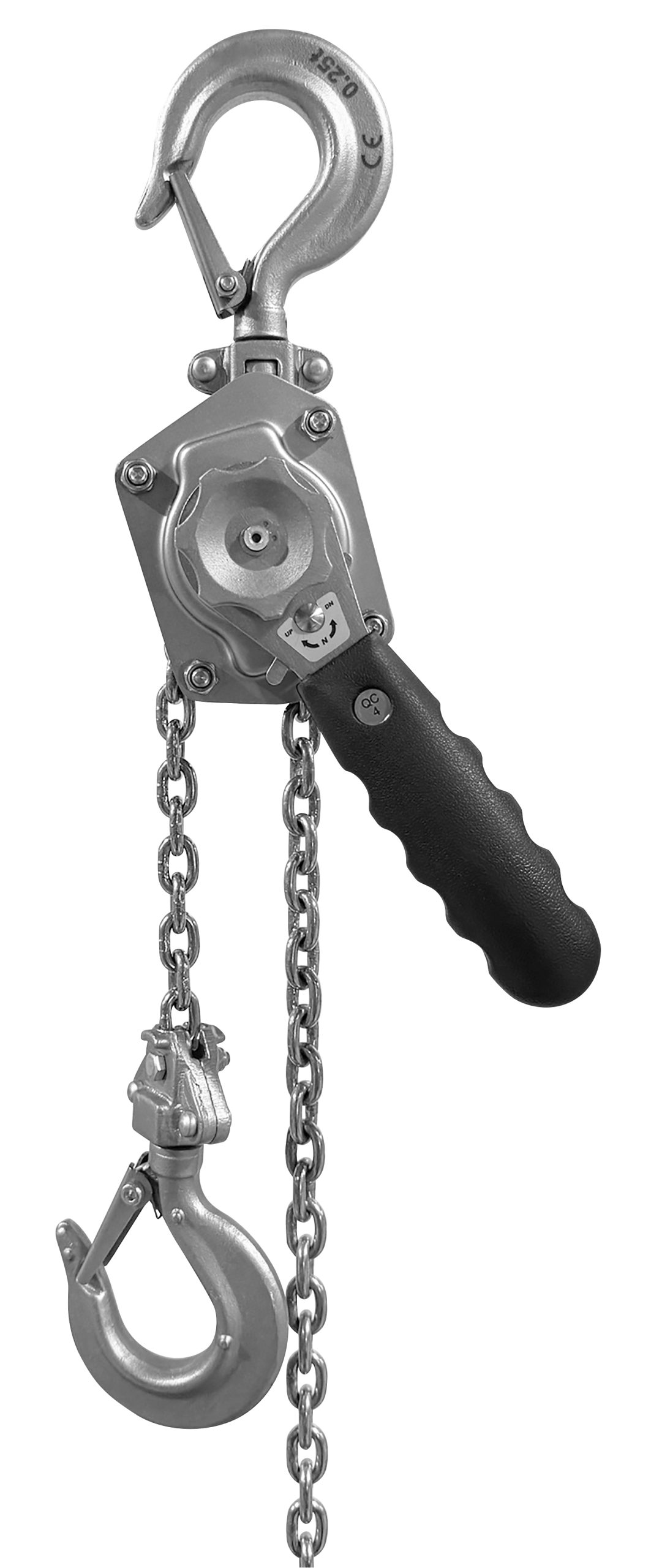

Stainless Steel Lever Hoist

OZSS025-5LH

Stainless Steel Lever Hoist

5ft Lift – Stainless Lever Hoist

Custom rigging available. Standards – CE, ASME/ANSI B30.21, AS1418.2, NSF H1

The Stainless Steel Lever Hoist with a 0.25 T capacity is built from robust Type 304 stainless steel, providing exceptional corrosion resistance and durability in harsh environments. This model is perfect for food processing and sensitive industries, featuring food-grade grease and a fully enclosed braking system for clean and dependable performance. Its design ensures longevity and reliability, even in challenging conditions.

  • Type 304 stainless steel for superior durability and corrosion resistance in harsh environments
  • Food-grade grease meets NSF H1 standards, suitable for food processing
  • Enclosed gearing protects against contamination and debris
  • Sealed roller bearings provide smooth, maintenance-free operation
  • Weston-style brake system with a twin pawl design ensures secure load handling
  • Ergonomic handle with a non-slip rubber grip
  • 360-degree handle rotation allows use in confined spaces
  • Freewheel feature enables quick chain adjustments when not under load
  • Versatile for both lifting and pulling applications
  • Double-reduction gearing minimizes lifting effort
  • Forged alloy steel hooks swivel 360° for easy attachment
  • Stainless steel ID tag with a unique serial number and test certificate for traceable performance
  • Quick disassembly allows for easy maintenance; see our YouTube video for details
  • Free spare set of latches included for added convenience

OZSS025-5LH

5ft Lift – Stainless Lever Hoist

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 0.25 (226.80)
    Headroom – in (mm) 11.22 (284.99)
    Effort on lever to lift full load – lb (kg) 20.20 (9.18)
    Falls of Chain 1
    Load Chain Diameter – in (mm) 0.16x0.47 (4x12)
    Dimensional Information – in (mm) A 11.22 (284.99)
    B 3.86 (98.04)
    C 3.94 (100.08)
    D 6.10 (154.94)
    E 2.40 (60.96)
    Hook-opening, Upper & Lower – in (mm) F 0.92 (23.37)
    Net Weight of Head Only – lb (kg) 4.84 (2.20)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
