Stainless Davit Crane

OZSS1500DAV-DCW

Stainless Davit Crane

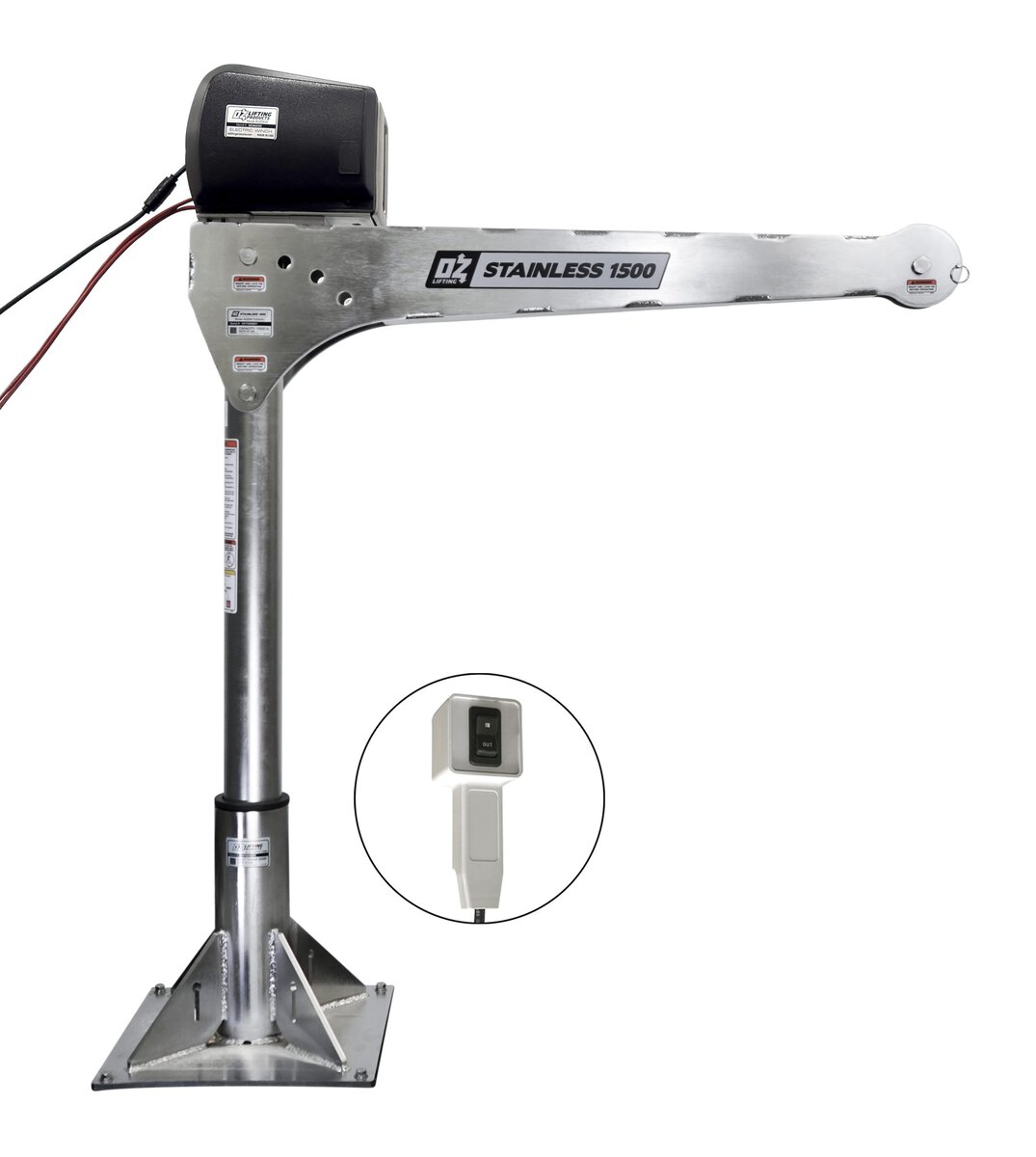

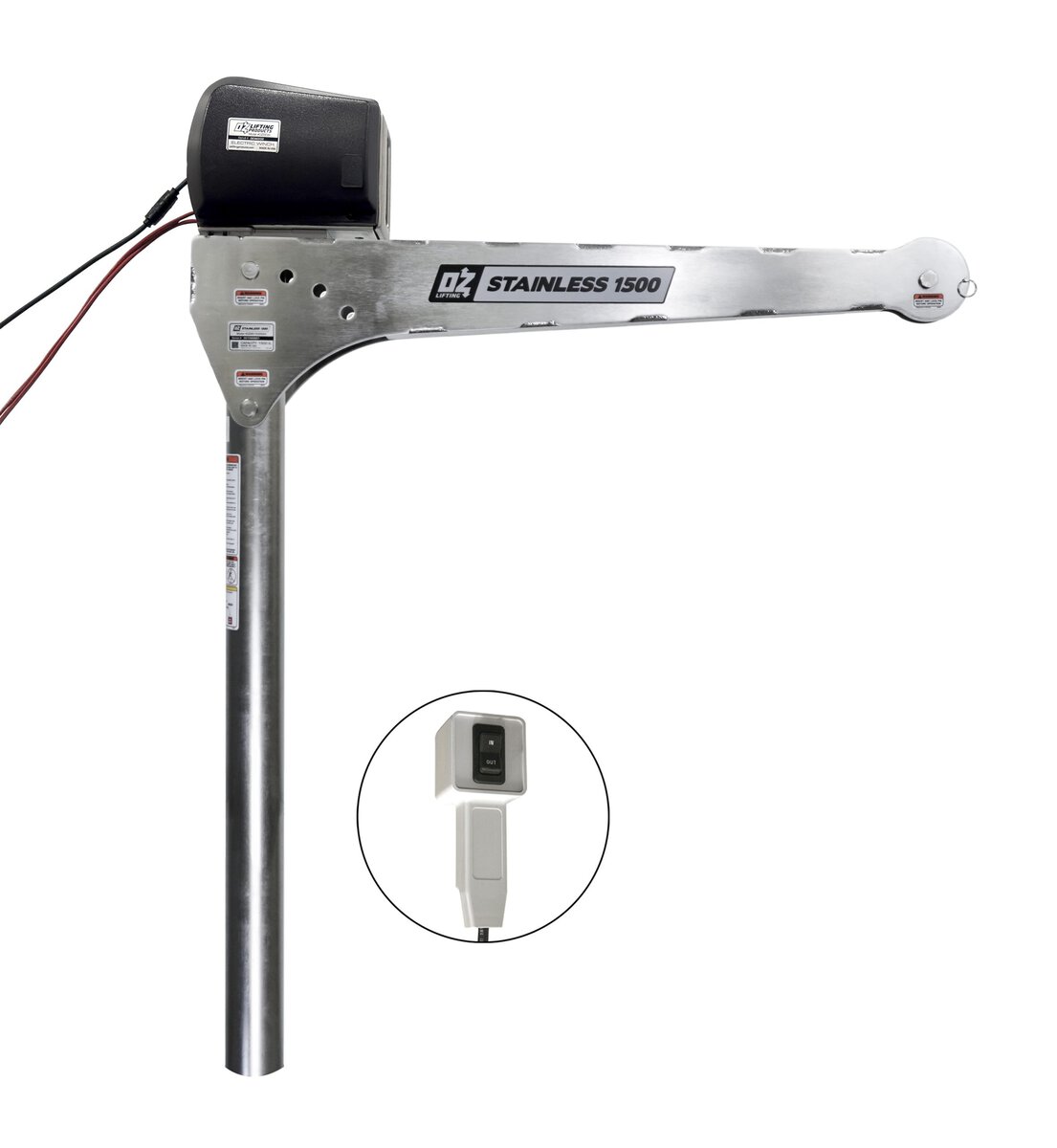

1500 lb stainless steel davit crane with DC brake winch

For mobile or off-grid operations, the 1500 lb. capacity Stainless Davit Crane delivers 304 stainless steel durability with a DC-powered winch. Designed for industries like mining, chemical processing, water treatment, and pharmaceuticals, it combines 360-degree rotation, four boom height positions, and a reliable electric winch for safe, precise lifting. Quick-connect assembly allows for fast, tool-free setup in corrosive or wet environments.

NOTE: Wire or synthetic rope assembly, headache ball, bases, and mast extensions sold separately.

  • 1500 lb. capacity rating
  • 304 stainless steel construction
  • RoHS-compliant, electropolished finish
  • 4 boom height adjustments
  • 360-degree rotation
  • Quick connect pins – no tools required for assembly and installation
  • 12V DC electric winch
  • Manual & AC winch options available
  • Mast extension, pedestal, wall mount, socket, and wheel bases sold separately
  • 2.5:1 safety factor, individually tested and certified at 125%
  • Stainless steel ID tag

OZSS1500DAV-DCW

1500 lb stainless steel davit crane with DC brake winch

    Videos

    Photos

    Add-Ons

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2Dimensional Drawing 3Dimensional Drawing 4

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZSS1500DAV - lb (kg) 49 (22) 50 (23) 99 (45)
    * Weights excluding winch
    Load Ratings
    Based on 1/4″ stainless steel wire rope or 3/16" synthetic rope
    First Layer Mid Drum Full Drum
    Boom Position 1 (0º) - lb (kg) 1000 (453) 1000 (453) 850 (385)
    Boom Position 2 (15º) - lb (kg) 1200 (544) 1200 (544) 850 (385)
    Boom Position 3 (30º) - lb (kg) 1300 (590) 1250 (566) 850 (385)
    Boom Position 4 (45º) - lb (kg) 1500 (680) 1250 (566) 850 (385)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZSS1500DAV 45,600 5,153 5/8″ Grade 5 (M16)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZSS1500DAV 1573 (714) 6997 1573 (714) 6997 1162 (527) 5169

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
