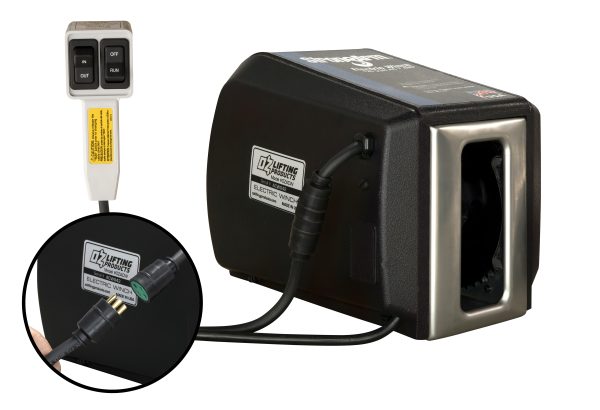

The OZ AC Electric Winch offers exceptional lifting power and reliability for a range of applications. Designed with a two-braking system that combines mechanical and dynamic brakes, this winch ensures secure operation even under heavy loads. Its fully-enclosed gearing, made with machine-cut and hardened gears, provides durability and smooth performance. Weighing just 22 pounds, the OZACW is lightweight and easy to handle, and features an emergency handle for added safety. The winch is equipped with a 10-foot pendant and a 10-foot power cord, making it versatile and convenient for various setups. Its quick connection to OZ davit cranes and easy bolt-on installation streamline integration into your equipment. Capable of lifting up to 1200 pounds, it accommodates both 3/16” diameter cable (up to 90 feet) and 1/4” diameter cable (up to 45 feet). Powered by a 1.0 HP motor, the OZACW runs at 115V AC with a full load amperage of 10A. Backed by a 1-year limited warranty, this winch provides dependable performance for industrial and commercial lifting needs.
Tell us about your needs and we will match you with the ideal lifting solution
| Load Capacity - All Models, based on the Amount of Cable - in (mm) | 3/16 (76.2/406.4) | 1/4 (25.4/101.6) |
| First Layer - lb (kg) | 800 (363.64) | 1200 (545.45) |
| Mid Drum - lb (kg) | 800 (363.64) | 1120 (509.09) |
| Full Drum - lb (kg) | 800 (363.64) | 850 (386.36) |
| Winch Speed Based on Load & Cable on the Drum | First Layer | Full |
| AC, No Load (ft/min) | 23 (7.01) | 35 (10.67) |
| AC, Full Load (ft/min) | 12 (3.66) | 16 (4.88) |
| DC, No Load (ft/min) | 21 (6.40) | 33 (10.06) |
| DC, Full Load (ft/min) | 5.50 (1.68) | 8 (2.44) |
| Dimensional Information: All Models - in (mm) | |
| A | 7.44 (188.98) |
| B | 3.58 (90.932) |
| C | 10.81 (274.57) |
| D | 8.19 (208.03) |
| E | 8.13 (206.50) |
| Mounting Plate Dimensional Information: All Models - in (mm) | |||||
| F | 3.63 (92.20) | K | 0.63 (16) | P | 3 (76.20) |
| G | 8.69 (220.73) | L | 1 (25.40) | Q | 0.53 (13.46) |
| H | 1.19 (30.23) | M | 1.25 (31.75) | R | 0.78 (19.81) |
| I | 0.63 (16) | N | 1.25 (31.75) | S | 0.43 (10.92) |
| J | 1.38 (35.05) | O | 1.81 (45.97) | T | 0.50 (12.70) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
