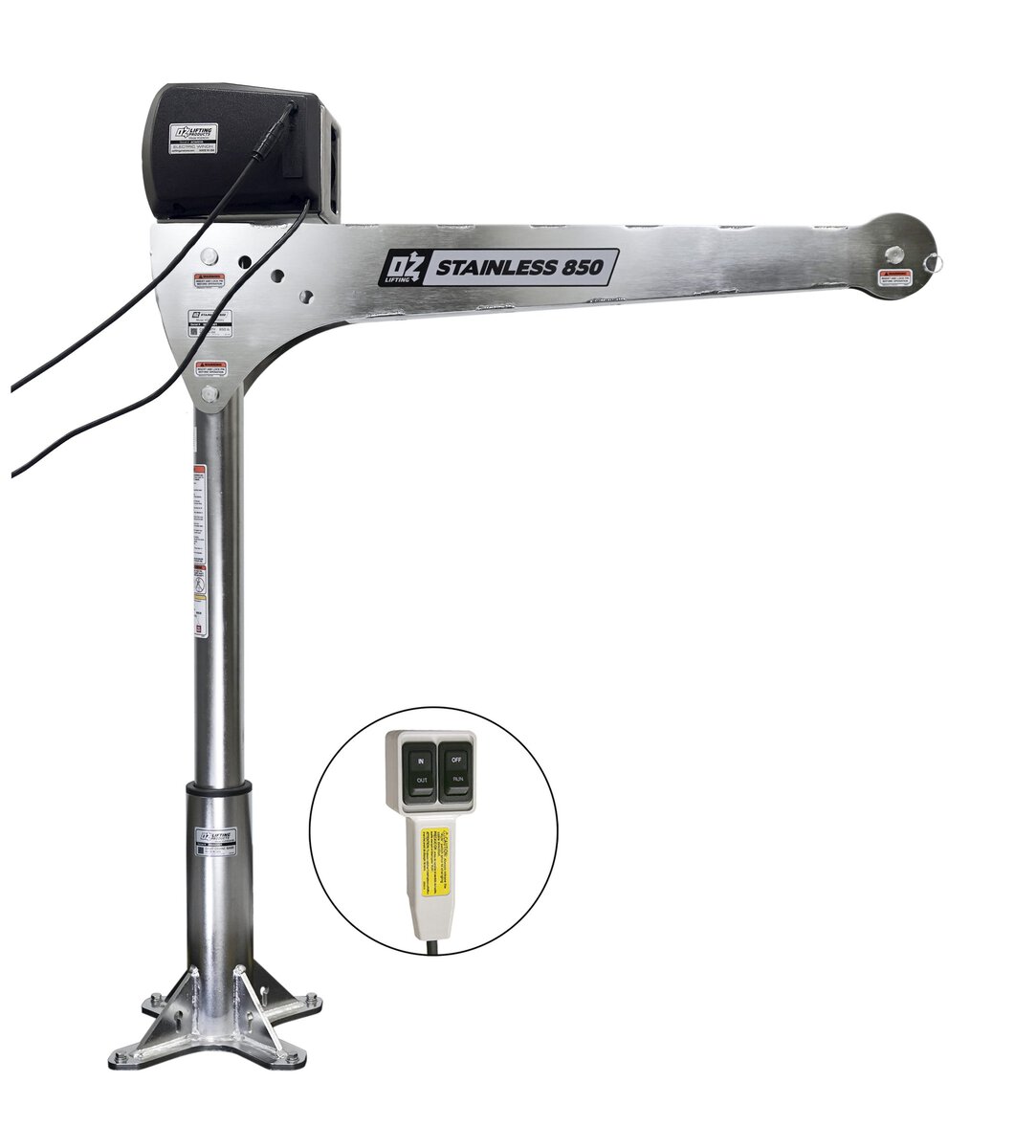

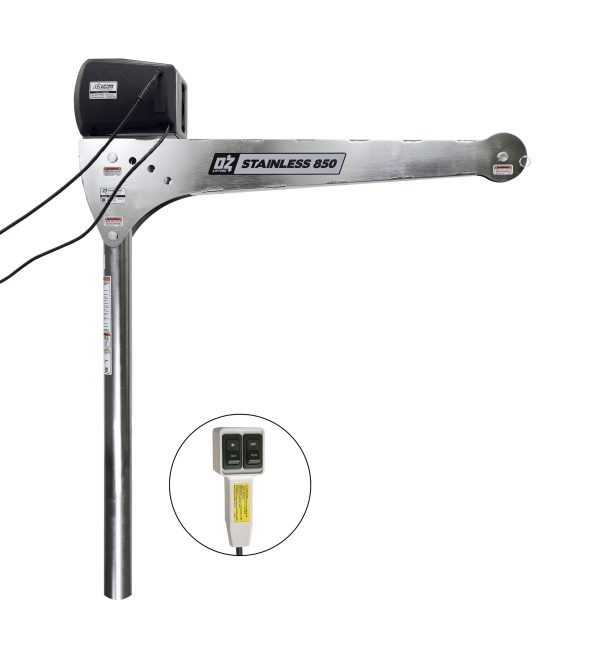

The 850 lb. Stainless Davit Crane by OZ Lifting Products adds a reliable AC-powered winch to the same 304 stainless steel construction and versatile design of the standard crane. Featuring an ASTM B912 electropolished finish, the crane offers enhanced corrosion resistance and an easy-to-clean surface for demanding environments. Four boom height positions and 360-degree rotation provide flexibility, while quick-connect assembly and a robust 2.5:1 safety factor keep your lifting tasks efficient and secure. This davit crane excels in wastewater, water treatment, chemical processing, aerospace, electronics manufacturing, mining, textiles, and pharmaceutical facilities.
NOTE: Wire or synthetic rope assembly, headache ball, bases, and mast extensions sold separately.
Tell us about your needs and we will match you with the ideal lifting solution
| Product Weight | |||
| Boom | Mast | Net | |
| OZ850DAV - lb (kg) | 35 (16) | 29 (13) | 64 (29) |
| * Weights excluding winch |
| Load Ratings | |||
| Based on 3/16″ stainless steel wire or synthetic rope | |||
| First Layer | Mid Drum | Full Drum | |
| Boom Position 1 (0º) - lb (kg) | 500 (226) | 500 (226) | 500 (226) |
| Boom Position 2 (15º) - lb (kg) | 600 (272) | 600 (272) | 600 (272) |
| Boom Position 3 (30º) - lb (kg) | 700 (317) | 700 (317) | 700 (317) |
| Boom Position 4 (45º) - lb (kg) | 850 (385) | 850 (385) | 850 (385) |
| Crane Reactions/Moments | ||||||
| Model | Mast Moments (in-lb) | Mast Moment (N-m) | Suggested Bolt Size | |||
| OZSS850DAV | 22,800 | 2,576 | 1/2″ Grade 5 (M12) | |||
| Floor Mount Base | Wall Mount Base | |||||
| Model | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Shear Force per Bolt - lb (kg) | Shear Force per Bolt (N) |
| OZSS850DAV | 1140 (517) | 5071 | 861 (391) | 3830 | 709 (322) | 3154 |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
