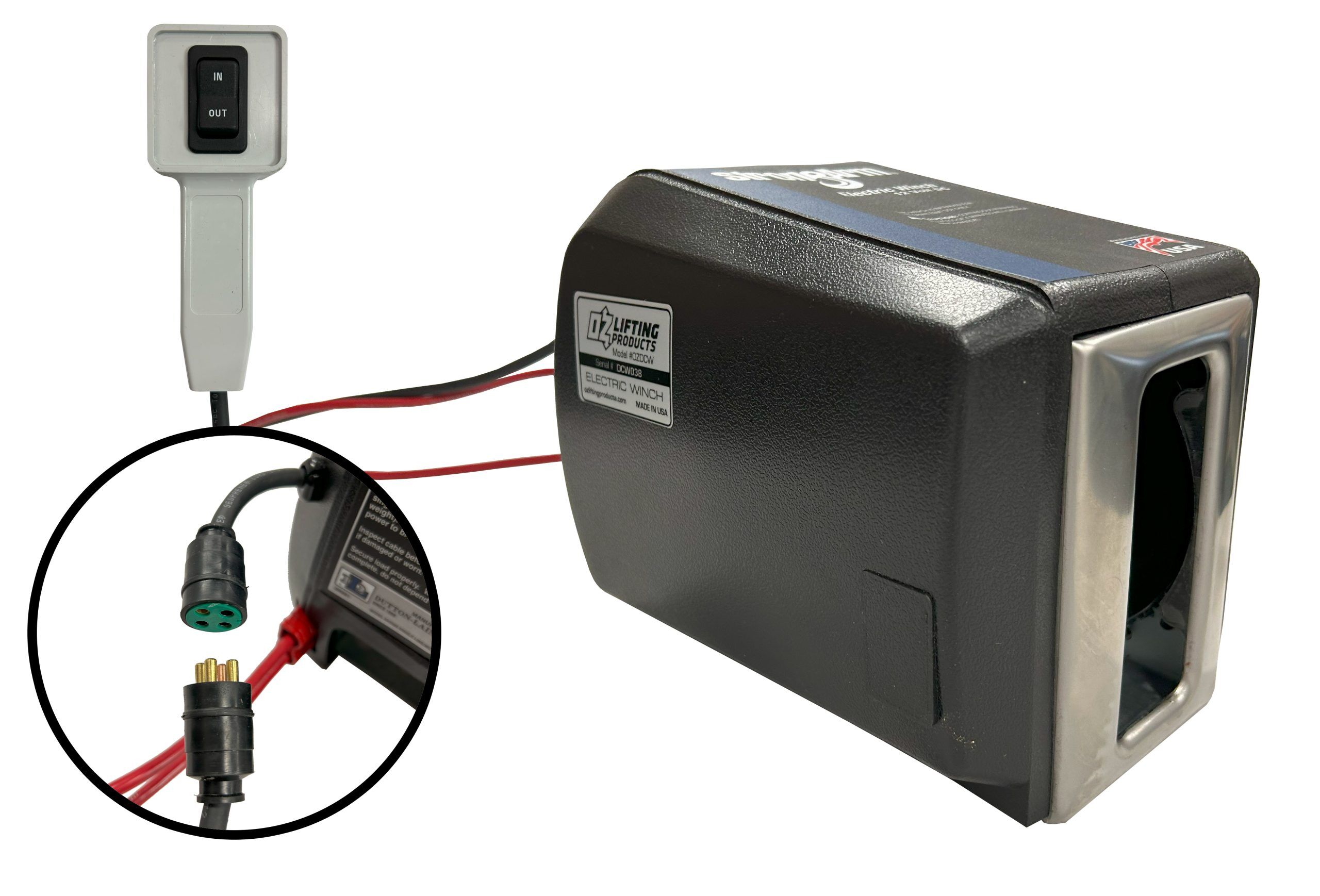

The OZ DC Electric Winch delivers reliable and efficient lifting power with its advanced features designed for demanding tasks. This winch is equipped with a dual braking system, incorporating both mechanical and dynamic brakes to ensure secure handling of loads. The gearing is fully enclosed and built with machine-cut, hardened gears to enhance durability and performance. With a net weight of 24 pounds, the OZDCW remains lightweight while offering robust functionality. It includes a 10-foot pendant and a 25-foot power cord, providing flexible operation and ease of use. The quick connection feature allows for seamless integration with OZ davit cranes, and the winch easily bolts onto the crane for hassle-free setup. The OZDCW supports a lifting capacity of up to 1200 pounds and can handle 3/16” diameter cable (up to 90 feet) or 1/4” diameter cable (up to 45 feet). Powered by a 0.6 HP motor and operating at 12V DC with a full load amperage of 70A, it offers powerful performance for various lifting applications. Supported by a 1-year limited warranty, the OZDCW provides reliable and efficient operation for both commercial and industrial use.
Tell us about your needs and we will match you with the ideal lifting solution
| Load Capacity - All Models, based on the Amount of Cable - in (mm) | 3/16 (76.2/406.4) | 1/4 (25.4/101.6) |
| First Layer - lb (kg) | 800 (363.64) | 1200 (545.45) |
| Mid Drum - lb (kg) | 800 (363.64) | 1120 (509.09) |
| Full Drum - lb (kg) | 800 (363.64) | 850 (386.36) |
| Winch Speed Based on Load & Cable on the Drum | First Layer | Full |
| AC, No Load (ft/min) | 23 (7.01) | 35 (10.67) |
| AC, Full Load (ft/min) | 12 (3.66) | 16 (4.88) |
| DC, No Load (ft/min) | 21 (6.40) | 33 (10.06) |
| DC, Full Load (ft/min) | 5.50 (1.68) | 8 (2.44) |
| Dimensional Information: All Models - in (mm) | |
| A | 7.44 (188.98) |
| B | 3.58 (90.932) |
| C | 10.81 (274.57) |
| D | 8.19 (208.03) |
| E | 8.13 (206.50) |
| Mounting Plate Dimensional Information: All Models - in (mm) | |||||
| F | 3.63 (92.20) | K | 0.63 (16) | P | 3 (76.20) |
| G | 8.69 (220.73) | L | 1 (25.40) | Q | 0.53 (13.46) |
| H | 1.19 (30.23) | M | 1.25 (31.75) | R | 0.78 (19.81) |
| I | 0.63 (16) | N | 1.25 (31.75) | S | 0.43 (10.92) |
| J | 1.38 (35.05) | O | 1.81 (45.97) | T | 0.50 (12.70) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
