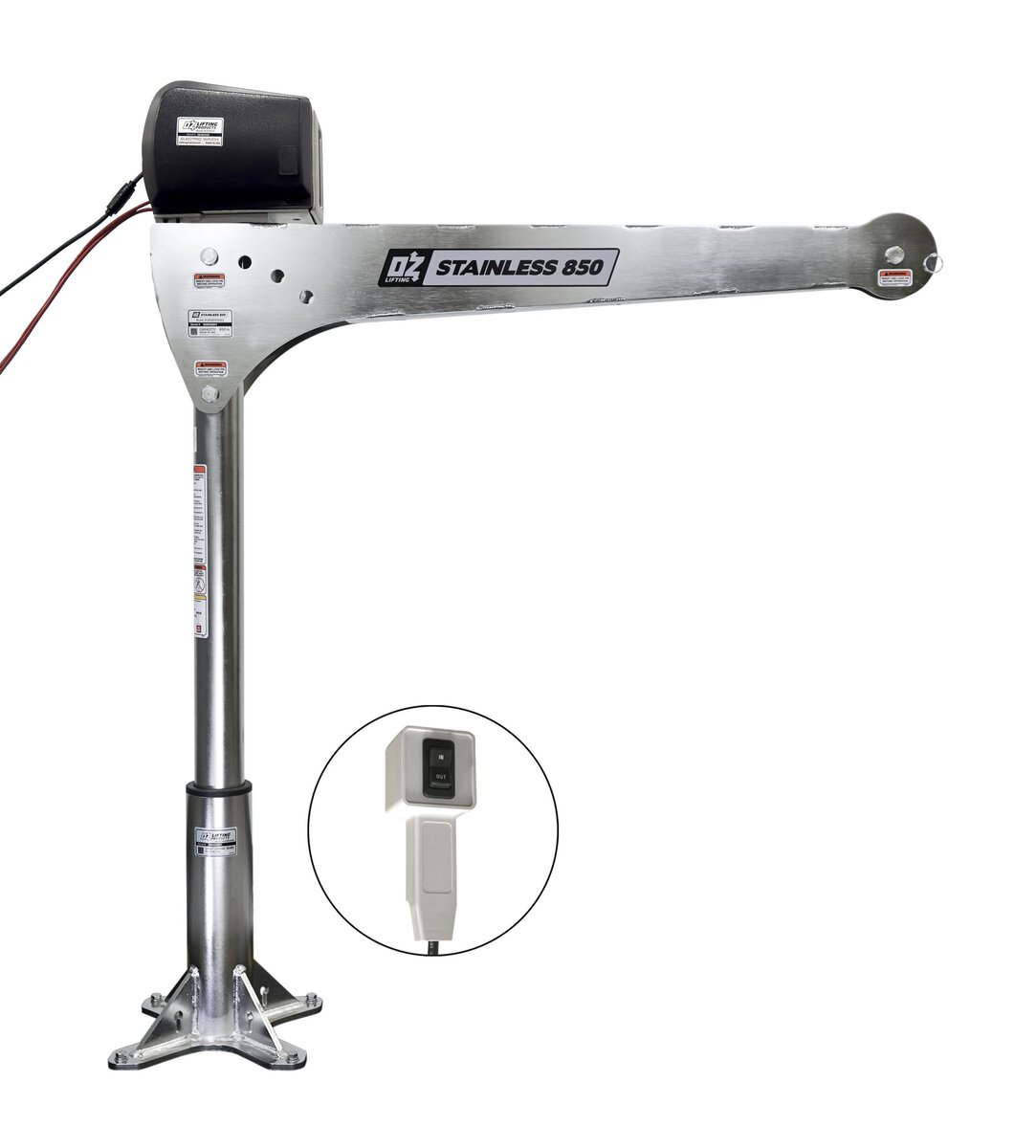

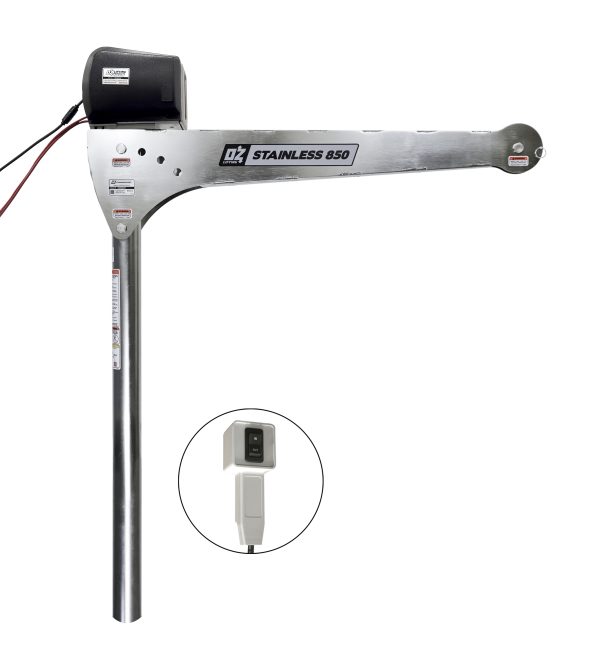

The Stainless Davit Crane in 850 lb. capacity is perfect for mobile or off-grid lifting applications, combining 304 stainless steel durability with a DC-powered winch. Featuring an ASTM B912 electropolished finish, the crane offers enhanced corrosion resistance and an easy-to-clean surface for demanding environments. Adjustable boom heights, full rotation, and manual stainless steel braking give operators precise control, while quick-connect assembly ensures fast, tool-free setup. Perfect for in-the-field maintenance for industries like wastewater, chemical processing, aerospace, and mining.
NOTE: Wire or synthetic rope assembly, headache ball, bases, and mast extensions sold separately.
Tell us about your needs and we will match you with the ideal lifting solution
| Product Weight | |||
| Boom | Mast | Net | |
| OZ850DAV - lb (kg) | 35 (16) | 29 (13) | 64 (29) |
| * Weights excluding winch |
| Load Ratings | |||
| Based on 3/16″ stainless steel wire or synthetic rope | |||
| First Layer | Mid Drum | Full Drum | |
| Boom Position 1 (0º) - lb (kg) | 500 (226) | 500 (226) | 500 (226) |
| Boom Position 2 (15º) - lb (kg) | 600 (272) | 600 (272) | 600 (272) |
| Boom Position 3 (30º) - lb (kg) | 700 (317) | 700 (317) | 700 (317) |
| Boom Position 4 (45º) - lb (kg) | 850 (385) | 850 (385) | 850 (385) |
| Crane Reactions/Moments | ||||||
| Model | Mast Moments (in-lb) | Mast Moment (N-m) | Suggested Bolt Size | |||
| OZSS850DAV | 22,800 | 2,576 | 1/2″ Grade 5 (M12) | |||
| Floor Mount Base | Wall Mount Base | |||||
| Model | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Shear Force per Bolt - lb (kg) | Shear Force per Bolt (N) |
| OZSS850DAV | 1140 (517) | 5071 | 861 (391) | 3830 | 709 (322) | 3154 |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
