Stainless Davit Crane

OZSS850DAV

Stainless Davit Crane

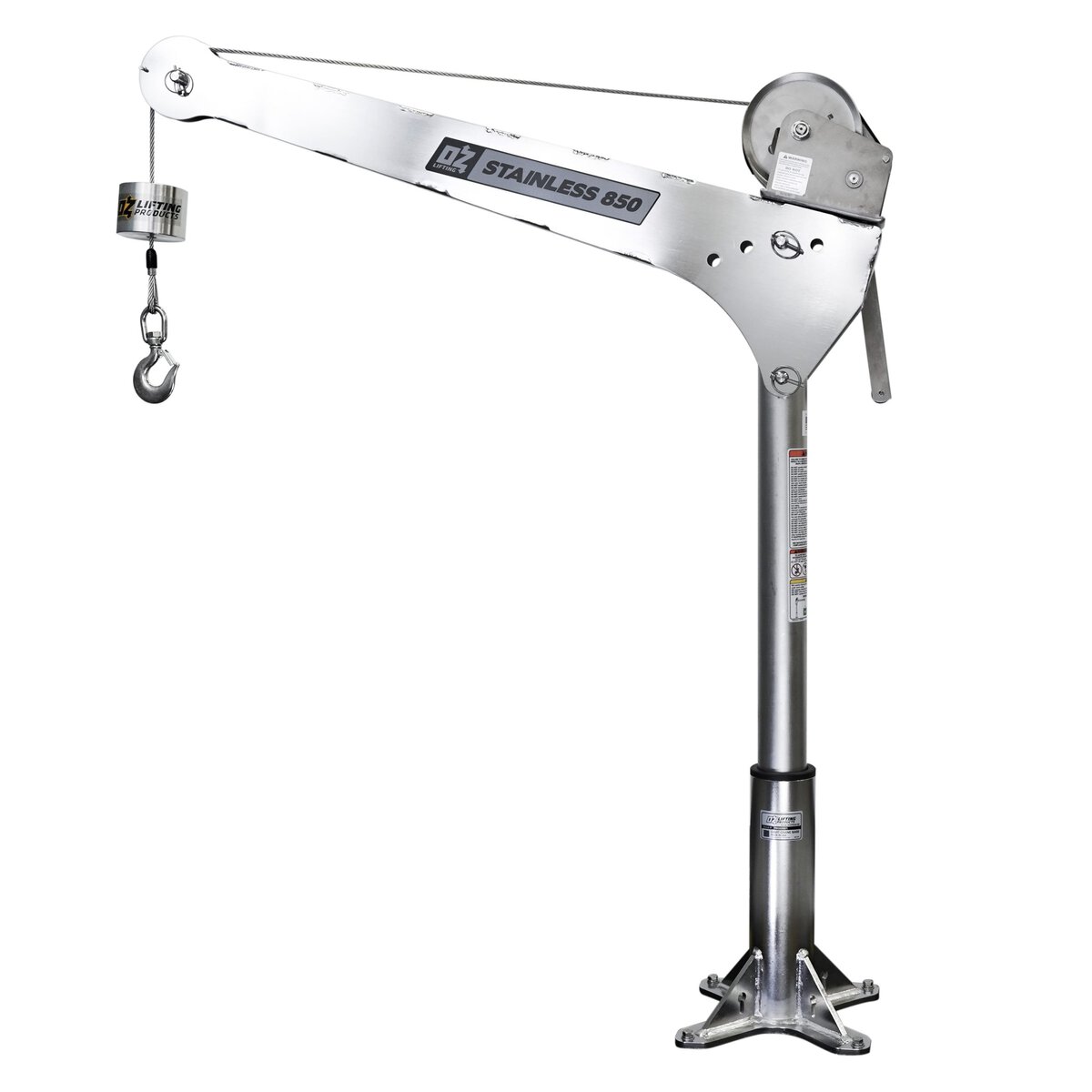

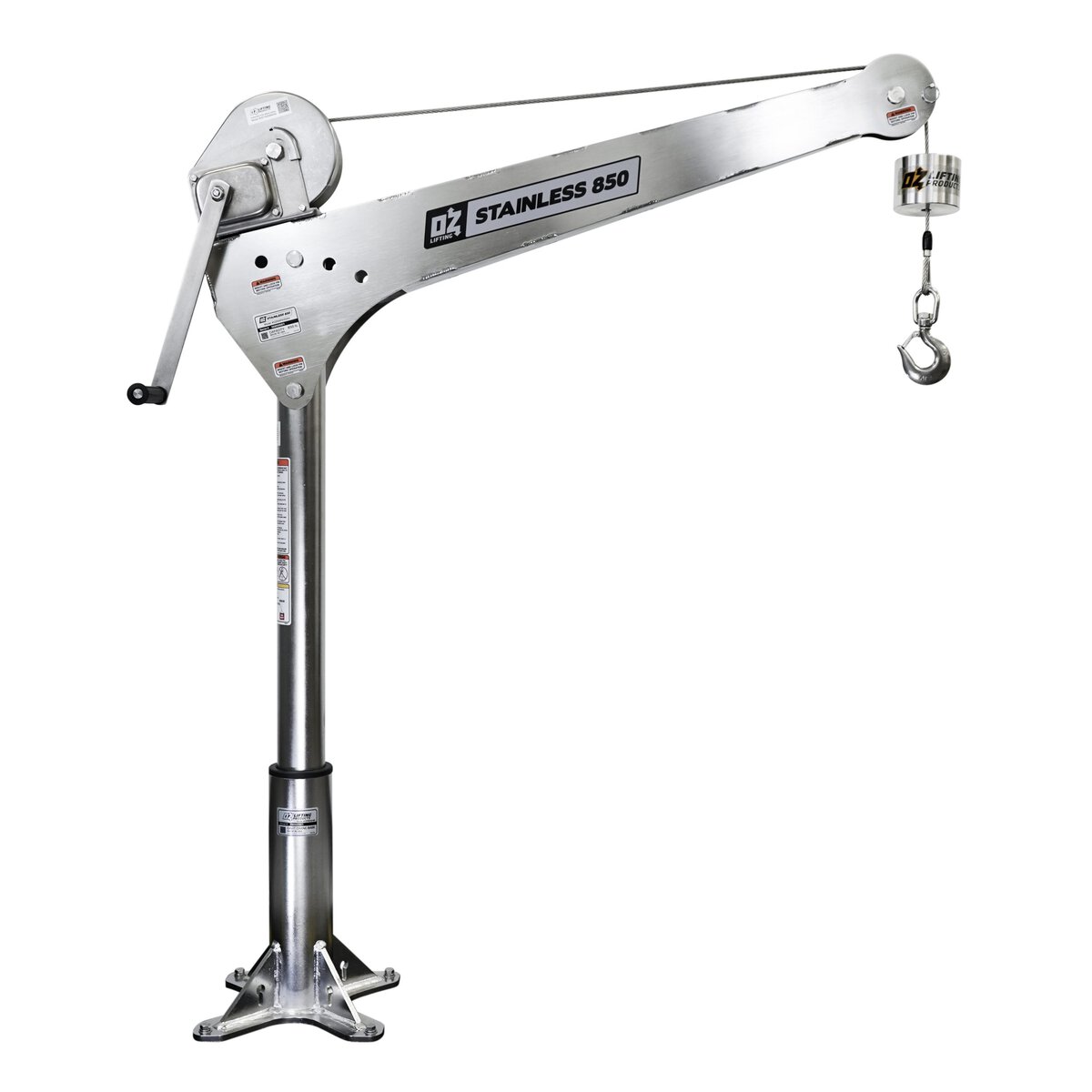

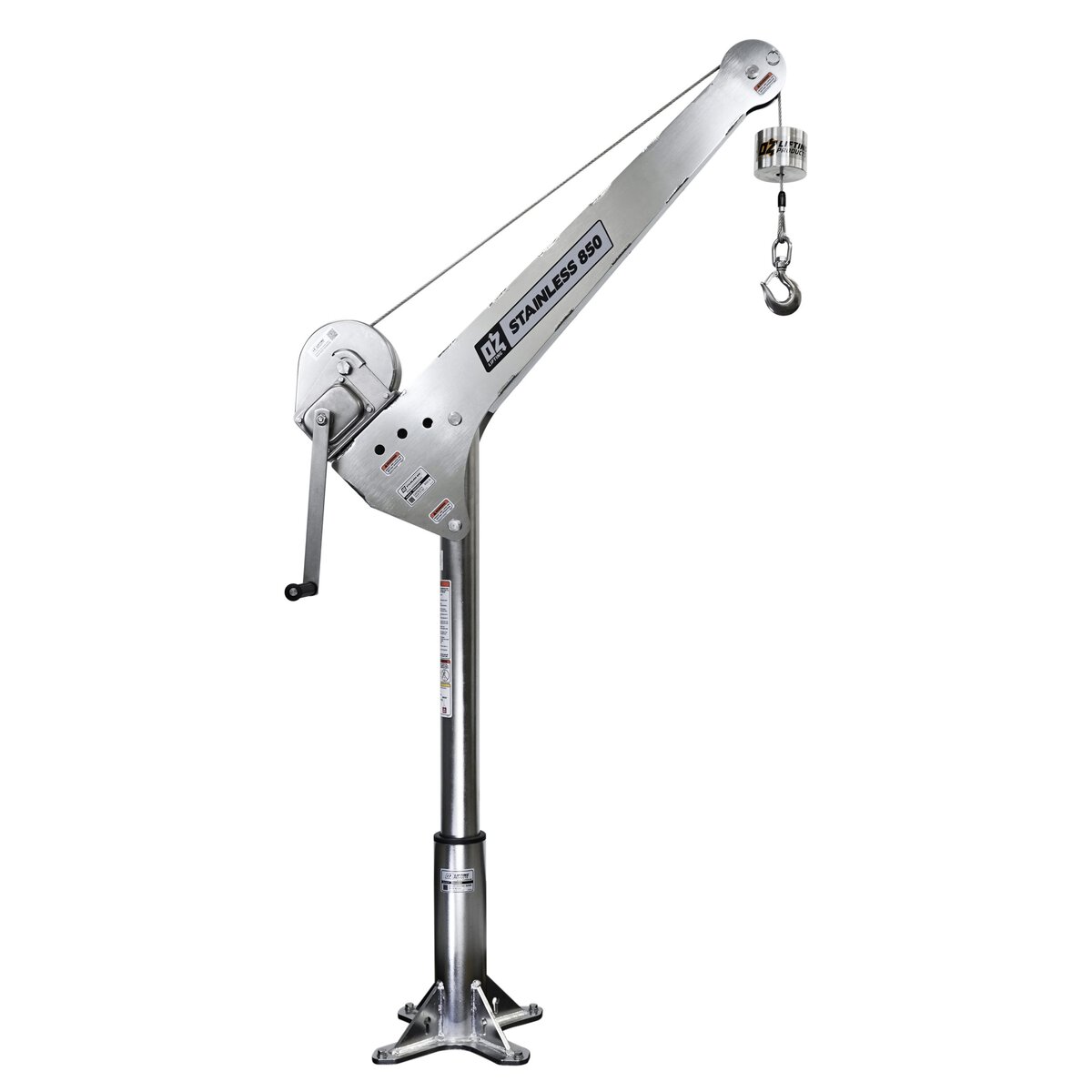

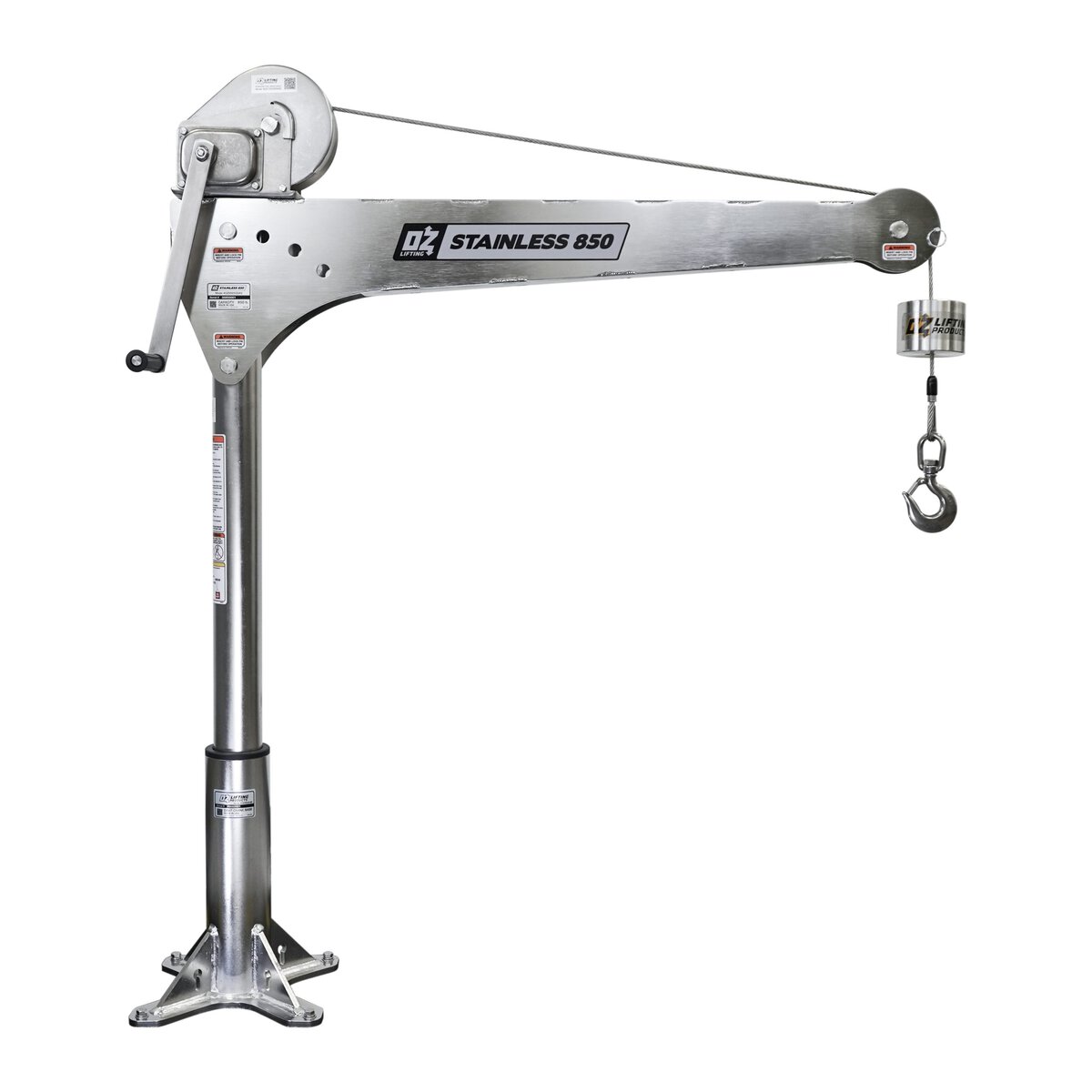

850 lb stainless steel davit crane with stainless steel brake winch

The Stainless 850 Davit Crane is a rugged, corrosion-resistant stainless steel lifting solution built for harsh environments. Perfect for industries like wastewater, chemical processing, aerospace, and pharmaceuticals, this 850 lb. capacity crane delivers dependable performance, 360-degree rotation, and four boom height adjustments. With a manual stainless steel brake winch, quick-connect assembly, and a 2.5:1 safety factor, this crane is a worksite powerhouse that won’t quit.

NOTE: Wire or synthetic rope assembly, headache ball, bases, and mast extensions sold separately.

  • 850 lb. capacity rating
  • 304 stainless steel construction
  • RoHS-compliant, electropolished finish
  • 4 boom height adjustments
  • 360-degree rotation
  • Quick connect pins – no tools required for assembly and installation
  • Manual DIN-rated stainless steel brake winch with integrated Weston brake
  • AC & DC winch options available
  • Mast extension, pedestal, wall mount, socket, and wheel bases sold separately
  • 2.5:1 safety factor, individually tested and certified at 125%
  • Stainless steel ID tag

OZSS850DAV

850 lb stainless steel davit crane with stainless steel brake winch

    Videos

    Photos

    Add-Ons

    Drawings

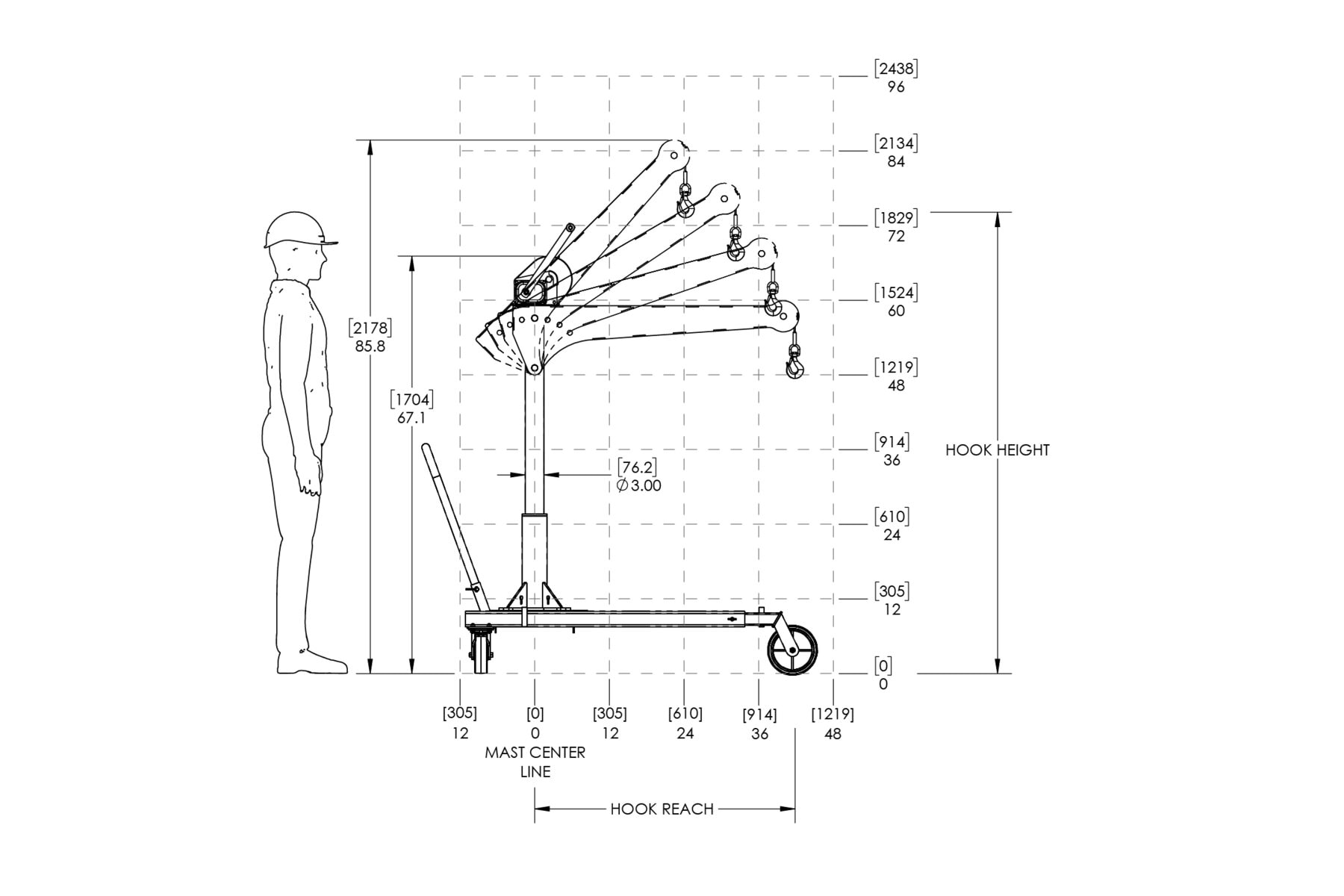

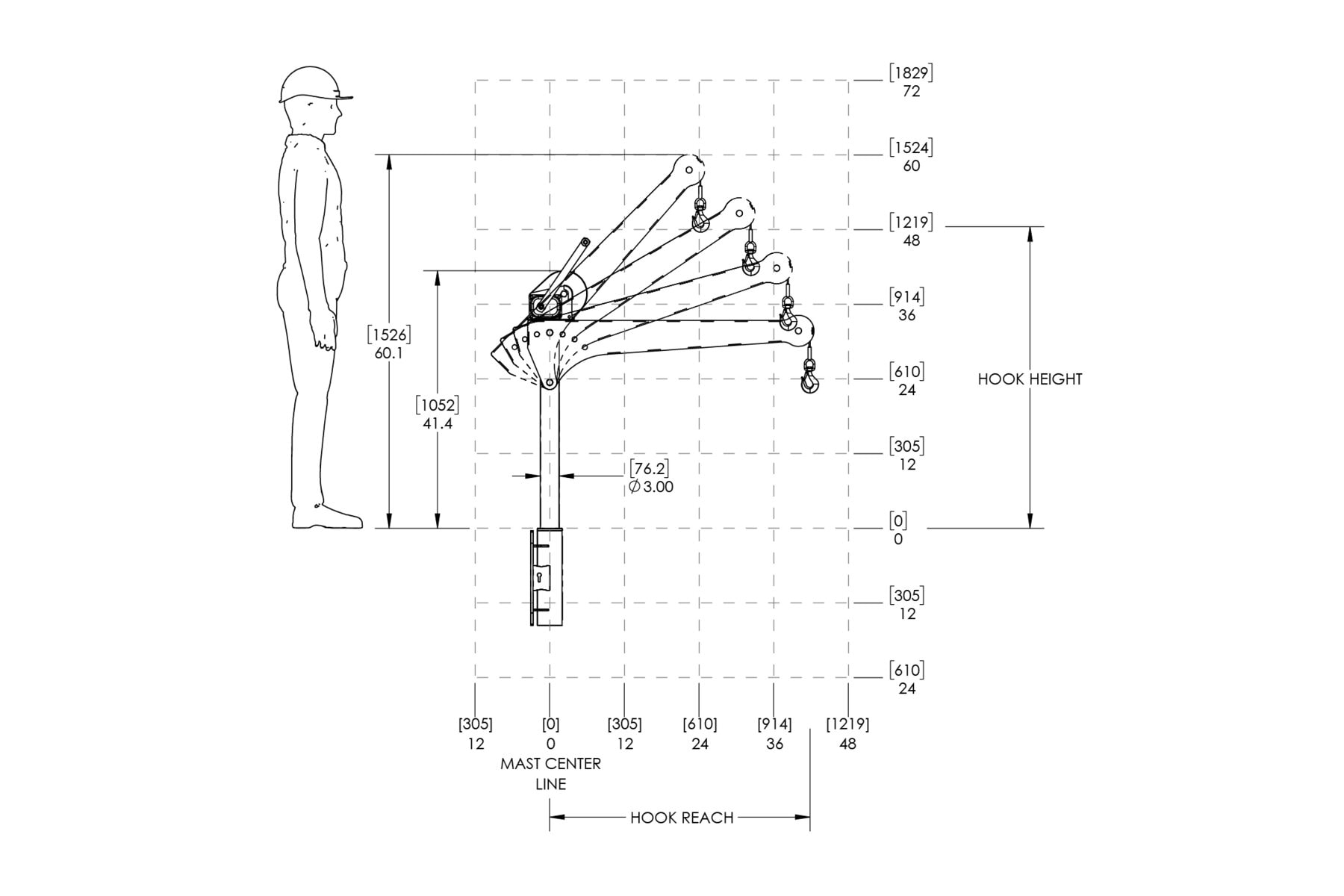

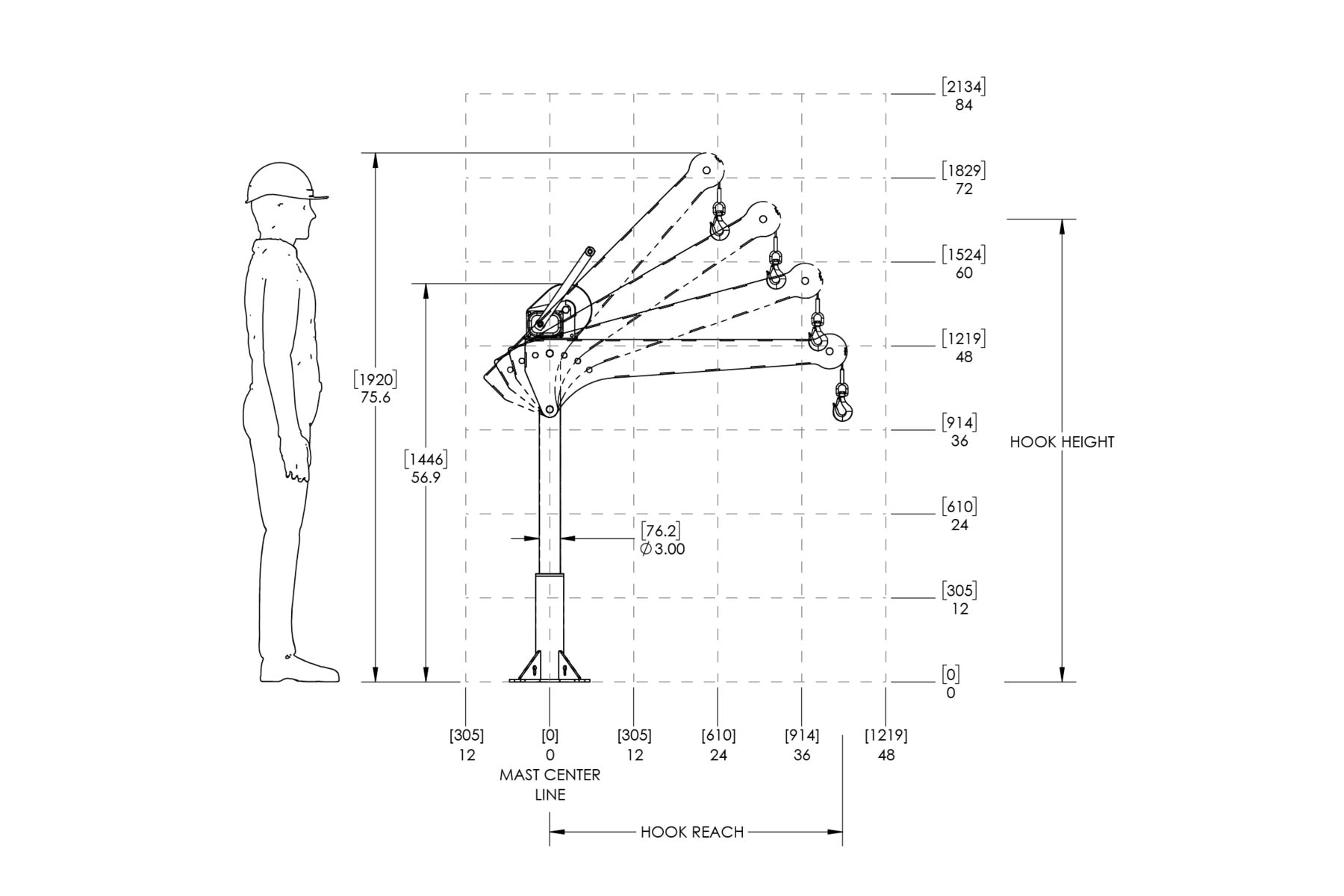

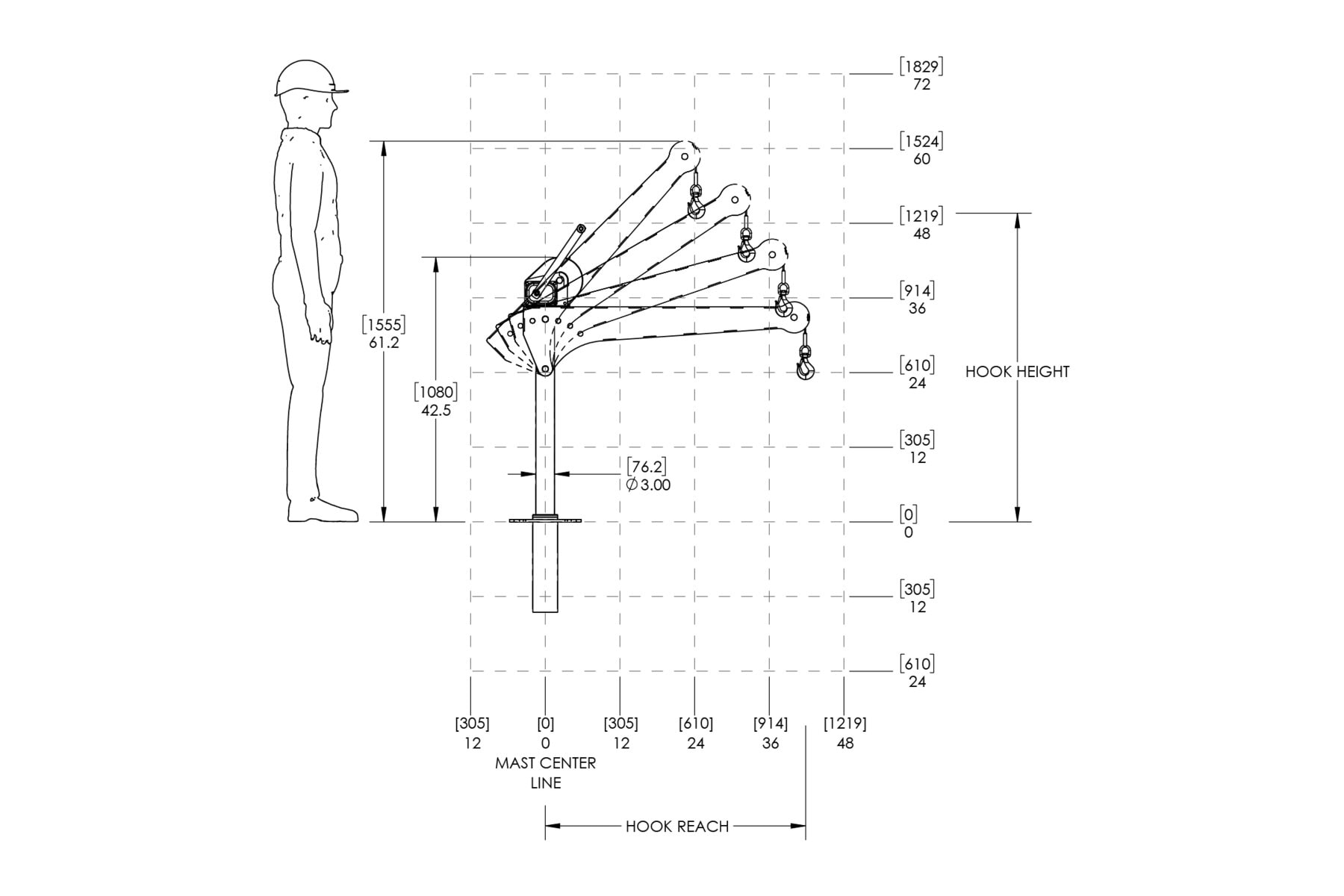

    Dimensional Drawing 1Dimensional Drawing 2Dimensional Drawing 3Dimensional Drawing 4

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZ850DAV - lb (kg) 35 (16) 29 (13) 64 (29)
    * Weights excluding winch
    Load Ratings
    Based on 3/16″ stainless steel wire or synthetic rope
    First Layer Mid Drum Full Drum
    Boom Position 1 (0º) - lb (kg) 500 (226) 500 (226) 500 (226)
    Boom Position 2 (15º) - lb (kg) 600 (272) 600 (272) 600 (272)
    Boom Position 3 (30º) - lb (kg) 700 (317) 700 (317) 700 (317)
    Boom Position 4 (45º) - lb (kg) 850 (385) 850 (385) 850 (385)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZSS850DAV 22,800 2,576 1/2″ Grade 5 (M12)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZSS850DAV 1140 (517) 5071 861 (391) 3830 709 (322) 3154

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
