XR Series Davit Crane

OZXR1000DAV-HND2

XR Series Davit Crane

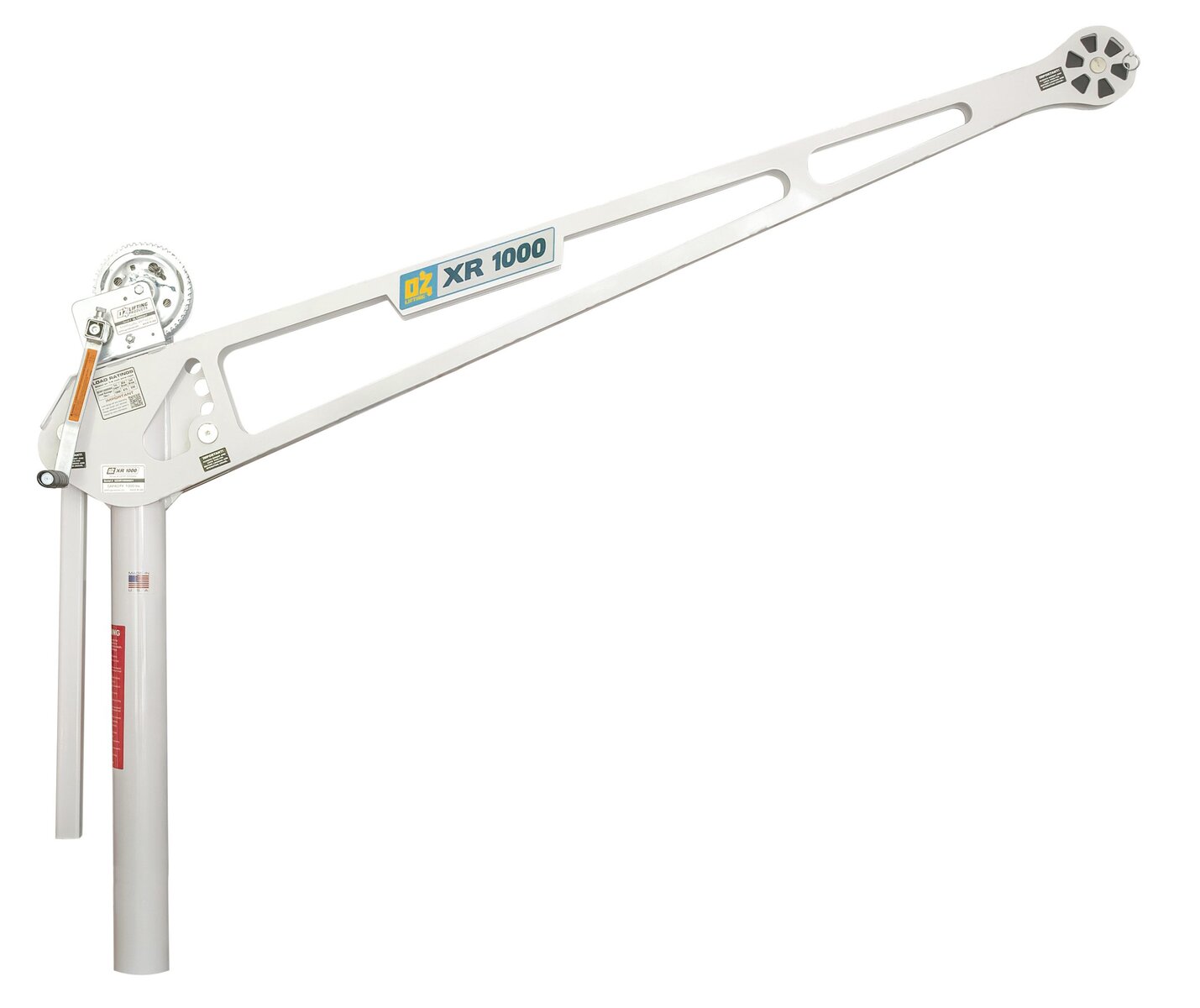

1000 lb extended reach davit crane with 2500 lb carbon steel brake winch

Oz Product Made in the USA Badge
For maximum lifting capability, the XR Series Davit Crane features a 2500 lb capacity manual carbon steel brake winch with a drill drive adapter. This high-capacity winch configuration enhances the crane’s 1000 lb lifting capability, offering superior power and performance for the most demanding lifting tasks. This powerful crane offers an impressive 62-inch reach and maintains full capacity at any angle. With adjustable boom heights and 360-degree rotation, you’ll have unparalleled access and flexibility for your lifting tasks. Built tough and easy to operate, the XR Series is the ultimate solution for extended-reach applications.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

  • 1000 lb. capacity rating
  • Extended reach, maximum 62-inch reach and 87-inch hook height
  • Maintains maximum weight capacity in all positions
  • Durable steel construction
  • Corrosion-resistant powder coat finish
  • 11 boom height adjustments
  • 360-degree rotation
  • No tools required for assembly and installation
  • Manual DIN-rated CE carbon steel brake winch, 2500 lb capacity, with integrated Weston brake (Includes quick connect winch handle with drill drive adapter)
  • AC & DC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

Start Now

OZXR1000DAV-HND2

1000 lb extended reach davit crane with 2500 lb carbon steel brake winch

    Get Started
    Download Specs

    Videos

    Photos

    Add-Ons

    OZWB1-TP

    Wheel Base for use with OZTP1200DAV, OZA1000DAV, and OZXR1000DAV davit cranes (Pedestal base and locking collar included)

    View Product

    OZWALL1-TP

    Wall mount base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSOC1-TP

    Socket base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZPED1-TP

    Pedestal base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSS.19-90

    3/16″ x 90′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-80

    3/16″ x 80′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-80B

    3/16″ x 80′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-70

    3/16″ x 70′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-70B

    3/16″ x 70′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-60

    3/16″ x 60′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-60B

    3/16″ x 60′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-50

    3/16″ x 50′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-50B

    3/16″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-40

    3/16″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-40B

    3/16″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-30

    3/16″ x 30′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-30B

    3/16″ x 30′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-20

    3/16″ x 20′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-20B

    3/16″ x 20′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-100B

    3/16″ x 100′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-10

    3/16″ x 10′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-10B

    3/16″ x 10′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZHB10

    10 lb headache ball for use with 3/16″ and 1/4″ wire rope

    View Product

    OZSS.25-55B

    1/4″ x 55′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-55B

    1/4″ x 55′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-50B

    1/4″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-45

    1/4″ x 45′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-45B

    1/4″ x 45′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-40

    1/4″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-40B

    1/4″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    System Components

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZXR1000DAV - lb (kg) 46 (20.91) 41 (18.64) 95 (43.18)
    * Weights excluding winch
    Load Ratings
    Based on 1/4" wire or 3/16″ synthetic rope
    First Layer Mid Drum Full Drum
    All positions - lb (kg) 1000 (454.55) 875 (397.73) 550 (250)
    Based on 3/16″ wire rope
    First Layer Mid Drum Full Drum
    All positions - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZXR1000DAV 63,426 7,166 5/8″ Grade 5 (M16)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZXR1000DAV 1931 (877.73) 8,591 2246 (1020.91) 9,989 1556 (707.27) 6,924
