1000 lb extended reach davit crane with DC electric winch
1000 lb extended reach davit crane with DC electric winch - Image 2

OZXR1000DAV-DCW Downloads

Download All
Download Icon
XR_Davit_OM_ENFRSP.pdf
Download Icon
XR-Series-Davit-Crane.pdf
Download Icon
Application-Data-Sheet-1.pdf
Download Icon
XR-1000-OZXR1000DAV-Davit-Crane-Specifications-1.pdf
Download Icon
OZXR1000DAV.step
Download Icon
OZXR1000DAV.pdf
XR Series Davit Crane

OZXR1000DAV-DCW

XR Series Davit Crane

1000 lb extended reach davit crane with DC electric winch

Oz Product Made in the USA Badge

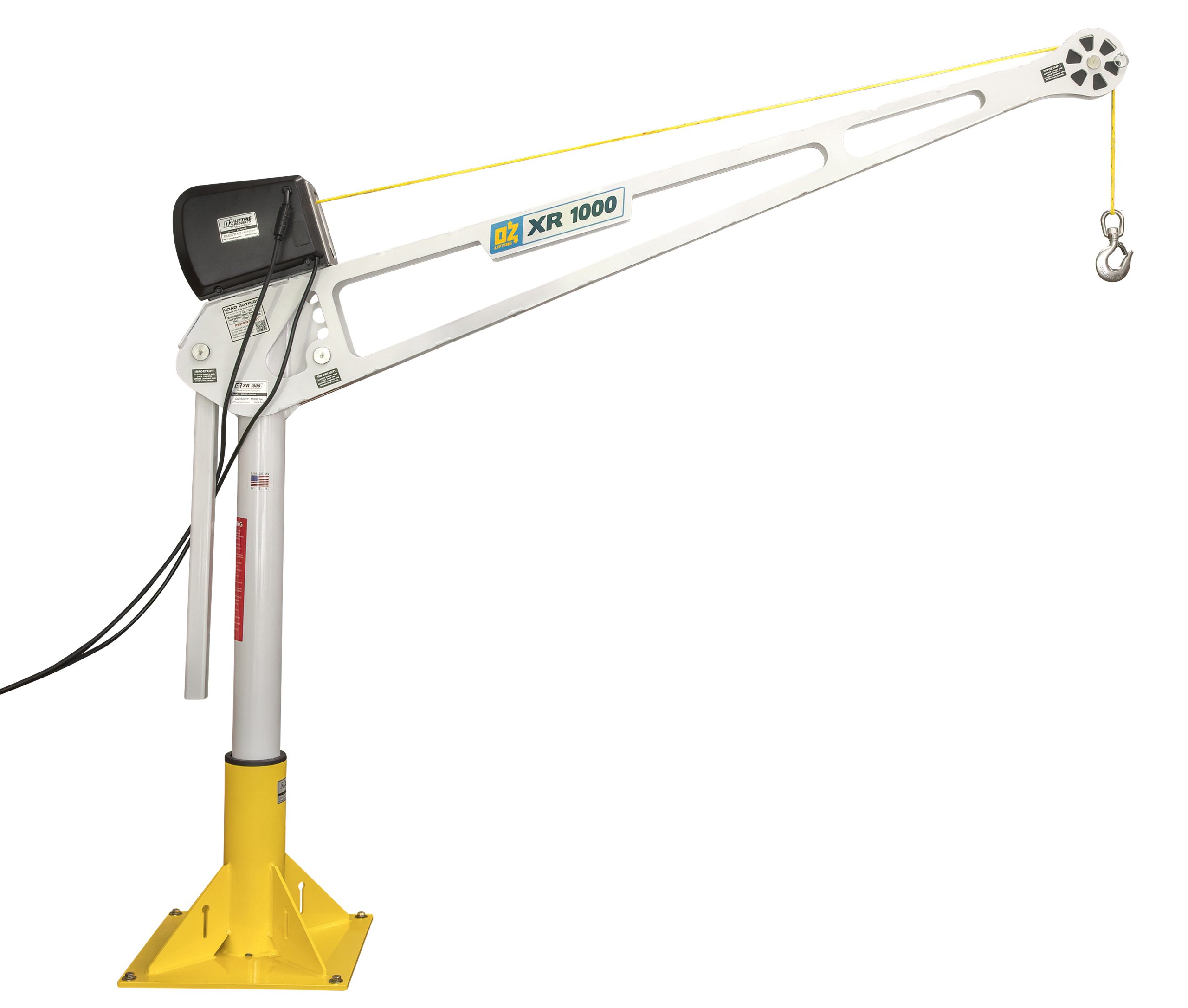

The XR Series Davit Crane includes a 12V DC electric winch, providing a powerful and efficient solution for lifting tasks with a 1000 lb capacity. Designed for use in mobile or remote setups, this model combines the crane’s substantial capacity with the flexibility of DC-powered winching. This powerful crane offers an impressive 62-inch reach and maintains full capacity at any angle. With adjustable boom heights and 360-degree rotation, you’ll have unparalleled access and flexibility for your lifting tasks. Built tough and easy to operate, the XR Series is the ultimate solution for extended-reach applications.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

  • 1000 lb. capacity rating
  • Extended reach, maximum 62-inch reach and 87-inch hook height
  • Maintains maximum weight capacity in all positions
  • Durable steel construction
  • Corrosion-resistant powder coat finish
  • 10 boom height adjustments
  • 360-degree rotation
  • No tools required for assembly and installation
  • 12V DC electric winch
  • Manual & AC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

Start Now

OZXR1000DAV-DCW

1000 lb extended reach davit crane with DC electric winch

    Get Started
    Download Specs

    Videos

    Photos

    Add-Ons

    OZWB1-TP

    Wheel Base for use with OZTP1200DAV, OZA1000DAV, and OZXR1000DAV davit cranes (Pedestal base and locking collar included)

    View Product

    OZWALL1-TP

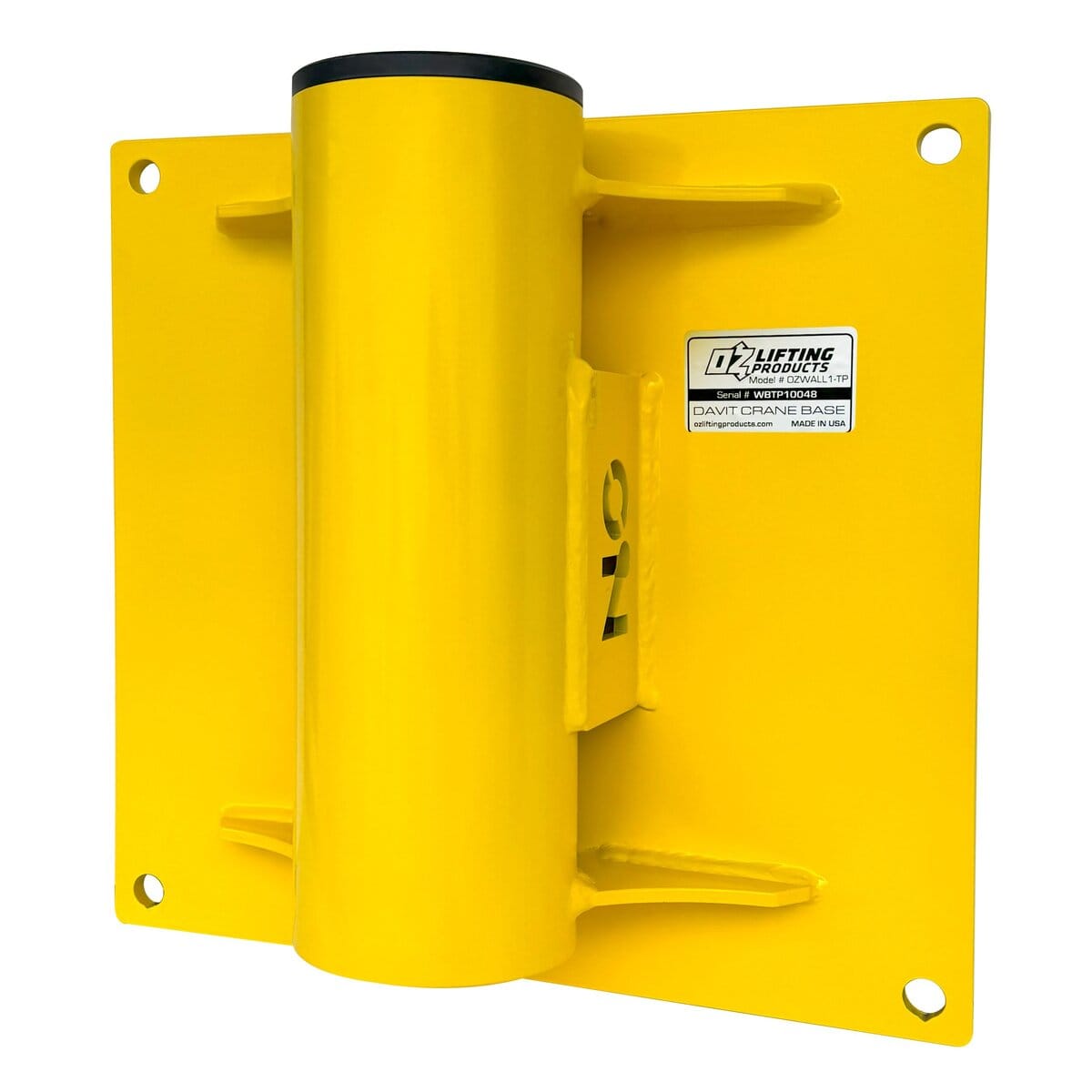

    Wall mount base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSOC1-TP

    Socket base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZPED1-TP

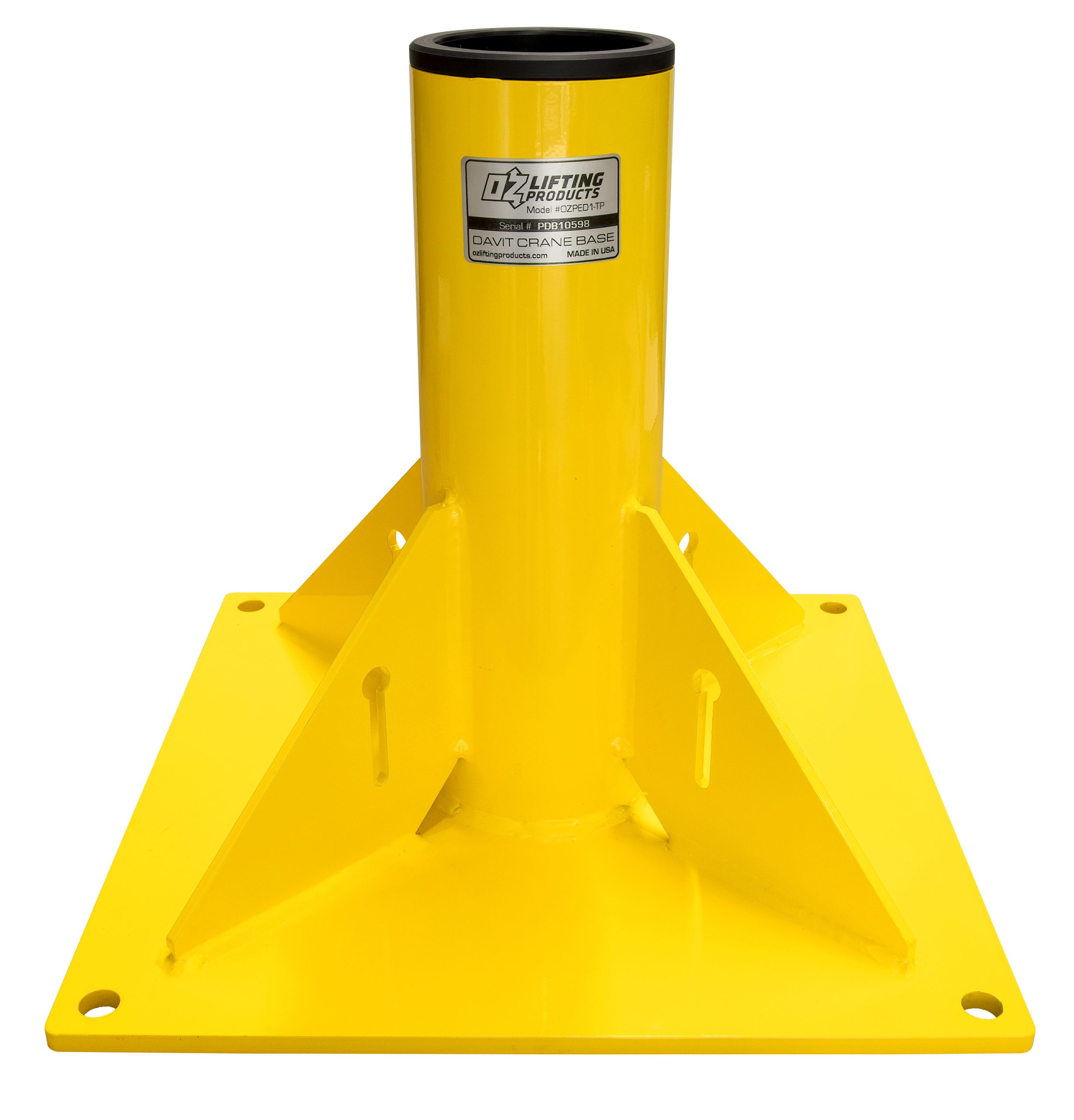

    Pedestal base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSS.19-90

    3/16″ x 90′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-80

    3/16″ x 80′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-80B

    3/16″ x 80′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-70

    3/16″ x 70′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-70B

    3/16″ x 70′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-60

    3/16″ x 60′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-60B

    3/16″ x 60′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-50

    3/16″ x 50′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-50B

    3/16″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-40

    3/16″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-40B

    3/16″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-30

    3/16″ x 30′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-30B

    3/16″ x 30′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-20

    3/16″ x 20′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-20B

    3/16″ x 20′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-100B

    3/16″ x 100′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-10

    3/16″ x 10′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-10B

    3/16″ x 10′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZHB10

    10 lb headache ball for use with 3/16″ and 1/4″ wire rope

    View Product

    OZSS.25-55B

    1/4″ x 55′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-50B

    1/4″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-45

    1/4″ x 45′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-45B

    1/4″ x 45′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-45

    1/4″ x 45′ lift – Galvanized cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-40

    1/4″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-40B

    1/4″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    System Components

    Drawings

    Dimensional Drawing 1

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZXR1000DAV - lb (kg) 46 (20.91) 41 (18.64) 95 (43.18)
    * Weights excluding winch
    Load Ratings
    Based on 1/4" wire or 3/16″ synthetic rope
    First Layer Mid Drum Full Drum
    All positions - lb (kg) 1000 (454.55) 875 (397.73) 550 (250)
    Based on 3/16″ wire rope
    First Layer Mid Drum Full Drum
    All positions - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZXR1000DAV 63,426 7,166 5/8″ Grade 5 (M16)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZXR1000DAV 1931 (877.73) 8,591 2246 (1020.91) 9,989 1556 (707.27) 6,924
