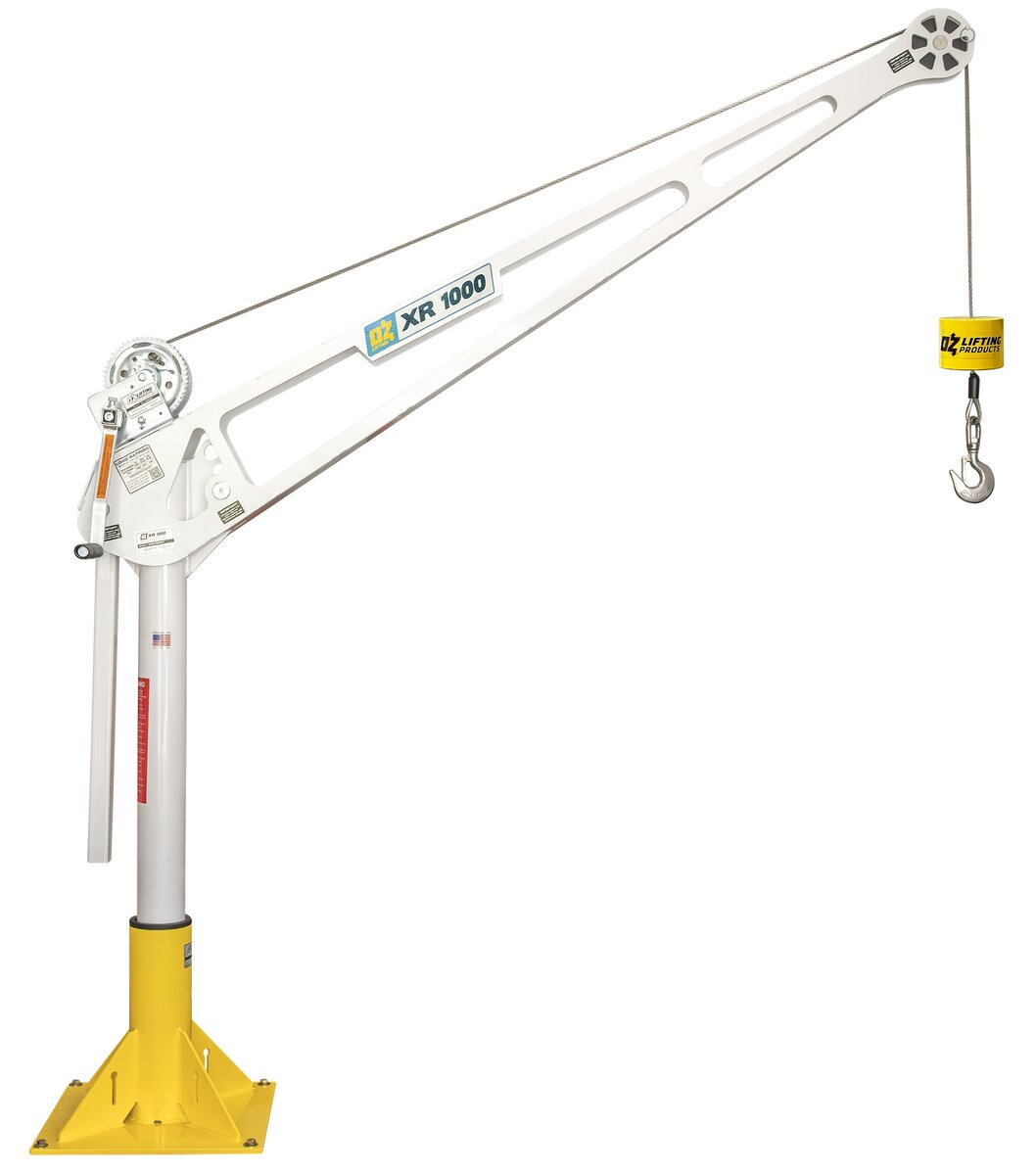

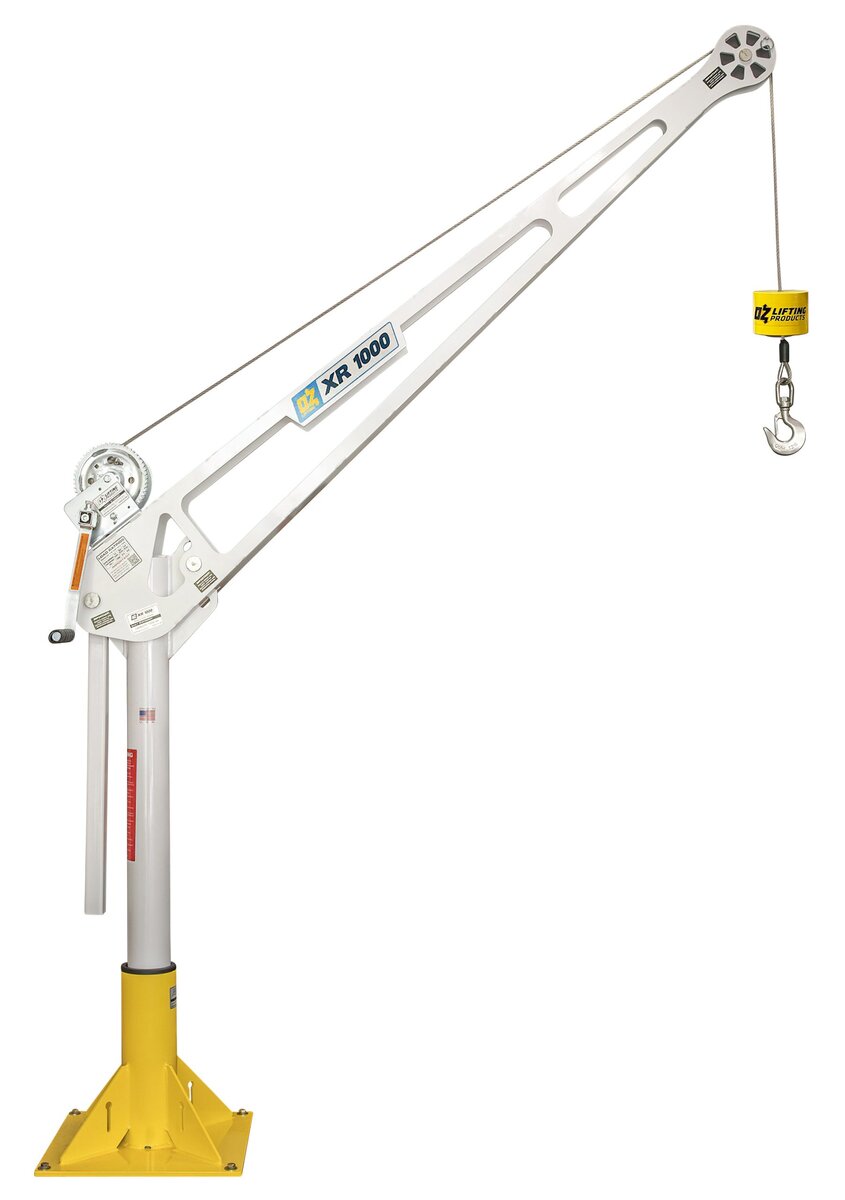

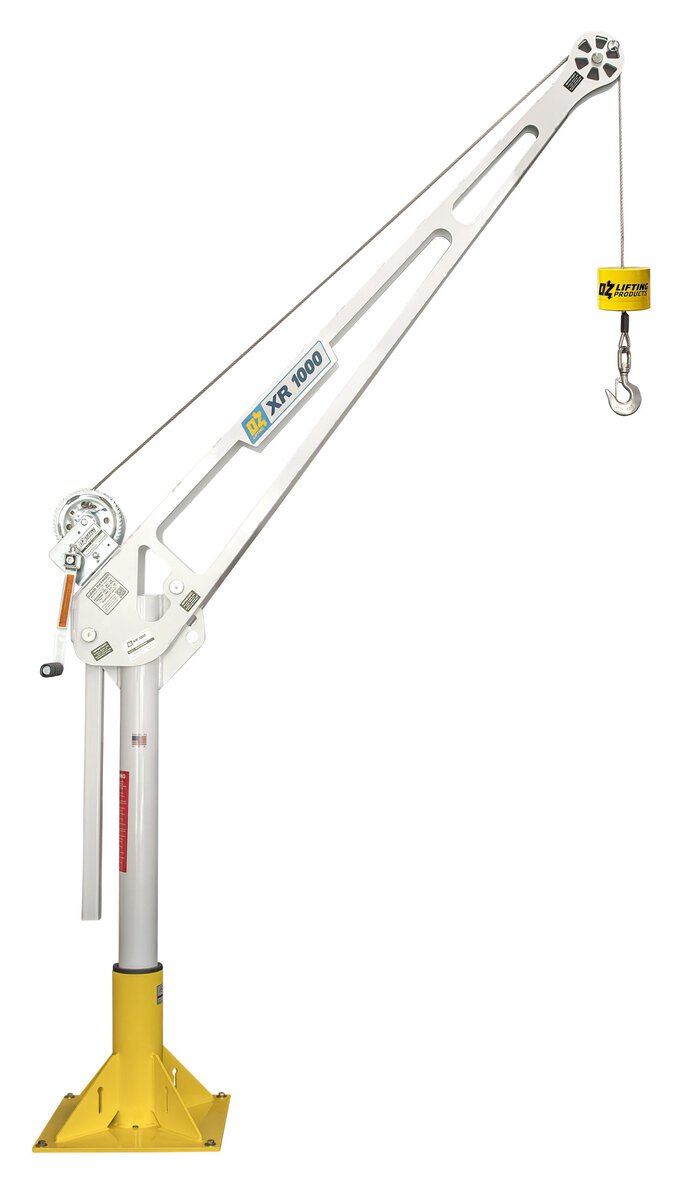

The XR Series Davit Crane offers a 1000 lb capacity with a manual carbon steel brake winch and drill drive adapter. This model combines increased lifting power with the reliability of a manual winch, perfect for heavy-duty applications requiring both strength and maneuverability. This powerful crane offers an impressive 62-inch reach and maintains full capacity at any angle. With adjustable boom heights and 360-degree rotation, you’ll have unparalleled access and flexibility for your lifting tasks. Built tough and easy to operate, the XR Series is the ultimate solution for extended-reach applications.
NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.
Tell us about your needs and we will match you with the ideal lifting solution
| Product Weight | |||
| Boom | Mast | Net | |
| OZXR1000DAV - lb (kg) | 46 (20.91) | 41 (18.64) | 95 (43.18) |
| * Weights excluding winch |
| Load Ratings | |||
| Based on 1/4" wire or 3/16″ synthetic rope | |||
| First Layer | Mid Drum | Full Drum | |
| All positions - lb (kg) | 1000 (454.55) | 875 (397.73) | 550 (250) |
| Based on 3/16″ wire rope | |||
| First Layer | Mid Drum | Full Drum | |
| All positions - lb (kg) | 800 (363.64) | 800 (363.64) | 550 (250) |
| Crane Reactions/Moments | ||||||
| Model | Mast Moments (in-lb) | Mast Moment (N-m) | Suggested Bolt Size | |||
| OZXR1000DAV | 63,426 | 7,166 | 5/8″ Grade 5 (M16) | |||
| Floor Mount Base | Wall Mount Base | |||||
| Model | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Shear Force per Bolt - lb (kg) | Shear Force per Bolt (N) |
| OZXR1000DAV | 1931 (877.73) | 8,591 | 2246 (1020.91) | 9,989 | 1556 (707.27) | 6,924 |
Tell us about your needs and we will match you with the ideal lifting solution
IMPORTANT!
Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
