Name: 1200 lb carbon fiber davit crane with 115V AC electric winch | OZ Lifting Products
SKU: OZCF1200DAV-ACW

1200 lb carbon fiber davit crane with 115V AC electric winch

OZCF1200DAV-ACW Downloads

Download All

CompOZiteElite_OM_ENFRSP.pdf

CompOZite-Elite-Davit-Crane.pdf

Application-Data-Sheet.pdf

CompOZite-Elite-OZCF1200DAV-Davit-Crane-Specifications-1.pdf

OZCF1200DAV-ACW

CompOZite Elite® Davit Crane

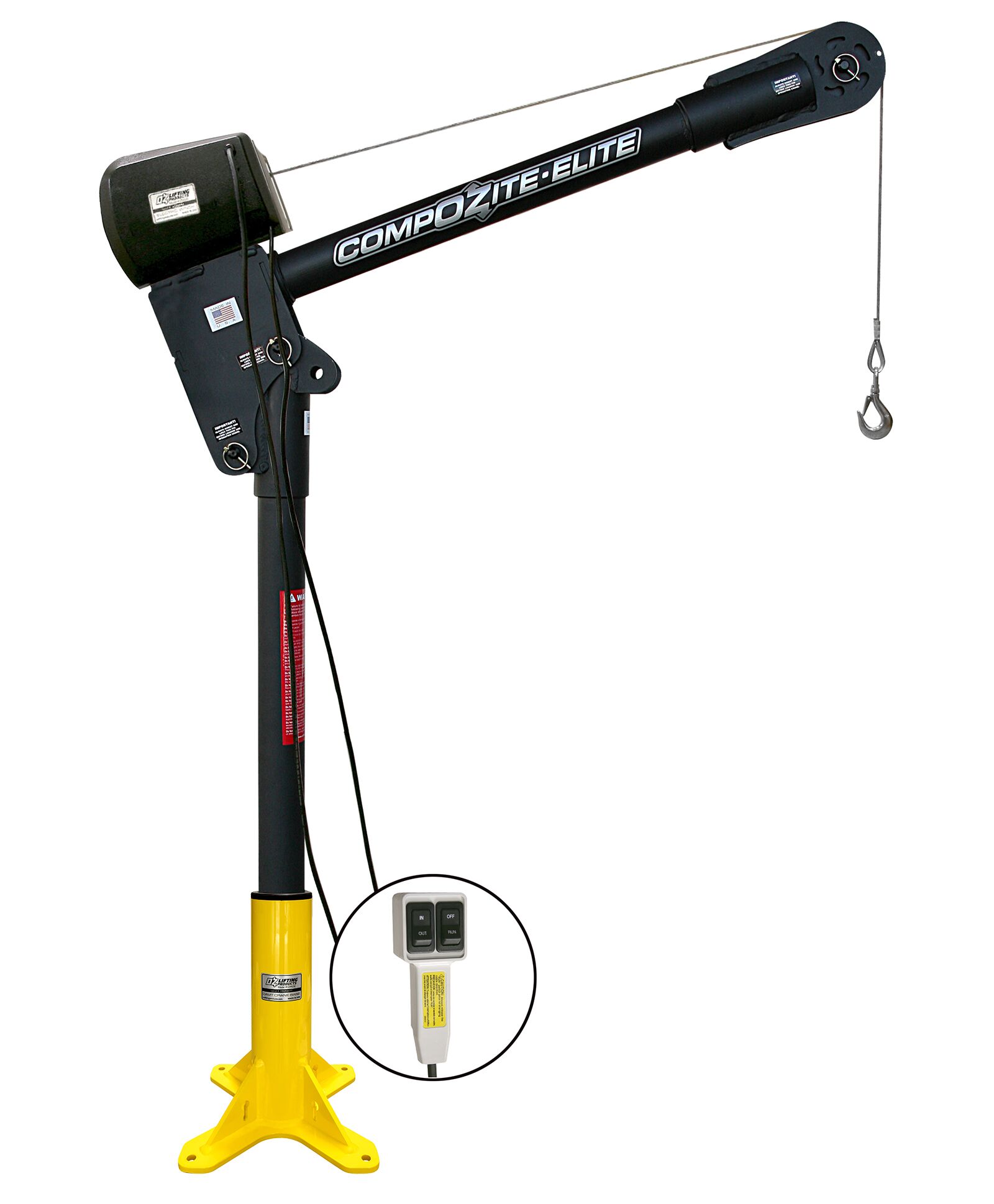

1200 lb carbon fiber davit crane with 115V AC electric winch

The CompOZite® Elite® Davit Crane is equipped with a 115V AC electric winch, offering effortless lifting with enhanced power. This configuration maintains the crane’s 1200 lb capacity while adding the convenience of electric operation, perfect for environments requiring efficient and consistent lifting performance. Engineered with carbon fiber and aluminum, this crane delivers a remarkable 1200 lb capacity while remaining incredibly portable. Its innovative design ensures easy setup, durability, and unmatched safety. Experience the pinnacle of lifting technology.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

Carbon fiber and high-strength aluminum construction
Corrosion-resistant finish
Truly portable design
4 boom height adjustments
One-person assembly, no tools required for installation
360-degree rotation
115V AC electric winch
Manual & DC winch options available
Pedestal, wall mount, socket, and wheel bases sold separately
Individually tested and certified at 125%
Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

OZCF1200DAV-ACW

1200 lb carbon fiber davit crane with 115V AC electric winch

Videos

Photos

Add-Ons

OZWB2-TP

Wheel Base for use with OZTP500DAV davit crane (Pedestal base and locking collar included)

OZWB1-TP

Wheel Base for use with OZTP1200DAV, OZA1000DAV, and OZXR1000DAV davit cranes (Pedestal base and locking collar included)

OZWB3

Wheel Base for use with OZ500DAV, OZA500DAV and OZXR500DAV davit cranes (Pedestal base and locking collar included)

OZWB1

Wheel Base for use with OZ1200DAV davit crane (Pedestal base and locking collar included)

OZWB2

Wheel Base for use with OZ1000DAV and OZCF1200DAV davit cranes (Pedestal base and locking collar included)

OZWB

Wheel Base for OZ lifting Products davit cranes up to 1200 lb capacity (Pedestal base and locking collar not included)

OZ100027

Wheel Base floor-anchor kit with anchor bolts and washers

OZWALL1-TP

Wall mount base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZWALL2-TP

Wall mount base for OZTP500DAV Tele-Pro® davit crane

OZWALL3

Wall mount base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

OZWALL4

Wall mount base for OZ2500DAV and OZTP2500DAV davit cranes

OZWALL1

Wall mount base for OZ1200DAV davit crane

OZWALL2

Wall mount base for OZ1000DAV and OZCF1200DAV davit cranes

OZBACK2

Wall mount base back for use with OZWALL2 and OZWALL2-TP

OZTB1

Toolbox storage tube for the Wheel Base

OZSOC1-TP

Socket base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZSOC2-TP

Socket base for OZTP500DAV Tele-Pro® davit crane

OZSOC3

Socket base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

OZSOC4

Socket base for OZ2500DAV and OZTP2500DAV davit cranes

OZSOC1

Socket base for OZ1200DAV davit crane

OZSOC2

Socket base for OZ1000DAV and OZCF1200DAV davit cranes

OZ100025

Single position locking collar kit for 4 series base

OZ100023

Single position locking collar kit for 2-TP series base

OZ100022

Single position locking collar kit for 2 & 3 series bases

OZ100021

Single position locking collar kit for 1-TP series base

OZ100020

Single position locking collar kit for 1 series base

OZDAV-C1

Protective davit crane cover for OZ500DAV, OZA500DAV, OZTP500DAV, OZ1000DAV, OZA1000DAV, OZ1200DAV, OZCF1200DAV, and OZTP1200DAV davit cranes

OZPED1-TP

Pedestal base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZPED2-TP

Pedestal base for OZTP500DAV Tele-Pro® davit crane

OZPED3

Pedestal base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

System Components

OZSS.25-45

1/4″ x 45′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

OZWB2

Wheel Base for use with OZ1000DAV and OZCF1200DAV davit cranes (Pedestal base and locking collar included)

OZSOC2

Socket base for OZ1000DAV and OZCF1200DAV davit cranes

OZPED2

Pedestal base for OZ1000DAV and OZCF1200DAV davit cranes

OZWALL2

Wall mount base for OZ1000DAV and OZCF1200DAV davit cranes

OZHB10

10 lb headache ball for use with 3/16″ and 1/4″ wire rope

Specs & Ratings

Product Weight
	Boom	Mast	Net
OZCF1200DAV - lb (kg)	18 (8.18)	13 (5.91)	31 (14.09)
* Weights excluding winch

Load Ratings
Based on 1/4″ wire rope or 3/16" synthetic rope
	First Layer	Mid Drum	Full Drum
Position 1 (0°) - lb (kg)	500 (227.27)	500 (227.27)	500 (227.27)
Position 2 (+22.5°) - lb (kg)	700 (318.18)	700 (318.18)	550 (250)
Position 3 (+45°) - lb (kg)	1200 (545.45)	875 (397.73)	550 (250)

Crane Reactions/Moments
Model	Mast Moments (in-lb)	Mast Moment (N-m)	Suggested Bolt Size
OZCF1200DAV	24,180	2,732	1/2″ Grade 5 (M12)

	Floor Mount Base		Wall Mount Base
Model	Axial Force per Bolt - lb (kg)	Axial Force per Bolt (N)	Axial Force per Bolt - lb (kg)	Axial Force per Bolt (N)	Shear Force per Bolt - lb (kg)	Shear Force per Bolt (N)

OZCF1200DAV	957 (435)	4,257	1048 (476.36)	4,662	736 (334.55)	3,274

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

IMPORTANT!

Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

*Dimensions, weights, and illustrations are for reference only and subject to change without notice.

WARNING: CANCER AND REPRODUCTIVE HARM

Some products may contain chemicals known to the state of California to cause cancer, or birth defect or reproductive harm. www.P65Warning.ca.gov
