Wheel Base

OZWB3

Wheel Base

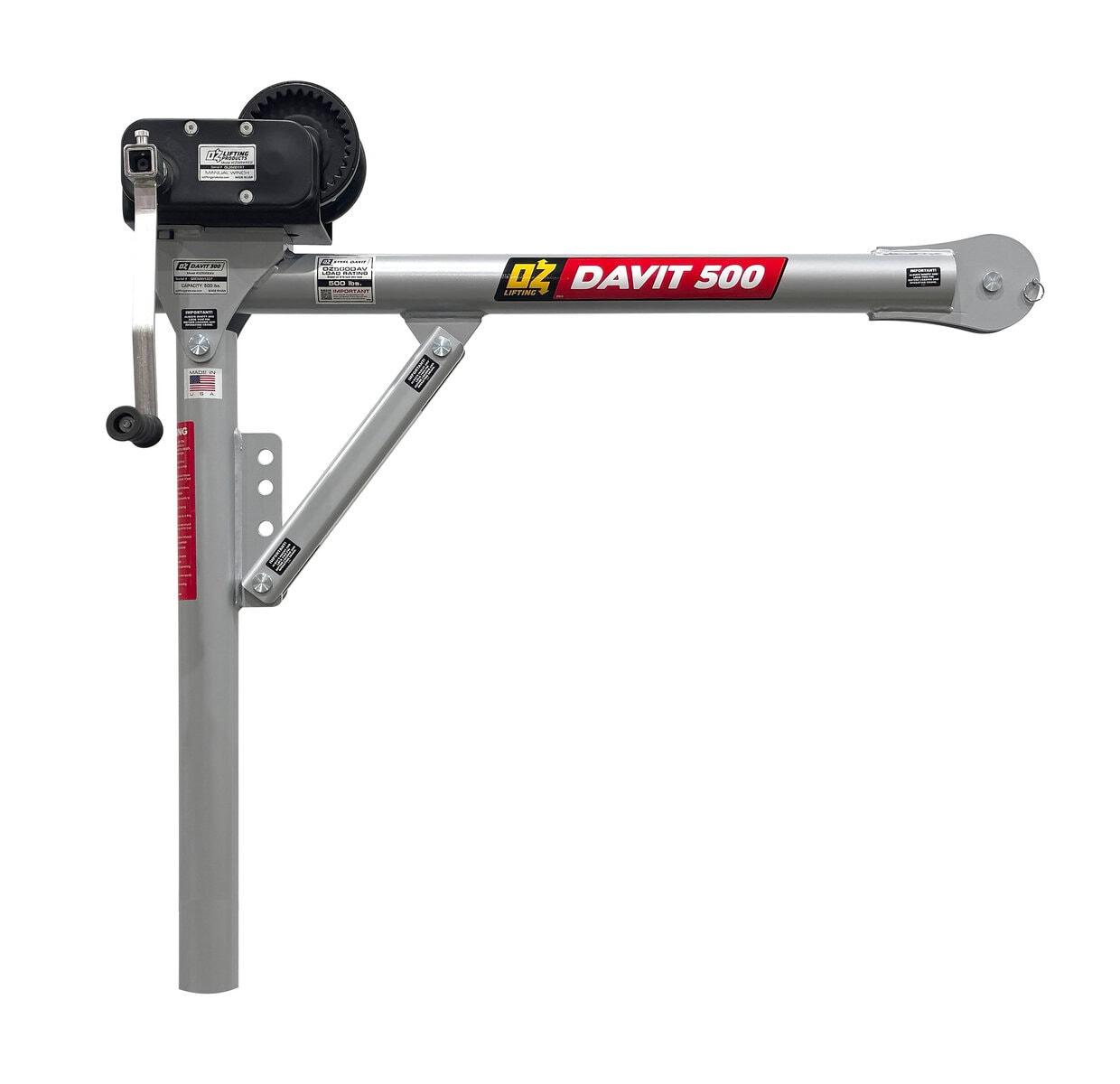

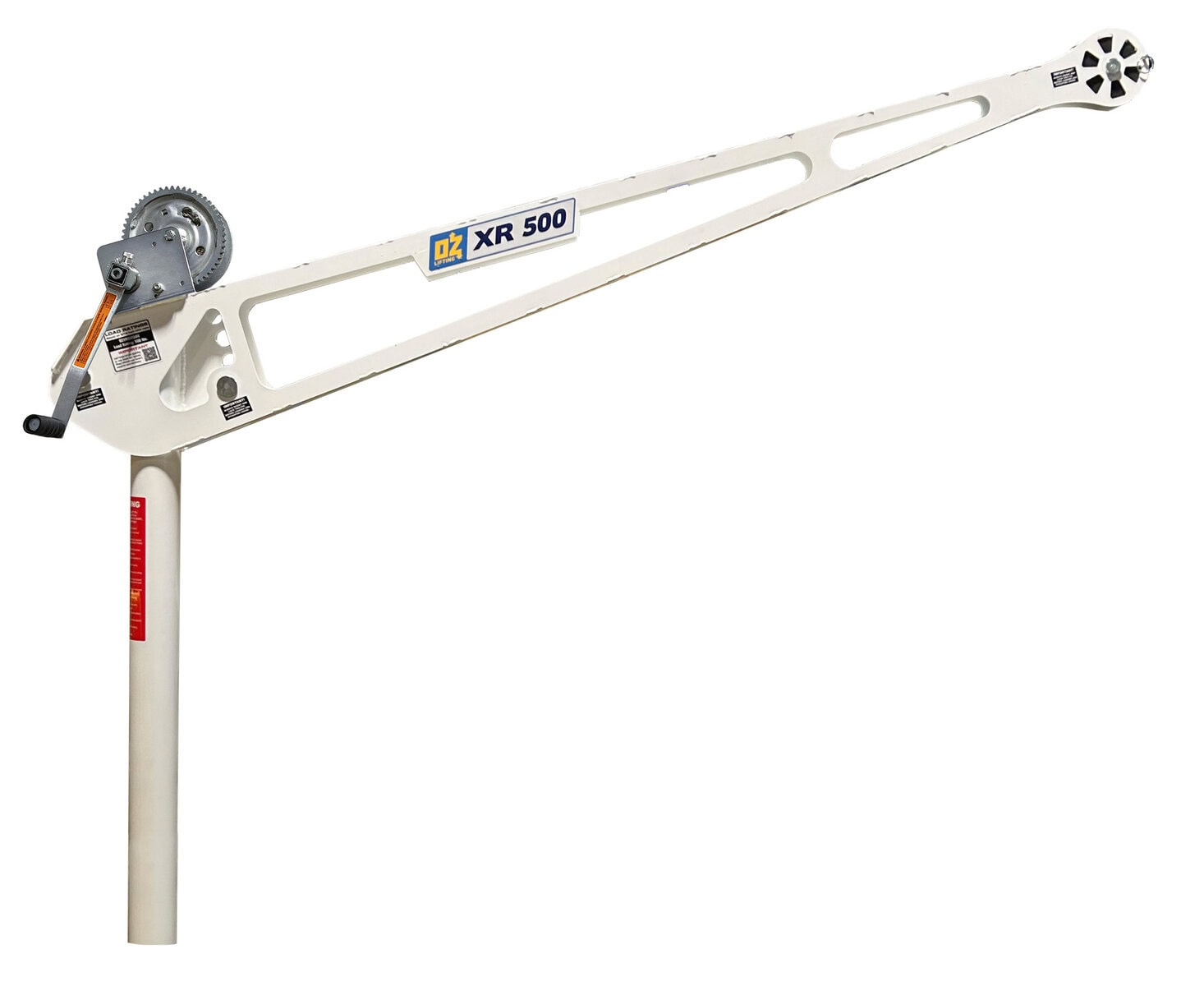

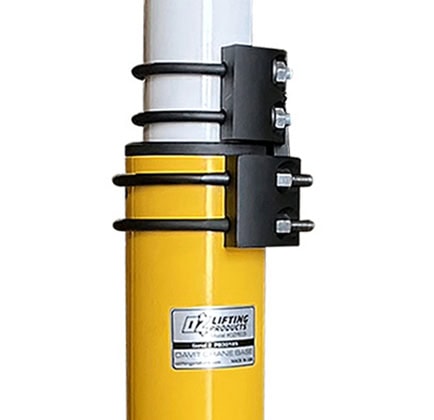

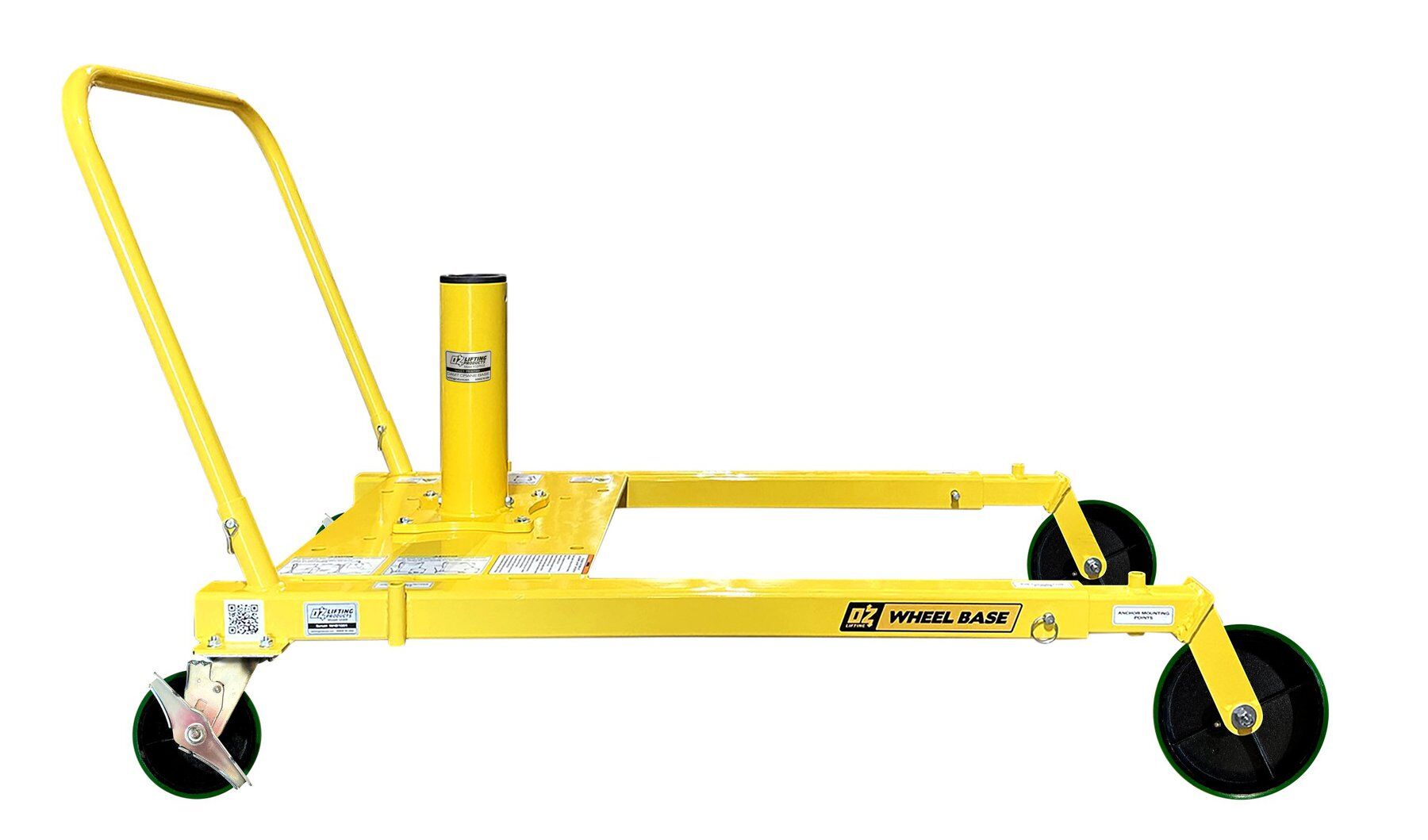

Wheel Base for use with OZ500DAV, OZA500DAV and OZXR500DAV davit cranes (Pedestal base and locking collar included)

Oz Product Made in the USA Badge
The OZ Wheel Base 3 comes with the OZPED3 base and is compatible with the Steel 500, Alumi-Lite® 500, and XR Series 500 davit cranes. This wheel base is built with industrial-strength steel and a powder-coat finish. It includes a floor-anchoring system that supports 360-degree crane rotation under load. Adjustable from 56.57” to 77.57” in length, 32.44” in width, and 36.87” in height, it offers flexibility and stability for various lifting tasks.

  • Industrial strength steel construction with a durable powder-coat finish

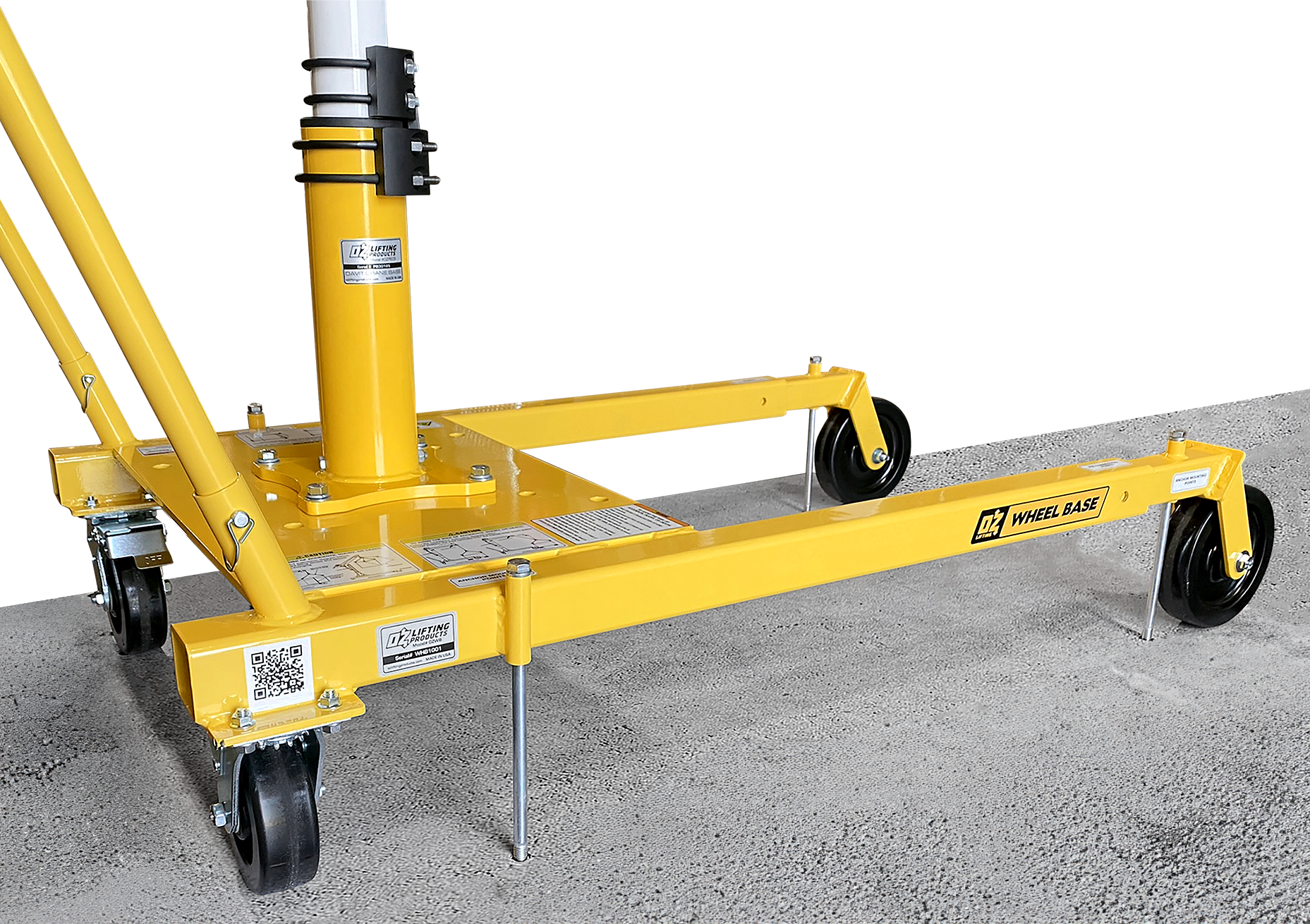

  • Floor-anchoring system allows the davit to rotate while under load (when base is not anchored the davit must remain in a forward position when lifting)
  • Durable polyurethane-tread indoor/outdoor wheels with rear swivel casters, ensuring smooth mobility and adaptability to various workspaces. Rear casters feature a lock brake for enhanced safety and stability when needed.
  • Forklift pockets (for transporting only)
  • Compatible with all OZ lifting davit cranes up to 1200 lb capacity
  • Made in the USA

OZWB3

Wheel Base for use with OZ500DAV, OZA500DAV and OZXR500DAV davit cranes (Pedestal base and locking collar included)

    Videos

    Photos

    Add-Ons

    Drawings

    Dimensional Drawing 1

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
