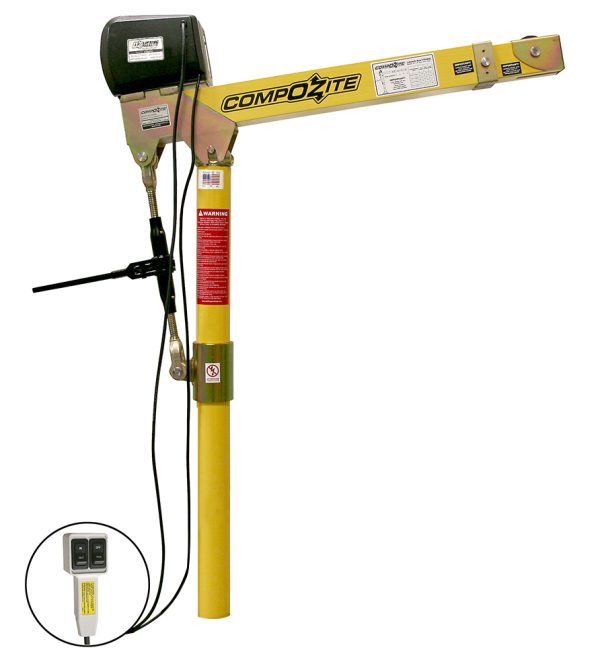

CompOZite® Davit Crane

OZ1200DAV-ACW

CompOZite® Davit Crane

1200 lb composite davit crane with 115V AC electric winch

Oz Product Patented Technology Badge  Oz Product Made in the USA Badge
Our innovative CompOZite® Davit Crane, constructed from advanced composite material, offers unmatched lightweight lifting power. This patented design is 40% lighter than steel alternatives without sacrificing strength, making it incredibly portable. Equipped with a powerful 115V AC electric winch, this crane can easily move 1200 lb. With adjustable boom heights, 360-degree rotation, and tool-free assembly, it’s the perfect solution for diverse lifting needs. Experience the future of lifting equipment with our CompOZite® Davit Crane.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

  • Patented design, constructed of advanced composite material
  • Lightweight, 40% lighter than steel
  • Corrosion-resistant
  • Metal components mil-spec zinc-plated
  • External handle helps rotate crane under load
  • Ratchet biner adjusts boom under load giving you infinite range of lift
  • Smart Latch technology at boom/mast connection
  • 5 boom height adjustments
  • 360-degree rotation
  • No tools required for assembly and installation
  • 115V AC electric winch
  • Manual & DC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

Start Now

OZ1200DAV-ACW

1200 lb composite davit crane with 115V AC electric winch

    Get Started
    Download Specs

    Videos

    Photos

    Add-Ons

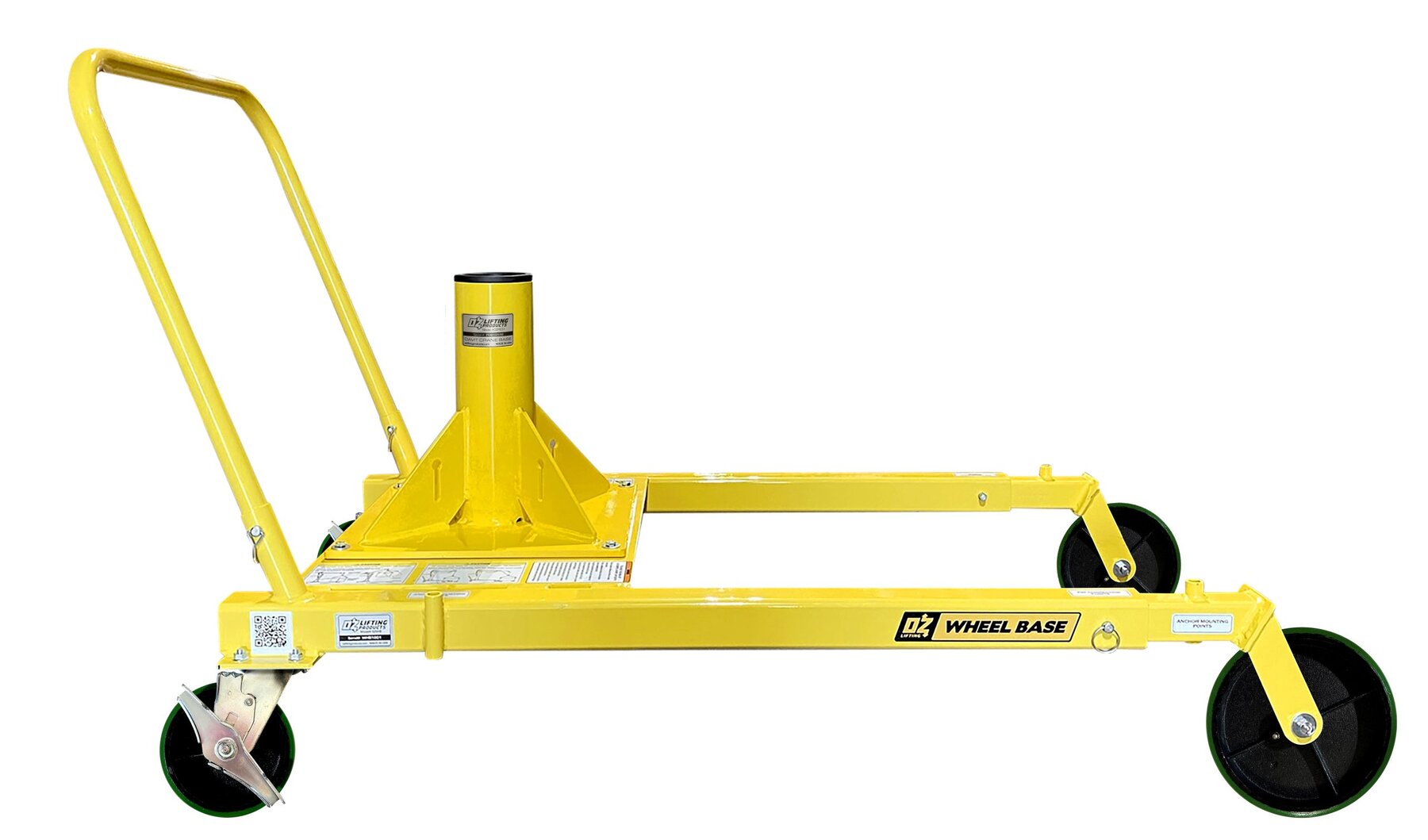

    OZWB1

    Wheel Base for use with OZ1200DAV davit crane (Pedestal base and locking collar included)

    View Product

    OZWALL1

    Wall mount base for OZ1200DAV davit crane

    View Product

    OZSOC1

    Socket base for OZ1200DAV davit crane

    View Product

    OZDAV-C1

    Protective davit crane cover for OZ500DAV, OZA500DAV, OZTP500DAV, OZ1000DAV, OZA1000DAV, OZ1200DAV, OZCF1200DAV, and OZTP1200DAV davit cranes

    View Product

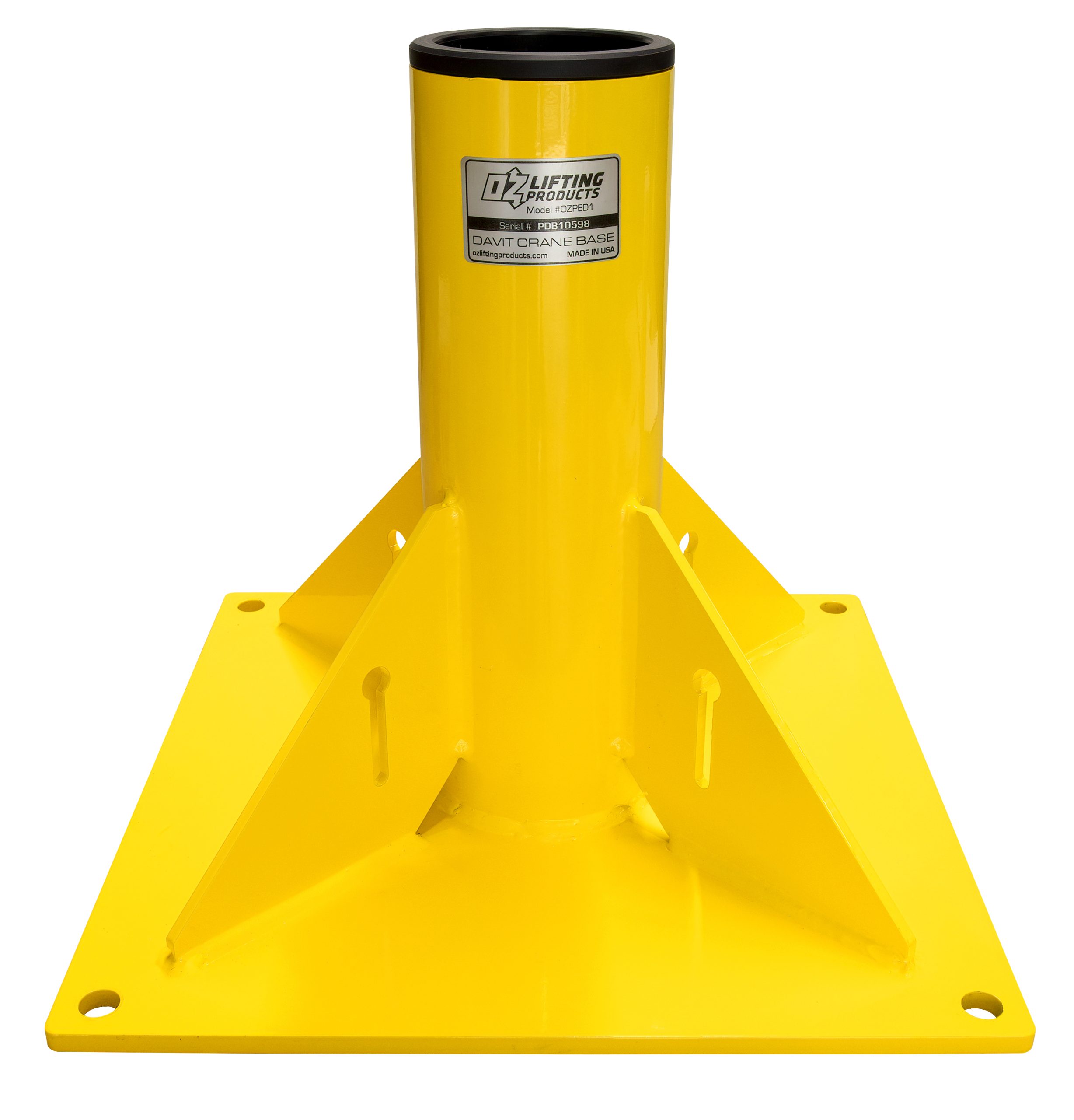

    OZPED1

    Pedestal base for OZ1200DAV davit crane

    View Product

    OZRB1

    Davit crane roller bag for OZ500DAV, OZ1000DAV, OZ1200DAV, OZCF1200DAV, OZA500DAV, and OZA1000DAV davit cranes

    View Product

    OZHB10

    10 lb headache ball for use with 3/16″ and 1/4″ wire rope

    View Product

    OZSS.25-55B

    1/4″ x 55′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-55B

    1/4″ x 55′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-50B

    1/4″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-50B

    1/4″ x 50′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-45

    1/4″ x 45′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-45B

    1/4″ x 45′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-45

    1/4″ x 45′ lift – Galvanized cable assembly with bare end with swivel hook with latch

    View Product

    OZGAL.25-45B

    1/4″ x 45′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-40

    1/4″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-40B

    1/4″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-40

    1/4″ x 40′ lift – Galvanized cable assembly with bare end with swivel hook with latch

    View Product

    OZGAL.25-40B

    1/4″ x 40′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-35

    1/4″ x 35′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-35B

    1/4″ x 35′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-35

    1/4″ x 35′ lift – Galvanized cable assembly with bare end with swivel hook with latch

    View Product

    OZGAL.25-35B

    1/4″ x 35′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-30

    1/4″ x 30′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-30B

    1/4″ x 30′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-30

    1/4″ x 30′ lift – Galvanized cable assembly with bare end with swivel hook with latch

    View Product

    OZGAL.25-30B

    1/4″ x 30′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-25

    1/4″ x 25′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-25B

    1/4″ x 25′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-25

    1/4″ x 25′ lift – Galvanized cable assembly with bare end with swivel hook with latch

    View Product

    System Components

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZ1200DAV - lb (kg) 43 (19.54) 30 (13.64) 73 (33.18)
    * Weights excluding winch
    Load Ratings
    Based on 1/4″ wire rope or 3/16" synthetic rope
    First Layer Mid Drum Full Drum
    Position 1 - lb (kg) 1200 (545.45) 875 (397.73) 550 (250)
    Position 2 - lb (kg) 900 (409.09) 875 (397.73) 550 (250)
    Position 3 - lb (kg) 700 (318.18) 700 (318.18) 550 (250)
    Position 4 - lb (kg) 400 (181.82) 400 (181.82) 400 (181.82)
    Based on 3/16" wire rope
    First Layer Mid Drum Full Drum
    Position 1 - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Position 2 - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Position 3 - lb (kg) 700 (318.18) 700 (318.18) 550 (250)
    Position 4 - lb (kg) 400 (181.82) 400 (181.82) 400 (181.82)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZ1200DAV 43,974 4,968 5/8″ Grade 5 (M16)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZ1200DAV 1231 (559.55) 5,476 1638 (744.55) 7,286 1090 (495.45) 4,849

    Get a Custom Davit Crane Recommendation

    Tell us about your needs and we will match you with the ideal lifting solution

    Start Now

    IMPORTANT!

    Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
