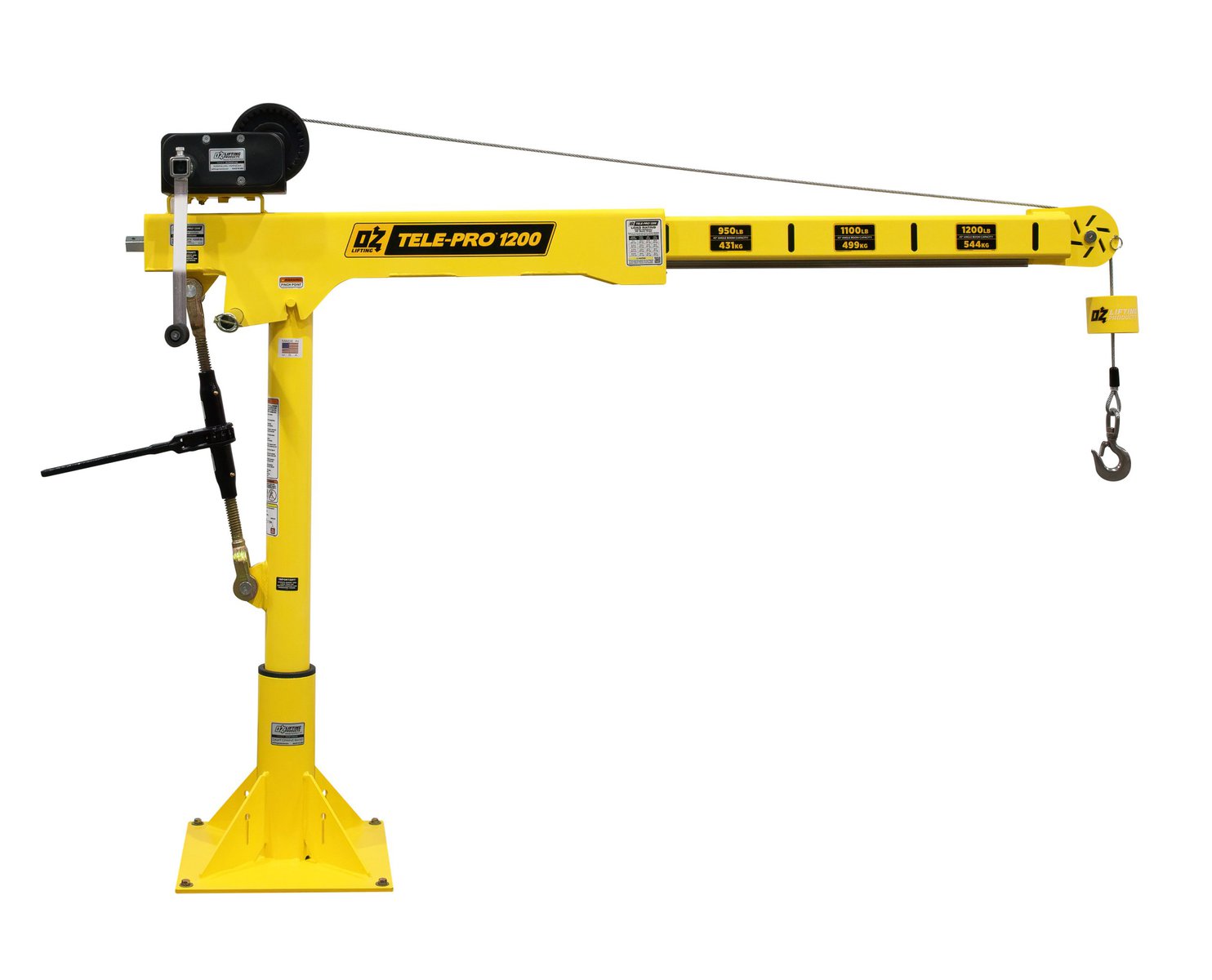

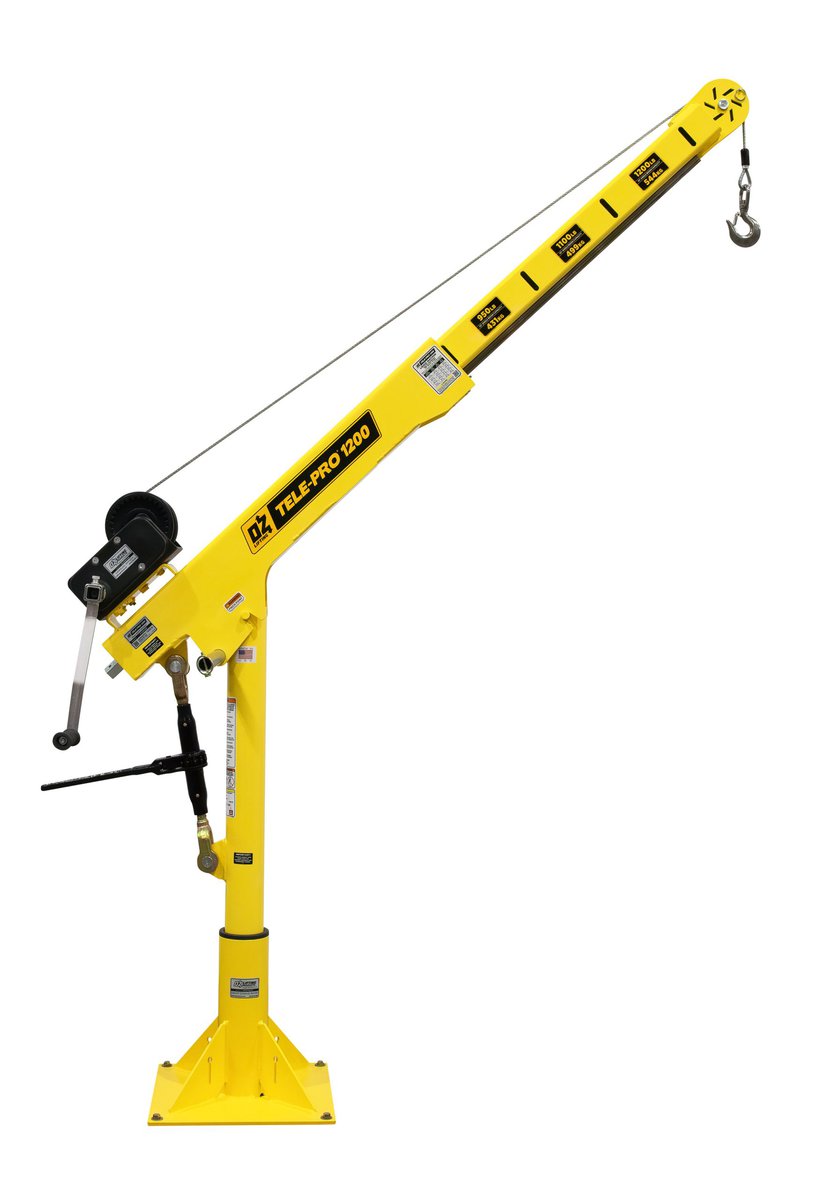

1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch
1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch - Image 2
1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch - Image 3
1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch - Image 4
1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch - Image 5
1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch - Image 6
1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch - Image 7

OZTP1200DAV-HND2 Downloads

Download All
Download Icon
Tele-Pro-V2_OM_ENFRSP.pdf
Download Icon
Tele-Pro-Davit-Crane-V2.pdf
Download Icon
Application-Data-Sheet-1.pdf
Download Icon
Tele-Pro-1200-OZTP1200DAV-Davit-Crane-Specifications.pdf
Download Icon
OZTP1200DAV.step
Tele-Pro® Davit Crane

OZTP1200DAV-HND2

Tele-Pro® Davit Crane

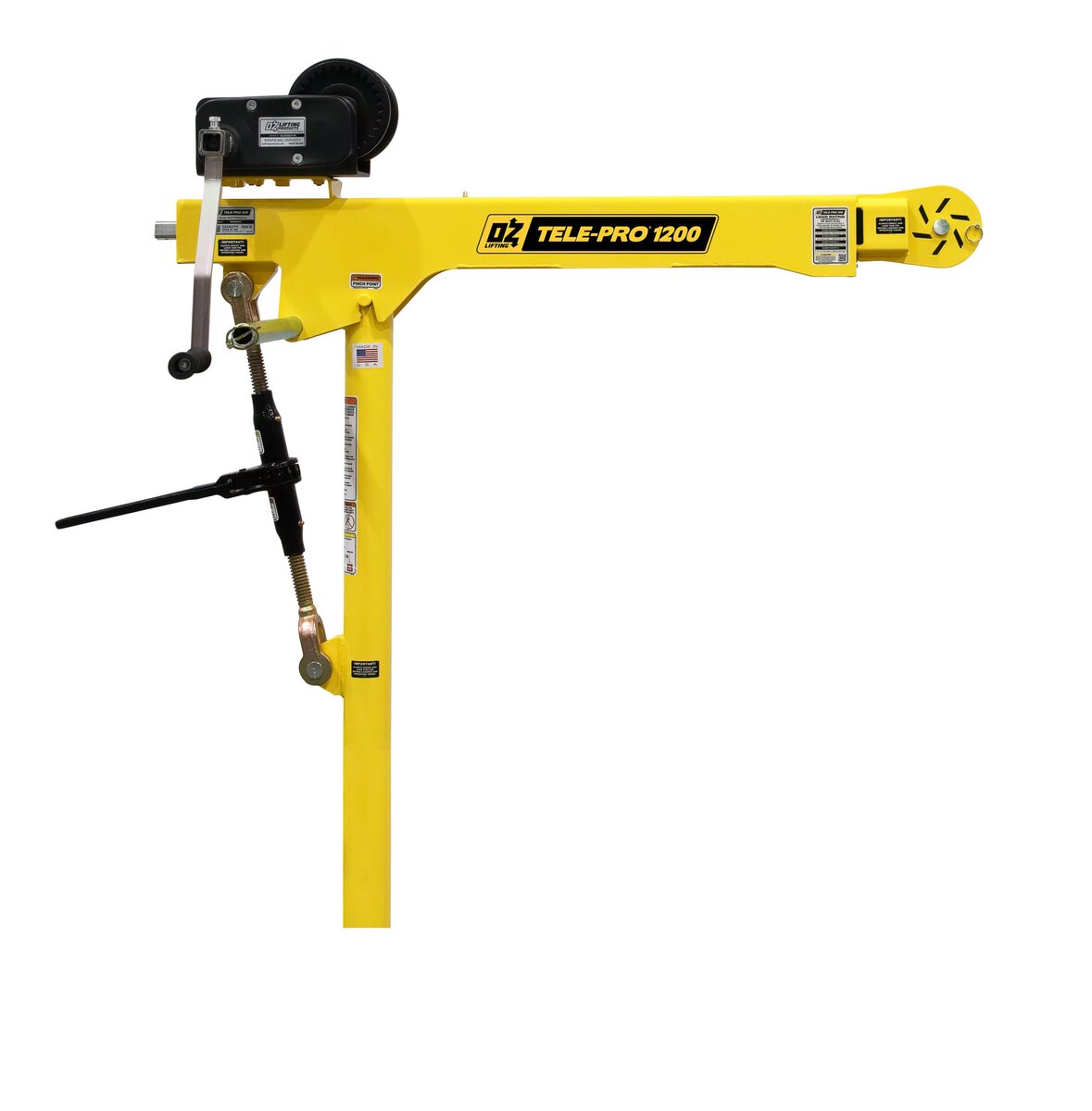

1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch

Oz Product Patented Technology Badge  Oz Product Made in the USA Badge
The Tele-Pro® Davit Crane offers a 1200 lb capacity and includes a 2500 lb manual carbon steel brake winch with a drill drive adapter. This high-capacity model features the patented telescoping boom for precise load adjustments, providing enhanced lifting power and control. Its versatility, 360-degree rotation, and easy no-tool assembly make it an excellent choice for high-capacity lifting tasks.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

  • Telescoping boom makes infinite adjustments while under load
  • Smart Latch technology at boom/mast connection
  • Exterior-grade corrosion-resistant powder coat
  • Ratchet binder adjusts boom under load
  • High-visibility dual load rating decals in both imperial and metric
  • 360-degree rotation
  • Fabricated by certified welders following strict AWS.D1.1 standards
  • No tools required for assembly and installation
  • Manual DIN-rated CE carbon steel brake winch, 2500 lb capacity, with integrated Weston brake (Includes quick connect winch handle with drill drive adapter)
  • AC & DC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

Start Now

OZTP1200DAV-HND2

1200 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch

    Get Started
    Download Specs

    Photos

    Add-Ons

    OZWB1-TP

    Wheel Base for use with OZTP1200DAV, OZA1000DAV, and OZXR1000DAV davit cranes (Pedestal base and locking collar included)

    View Product

    OZWALL1-TP

    Wall mount base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSOC1-TP

    Socket base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZPED1-TP

    Pedestal base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSS.19-90

    3/16″ x 90′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-80

    3/16″ x 80′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-80B

    3/16″ x 80′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-70

    3/16″ x 70′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-70B

    3/16″ x 70′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-60

    3/16″ x 60′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-60B

    3/16″ x 60′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-50

    3/16″ x 50′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-50B

    3/16″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-40

    3/16″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-40B

    3/16″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-30

    3/16″ x 30′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-30B

    3/16″ x 30′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-20

    3/16″ x 20′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-20B

    3/16″ x 20′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-100B

    3/16″ x 100′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.19-10

    3/16″ x 10′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.19-10B

    3/16″ x 10′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZHB10

    10 lb headache ball for use with 3/16″ and 1/4″ wire rope

    View Product

    OZSS.25-55B

    1/4″ x 55′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZGAL.25-55B

    1/4″ x 55′ lift – Galvanized cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-50B

    1/4″ x 50′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-45

    1/4″ x 45′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-45B

    1/4″ x 45′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    OZSS.25-40

    1/4″ x 40′ lift – Stainless steel cable assembly with bare end with swivel hook with latch

    View Product

    OZSS.25-40B

    1/4″ x 40′ lift – Stainless steel cable assembly with ball end fitting and swivel hook with latch

    View Product

    System Components

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZTP1200DAV - lb (kg) 102 (46.36) 36 (16.36) 138 (62.73)
    * Weights excluding winch
    Load Ratings
    Horizontal Boom Angle - Based on 3/16″ wire rope
    First Layer Mid Drum Full Drum
    Boom Position 1 at 36” - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Boom Position 2 at 46” - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Boom Position 3 at 56” - lb (kg) 750 (340.91) 750 (340.91) 550 (250)
    Boom Position 4 at 66” - lb (kg) 650 (295.45) 650 (295.45) 550 (250)
    45° Boom Angle - Based on 3/16″ wire rope
    First Layer Mid Drum Full Drum
    Boom Position 1 at 23” - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Boom Position 2 at 30.25” - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Boom Position 3 at 37.25” - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Boom Position 4 at 44.5” - lb (kg) 800 (363.64) 800 (363.64) 550 (250)
    Horizontal Boom Angle - Based on 1/4" wire or 3/16″ synthetic rope
    First Layer Mid Drum Full Drum
    Boom Position 1 at 23” - lb (kg) 1200 (545.45) 875 (397.73) 550 (250)
    Boom Position 2 at 46” - lb (kg) 900 (409.09) 875 (397.73) 550 (250)
    Boom Position 3 at 56” - lb (kg) 750 (340.91) 750 (340.91) 550 (250)
    Boom Position 4 at 66” - lb (kg) 650 (295.45) 650 (295.45) 550 (250)
    45° Boom Angle - Based on 1/4" wire or 3/16″ synthetic rope
    First Layer Mid Drum Full Drum
    Boom Position 1 at 23” - lb (kg) 1200 (545.45) 875 (397.73) 550 (250)
    Boom Position 2 at 30.25” - lb (kg) 1200 (545.45) 875 (397.73) 550 (250)
    Boom Position 3 at 37.25” - lb (kg) 1100 (500) 875 (397.73) 550 (250)
    Boom Position 4 at 44.5” - lb (kg) 950 (431.82) 875 (397.73) 550 (250)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZTP1200DAV 45,639 5,157 5/8″ Grade 5 (M16)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZTP1200DAV 1401 (636.82) 6,231 1653 (751.36) 7,353 1163 (528.64) 5,173

    Get a Custom Davit Crane Recommendation

    Tell us about your needs and we will match you with the ideal lifting solution

    Start Now

    IMPORTANT!

    Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
