Stainless Davit Crane

OZSS1500DAV-ACW

Stainless Davit Crane

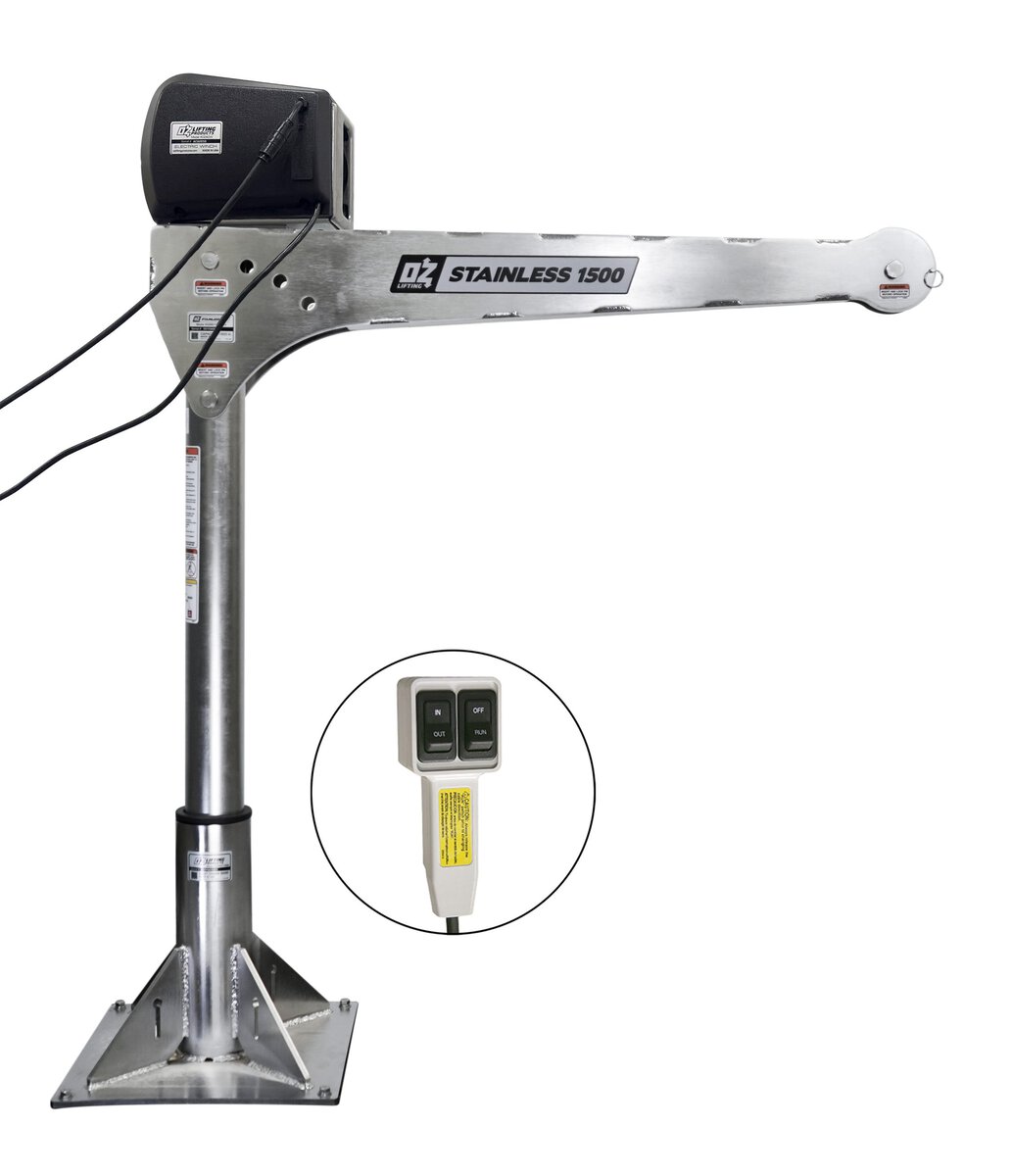

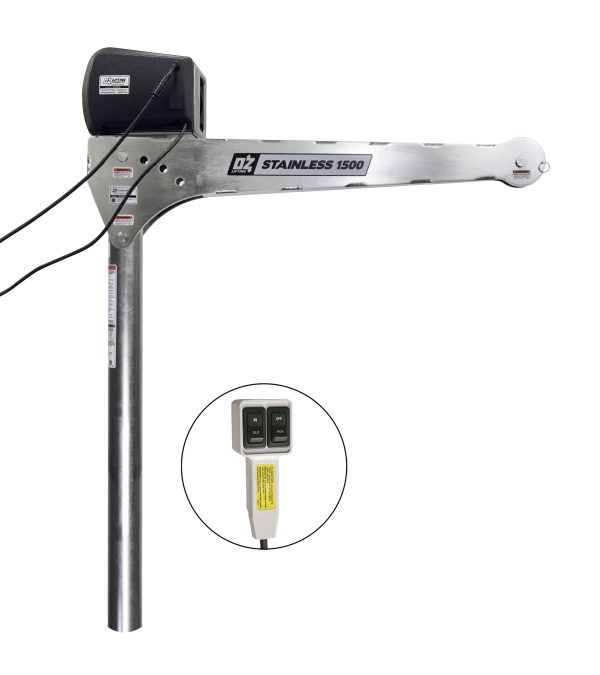

1500 lb stainless steel davit crane with AC brake winch

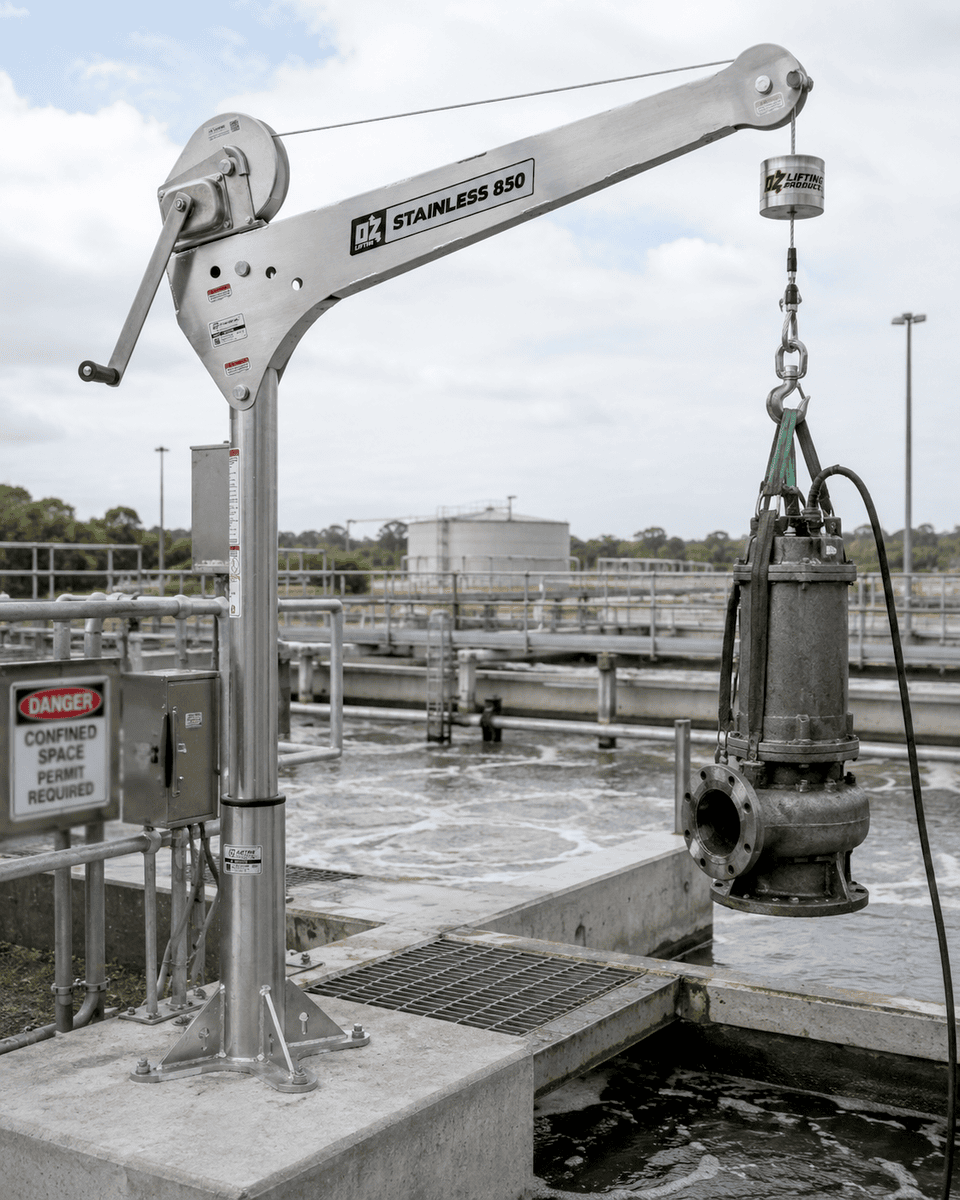

The Stainless 1500 Davit Crane by OZ Lifting Products combines all the durability of the stainless steel 1500 lb. crane with an AC-powered brake winch for continuous lifting applications. Perfect for chemical, pharmaceutical, and water treatment facilities, this crane offers four boom height adjustments, 360-degree rotation, and a robust electric brake winch for safe and controlled lifting. Quick-connect assembly and robust construction make it a turnkey solution for corrosive and wet environments.

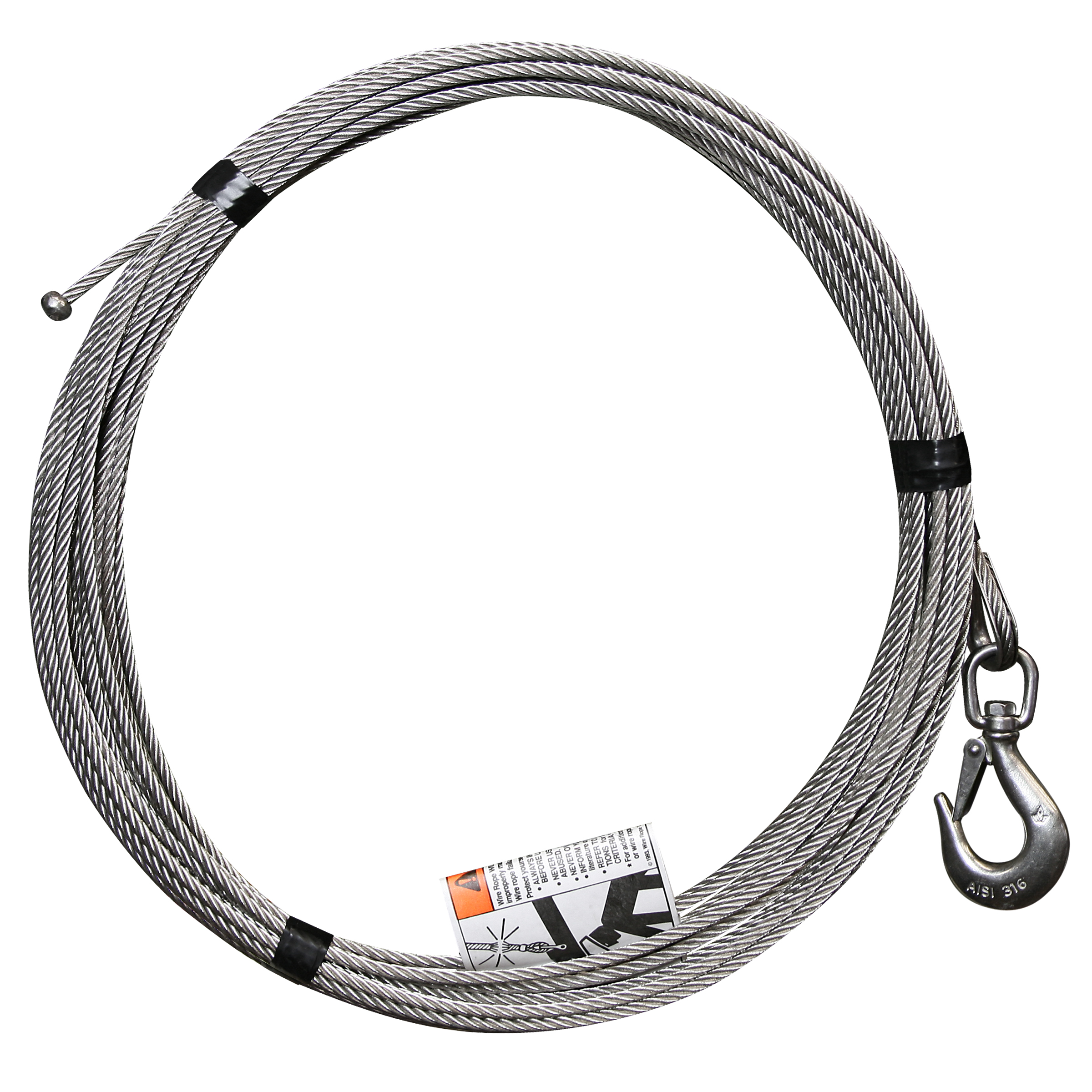

NOTE: Wire or synthetic rope assembly, headache ball, bases, and mast extensions sold separately.

  • 1500 lb. capacity rating
  • 304 stainless steel construction
  • RoHS-compliant, electropolished finish
  • 4 boom height adjustments
  • 360-degree rotation
  • Quick connect pins – no tools required for assembly and installation
  • 115V AC electric winch
  • Manual & DC winch options available

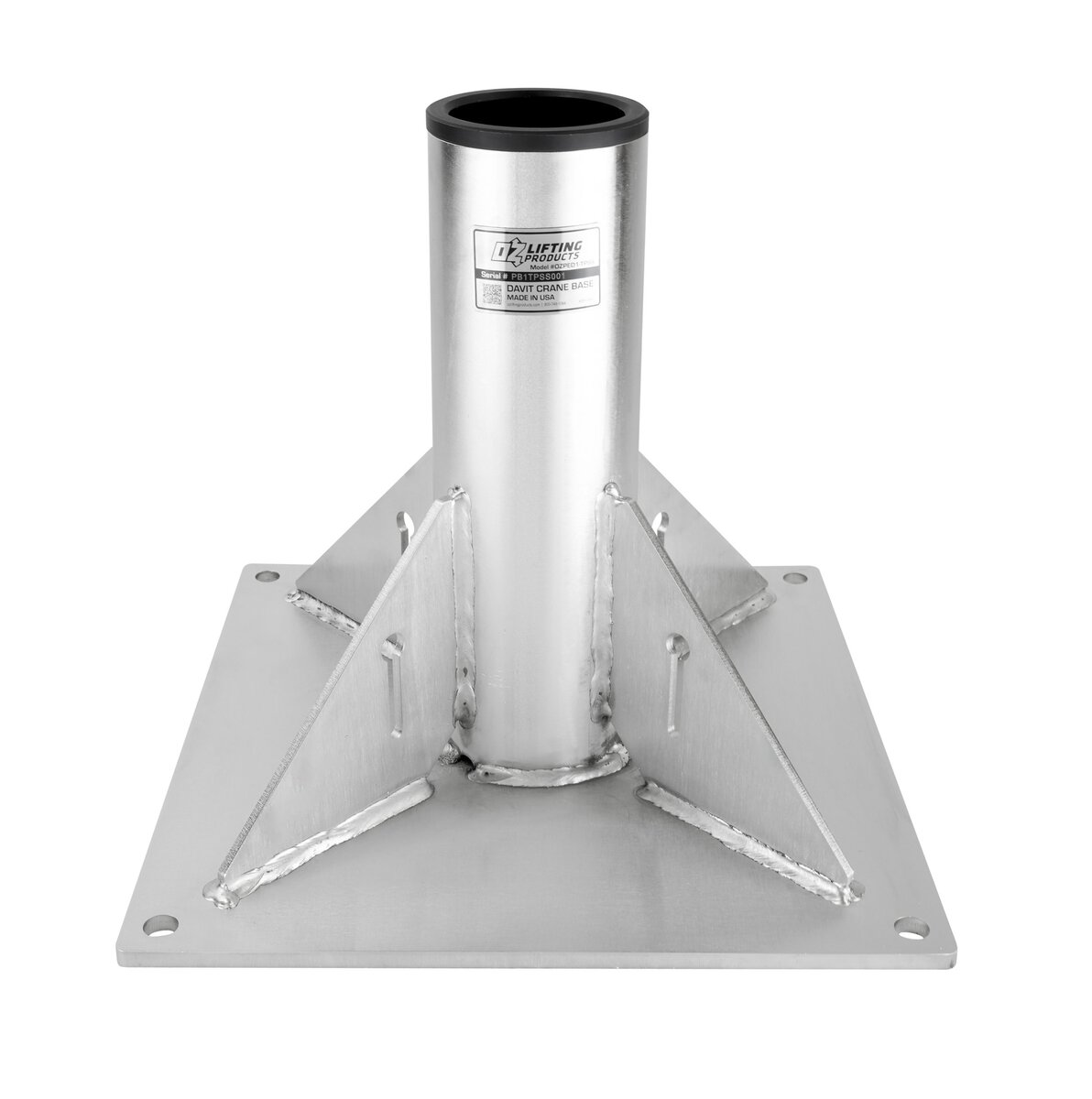

  • Mast extension, pedestal, wall mount, socket, and wheel bases sold separately
  • 2.5:1 safety factor, individually tested and certified at 125%
  • Stainless steel ID tag

OZSS1500DAV-ACW

1500 lb stainless steel davit crane with AC brake winch

    Get Started
    Download Specs

    Videos

    Photos

    Add-Ons

    OZWRH-SS

    Wire rope holder in stainless steel

    View Product

    OZ100021

    Single position locking collar kit for 1-TP series base

    View Product

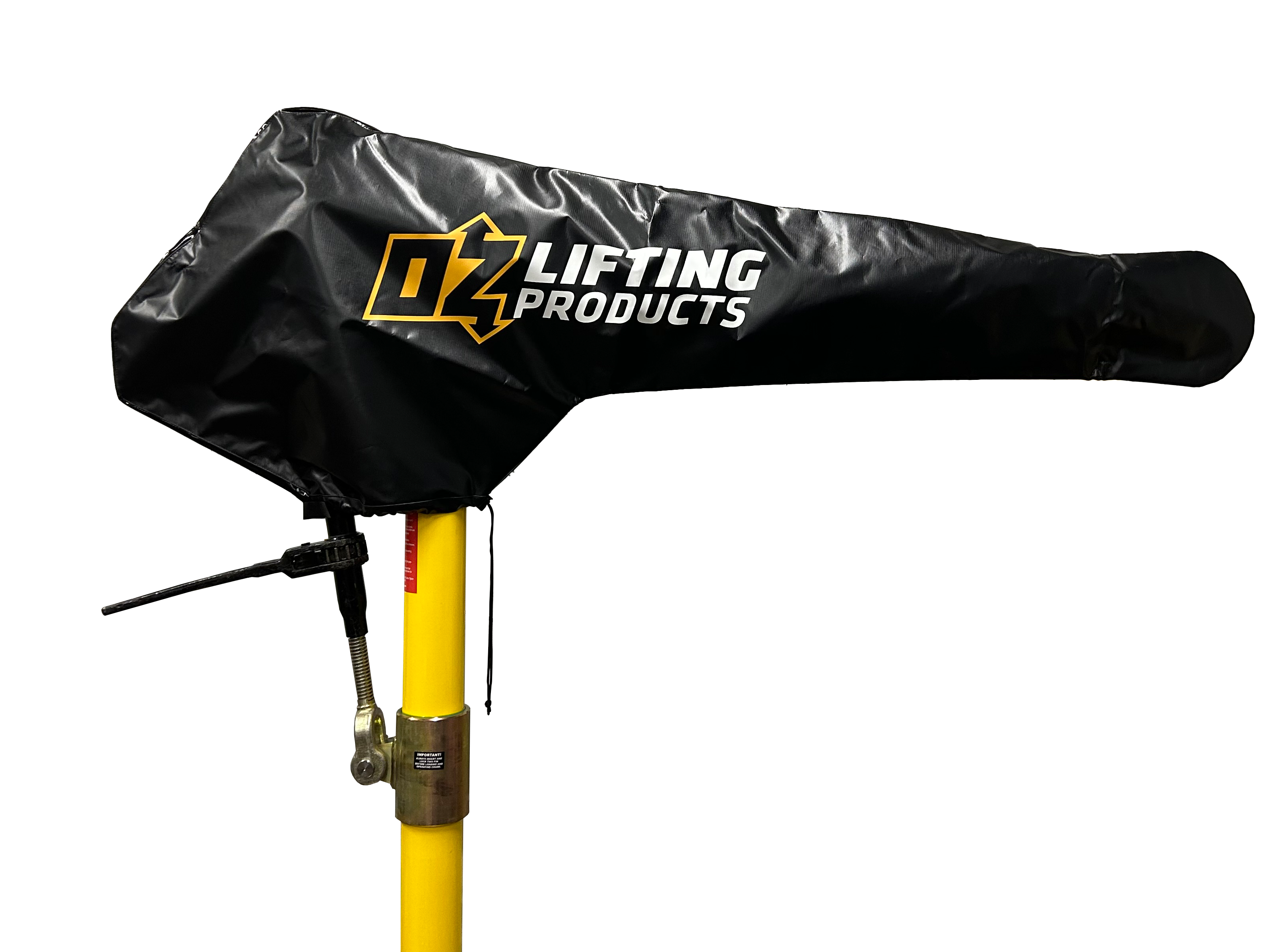

    OZDAV-C1

    Protective davit crane cover for OZ500DAV, OZA500DAV, OZTP500DAV, OZ1000DAV, OZA1000DAV, OZ1200DAV, OZCF1200DAV, and OZTP1200DAV davit cranes

    View Product

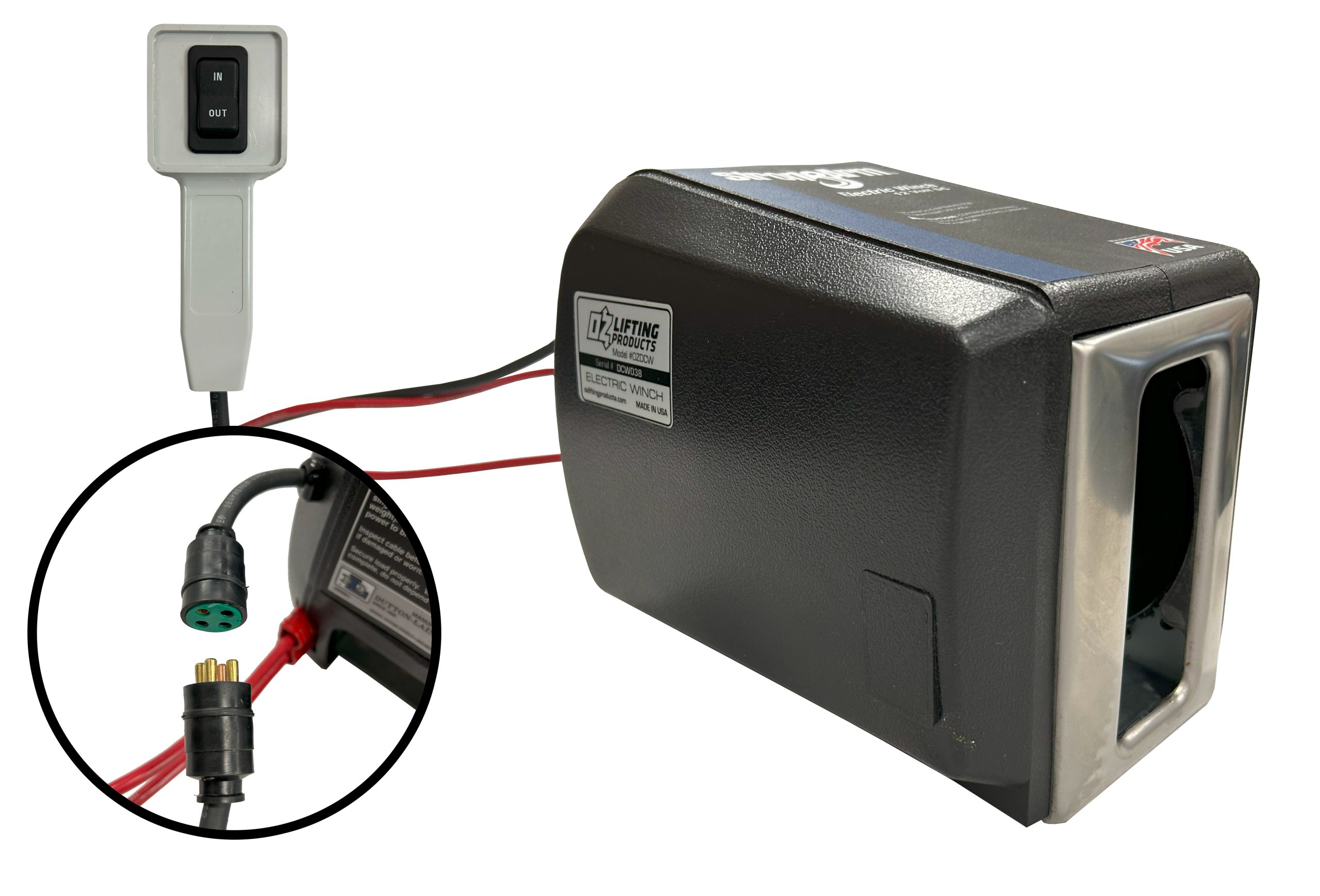

    OZDCW

    Electric winch 12V

    View Product

    OZRB1

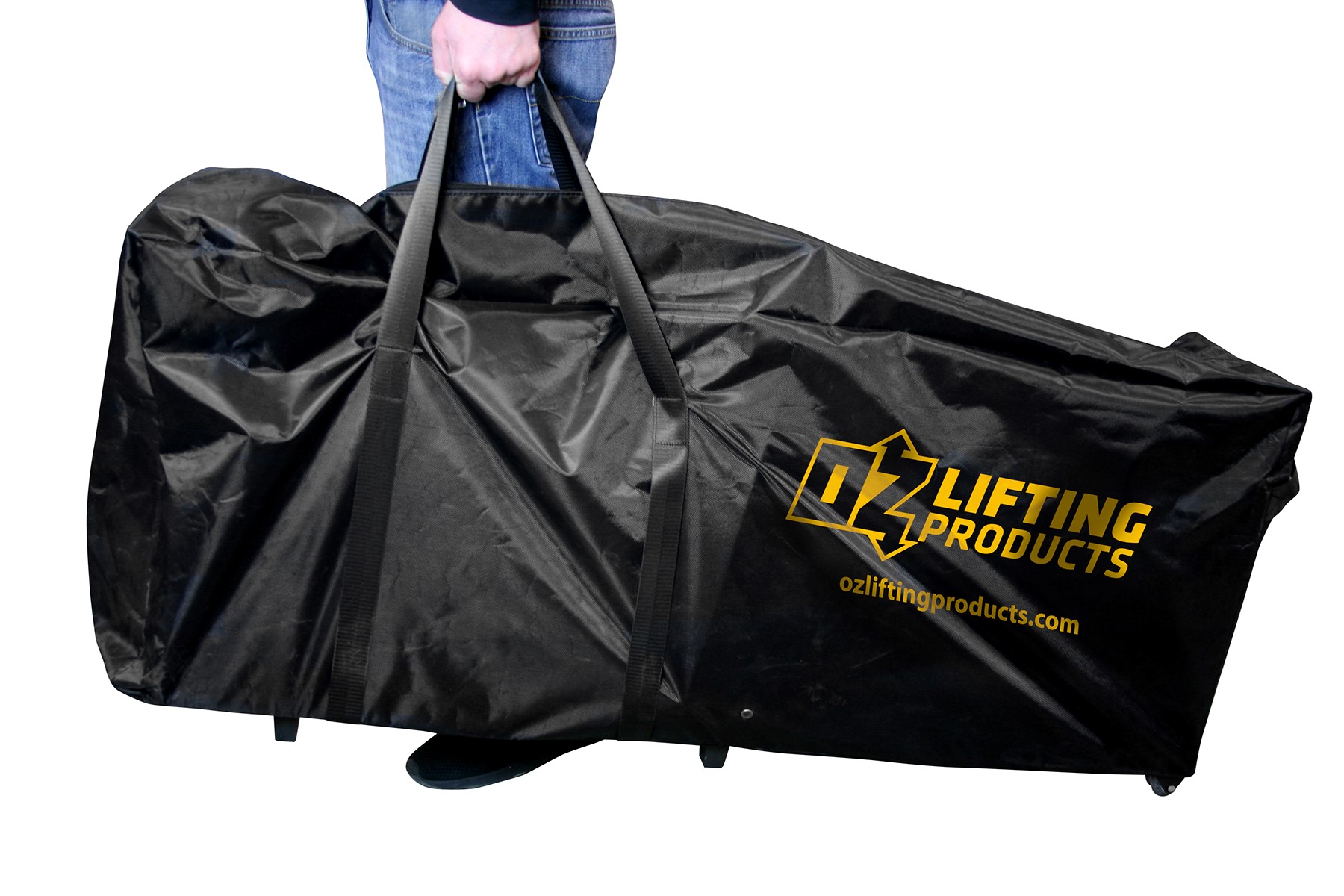

    Davit crane roller bag for OZ500DAV, OZ1000DAV, OZ1200DAV, OZCF1200DAV, OZA500DAV, and OZA1000DAV davit cranes

    View Product

    OZEWC

    AC and DC electric winch cover

    View Product

    OZ1500BWSS

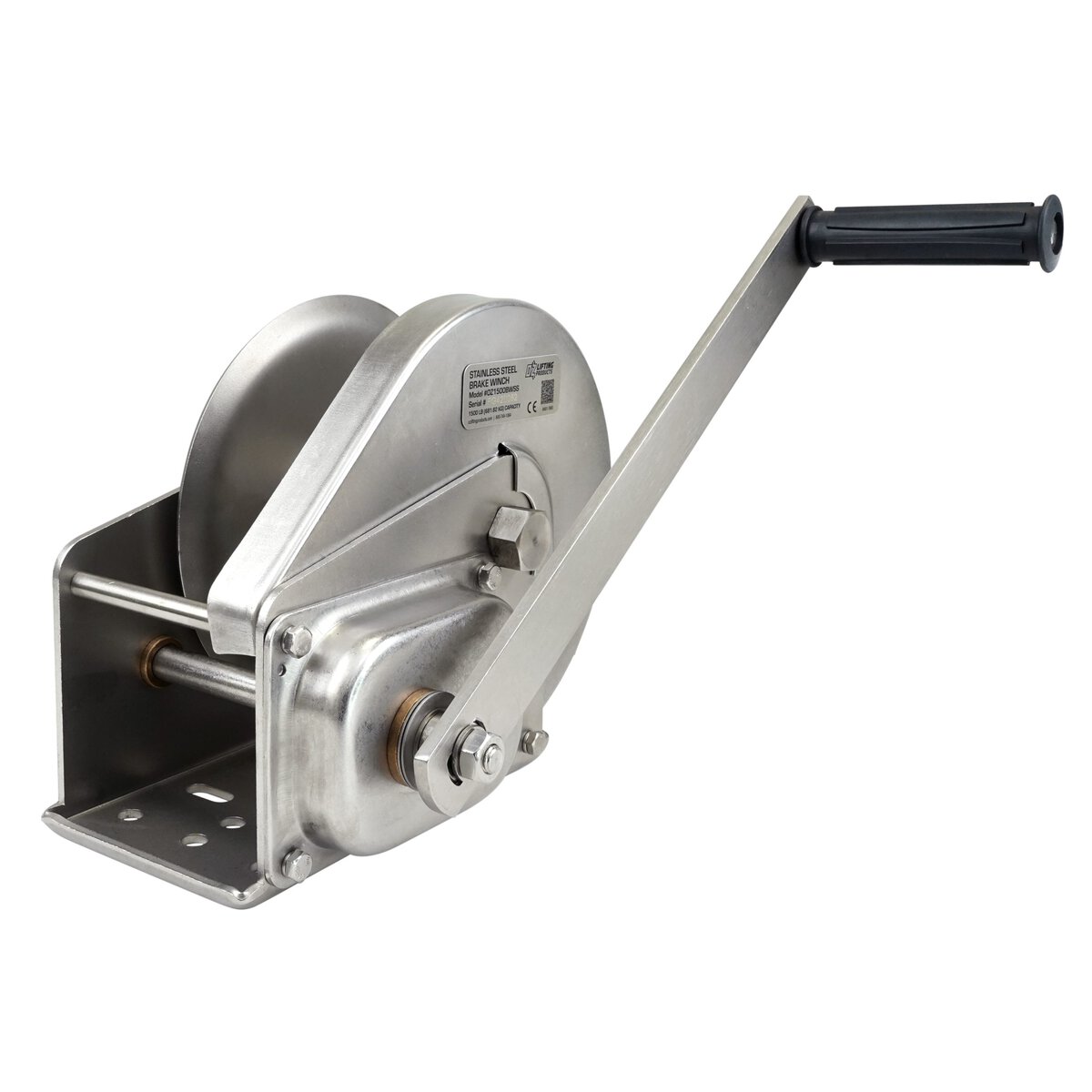

    1500 lb stainless steel brake winch with drill drive adaptor

    View Product

    Drawings

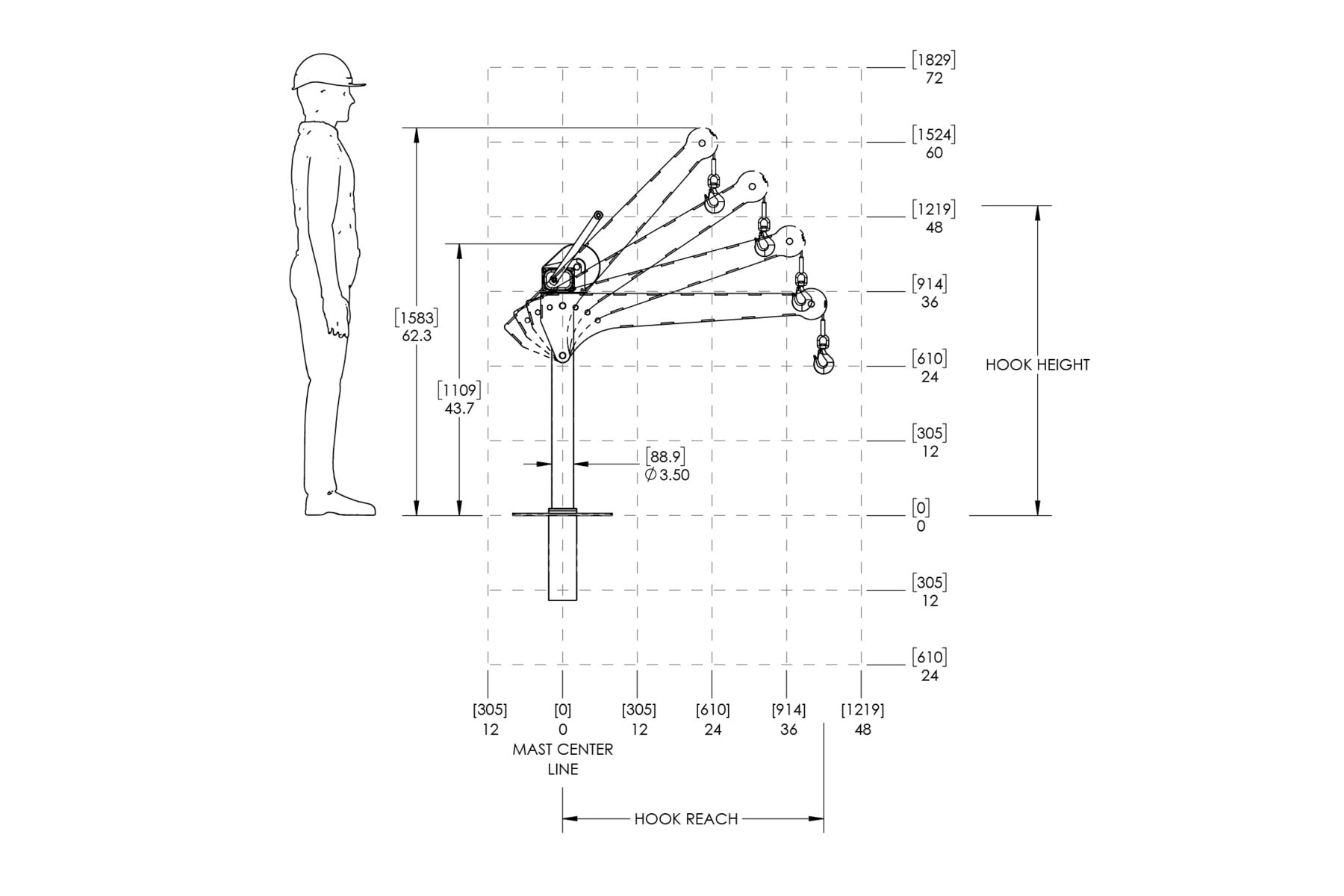

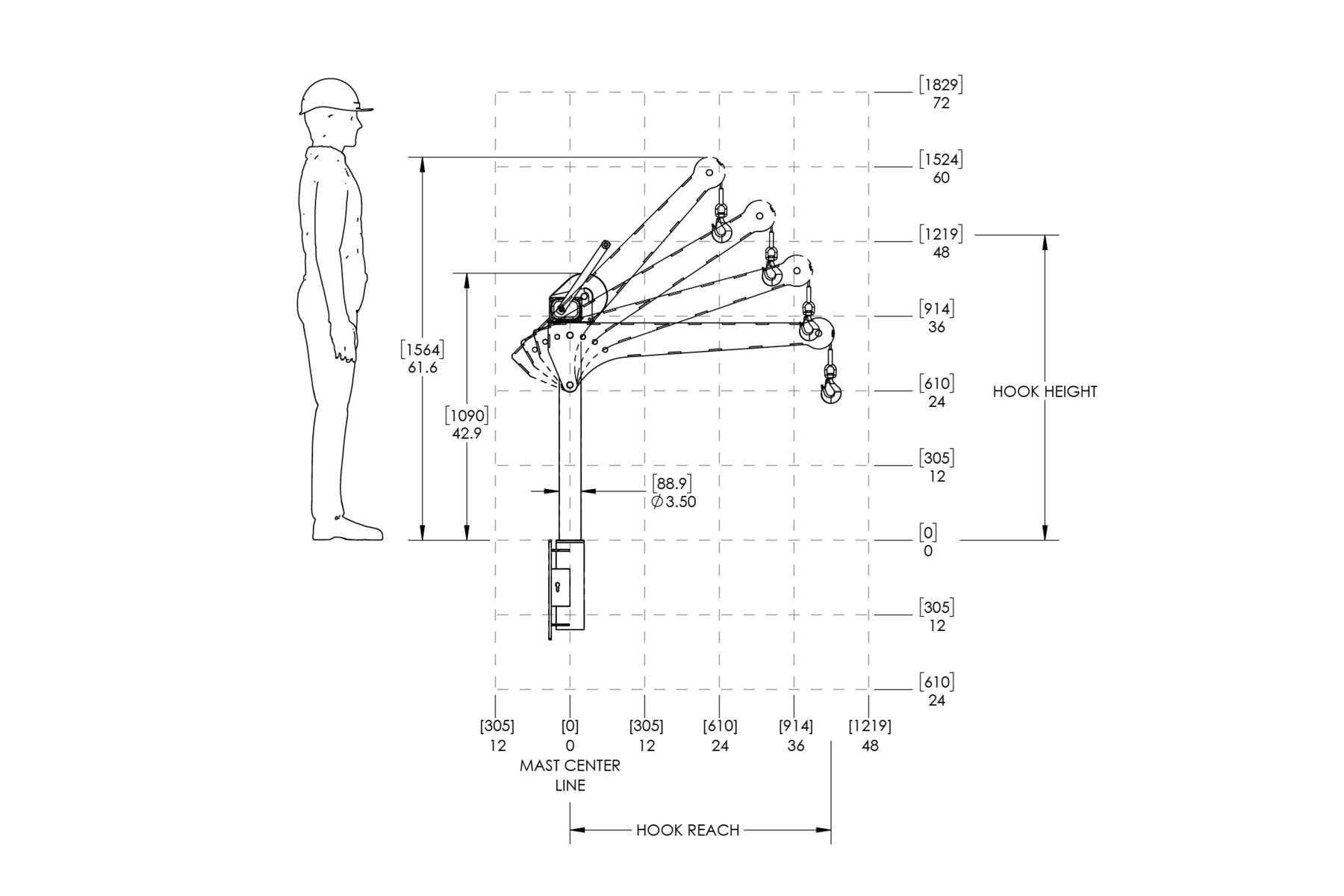

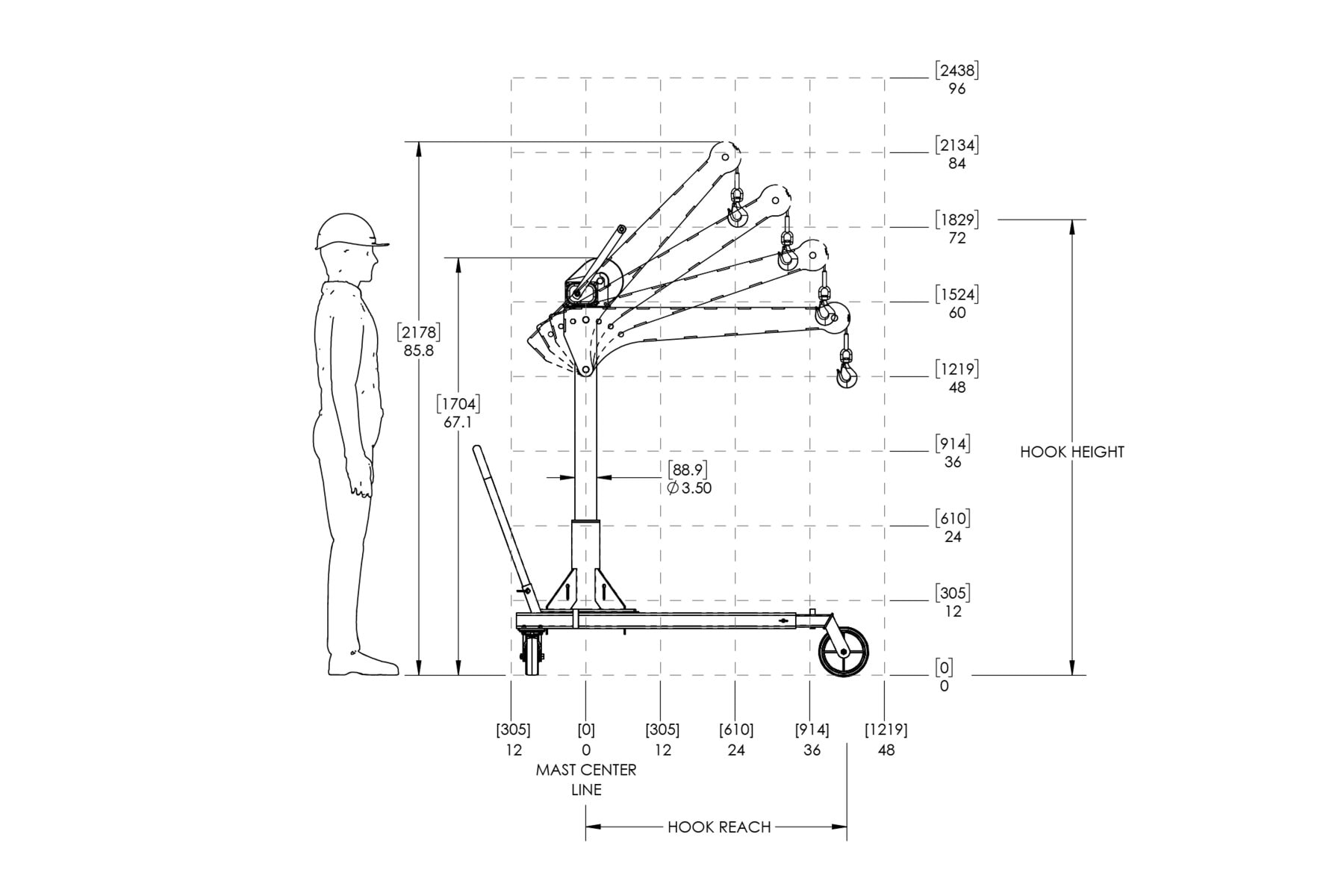

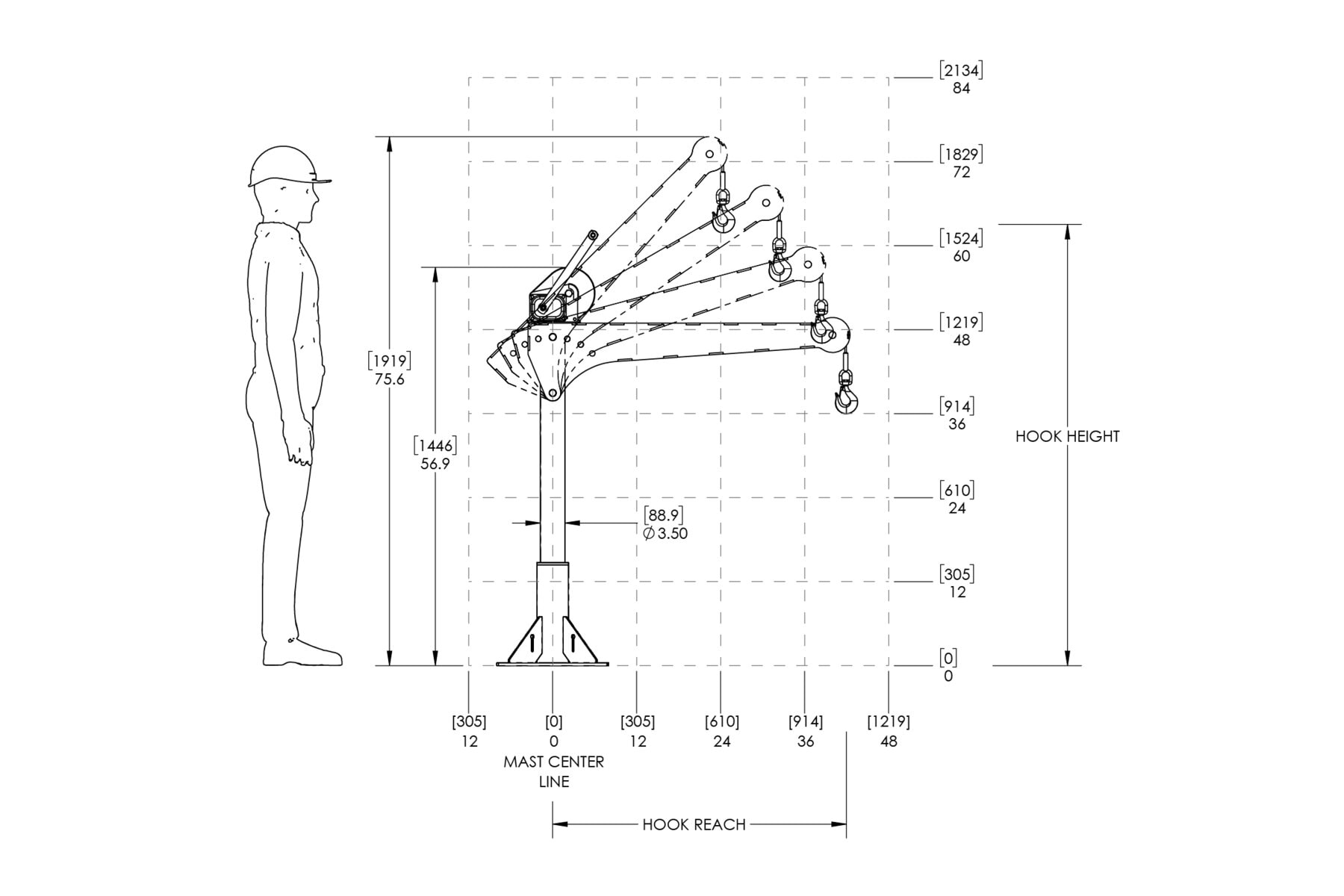

    Dimensional Drawing 1Dimensional Drawing 2Dimensional Drawing 3Dimensional Drawing 4

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZSS1500DAV - lb (kg) 49 (22) 50 (23) 99 (45)
    * Weights excluding winch
    Load Ratings
    Based on 1/4″ stainless steel wire rope or 3/16" synthetic rope
    First Layer Mid Drum Full Drum
    Boom Position 1 (0º) - lb (kg) 1000 (453) 1000 (453) 850 (385)
    Boom Position 2 (15º) - lb (kg) 1200 (544) 1200 (544) 850 (385)
    Boom Position 3 (30º) - lb (kg) 1300 (590) 1250 (566) 850 (385)
    Boom Position 4 (45º) - lb (kg) 1500 (680) 1250 (566) 850 (385)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZSS1500DAV 45,600 5,153 5/8″ Grade 5 (M16)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZSS1500DAV 1573 (714) 6997 1573 (714) 6997 1162 (527) 5169

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
