Stainless Davit Crane

OZSS1500DAV

Stainless Davit Crane

1500 lb stainless steel davit crane with stainless steel brake winch

Our Stainless 1500 Davit Crane is built to handle heavy lifting in the toughest environments. Crafted from 304 stainless steel with an electropolished finish, this 1500 lb. capacity davit crane excels in wastewater, water treatment, chemical processing, aerospace, electronics manufacturing, mining, textiles, and pharmaceutical facilities. With four boom height adjustments, 360-degree rotation, and a manual stainless steel brake winch, this crane delivers precise, safe, and reliable lifting in corrosive or wet conditions. Quick-connect assembly and a 2.5:1 safety factor make it a dependable worksite solution.

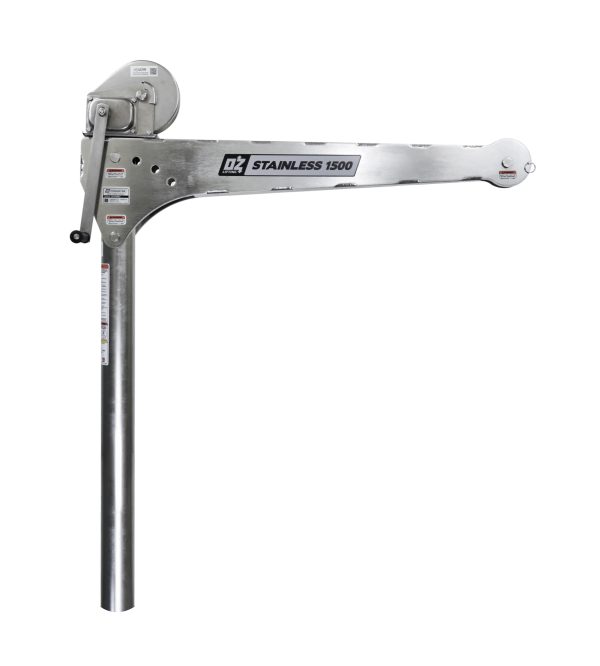

NOTE: Wire or synthetic rope assembly, headache ball, bases, and mast extensions sold separately.

  • 1500 lb. capacity rating
  • 304 stainless steel construction
  • RoHS-compliant, electropolished finish
  • 4 boom height adjustments
  • 360-degree rotation
  • Quick connect pins – no tools required for assembly and installation
  • Manual DIN-rated stainless steel brake winch with integrated Weston brake
  • AC & DC winch options available

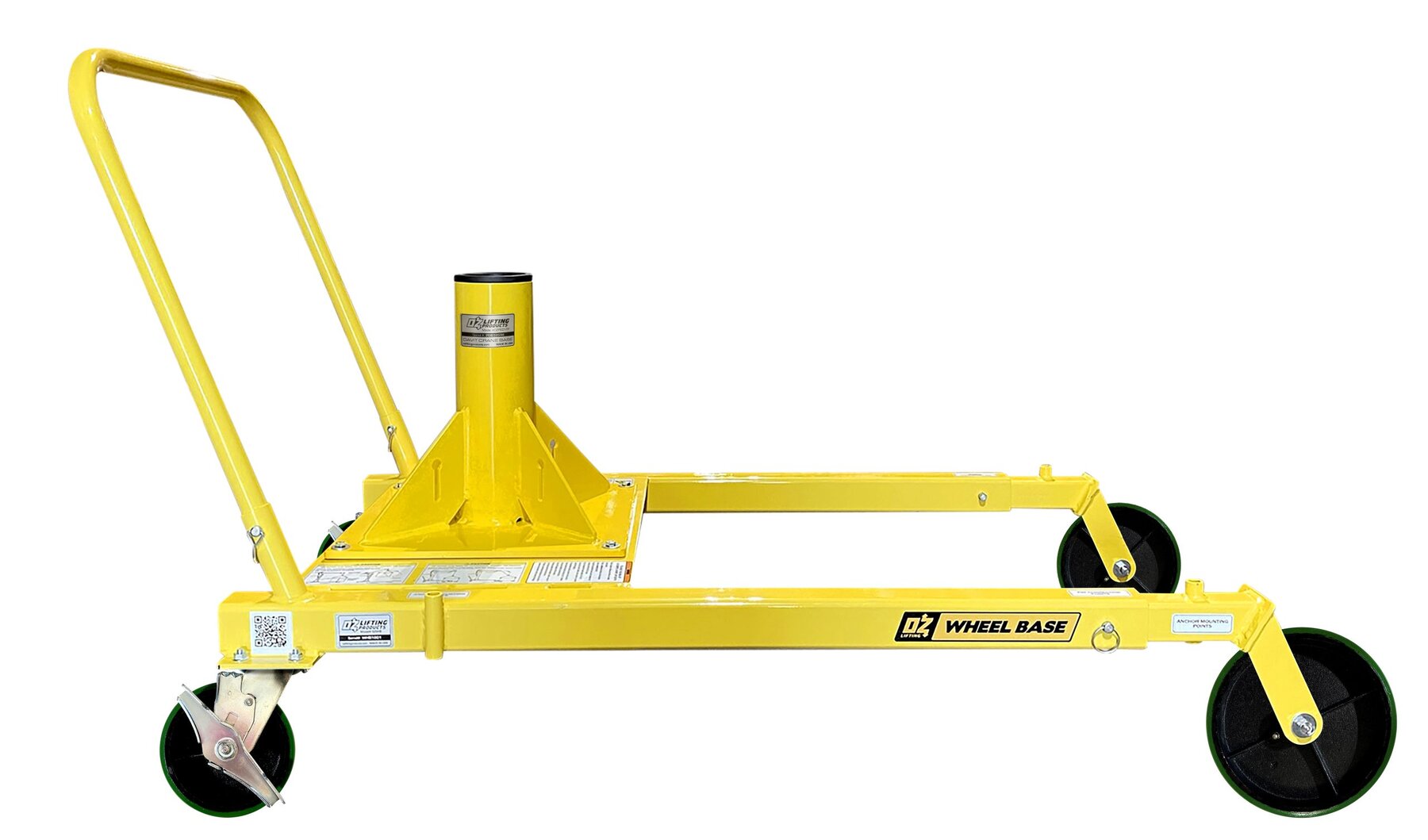

  • Mast extension, pedestal, wall mount, socket, and wheel bases sold separately
  • 2.5:1 safety factor, individually tested and certified at 125%

OZSS1500DAV

1500 lb stainless steel davit crane with stainless steel brake winch

    Videos

    Photos

    Add-Ons

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2Dimensional Drawing 3Dimensional Drawing 4

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZSS1500DAV - lb (kg) 49 (22) 50 (23) 99 (45)
    * Weights excluding winch
    Load Ratings
    Based on 1/4″ stainless steel wire rope or 3/16" synthetic rope
    First Layer Mid Drum Full Drum

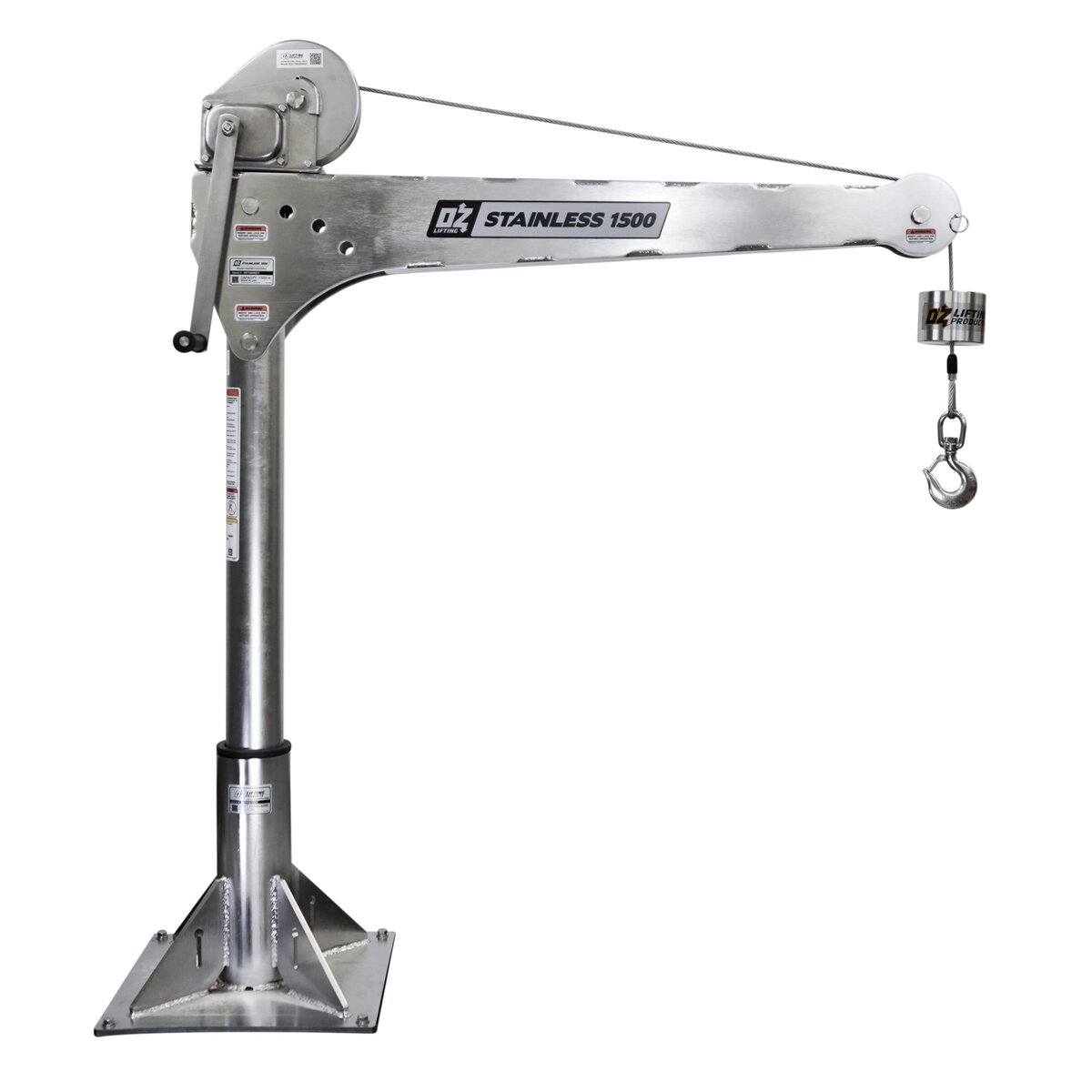

    Boom Position 1 (0º) - lb (kg) 1000 (453) 1000 (453) 850 (385)

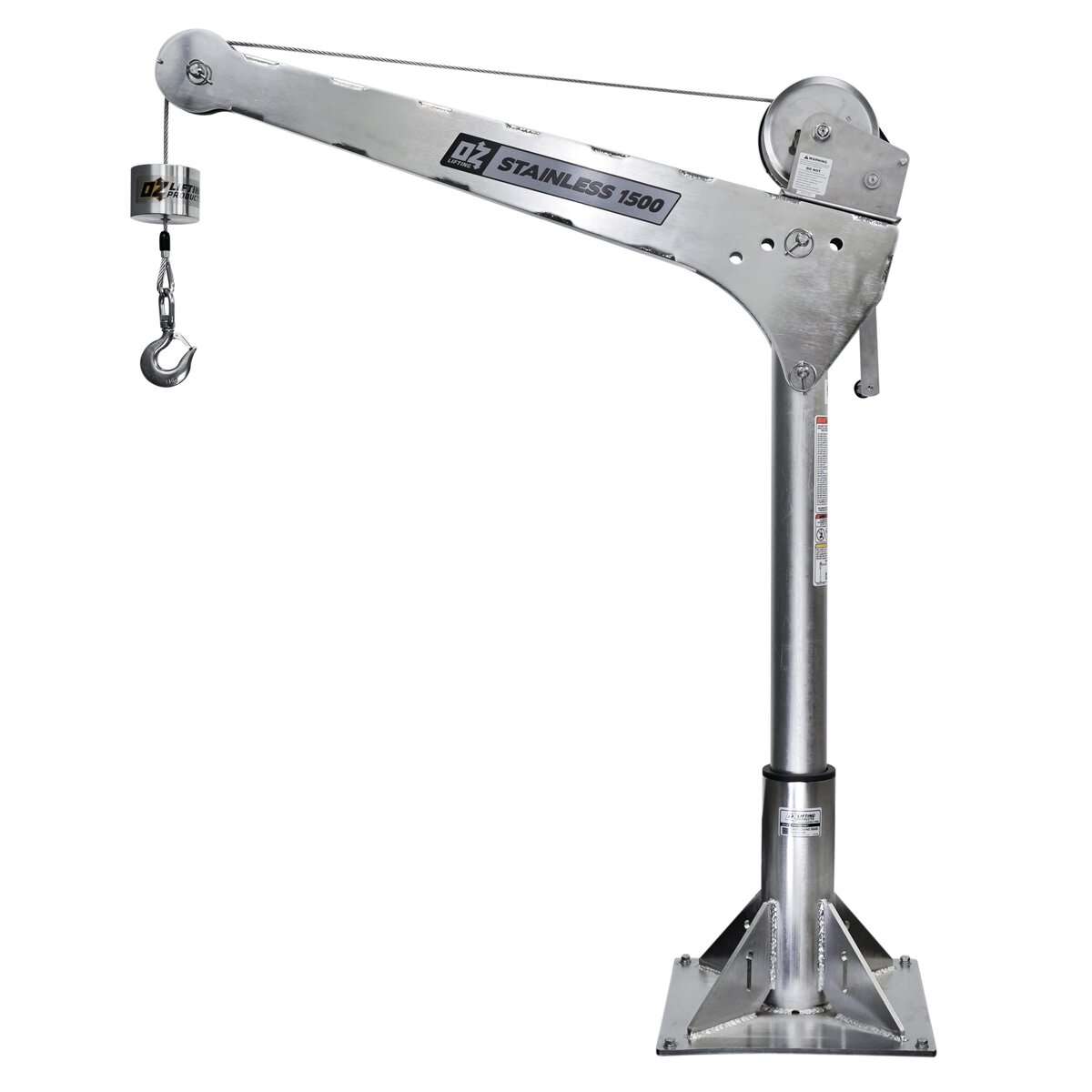

    Boom Position 2 (15º) - lb (kg) 1200 (544) 1200 (544) 850 (385)

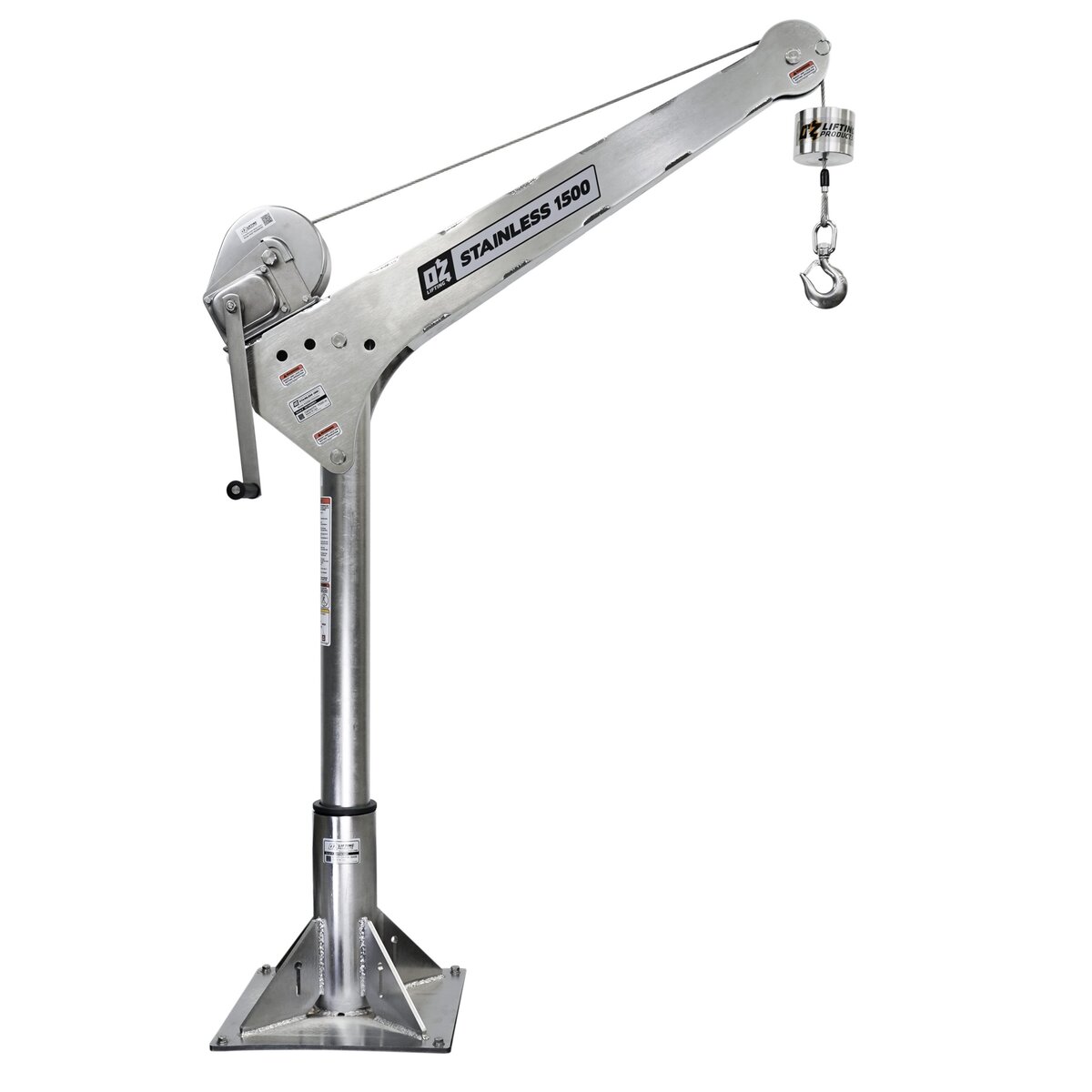

    Boom Position 3 (30º) - lb (kg) 1300 (590) 1250 (566) 850 (385)

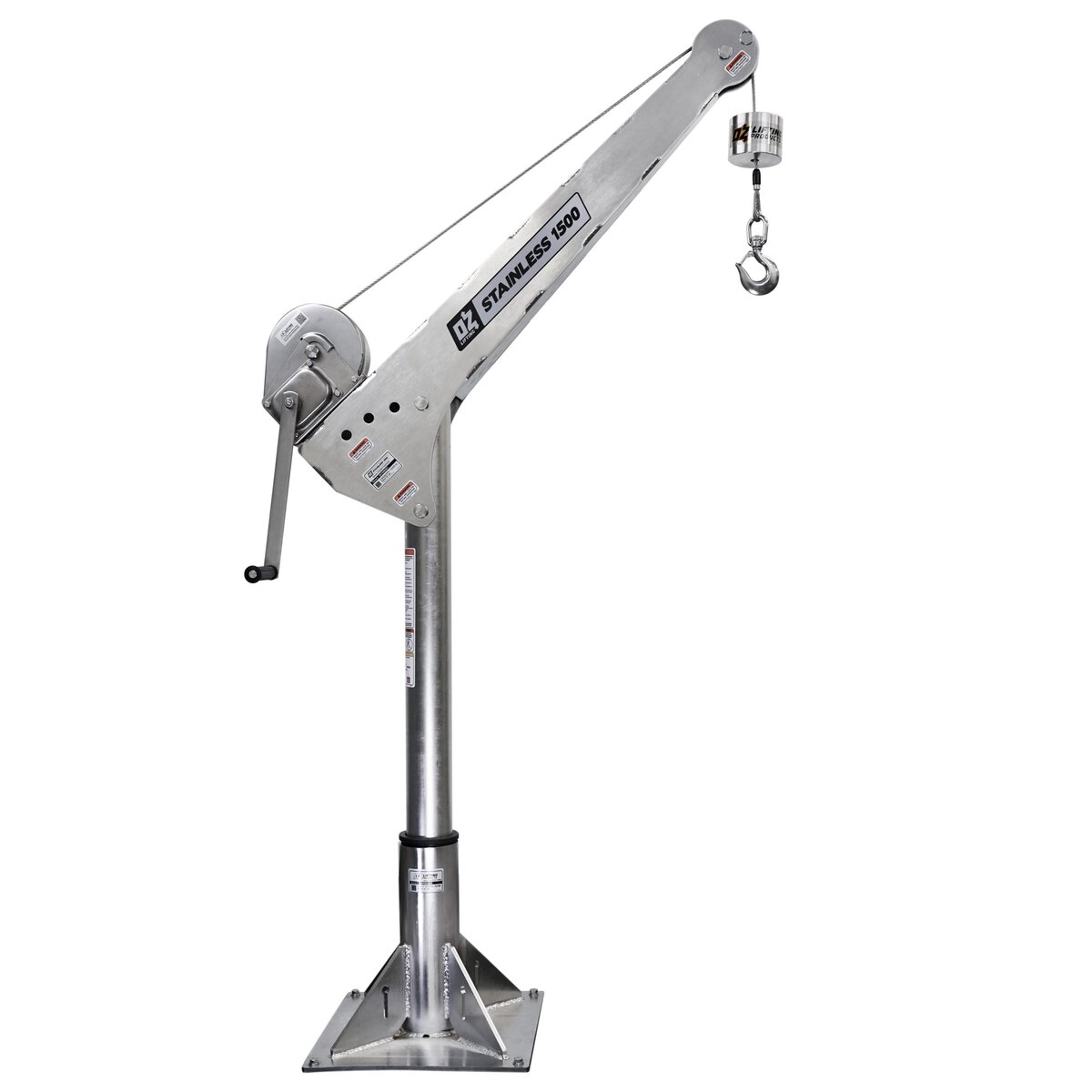

    Boom Position 4 (45º) - lb (kg) 1500 (680) 1250 (566) 850 (385)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZSS1500DAV 45,600 5,153 5/8″ Grade 5 (M16)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZSS1500DAV 1573 (714) 6997 1573 (714) 6997 1162 (527) 5169

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
