Alumi-Lite® Davit Crane

OZA500DAV

Alumi-Lite® Davit Crane

500 lb Alumi-Lite® davit crane with carbon steel brake winch

Oz Product Made in the USA Badge

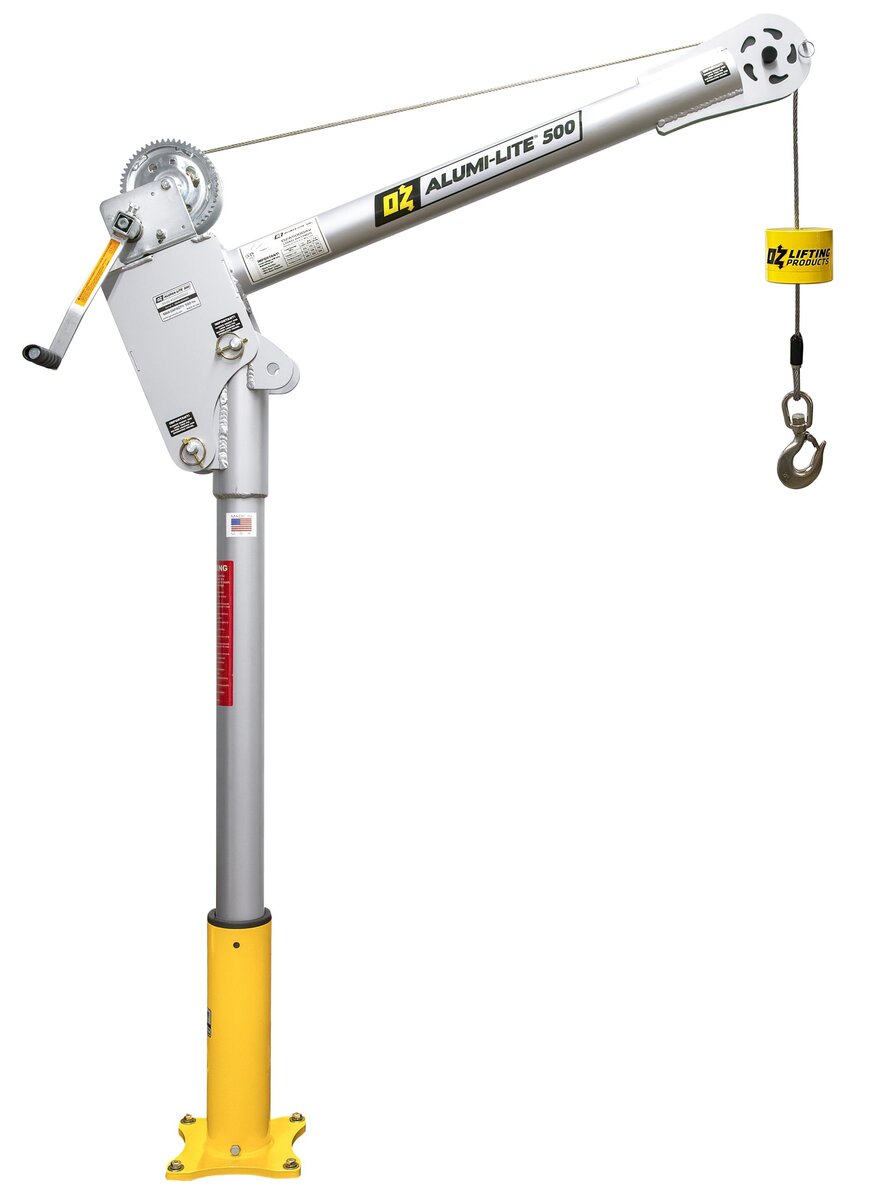

Our Alumi-Lite® 500 Davit Crane combines ultra-lightweight strength with unmatched portability. This versatile crane features adjustable boom heights, 360-degree rotation, and manual carbon steel brake winch with drill drive adapter. Ideal for various lifting tasks, it’s easy to assemble and transport. Experience the perfect balance of performance and convenience.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

  • 500 lb capacity rating
  • Ultra-lightweight
  • Aerospace-grade aluminum construction
  • Durable powder-coated finish
  • 360-degree rotation
  • 3 boom height adjustments
  • No tools required for assembly and installation
  • Manual DIN-rated CE winch with integrated Weston brake (Includes quick connect winch handle with drill drive adapter)
  • AC & DC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

Start Now

OZA500DAV

500 lb Alumi-Lite® davit crane with carbon steel brake winch

    Get Started
    Download Specs

    Videos

    Photos

    Add-Ons

    OZWB2-TP

    Wheel Base for use with OZTP500DAV davit crane (Pedestal base and locking collar included)

    View Product

    OZWB1-TP

    Wheel Base for use with OZTP1200DAV, OZA1000DAV, and OZXR1000DAV davit cranes (Pedestal base and locking collar included)

    View Product

    OZWB3

    Wheel Base for use with OZ500DAV, OZA500DAV and OZXR500DAV davit cranes (Pedestal base and locking collar included)

    View Product

    OZWB1

    Wheel Base for use with OZ1200DAV davit crane (Pedestal base and locking collar included)

    View Product

    OZWB2

    Wheel Base for use with OZ1000DAV and OZCF1200DAV davit cranes (Pedestal base and locking collar included)

    View Product

    OZWB

    Wheel Base for OZ lifting Products davit cranes up to 1200 lb capacity (Pedestal base and locking collar not included)

    View Product

    OZ100027

    Wheel Base floor-anchor kit with anchor bolts and washers

    View Product

    OZWALL1-TP

    Wall mount base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZWALL2-TP

    Wall mount base for OZTP500DAV Tele-Pro® davit crane

    View Product

    OZWALL3

    Wall mount base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

    View Product

    OZWALL4

    Wall mount base for OZ2500DAV and OZTP2500DAV davit cranes

    View Product

    OZWALL1

    Wall mount base for OZ1200DAV davit crane

    View Product

    OZWALL2

    Wall mount base for OZ1000DAV and OZCF1200DAV davit cranes

    View Product

    OZBACK2

    Wall mount base back for use with OZWALL2 and OZWALL2-TP

    View Product

    OZTB1

    Toolbox storage tube for the Wheel Base

    View Product

    OZSOC1-TP

    Socket base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSOC2-TP

    Socket base for OZTP500DAV Tele-Pro® davit crane

    View Product

    OZSOC3

    Socket base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

    View Product

    OZSOC4

    Socket base for OZ2500DAV and OZTP2500DAV davit cranes

    View Product

    OZSOC1

    Socket base for OZ1200DAV davit crane

    View Product

    OZSOC2

    Socket base for OZ1000DAV and OZCF1200DAV davit cranes

    View Product

    OZ100025

    Single position locking collar kit for 4 series base

    View Product

    OZ100023

    Single position locking collar kit for 2-TP series base

    View Product

    OZ100022

    Single position locking collar kit for 2 & 3 series bases

    View Product

    OZ100021

    Single position locking collar kit for 1-TP series base

    View Product

    OZ100020

    Single position locking collar kit for 1 series base

    View Product

    OZDAV-C1

    Protective davit crane cover for OZ500DAV, OZA500DAV, OZTP500DAV, OZ1000DAV, OZA1000DAV, OZ1200DAV, OZCF1200DAV, and OZTP1200DAV davit cranes

    View Product

    OZPED1-TP

    Pedestal base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZPED2-TP

    Pedestal base for OZTP500DAV Tele-Pro® davit crane

    View Product

    OZPED3

    Pedestal base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

    View Product

    System Components

    Drawings

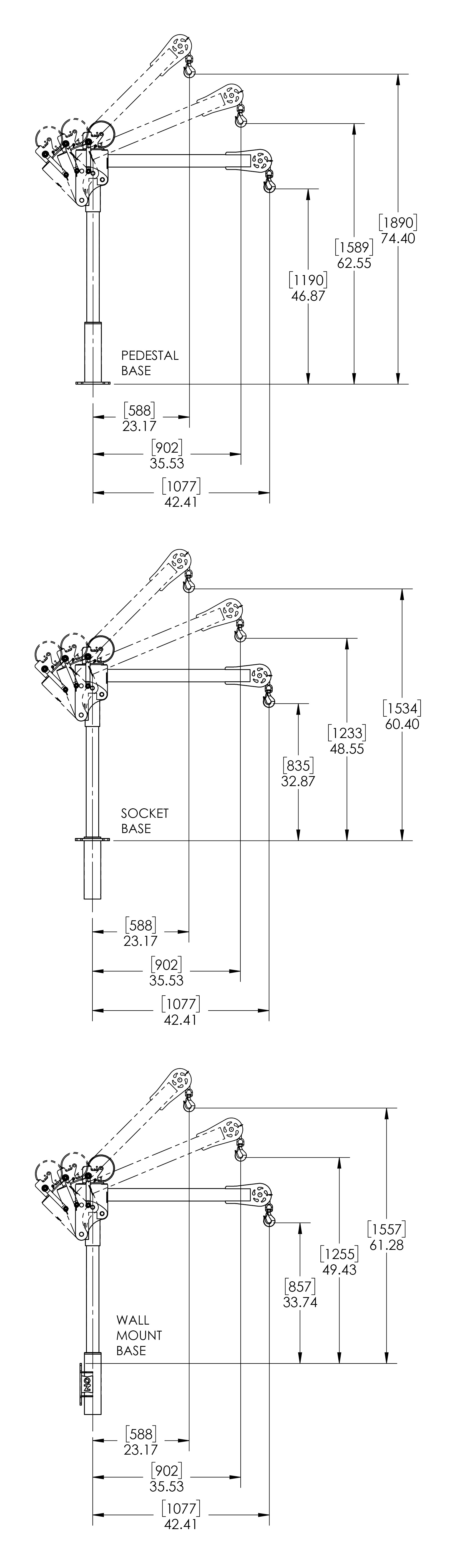

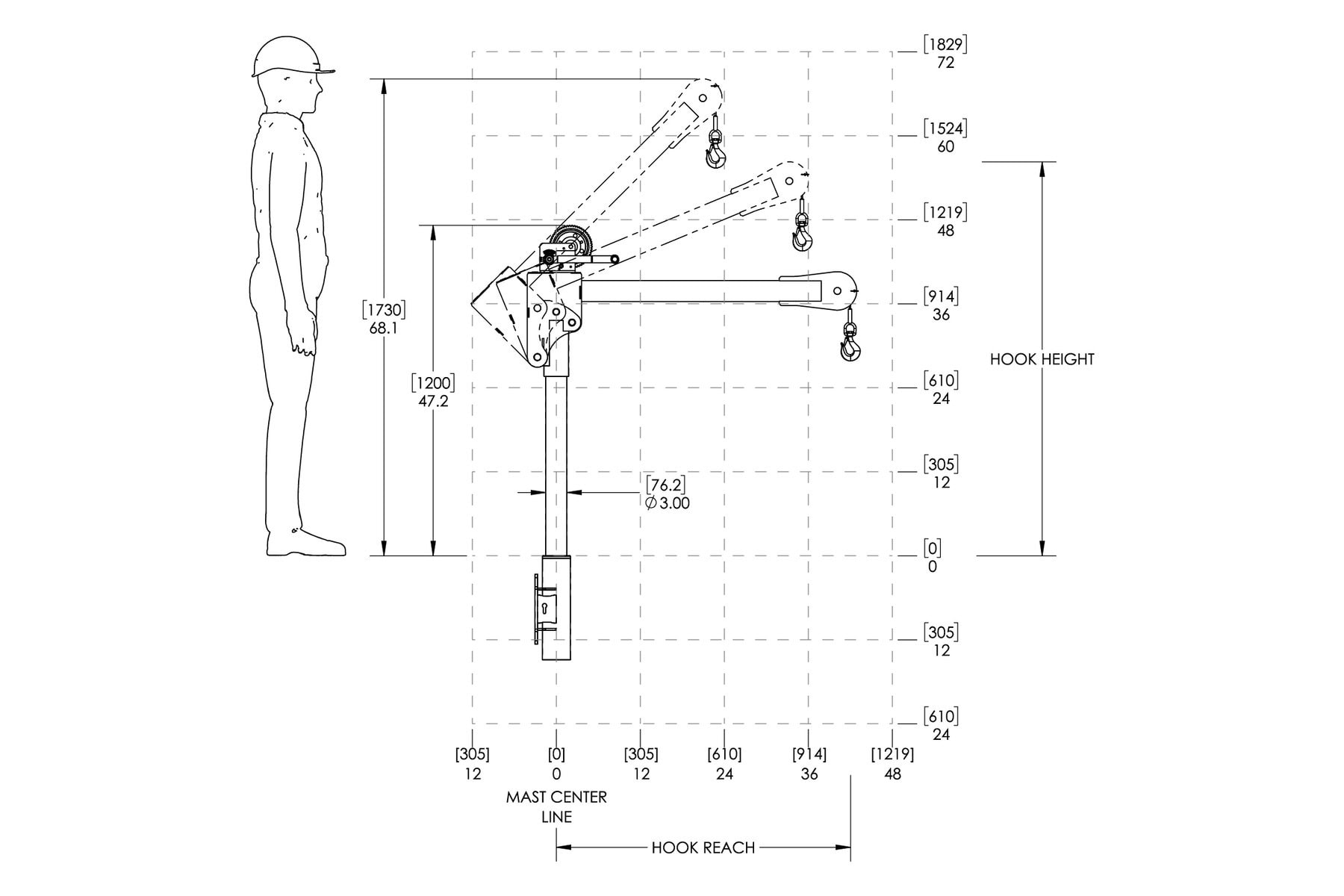

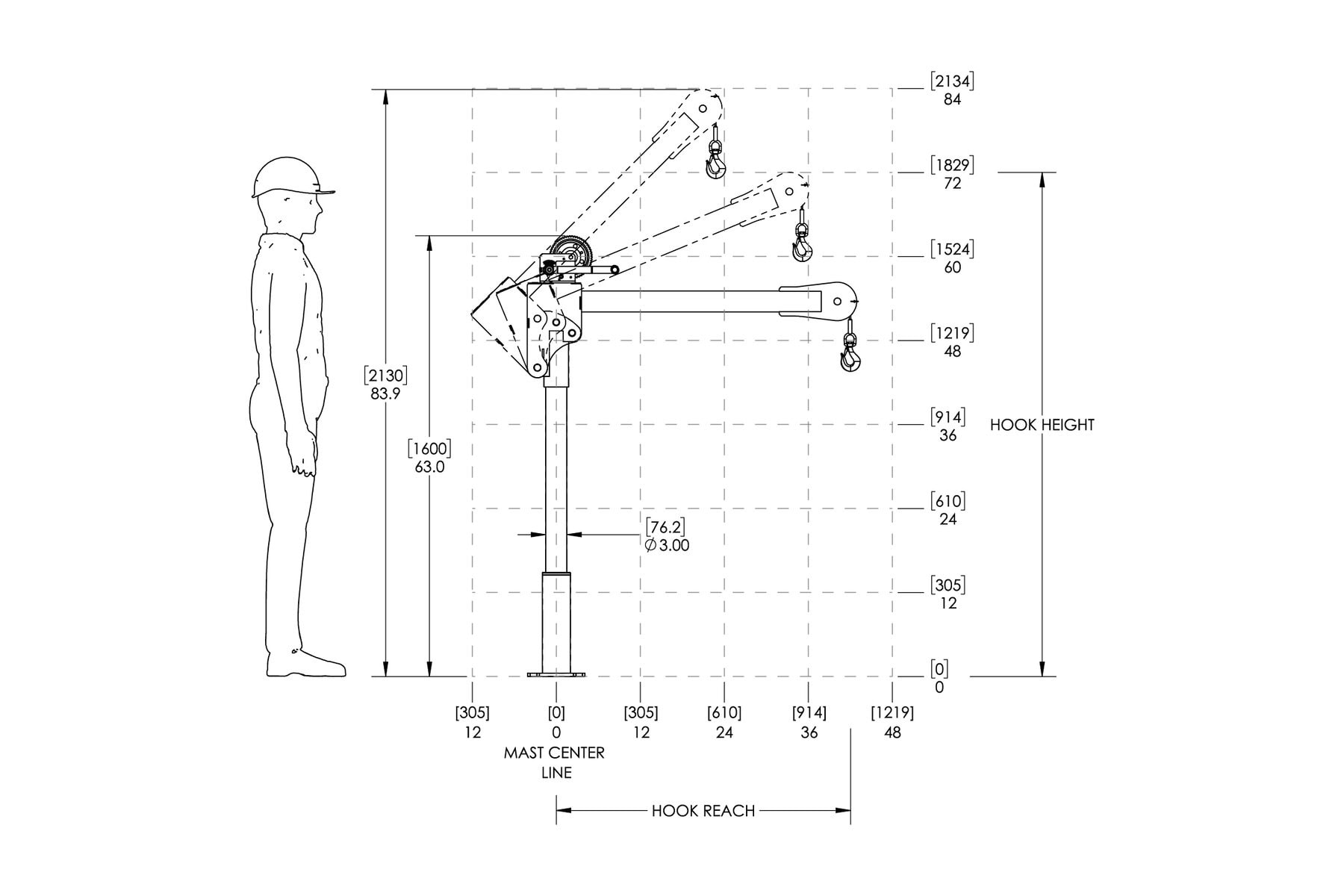

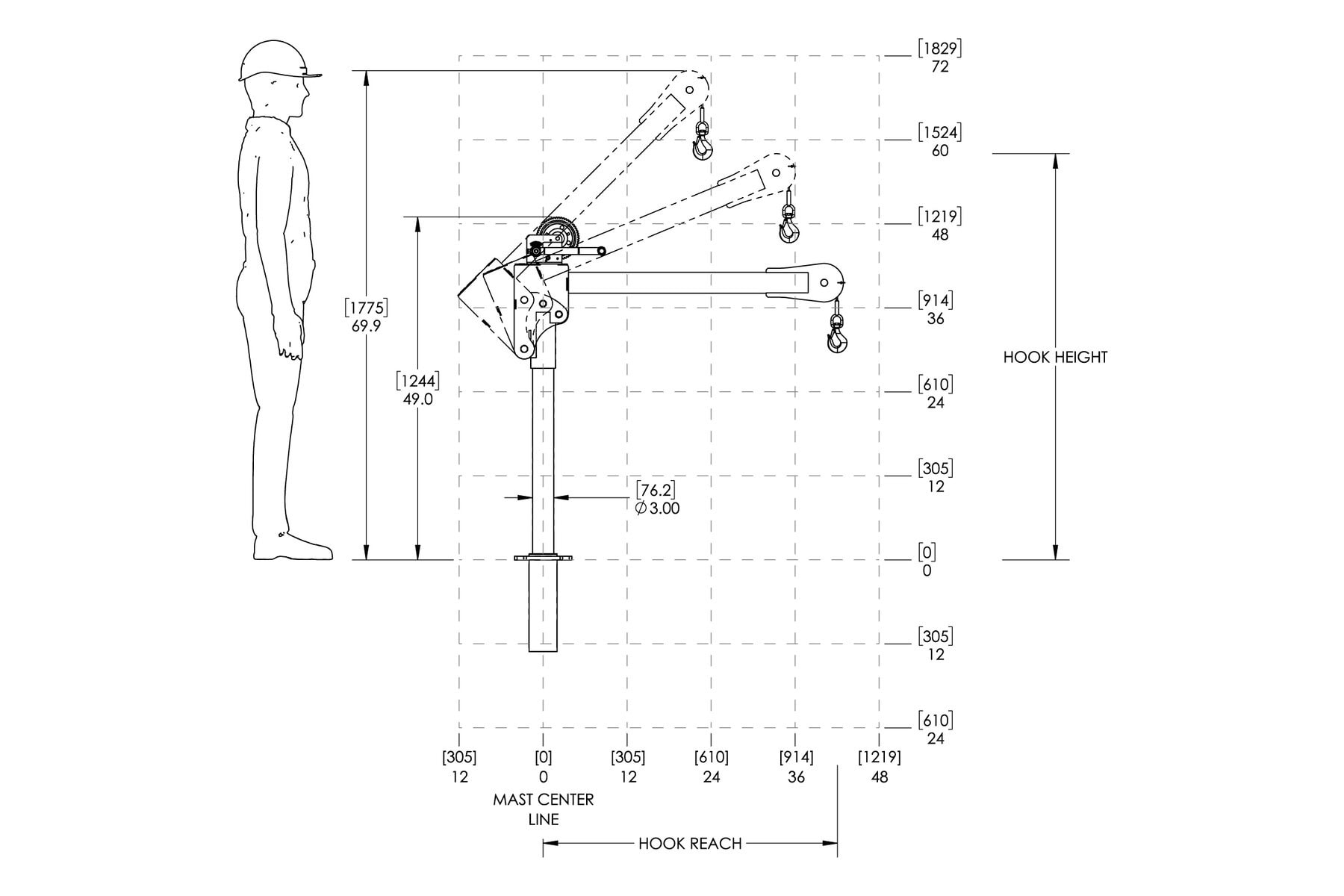

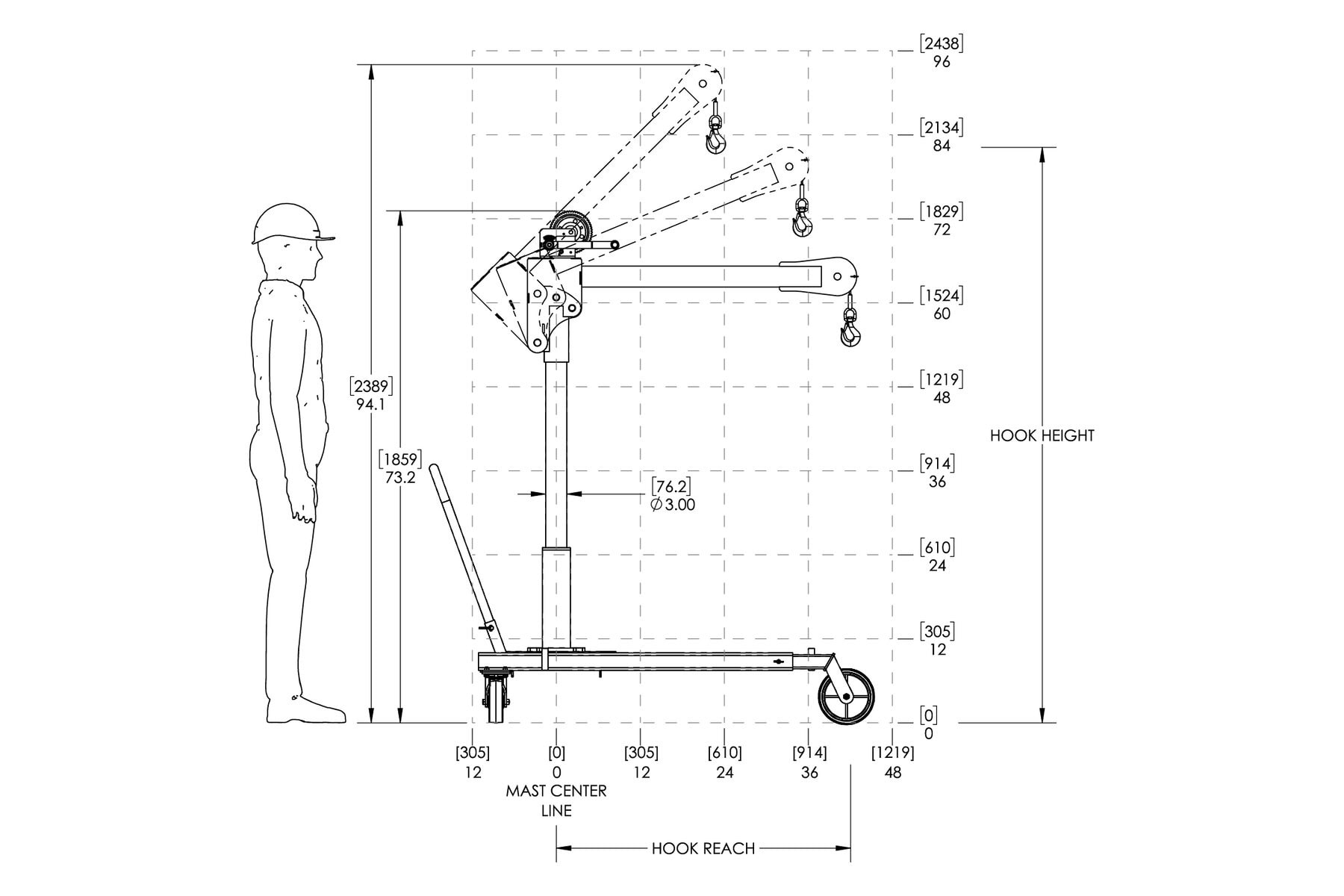

    Dimensional Drawing 1

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZA500DAV - lb (kg) 12 (5.45) 12 (5.45) 24 (10.91)
    * Weights excluding winch
    Load Ratings
    Based on 3/16″ wire rope
    First Layer Mid Drum Full Drum
    Position 1 (0°) - lb (kg) 275 (125) 275 (125) 275 (125)
    Position 2 (+22.5°) - lb (kg) 330 (150) 330 (150) 330 (150)
    Position 3 (+45°) - lb (kg) 500 (227.27) 500 (227.27) 500 (227.27)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZA500DAV 11,781 1,331 1/2″ Grade 5 (M12)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZA500DAV 771 (350.45) 3,431 779 (354.09) 3,467 561 (255) 2,494

    Get a Custom Davit Crane Recommendation

    Tell us about your needs and we will match you with the ideal lifting solution

    Start Now

    IMPORTANT!

    Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
