Name: 500 lb steel davit crane with 115V AC electric winch | OZ Lifting Products
SKU: OZ500DAV-ACW

500 lb steel davit crane with 115V AC electric winch

OZ500DAV-ACW Downloads

Download All

Steel_Davit_OM_ENFRSP.pdf

Steel-Davit-Crane.pdf

Application-Data-Sheet-1.pdf

Steel-500-OZ500DAV-Davit-Crane-Specifications-2.pdf

OZ500DAV_ACW.pdf

OZ500DAV_ACW_PED.dxf

OZ500DAV-ACW

Steel Davit Crane

500 lb steel davit crane with 115V AC electric winch

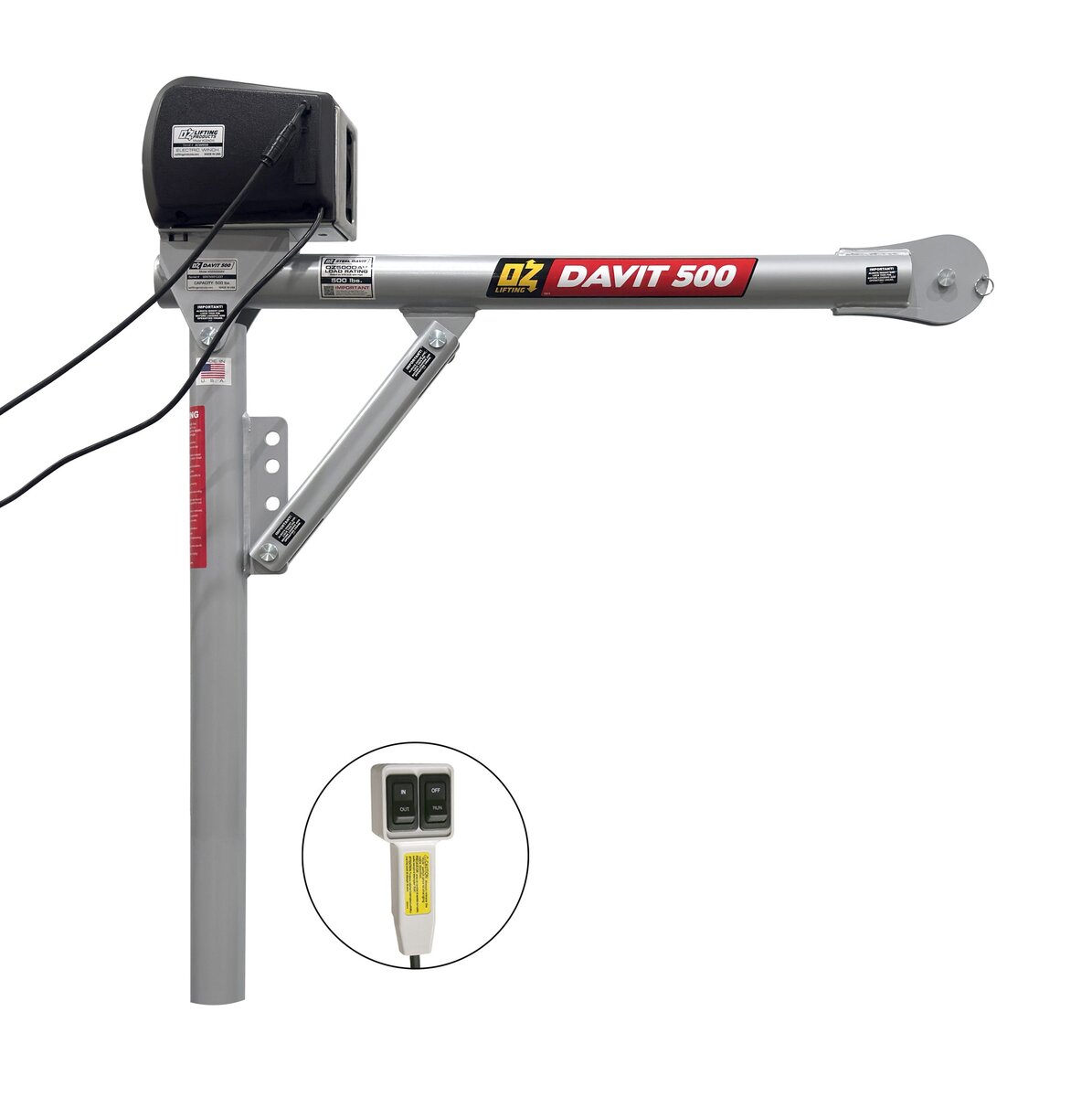

Our versatile 500 lb capacity Steel Davit Crane is now equipped with a powerful 115V AC electric winch, offering efficient and convenient lifting operations. This portable crane maintains flexible boom heights and 360-degree rotation for adaptable use. The electric winch provides effortless control and reduces manual labor, making it ideal for various applications. Built with American quality and safety features, this crane is a reliable choice for your lifting needs.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

500 lb capacity ratings
Entry-level solution
All steel construction
RoHS-compliant corrosion-resistant, exterior-grade powder coat finish
4 boom height adjustments
No tools required for assembly and installation
115V AC electric winch
Manual & DC winch options available
Pedestal, wall mount, socket, and wheel bases sold separately
Individually tested and certified at 125%
Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

OZ500DAV-ACW

500 lb steel davit crane with 115V AC electric winch

Videos

Photos

Add-Ons

OZWB2-TP

Wheel Base for use with OZTP500DAV davit crane (Pedestal base and locking collar included)

OZWB3

Wheel Base for use with OZ500DAV, OZA500DAV and OZXR500DAV davit cranes (Pedestal base and locking collar included)

OZWB

Wheel Base for OZ lifting Products davit cranes up to 1200 lb capacity (Pedestal base and locking collar not included)

OZ100027

Wheel Base floor-anchor kit with anchor bolts and washers

OZWALL2-TP

Wall mount base for OZTP500DAV Tele-Pro® davit crane

OZWALL3

Wall mount base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

OZBACK2

Wall mount base back for use with OZWALL2 and OZWALL2-TP

OZTB1

Toolbox storage tube for the Wheel Base

OZSOC2-TP

Socket base for OZTP500DAV Tele-Pro® davit crane

OZSOC3

Socket base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

OZSOC4

Socket base for OZ2500DAV and OZTP2500DAV davit cranes

OZSOC1

Socket base for OZ1200DAV davit crane

OZSOC2

Socket base for OZ1000DAV and OZCF1200DAV davit cranes

OZ100025

Single position locking collar kit for 4 series base

OZ100023

Single position locking collar kit for 2-TP series base

OZ100022

Single position locking collar kit for 2 & 3 series bases

OZ100021

Single position locking collar kit for 1-TP series base

OZ100020

Single position locking collar kit for 1 series base

OZDAV-C1

Protective davit crane cover for OZ500DAV, OZA500DAV, OZTP500DAV, OZ1000DAV, OZA1000DAV, OZ1200DAV, OZCF1200DAV, and OZTP1200DAV davit cranes

OZPED1-TP

Pedestal base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZPED2-TP

Pedestal base for OZTP500DAV Tele-Pro® davit crane

OZEXT2-TP

Mast extension for OZTP500DAV davit cranes (Adds 24 inches of height to davit crane)

OZWINDDA2

Drill drive adapter for OZWINHND2 carbon steel brake winch

OZWINDDA1

Drill drive adapter for OZWINHND1 carbon steel brake winch

OZRB1

Davit crane roller bag for OZ500DAV, OZ1000DAV, OZ1200DAV, OZCF1200DAV, OZA500DAV, and OZA1000DAV davit cranes

OZBACK1

Backing plate for use with OZPED1, OZWALL1, OZPED1-TP, & OZWALL1-TP

OZTP500DAV

500 lb Tele-Pro® davit crane with carbon steel brake winch

OZTP500DAV-HND2

500 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch

OZTP500DAV-DCW

500 lb Tele-Pro® davit crane with 12V DC electric winch

OZTP500DAV-ACW

500 lb Tele-Pro® davit crane with 115V AC electric winch

System Components

OZGAL.19-80

3/16″ x 80′ lift – Galvanized cable assembly with bare end with swivel hook with latch

OZWB3

Wheel Base for use with OZ500DAV, OZA500DAV and OZXR500DAV davit cranes (Pedestal base and locking collar included)

OZSOC3

Socket base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

OZPED3

Pedestal base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

OZWALL3

Wall mount base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

OZHB10

10 lb headache ball for use with 3/16″ and 1/4″ wire rope

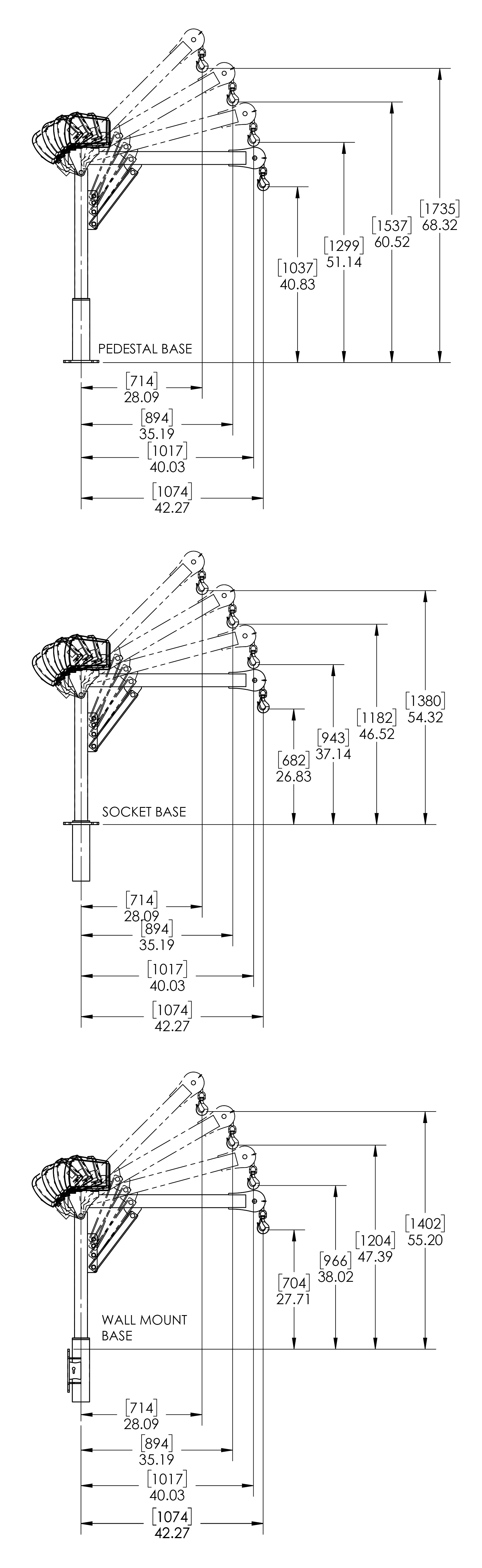

Drawings

Specs & Ratings

Product Weight
	Boom	Mast	Net
OZ500DAV - lb (kg)	27 (12.27)	23 (10.46)	50 (22.73)
* Weights excluding winch

Load Ratings
Based on 3/16″ wire rope
	First Layer	Mid Drum	Full Drum
All positions - lb (kg)	500 (227.27)	500 (227.27)	500 (227.27)

Crane Reactions/Moments
Model	Mast Moments (in-lb)	Mast Moment (N-m)	Suggested Bolt Size
OZ500DAV	21,420	2,420	1/2″ Grade 5 (M12)

	Floor Mount Base		Wall Mount Base
Model	Axial Force per Bolt - lb (kg)	Axial Force per Bolt (N)	Axial Force per Bolt - lb (kg)	Axial Force per Bolt (N)	Shear Force per Bolt - lb (kg)	Shear Force per Bolt (N)

OZ500DAV	1403 (637.73)	6,239	1423 (646.82)	6,331	1027 (466.82)	4,570

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

IMPORTANT!

Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.
