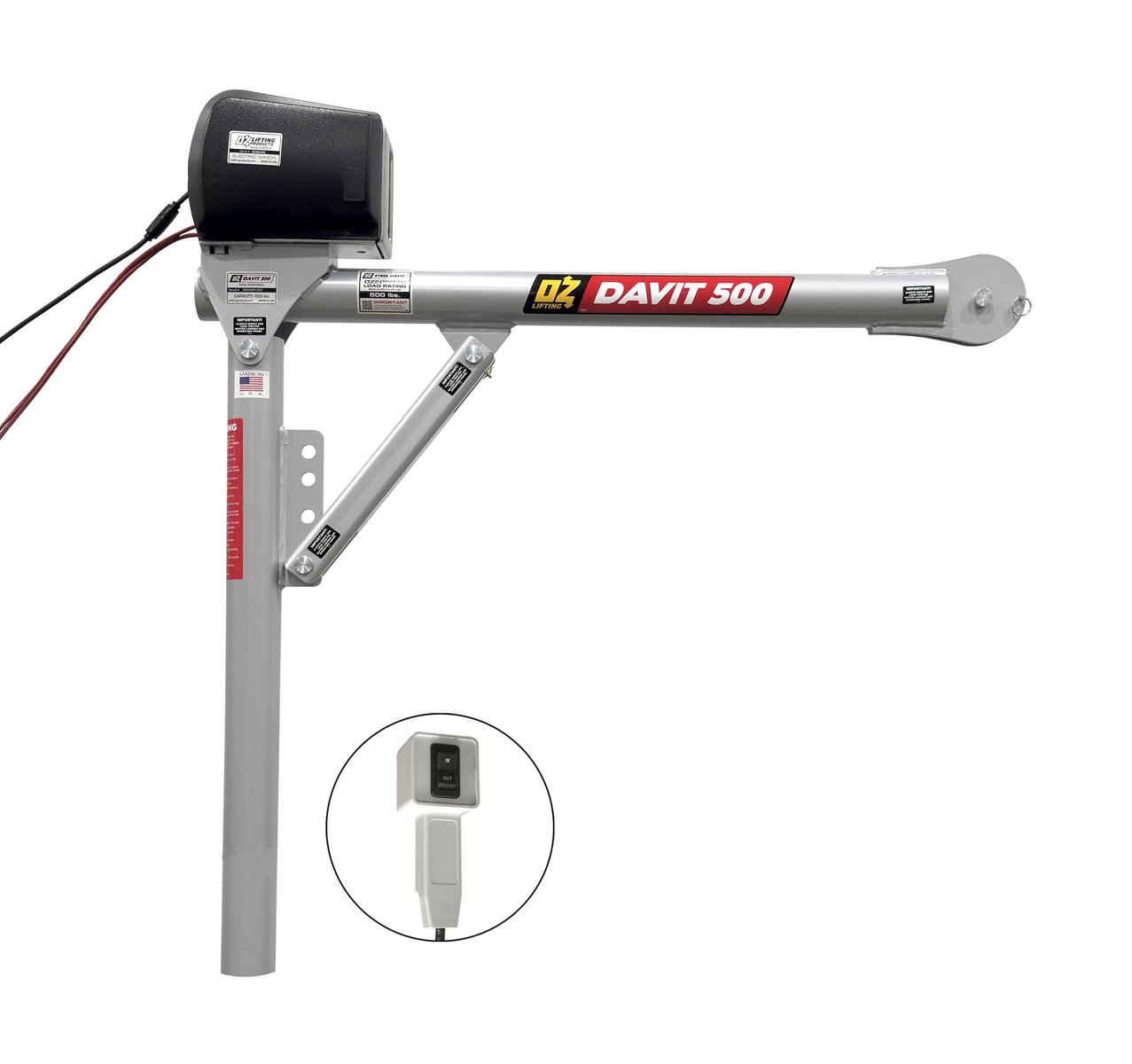

Our portable 500 lb Steel Davit Crane features a convenient 12V DC electric winch for efficient and mobile lifting solutions. This versatile crane offers flexible boom heights and 360-degree rotation, making it suitable for a variety of applications. The 12V DC winch provides reliable power and easy operation, ideal for use with batteries or power inverters. Built with American quality and safety standards, this crane is a dependable choice for your lifting needs.

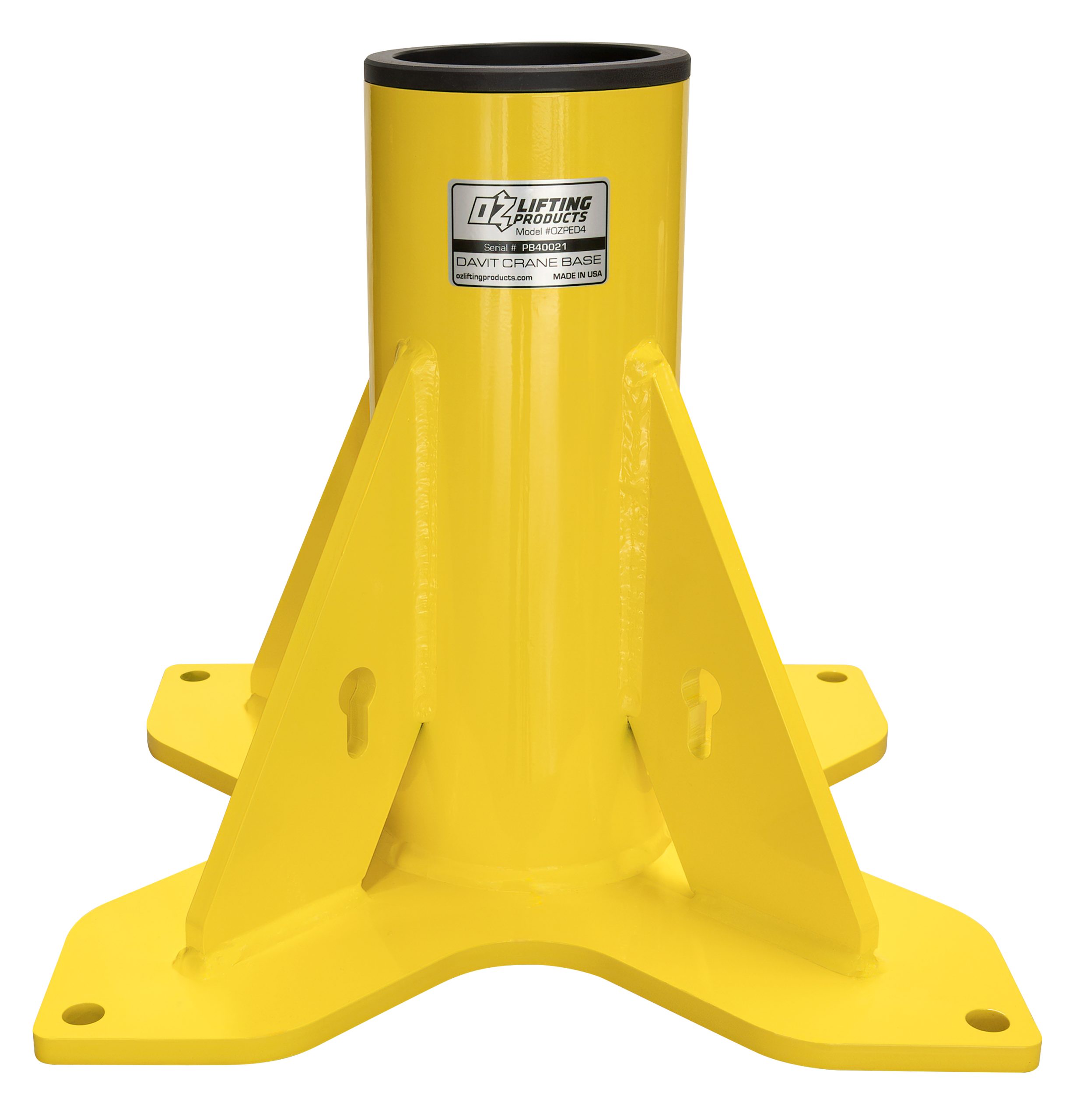

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.
Tell us about your needs and we will match you with the ideal lifting solution
| Product Weight | |||
| Boom | Mast | Net | |
| OZ500DAV - lb (kg) | 27 (12.27) | 23 (10.46) | 50 (22.73) |
| * Weights excluding winch |
| Load Ratings | |||
| Based on 3/16″ wire rope | |||
| First Layer | Mid Drum | Full Drum | |
| All positions - lb (kg) | 500 (227.27) | 500 (227.27) | 500 (227.27) |
| Crane Reactions/Moments | ||||||
| Model | Mast Moments (in-lb) | Mast Moment (N-m) | Suggested Bolt Size | |||
| OZ500DAV | 21,420 | 2,420 | 1/2″ Grade 5 (M12) | |||
| Floor Mount Base | Wall Mount Base | |||||
| Model | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Shear Force per Bolt - lb (kg) | Shear Force per Bolt (N) |
| OZ500DAV | 1403 (637.73) | 6,239 | 1423 (646.82) | 6,331 | 1027 (466.82) | 4,570 |
Tell us about your needs and we will match you with the ideal lifting solution
IMPORTANT!
Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

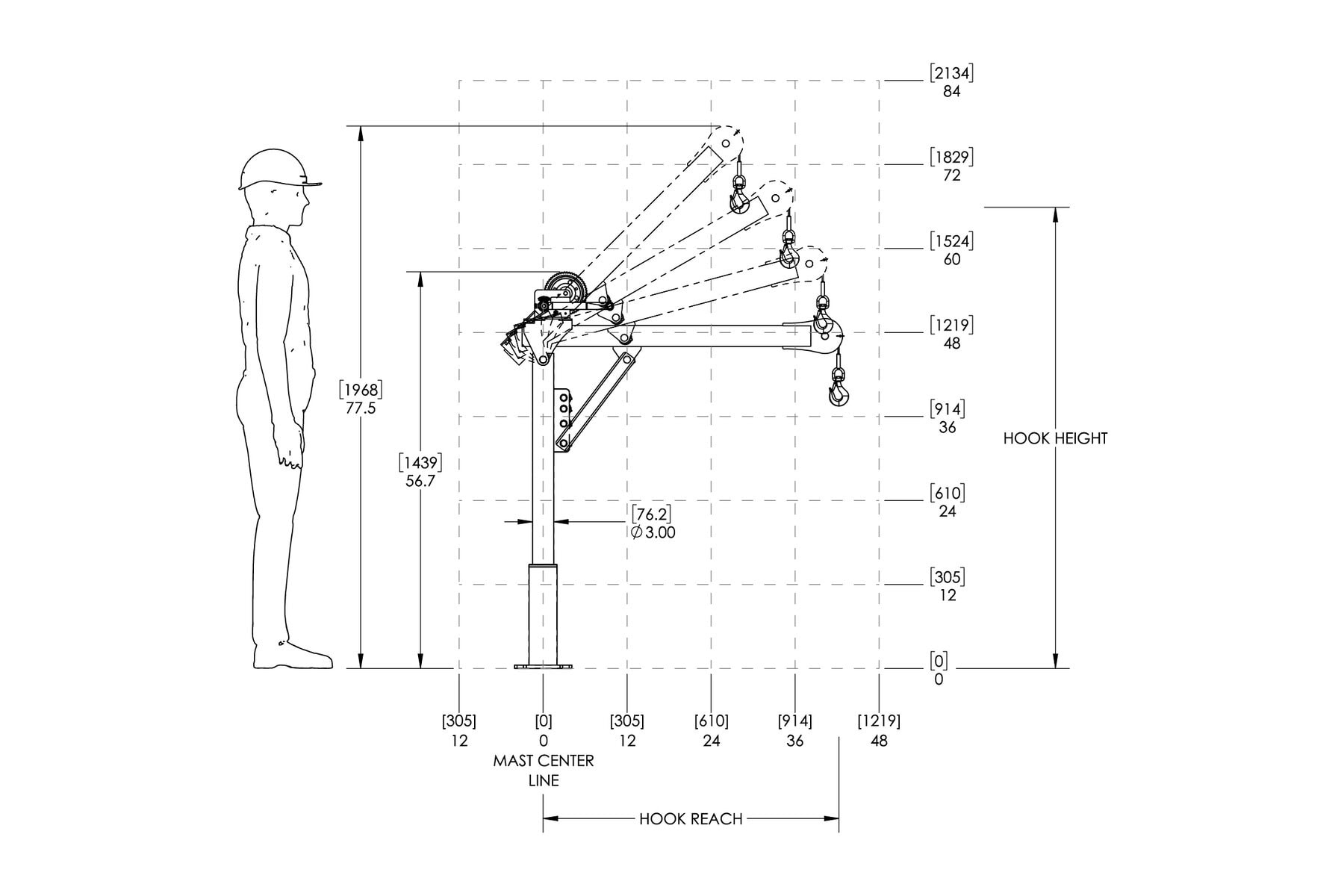

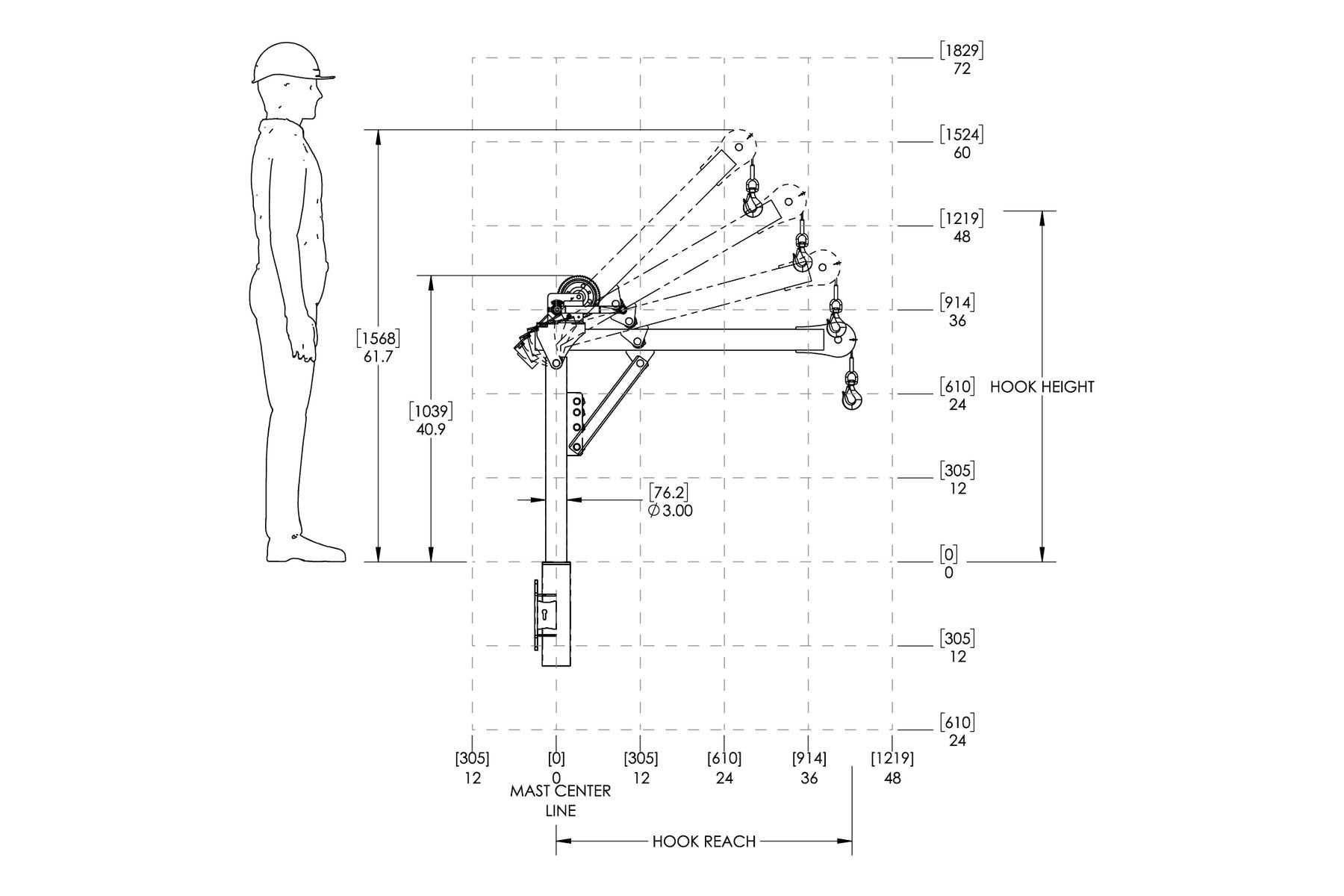

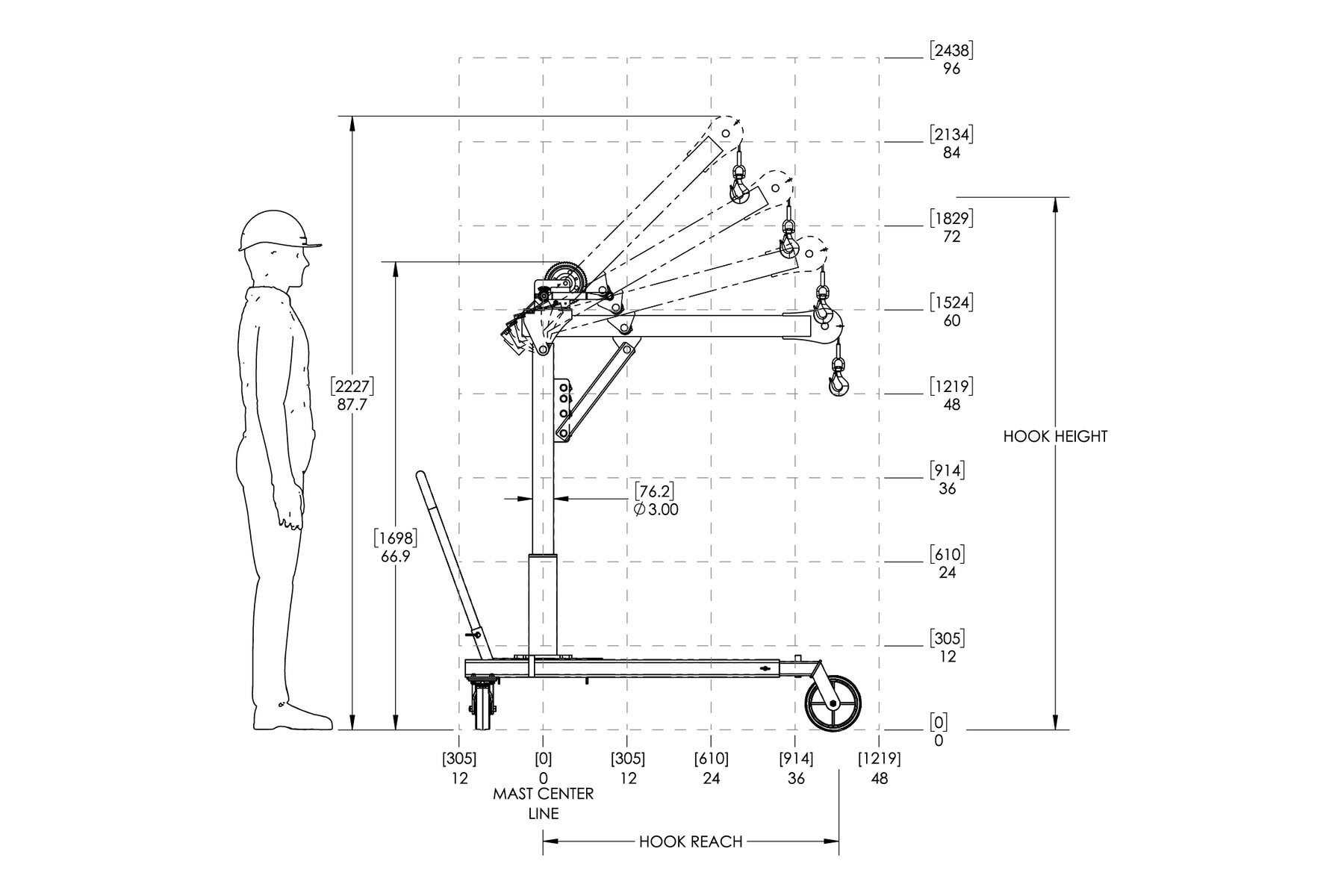

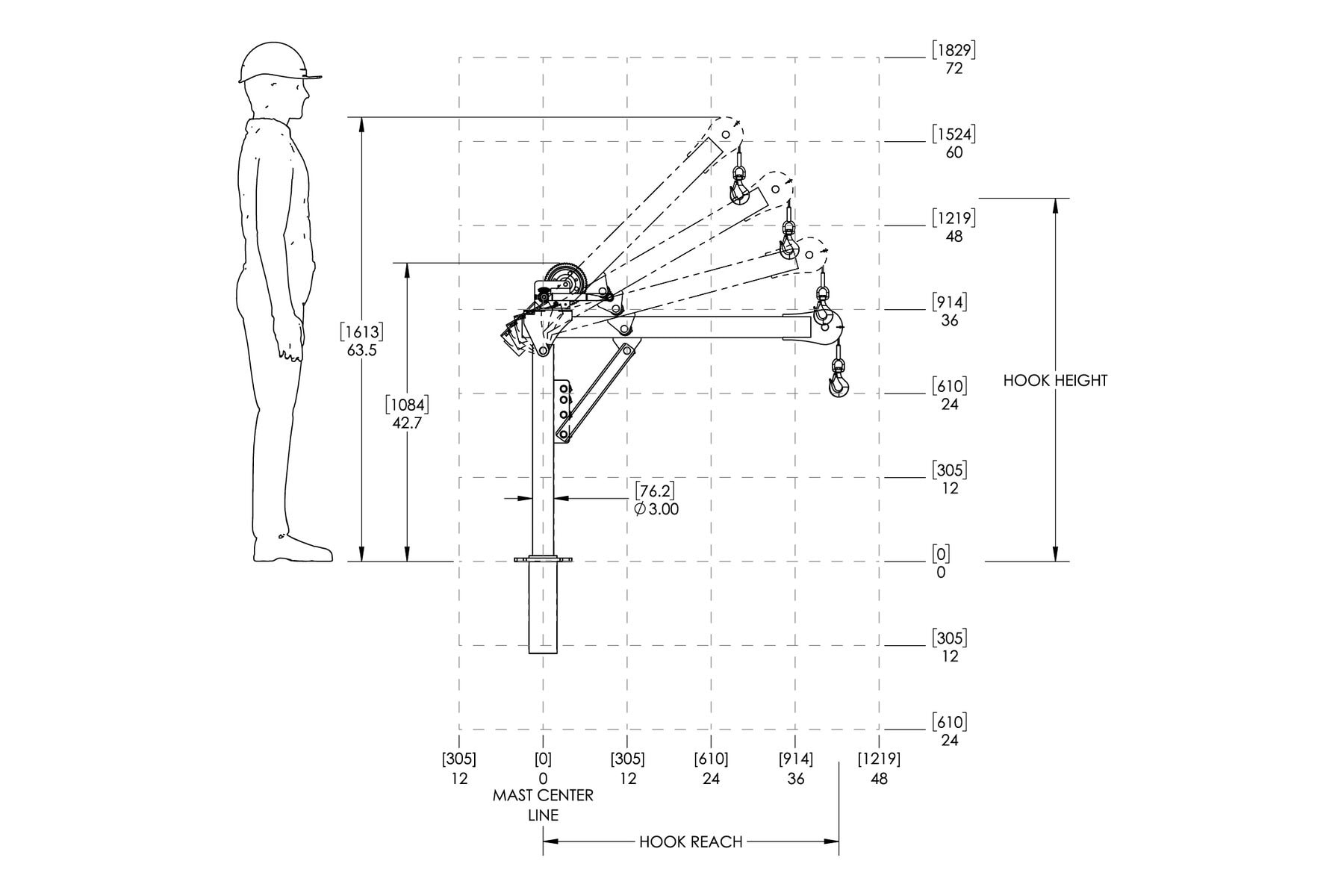

*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
