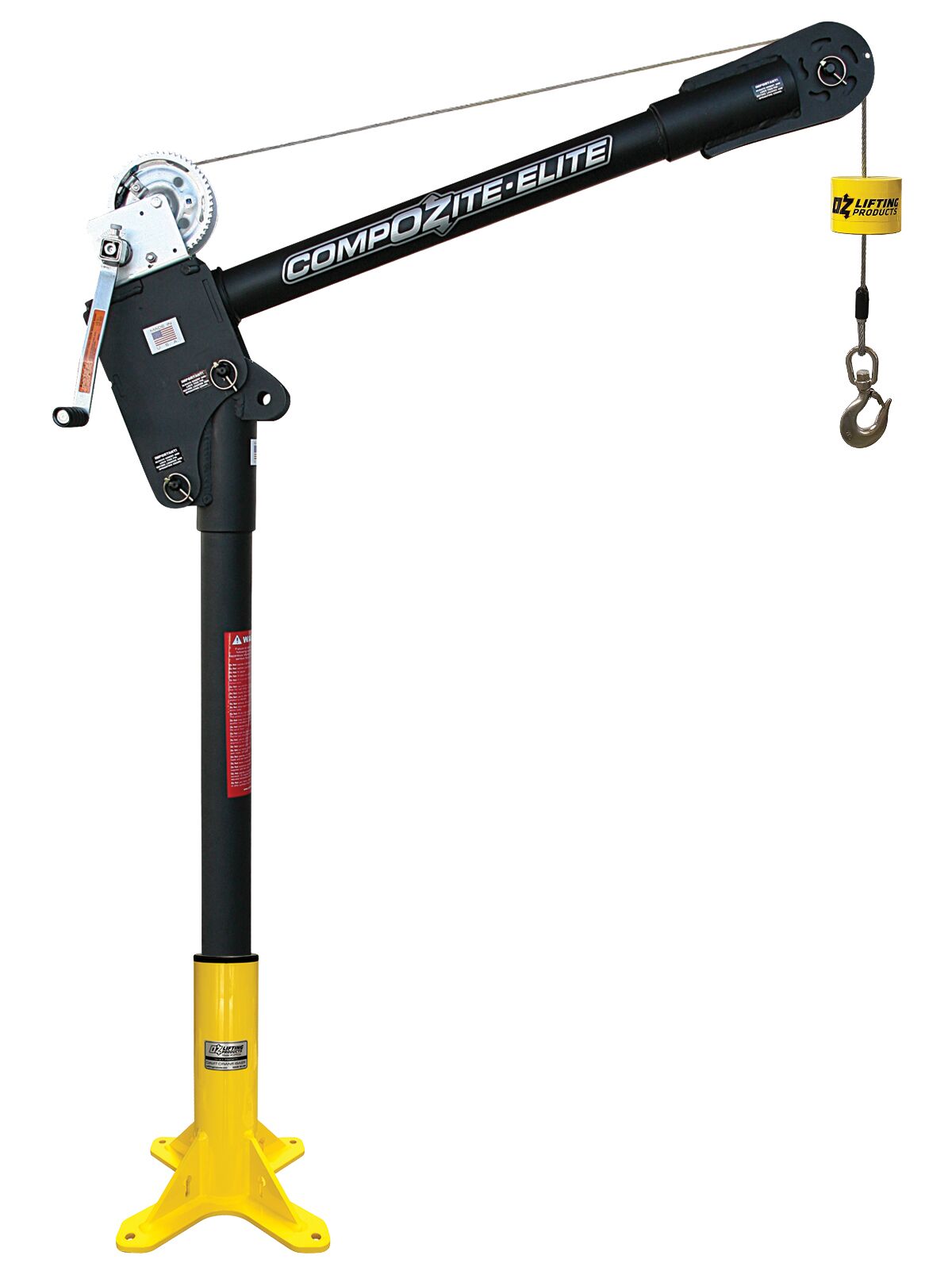

Our CompOZite® Elite® Davit Crane is the ultimate in lightweight lifting power. Engineered with carbon fiber and aluminum, this crane delivers a remarkable 1200 lb capacity while remaining incredibly portable. Its innovative design ensures easy setup, durability, and unmatched safety. Experience the pinnacle of lifting technology.
NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.
Tell us about your needs and we will match you with the ideal lifting solution
| Product Weight | |||
| Boom | Mast | Net | |
| OZCF1200DAV - lb (kg) | 18 (8.18) | 13 (5.91) | 31 (14.09) |
| * Weights excluding winch |
| Load Ratings | |||
| Based on 1/4″ wire rope or 3/16" synthetic rope | |||
| First Layer | Mid Drum | Full Drum | |
| Position 1 (0°) - lb (kg) | 500 (227.27) | 500 (227.27) | 500 (227.27) |
| Position 2 (+22.5°) - lb (kg) | 700 (318.18) | 700 (318.18) | 550 (250) |
| Position 3 (+45°) - lb (kg) | 1200 (545.45) | 875 (397.73) | 550 (250) |
| Crane Reactions/Moments | ||||||
| Model | Mast Moments (in-lb) | Mast Moment (N-m) | Suggested Bolt Size | |||
| OZCF1200DAV | 24,180 | 2,732 | 1/2″ Grade 5 (M12) | |||

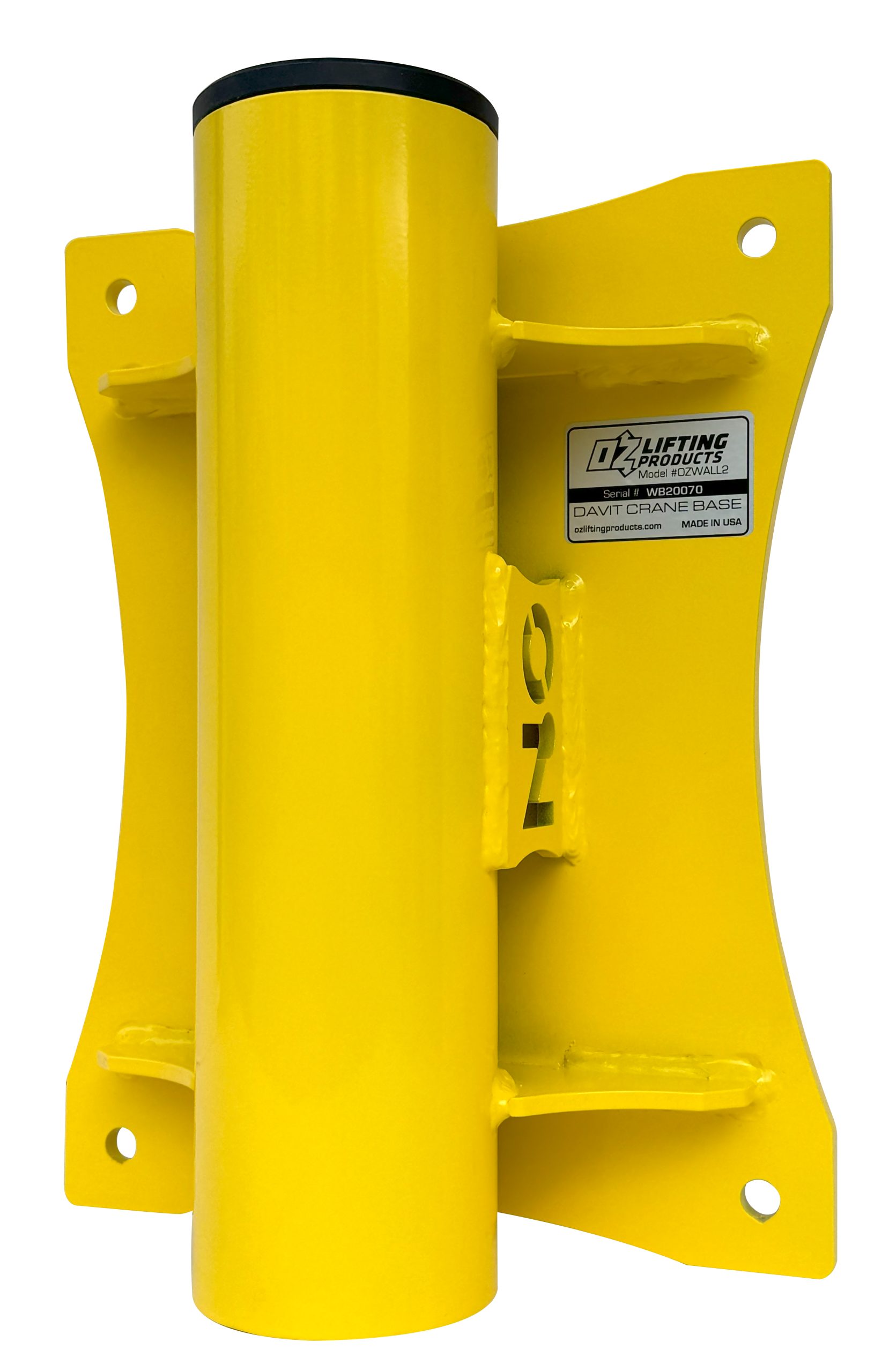

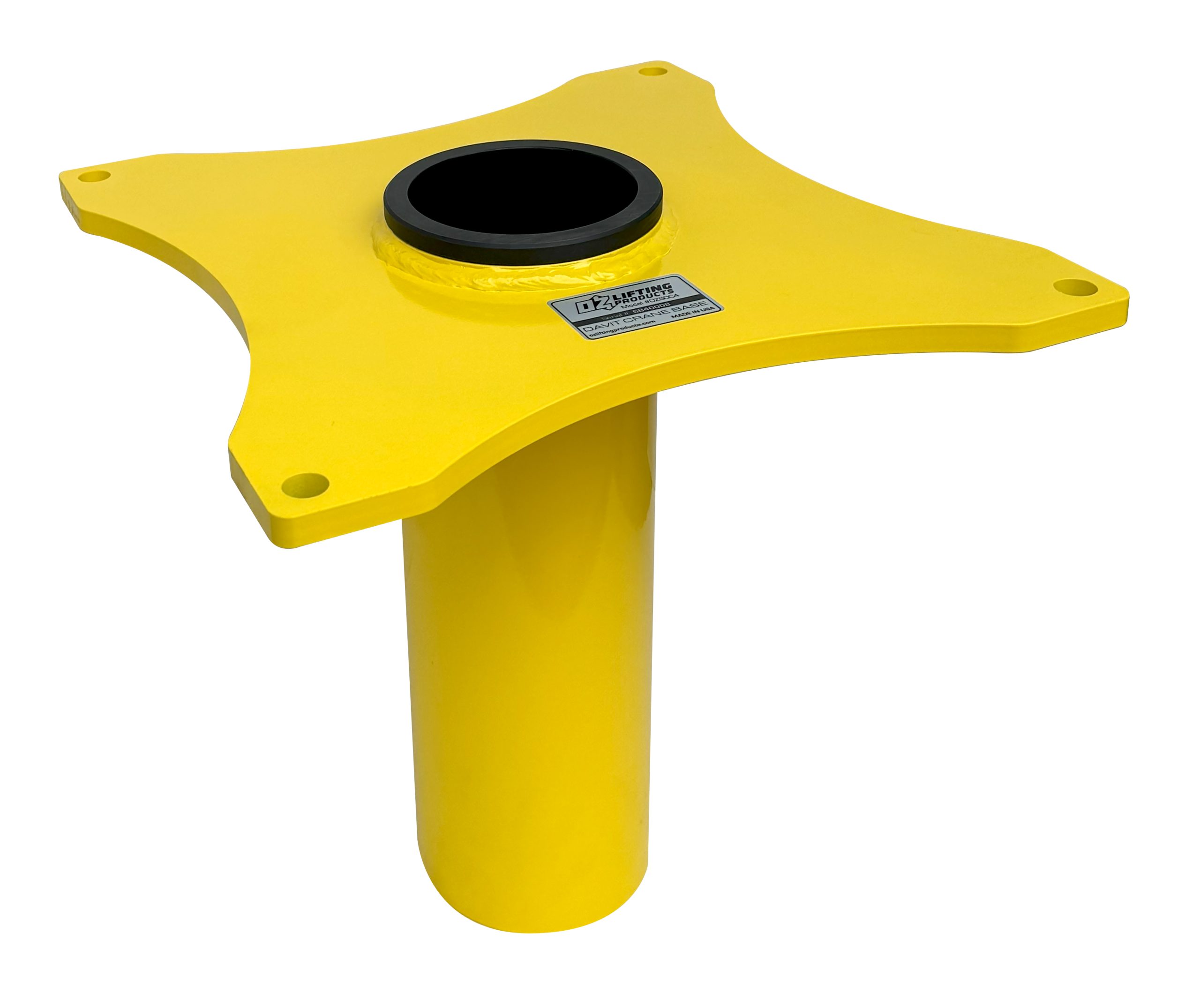

| Floor Mount Base | Wall Mount Base | |||||
| Model | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Axial Force per Bolt - lb (kg) | Axial Force per Bolt (N) | Shear Force per Bolt - lb (kg) | Shear Force per Bolt (N) |
| OZCF1200DAV | 957 (435) | 4,257 | 1048 (476.36) | 4,662 | 736 (334.55) | 3,274 |
Tell us about your needs and we will match you with the ideal lifting solution
IMPORTANT!
Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
