Spark Resistant Beam Trolley

OZSR1PBT

Spark Resistant Beam Trolley

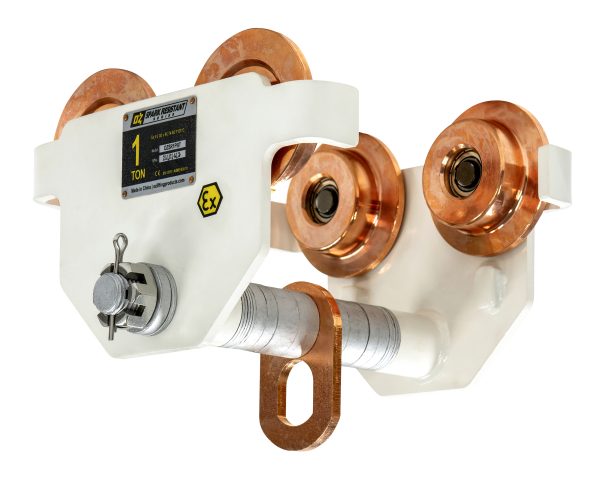

1 T Spark Resistant Push Beam Trolley

Standards – CE, ATEX–94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, ASME B30.11, ASME B30.16

For environments requiring explosion-proof equipment, the Spark Resistant Push Beam Trolley (1T) from OZ Lifting Products provides reliable performance and safety. Meeting the rigorous EU standards ATEX94/9/EC and Machinery Directive 2006/42/EC, this trolley achieves an explosion-proof rating of EX II2 GD c IIIC T135°C. With a 1-ton lifting capacity, it is suitable for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) areas. Its robust design ensures effective operation in potentially explosive atmospheres, making it a trusted choice for industrial applications.

  • Anti-spark coating
  • Copper-plated wheels and bail
  • Copper-riveted ID tags
  • Fits to most I-, S-, and W-Beams
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Individual serial number and test certificate

OZSR1PBT

1 T Spark Resistant Push Beam Trolley

    Photos

    Add-Ons

    System Components

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Capacity - Ton (kg) 1 (907.20)
    Adjustable flange width - in (mm) 2.5-8 (63.50-203.20)
    Max Flange Thickness - in (mm) 1.50 (38.10)
    Dimensional Information - in (mm) A 12.24 (310.90)
    B 9.69 (246.13)
    C 8.74 (222)
    D 4.92 (124.97)
    E 3.74 (95)
    F 2.68 (68.07)
    G 4.02 (102.11)
    H 1.58 (40.13)
    I 0.59 (14.99)
    J 1.18 (29.97)
    K 2.44 (61.98)
    L 0.32 (8.13)
    M 1.19 (30.23)
    Minimum radius curve - ft (m) 3.28 (1)
    Net weight - lb (kg) 23 (10.45)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
