OZ10BCA

USA Beam Clamp

10 T Beam Clamp (Made in USA)

Standards – Meets ASME BTH-1, ASME B30.20 and complies with portions of ASME B30.16 for use with manual and powered hoists.

Oz Product Made in the USA Badge
The USA Beam Clamp (10T) from OZ Lifting Products represents the pinnacle of American manufacturing excellence. This high-capacity clamp features a robust all-steel, fully-welded construction, providing reliable performance for securing beams with manual or powered hoists. With a 10-ton lifting capacity, it is designed for the most demanding lifting tasks. Each unit is individually tested to uphold rigorous safety and quality standards. Proudly made in the USA, the USA Beam Clamp offers unmatched strength and efficiency, making it an ideal choice for heavy-duty industrial applications.

  • Robust all-steel, fully-welded construction
  • Super-quick adjustment to most I-, S-, and W-beams
  • ROHS-compliant zinc-plated finish
  • ID tag with rated load capacity, made from industrial metalized polyester
  • Individual serial number and test certificate
  • Made in USA

OZ10BCA

10 T Beam Clamp (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

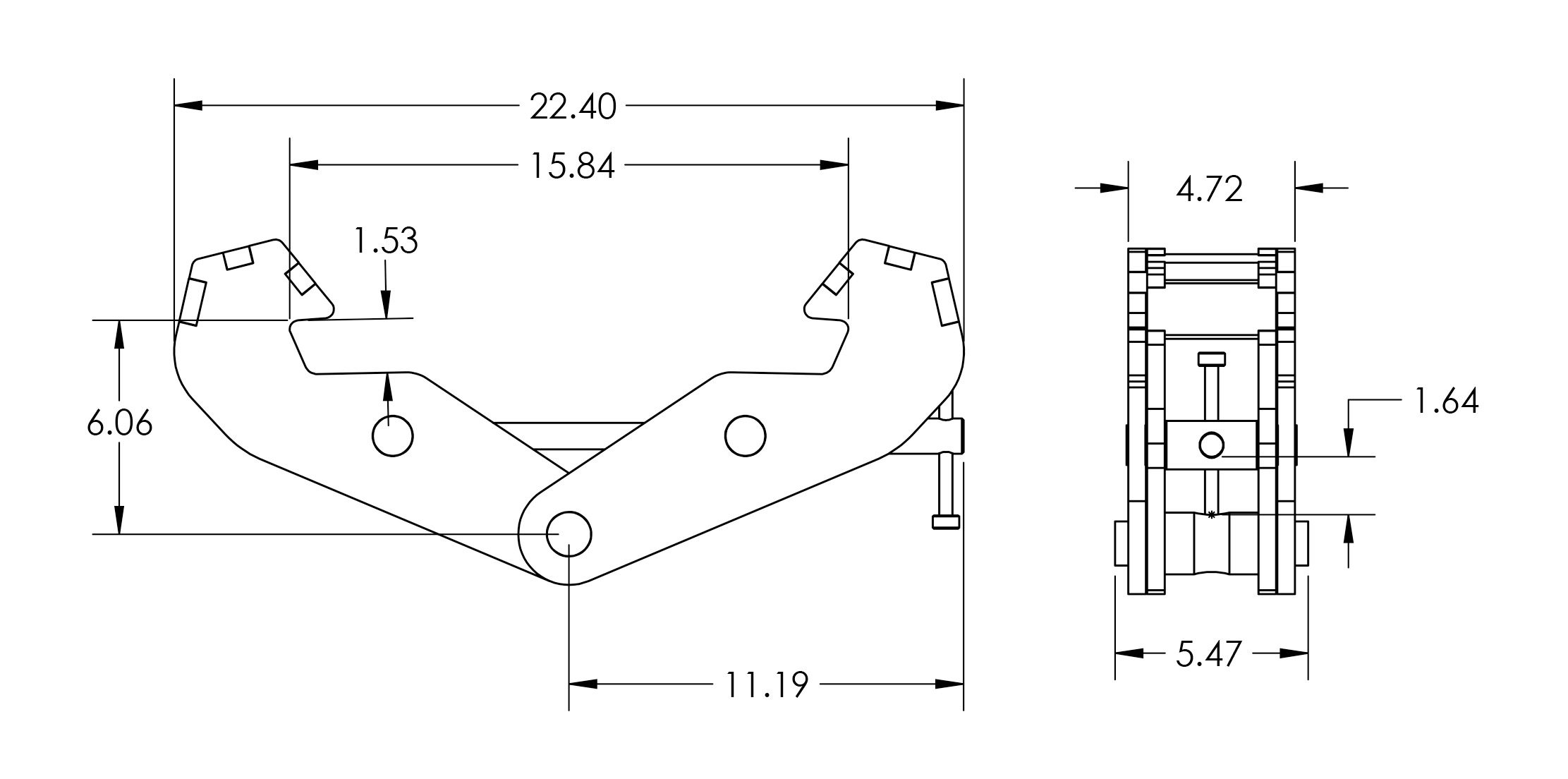

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 10 (9072)
    Dimensional Information - in (mm) A 3.5-13 (88.9-330.2)
    B 22 (558.8)
    C 4.72 (119.89)
    D 1.5 (38.1)
    E 11.5 (292.1)
    F 5.5-9.375 (139.7-238.13)
    G 4 (101.6)
    H 1.625 (41.28)
    Net Weight - lb (kg) 39 (17.73)
    Reduction in Working Load Limits when side loads are applied
    Angle from Vertical 0-15° 15-30° 30-45°
    Reduction Factor none 20% 35% 50%

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
