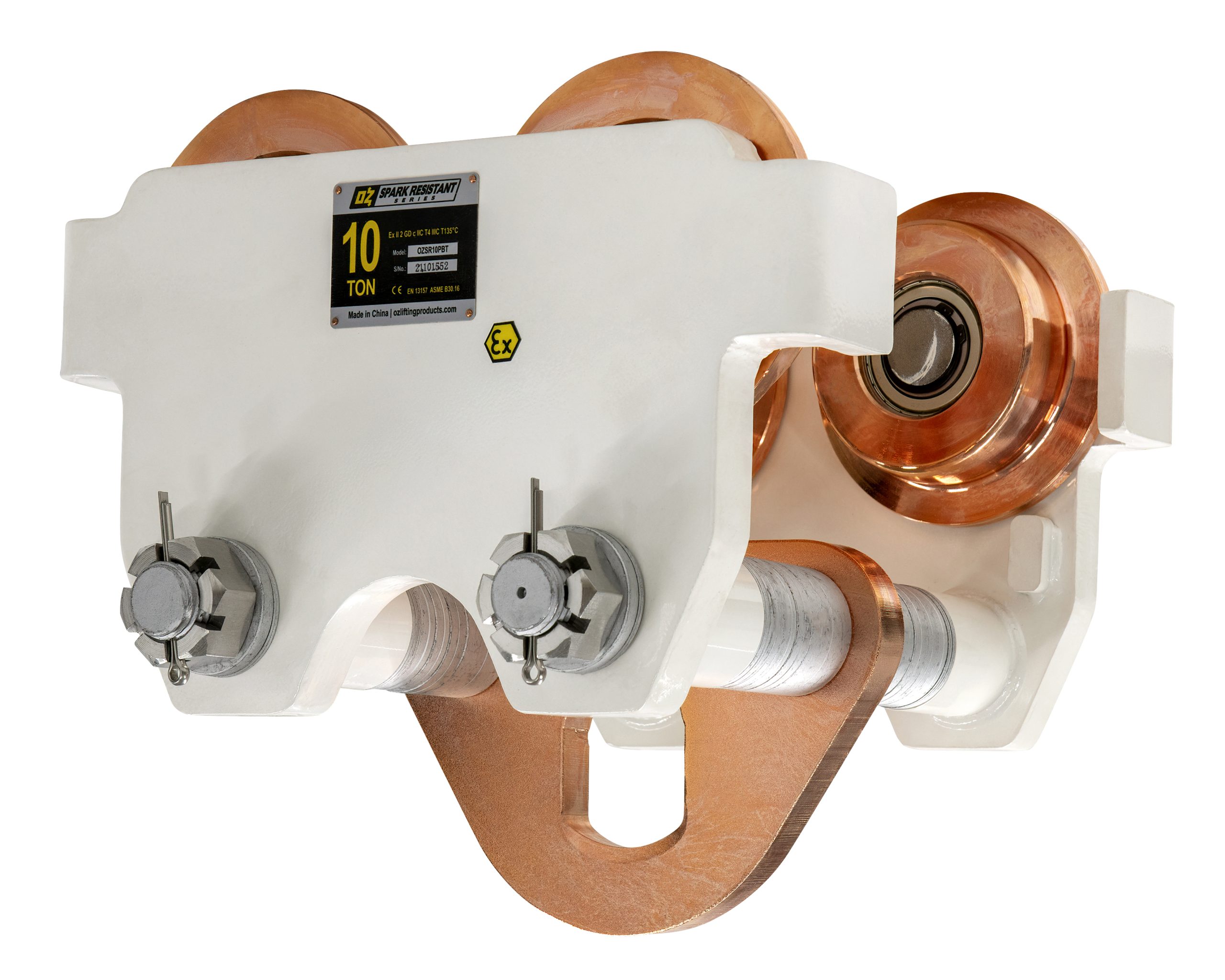

For the most demanding explosive environments, the Spark Resistant Push Beam Trolley (10T) by OZ Lifting Products offers unmatched safety and reliability. It meets rigorous EU standards, including ATEX94/9/EC and Machinery Directive 2006/42/EC, with an explosion-proof rating of EX II2 GD c IIIC T135°C. With a 10-ton capacity, it is designed for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous areas. This high-capacity trolley ensures robust performance and safety for heavy material handling in critical industrial applications.
Tell us about your needs and we will match you with the ideal lifting solution
| Capacity - Ton (kg) | 10 (9072) | |
| Adjustable flange width - in (mm) | 4.88-12 (123.95-304.80) | |
| Max Flange Thickness - in (mm) | 1.77 (44.96) | |
| Dimensional Information - in (mm) | A | 19.29 (489.97) |
| B | 16.69 (423.93) | |
| C | 15.59 (395.99) | |
| D | 7.48 (189.99) | |
| E | 6.93 (176.02) | |
| F | 5.35 (135.89) | |
| G | 7.68 (195.07) | |
| H | 4.72 (119.89) | |
| I | 1.77 (44.96) | |
| J | 2.84 (72.14) | |
| K | 11.42 (290.07) | |
| L | 0.98 (24.89) | |
| M | 1.92 (48.77) | |
| Minimum radius curve - ft (m) | 6.56 (2) | |
| Net weight - lb (kg) | 196 (89.09) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
