Electric Builder's Hoist

OBH1000

Electric Builder's Hoist

1000 lb Electric Builder’s Hoist with 90 ft of lift

Standards – CE, FCC

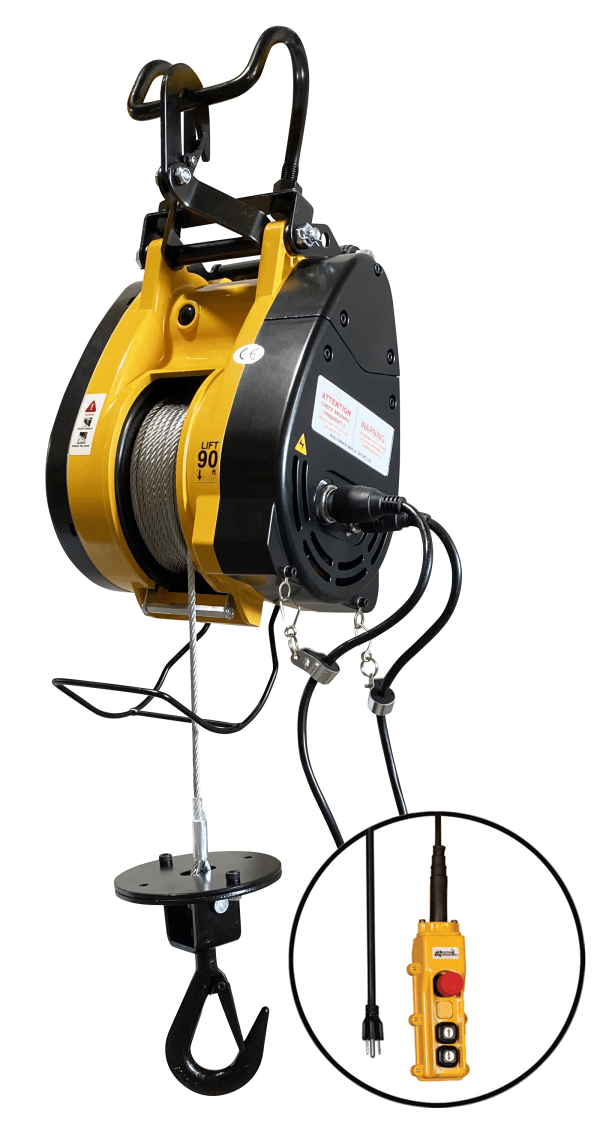

For heavy-duty lifting, the Electric Builder’s Hoist from OZ Lifting Products stands out with its impressive 1000 lb capacity. This powerful hoist is controlled via a wired pendant, providing precise and reliable lifting performance. Its 2 1/2 hp motor and 360-degree swivel hook ensure efficient and versatile operation, while the compact design and dynamic braking system contribute to safe and stable handling. The OBH1000 is equipped with essential safety features, including upper and lower limit switches, making it ideal for challenging industrial environments. It operates on a standard 115V power source and meets CE and FCC standards for safety and quality.

  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding
  • Galvanized wire rope with 360-degree weighted swivel hook includes safety latch
  • Quick-release pendant and power cords
  • Standard 115V power source-compatible
  • Individual serial number and test certificate
  • Choose between a standard corded pendant (OBH) for easy operation or a wireless remote (OBHW) for added versatility and freedom of movement

OBH1000

1000 lb Electric Builder’s Hoist with 90 ft of lift

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Full Drum Lifting Capacity –  lb (kg) 1000 (454.55)
    Motor Voltage 115/1/60
    Speed - FPM (mpm) 37 (11.28)
    Motor (HP) 2.41
    Motor KW 1800W/17.5A
    Lifting Height - ft (m) 90 (27.43)
    Wire Rope - in (mm) 1/4 (25.4/101.6)
    Net Weight - lb (kg) 73 (33.18)
    Power Cord Length - ft (m) 15 (4.57)
    Pendant length - ft (m) 65 (19.81)
    Full Load (amps) 15.5
    Duty Cycle (min) 15 (25%)
    Wireless NO
    Height (A) - in (mm) 28.50 (723.90)
    Width (B) - in (mm) 10.50 (266.70)
    Depth (C) - in (mm) 12 (304.80)
    Hanger Width (D) - in (mm) 5.50 (139.70)
    Hanger Opening (E) - in (mm) 2 (50.80)
    Hook Opening (F) - in (mm) 1.50 (38.10)
    ASME Duty Classes Service Classification Description
    H1 Infrequent or Standby Idle 1-6 months, use for installations and/or maintenance
    H2 Light Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time
    H3 Standard General machining, randomly distributed loads, total running time ≤25% of working period
    H4 Heavy High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period
    H5 Severe Bulk material handling with attachments, approach continuous operation

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
