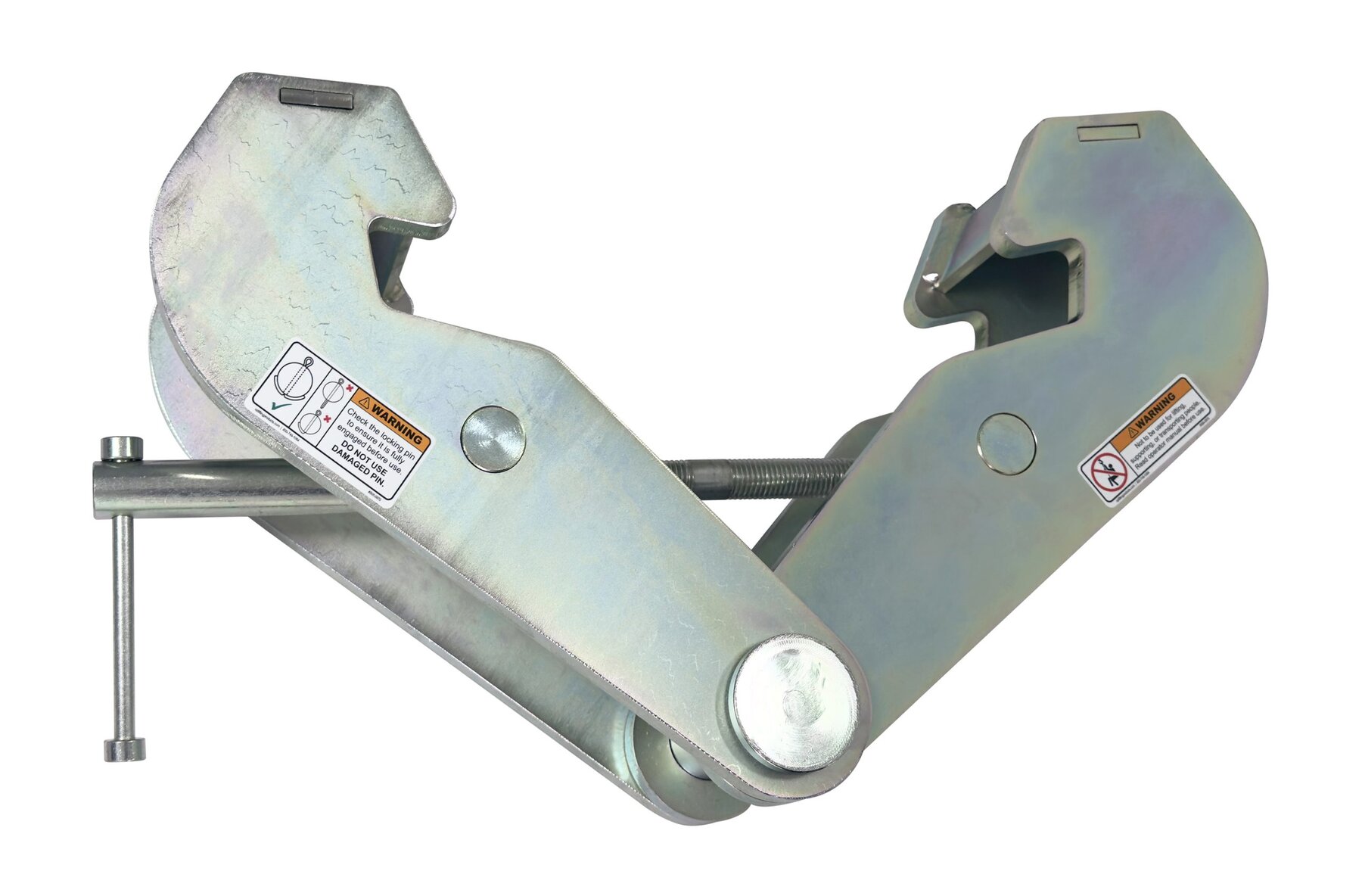

The USA Beam Clamp (12T) from OZ Lifting Products represents the pinnacle of American manufacturing excellence. This high-capacity clamp features a robust all-steel construction, providing reliable performance for securing beams with manual or powered hoists. With a 12-ton lifting capacity, it is designed for the most demanding lifting tasks. Each unit is individually tested to uphold rigorous safety and quality standards. Proudly made domestically, the USA Beam Clamp offers unmatched strength and efficiency, making it an ideal choice for heavy-duty industrial applications.
| Capacity - Ton (kg) | 12.00 (10886.00) | |

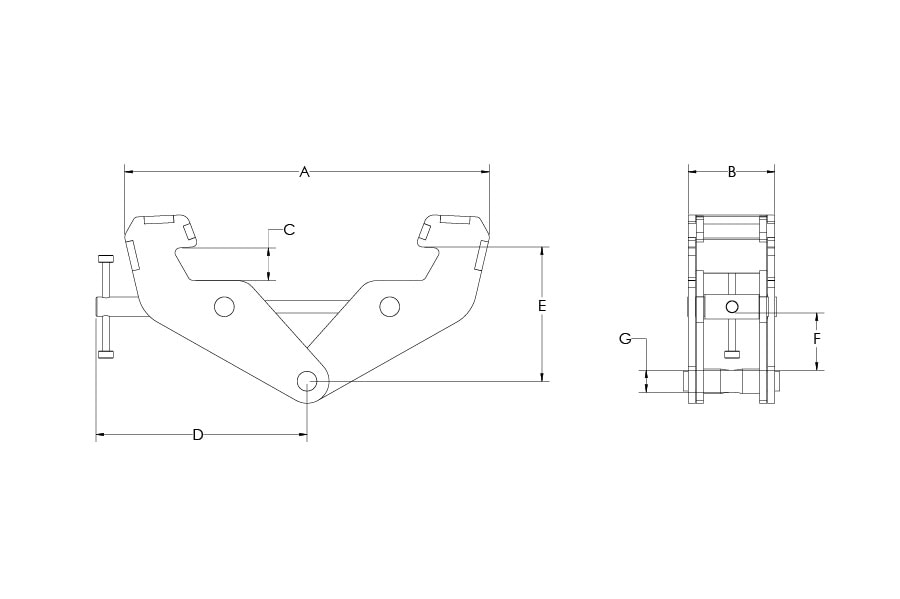

| Dimensional Information - in (mm) | A | 3.5-13 (88.9-330.2) |
| B | 20.99 (533.15) | |
| C | 4.72 (119.89) | |
| D | 1.46 (37.08) | |
| E | 11.44 (290.58) | |
| F | 8.40-9.35 (213.36-237.49) | |
| G | 3.61 (91.69) | |
| H | 1.44 (36.58) | |
| Net Weight - lb (kg) | 43.17 (19.58) |
| Reduction in Working Load Limits when side loads are applied | ||||
| Angle from Vertical | 0° | 0-15° | 15-30° | 30-45° |
| Reduction Factor | none | 20% | 35% | 50% |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
