USA Beam Clamp

OZ2BCA

USA Beam Clamp

2 T Beam Clamp (Made in USA)

Standards – Meets ASME BTH-1, ASME B30.20 and complies with portions of ASME B30.16 for use with manual and powered hoists.

Oz Product Made in the USA Badge
Experience the durability of American engineering with the USA Beam Clamp (2T) by OZ Lifting Products. This clamp features a heavy-duty all-steel, fully-welded design, ensuring reliable performance with manual or powered hoists. With a 2-ton capacity, it provides secure attachment to most I-beams and is suited for medium-duty lifting tasks. Each unit is individually tested to meet stringent quality standards. Made in the USA, this beam clamp offers both exceptional strength and quick attachment, ideal for industrial and construction environments.

  • Robust all-steel, fully-welded construction
  • Super-quick adjustment to most I-, S-, and W-beams
  • ROHS-compliant zinc-plated finish
  • ID tag with rated load capacity, made from industrial metalized polyester
  • Individual serial number and test certificate
  • Made in USA

OZ2BCA

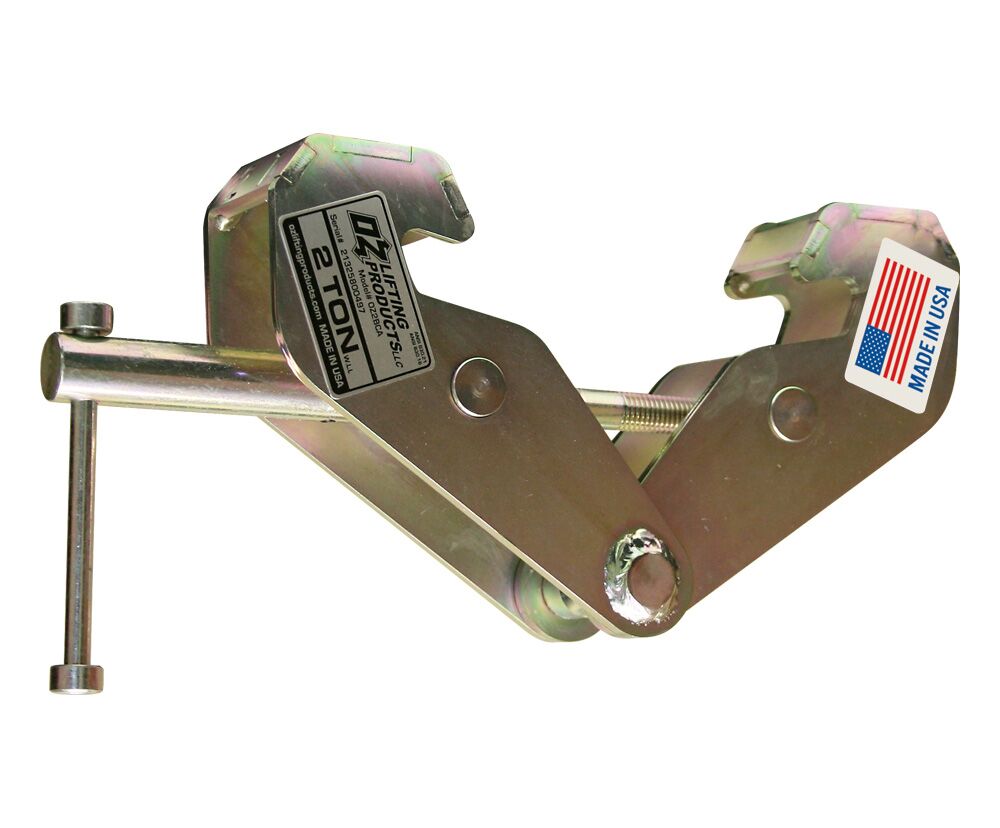

2 T Beam Clamp (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

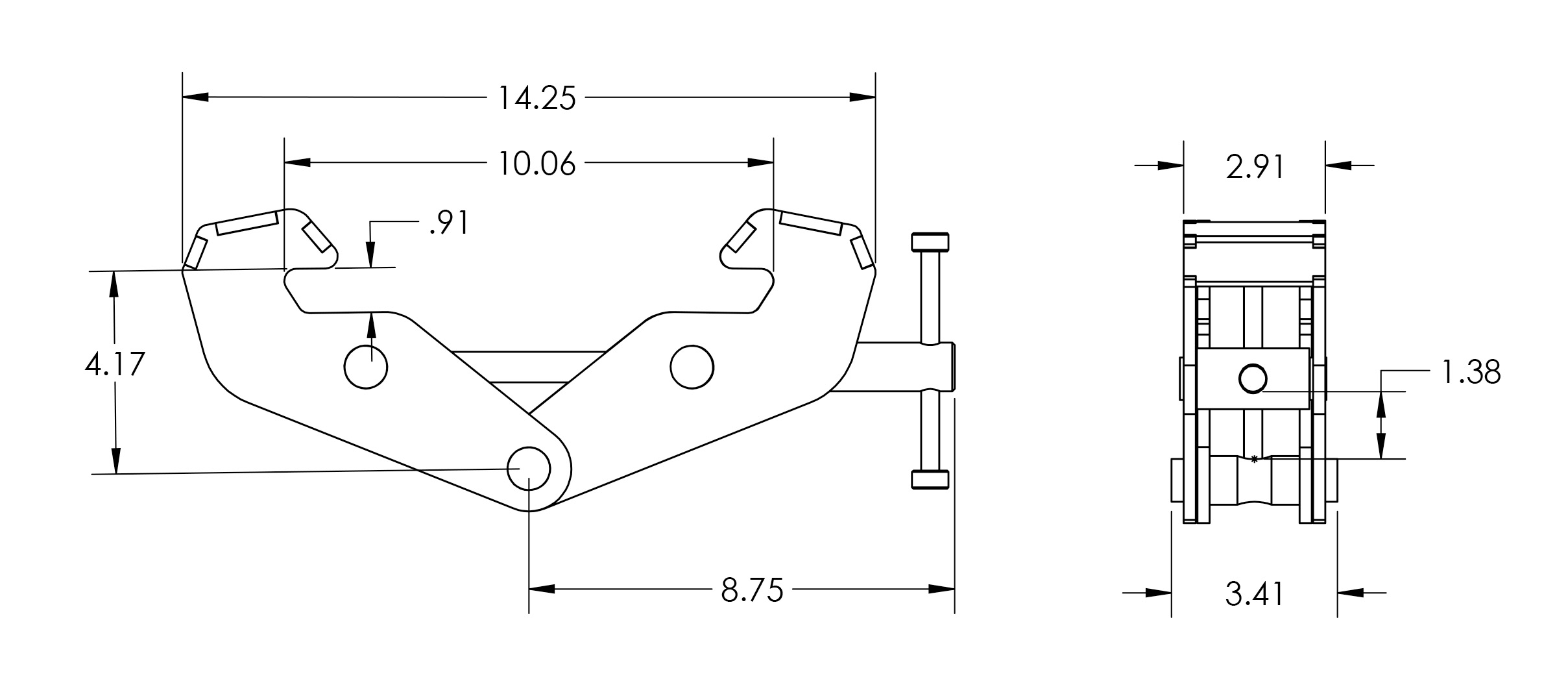

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 2 (1814.40)
    Dimensional Information - in (mm) A 3-9 (76.2-228.6)
    B 14.75 (374.65)
    C 2.91 (73.91)
    D 0.9 (22.86)
    E 9.5 (241.3)
    F 4.75-5.75 (120.65-146.05)
    G 1.75 (44.45)
    H 0.75 (19.05)
    Net Weight - lb (kg) 9 (4.09)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
