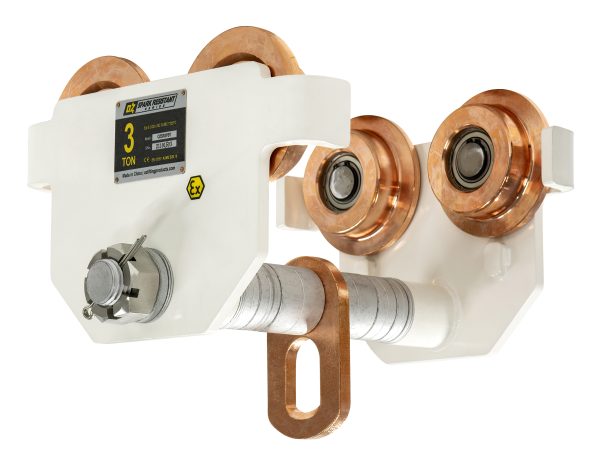

Ensure safety in explosive environments with the Spark Resistant Push Beam Trolley (3T) from OZ Lifting Products. This trolley meets stringent EU standards, including ATEX94/9/EC and Machinery Directive 2006/42/EC, with an explosion-proof rating of EX II2 GD c IIIC T135°C. With a 3-ton capacity, it is perfect for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) areas. Engineered for optimal performance in hazardous settings, it provides reliable material handling with enhanced safety features.
Tell us about your needs and we will match you with the ideal lifting solution
| Capacity - Ton (kg) | 3 (2721.60) | |
| Adjustable flange width - in (mm) | 3.94-12 (100.08-304.80) | |
| Max Flange Thickness - in (mm) | 1.57 (39.88) | |
| Dimensional Information - in (mm) | A | 17.52 (445.01) |
| B | 13.07 (331.98) | |
| C | 12.17 (309.12) | |
| D | 6.73 (170.94) | |
| E | 5.12 (130.05) | |
| F | 3.94 (100.08) | |
| G | 6.02 (152.91) | |
| H | 2.48 (62.99) | |
| I | 0.87 (22.10) | |
| J | 1.58 (40.13) | |
| K | 3.35 (85.09) | |
| L | 0.55 (13.97) | |
| M | 1.68 (42.67) | |
| Minimum radius curve - ft (m) | 4.26 (1.30) | |
| Net weight - lb (kg) | 64 (29.09) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
