Spark Resistant Beam Trolley

OZSR5PBT

Spark Resistant Beam Trolley

5 T Spark Resistant Push Beam Trolley

Standards – CE, ATEX–94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, ASME B30.11, ASME B30.16

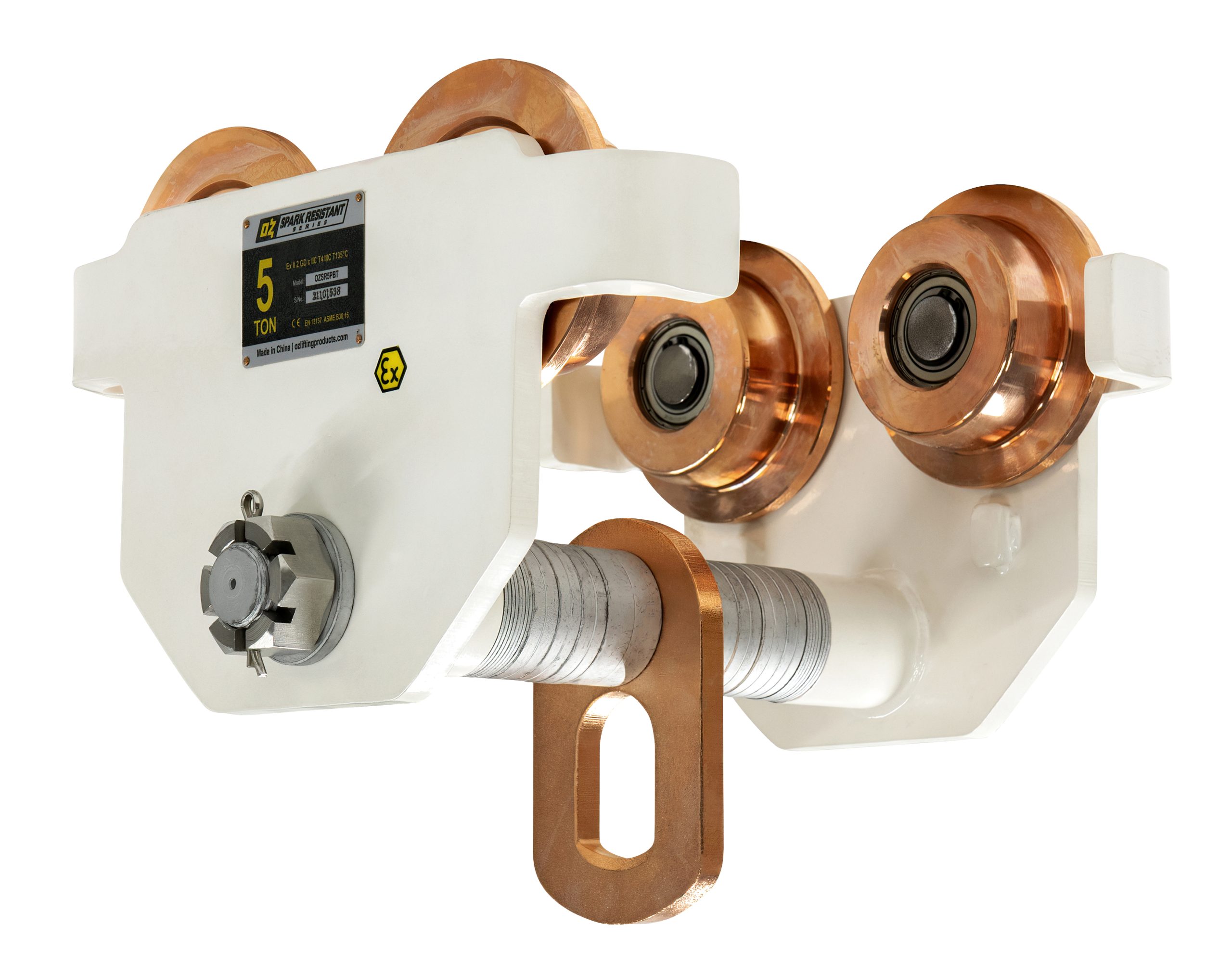

The Spark Resistant Push Beam Trolley (5T) is designed for heavy-duty applications in explosive environments. Complying with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC, this trolley achieves an explosion-proof rating of EX II2 GD c IIIC T135°C. With a robust 5-ton capacity, it is suited for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous zones. Its durable construction ensures safe and efficient material handling in high-risk industrial areas.

  • Anti-spark coating
  • Copper-plated wheels and bail
  • Copper-riveted ID tags
  • Fits to most I-, S-, and W-Beams
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Individual serial number and test certificate

OZSR5PBT

5 T Spark Resistant Push Beam Trolley

    Photos

    Add-Ons

    System Components

    Drawings

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Capacity - Ton (kg) 5 (4536)
    Adjustable flange width - in (mm) 4.50-12 (114.30-304.80)
    Max Flange Thickness - in (mm) 1.65 (41.91)
    Dimensional Information - in (mm) A 17.99 (456.95)
    B 14.84 (376.94)
    C 13.9 (353.06)
    D 7.70 (195.58)
    E 5.63 (143.00)
    F 4.33 (109.98)
    G 7.24 (183.90)
    H 2.95 (74.93)
    I 1.18 (29.97)
    J 1.97 (50.04)
    K 4.25 (107.95)
    L 0.63 (16.00)
    M 1.90 (48.26)
    Minimum radius curve - ft (m) 4.59 (1.40)
    Net weight - lb (kg) 95 (43.18)
