Spark Resistant Beam Trolley

OZSR05PBT

Spark Resistant Beam Trolley

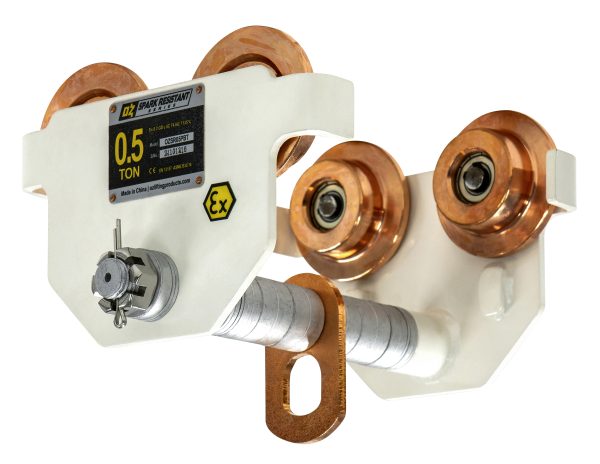

.5 T Spark Resistant Push Beam Trolley

Standards – CE, ATEX–94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, ASME B30.11, ASME B30.16

The Spark Resistant Push Beam Trolley (0.5T) by OZ Lifting Products is designed to operate safely in potentially explosive environments. Adhering to the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC, this trolley offers an explosion-proof level reaching EX II2 GD c IIIC T135°C. With a 0.5-ton capacity, it is ideal for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous areas. Engineered for reliability and safety, this trolley ensures smooth and secure material handling in critical industrial settings.

  • Anti-spark coating
  • Copper-plated wheels and bail
  • Copper-riveted ID tags
  • Fits to most I-, S-, and W-Beams
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Individual serial number and test certificate

OZSR05PBT

.5 T Spark Resistant Push Beam Trolley

    Photos

    Add-Ons

    System Components

    Drawings

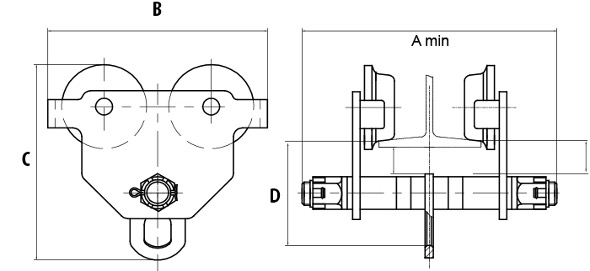

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Capacity - Ton (kg) 0.50 (453.60)
    Adjustable flange width - in (mm) 1.97-8 (50.04-203.20)
    Max Flange Thickness - in (mm) 1.18 (29.97)
    Dimensional Information - in (mm) A 11.61 (294.89)
    B 7.83 (198.88)
    C 7.36 (186.94)
    D 4.13 (104.90)
    E 3.11 (78.99)
    F 2.17 (55.12)
    G 3.50 (88.90)
    H 1.26 (32.00)
    I 0.57 (14.48)
    J 0.98 (24.89)
    K 1.97 (50.04)
    L 0.24 (6.10)
    M 0.95 (24.13)
    Minimum radius curve - ft (m) 2.62 (0.80)
    Net weight - lb (kg) 16 (7.27)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
