USA Beam Clamp

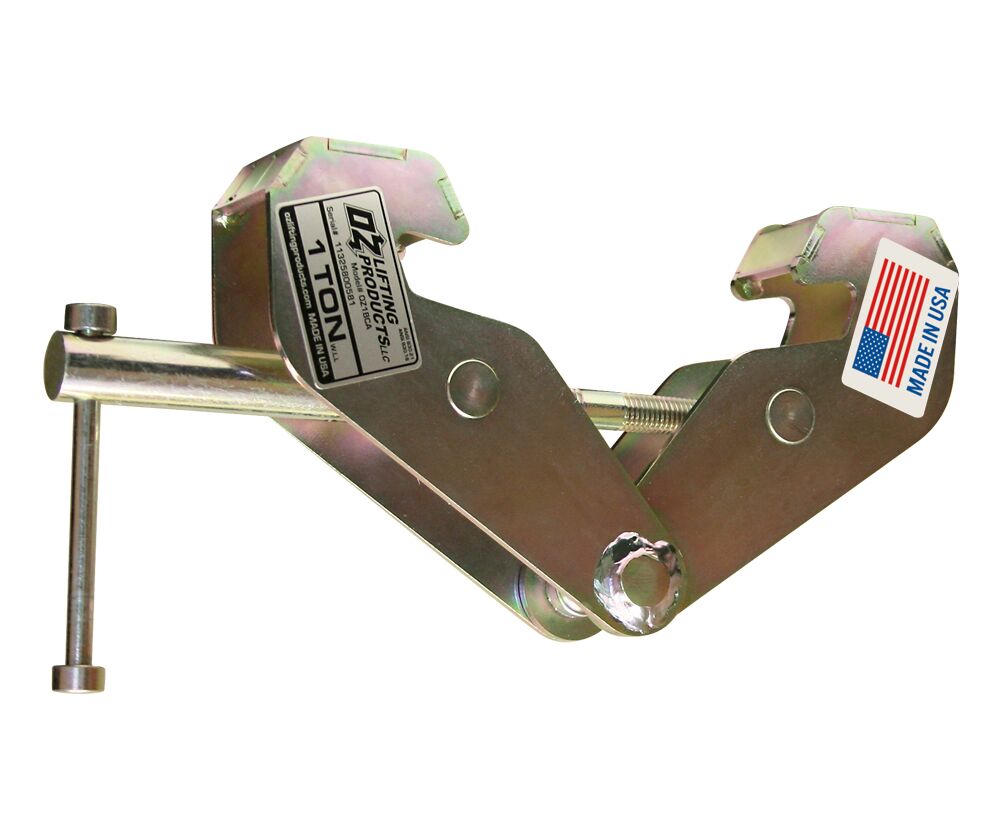

1 T Beam Clamp (Made in USA)

Standards – Meets ASME BTH-1, ASME B30.20 and complies with portions of ASME B30.16 for use with manual and powered hoists.

Oz Product Made in the USA Badge
The USA Beam Clamp (1T) from OZ Lifting Products exemplifies American craftsmanship with its all-steel, fully-welded construction. Designed for use with both manual and powered hoists, this clamp offers quick and secure attachment to most I-beams. Its 1-ton lifting capacity makes it ideal for lighter lifting tasks. Each clamp is individually tested to ensure high standards of safety and reliability. Proudly made in the USA, the USA Beam Clamp combines robust construction with superior performance, making it a trusted choice for various industrial applications.

  • Robust all-steel, fully-welded construction
  • Super-quick adjustment to most I-, S-, and W-beams
  • ROHS-compliant zinc-plated finish
  • ID tag with rated load capacity, made from industrial metalized polyester
  • Individual serial number and test certificate
  • Made in USA

OZ1BCA

1 T Beam Clamp (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

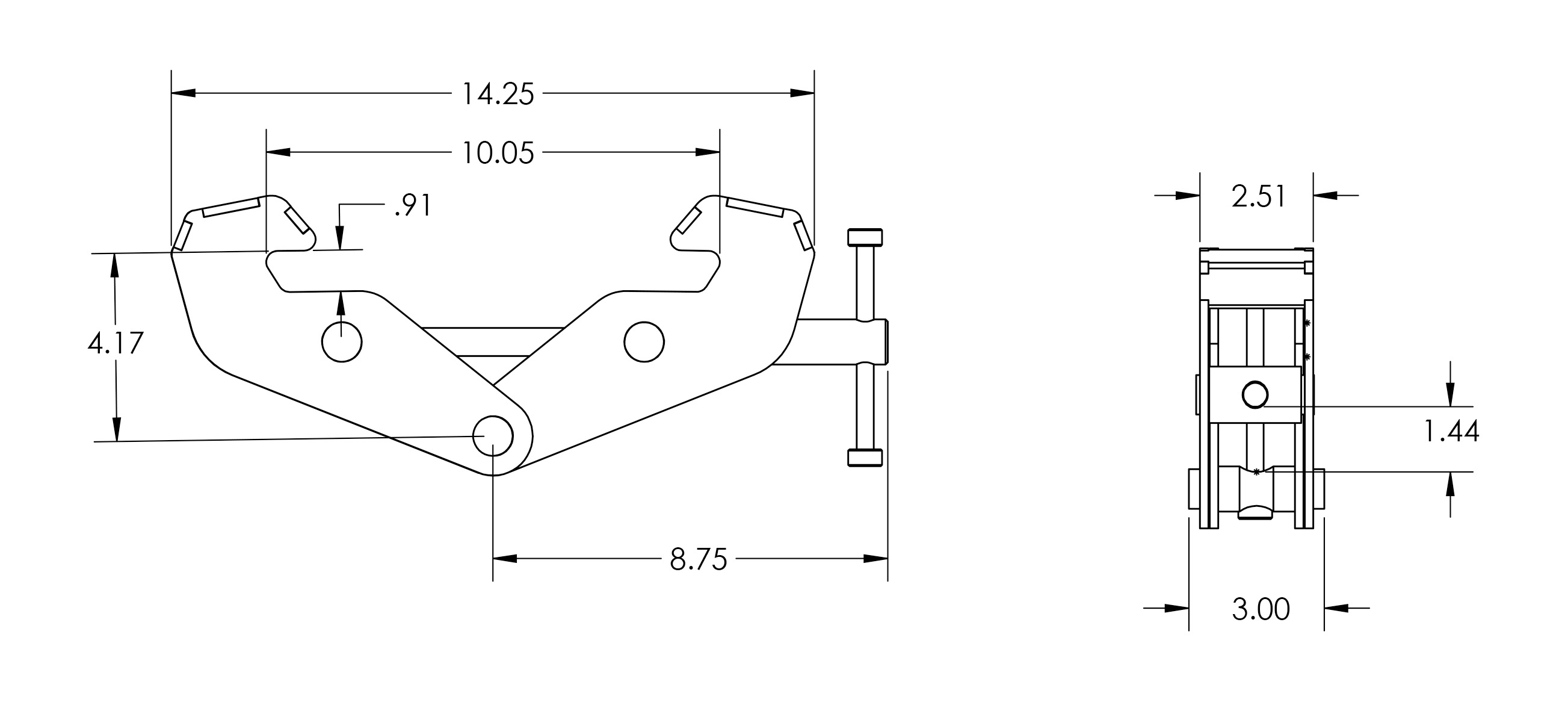

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 1 (907.20)
    Dimensional Information - in (mm) A 3-9 (76.2-228.6)
    B 14.75 (374.65)
    C 2.51 (63.754)
    D 0.9 (22.86)
    E 9.5 (241.3)
    F 4.75-5.75 (120.65-146.05)
    G 1.75 (44.45)
    H 0.75 (19.05)
    Net Weight - lb (kg) 9 (4.09)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
