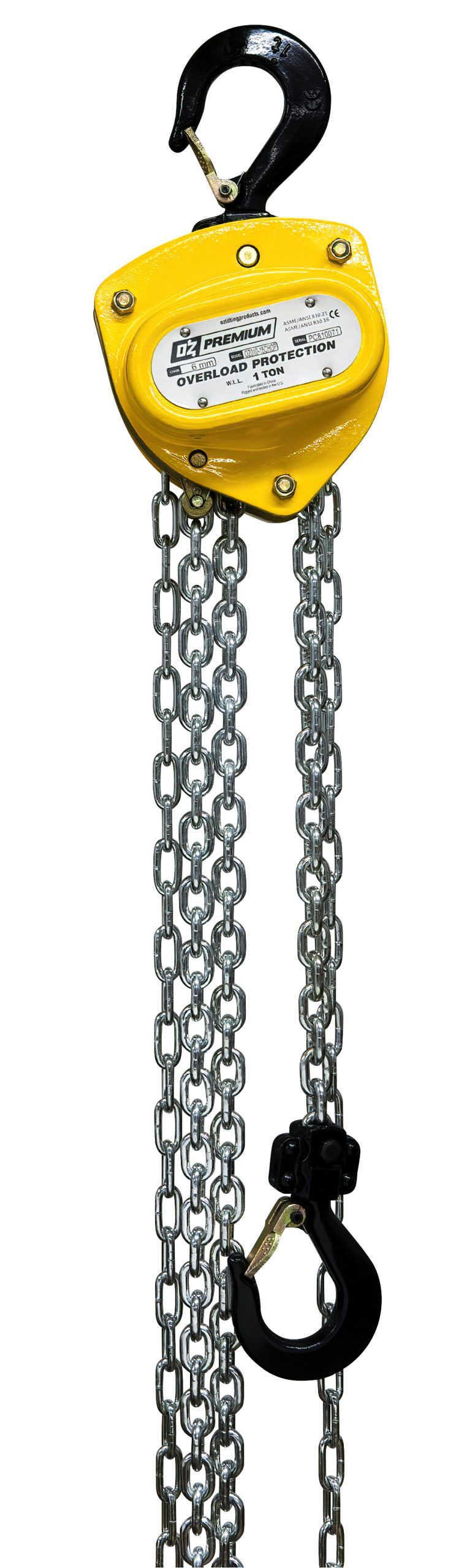

For lifting and pulling tasks, the Premium Chain Hoist with a 1 T capacity provides top-tier safety with Standard Overload Protection set to approximately 150% of the rated load. This hoist incorporates double reduction gearing, making the operation minimal effort. The hand-wheel design facilitates smooth chain movement from any angle, and its all-steel construction ensures robust, long-lasting performance.
Tell us about your needs and we will match you with the ideal lifting solution
| Capacity - Ton (kg) | 1 (907.20) | |
| Effort to Lift S.W.L - lb (kg) | 55 (25) | |
| Falls of Chain | 1 | |
| Load Chain Diameter - in (mm) | 0.24x0.71 (6x18) | |
| Dimensional Information - in (mm) | A | 14.80 (375.92) |
| B | 6.77 (171.96) | |
| C | 5.94 (150.88) | |
| Hook-opening, Upper & Lower - in (mm) | D | 1.26 (32) |
| Net Weight of Head Only - lb (kg) | 24 (10.91) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
