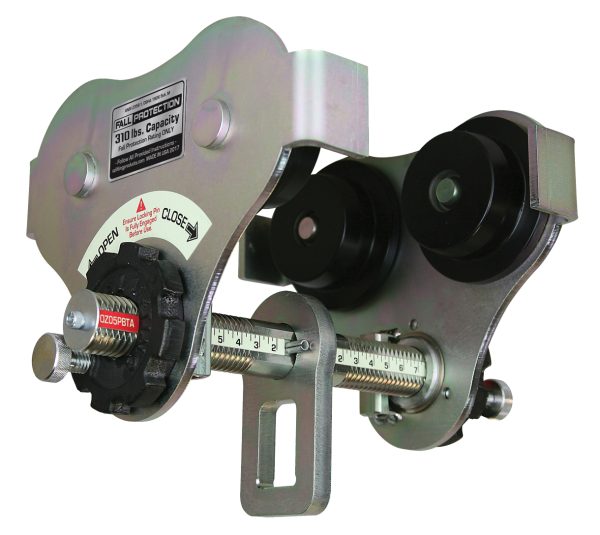

Ensure top-tier safety with the Fall Protection Push Beam Trolley (0.5T with 12-inch flange) from OZ Lifting Products. This man-rated trolley adheres to OSHA 1926.502 and OSHA 1910.140 standards, supporting loads up to 310 lbs. It features rapid, tool-free adjustments and is enhanced with glow-in-the-dark decals and anti-drop plates. The trolley is equipped with premium Timken sealed bearings for reliable performance on most I-, S-, and W-beams. Proudly made in the USA, it offers a blend of durability and advanced fall protection features.
Tell us about your needs and we will match you with the ideal lifting solution
| Capacity - Ton (kg) | 0.50 (453.60) | |
| Fall Protection - lb (kg) | 310 (140.91) | |
| Adjustable flange width - in (mm) | 2.52-12 (64.01-304.80) | |
| Max Flange Thickness - in (mm) | 1.12 (28.45) | |
| Dimensional Information - in (mm) | A | 15.50 (393.70) |
| B | 8.30 (210.82) | |
| C | 8.50 (215.90) | |
| D | 5 (127) | |
| E | 3.25 (82.55) | |
| F | 2.38 (60.45) | |
| G | 3.94 (100.08) | |
| H | 1.50 (38.10) | |
| I | 0.59 (14.99) | |
| J | 0.95 (24.13) | |
| K | 1.97 (50.04) | |
| L | 0.40 (10.16) | |
| M | 1.26 (32.00) | |
| Minimum radius curve - ft (m) | 2.75 (0.84) | |
| Net weight - lb (kg) | 19 (8.64) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
WARNING: CANCER AND REPRODUCTIVE HARM
Some products may contain chemicals known to the state of California to cause cancer, or birth defect or reproductive harm. www.P65Warning.ca.gov
