Fall Protection Beam Clamp

OZ3BCA-MR

Fall Protection Beam Clamp

3 T Beam Clamp Fall Protection (Made in USA)

Standards: OSHA 1926 Subpart M, OSHA 1910.140, ANSI Z359.1 and ANSI A10.32-2012

Oz Product Made in the USA Badge
The Fall Protection Beam Clamp (3T) from OZ Lifting Products offers advanced safety and reliability for fall protection scenarios. This man-rated clamp meets OSHA 1926.502, OSHA 1910.140, ANSI Z359.1, and ANSI A10.32-2012 standards, ensuring exceptional fall protection. With a robust all-steel, fully-welded construction, it provides secure adjustment to most I-, S-, and W-beams. The durable RoHS-compliant zinc-plated finish and permanent load rating engraving enhance its durability and performance. Manufactured in the USA, this clamp combines strength with compliance for the highest level of safety.

  • Robust all-steel, fully-welded construction
  • Super-quick adjustment to most I-, S-, and W-beams
  • RoHS-compliant zinc-plated finish
  • ID tag with rated load capacity, made from industrial metalized polyester
  • Individual serial number and test certificate
  • Made in USA

OZ3BCA-MR

3 T Beam Clamp Fall Protection (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

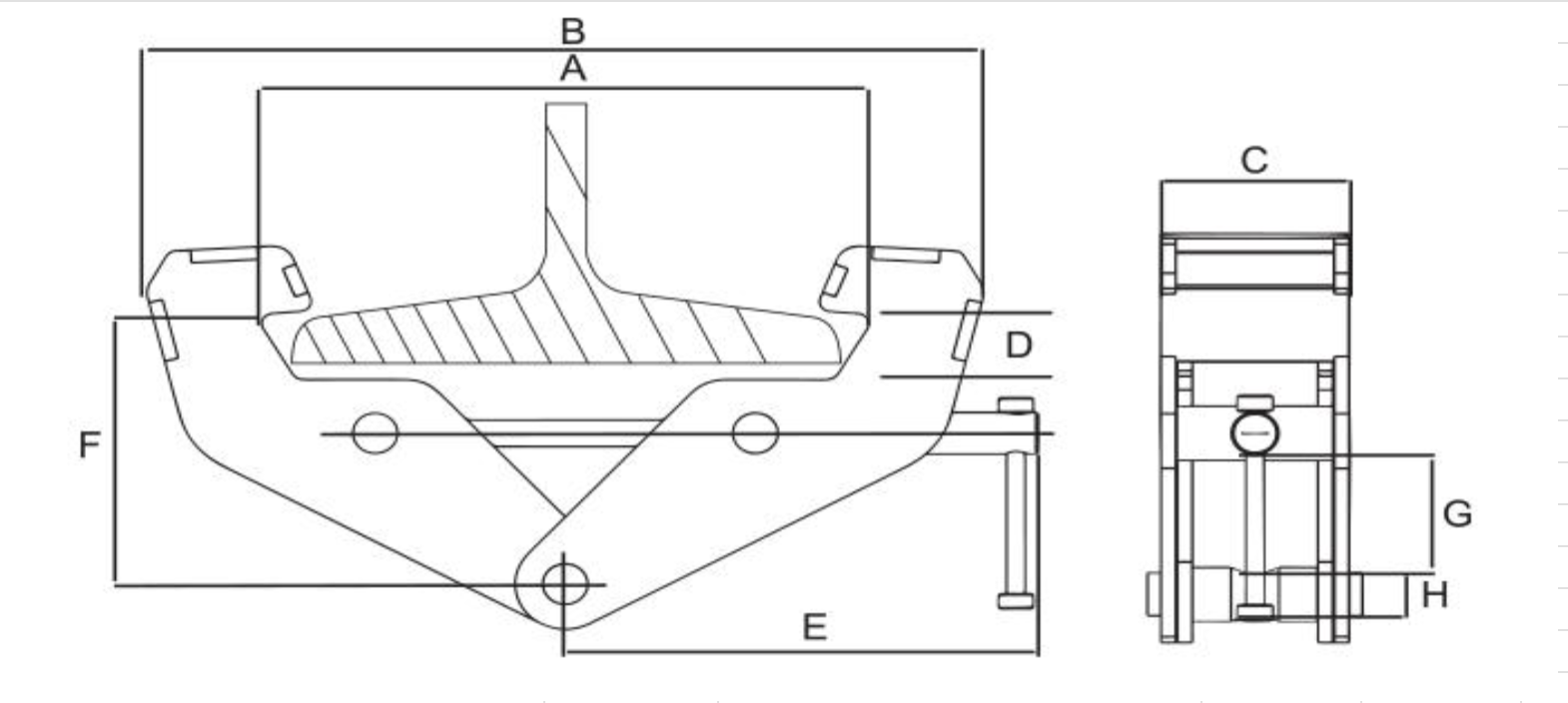

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Tons (kg) 3 (2721.60)
    Fall Protection - lb (kg) 310 (140.91)
    Dimensional Information - in (mm) A 3.50-13 (88.90-330.20)
    B 20.50 (520.70)
    C 3.94 (100.08)
    D 1.5 (38.10)
    E 11 (279.40)
    F 7.50-9 (190.50-228.60)
    G 2.50 (63.50)
    H 0.975 (24.77)
    Net Weight - lb (kg) 22 (10)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
