CompOZite Elite® Davit Crane

OZCF1200DAV-HND2

CompOZite Elite® Davit Crane

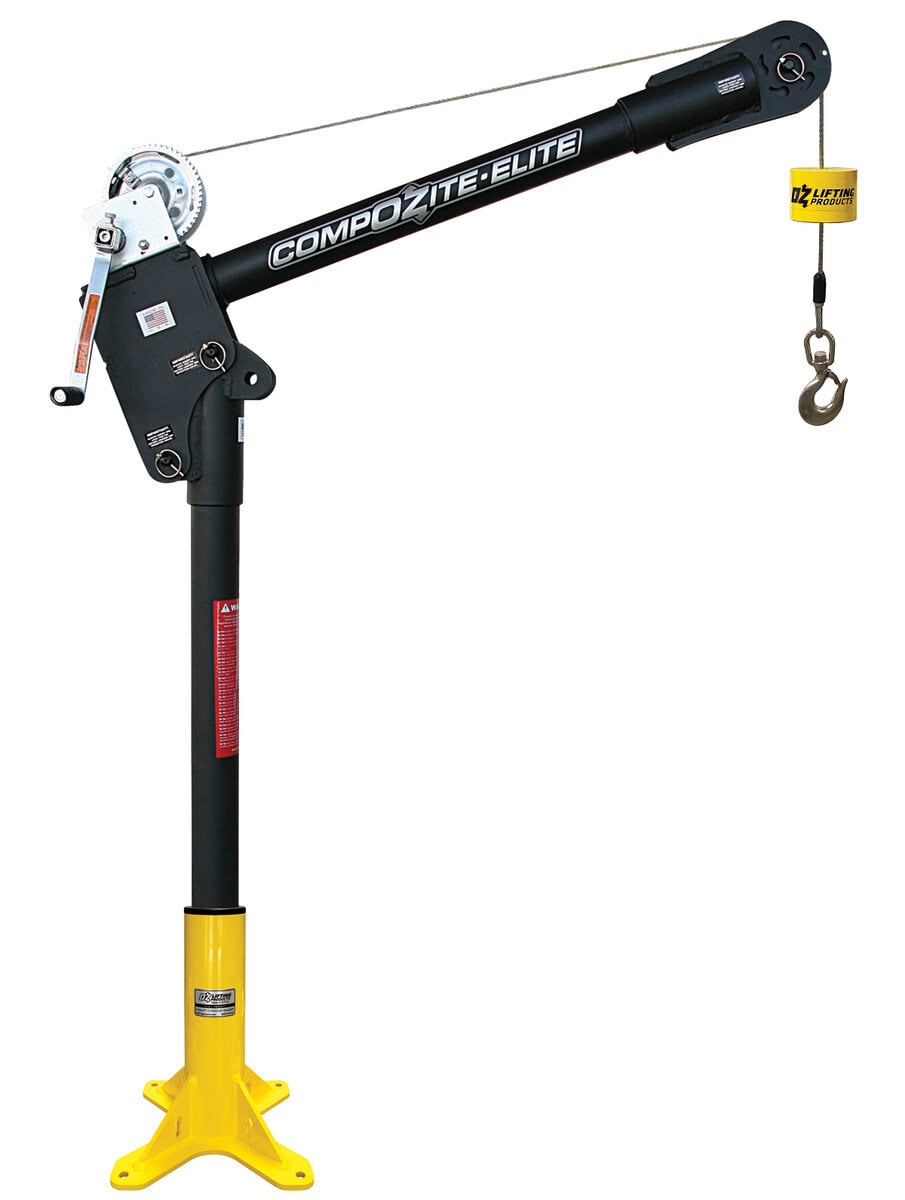

1200 lb carbon fiber davit crane with 2500 lb carbon steel brake winch

Oz Product Made in the USA Badge
The CompOZite® Elite® Davit Crane is upgraded with a high-capacity 2500 lb carbon steel manual brake winch with a drill drive adapter. This configuration enhances the crane’s lifting power, maintaining its lightweight and portable design while offering increased capacity for more demanding tasks. Engineered with carbon fiber and aluminum, this crane delivers a remarkable 1200 lb capacity while remaining incredibly portable. Its innovative design ensures easy setup, durability, and unmatched safety. Experience the pinnacle of lifting technology.

NOTE: Wire or synthetic rope assembly, headache ball, and bases sold separately.

  • Carbon fiber and high-strength aluminum construction
  • Corrosion-resistant finish
  • Truly portable design
  • 6 boom height adjustments
  • One-person assembly, no tools required for installation
  • 360-degree rotation
  • Manual DIN-rated CE carbon steel brake winch, 2500 lb capacity, with integrated Weston brake (Includes quick connect winch handle with drill drive adapter)
  • AC & DC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Get a Custom Davit Crane Recommendation

Tell us about your needs and we will match you with the ideal lifting solution

Start Now

OZCF1200DAV-HND2

1200 lb carbon fiber davit crane with 2500 lb carbon steel brake winch

    Get Started
    Download Specs

    Videos

    Photos

    Add-Ons

    OZWB2

    Wheel Base for use with OZ1000DAV and OZCF1200DAV davit cranes (Pedestal base and locking collar included)

    View Product

    OZWALL1-TP

    Wall mount base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZWALL2-TP

    Wall mount base for OZTP500DAV Tele-Pro® davit crane

    View Product

    OZWALL3

    Wall mount base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

    View Product

    OZWALL4

    Wall mount base for OZ2500DAV and OZTP2500DAV davit cranes

    View Product

    OZWALL1

    Wall mount base for OZ1200DAV davit crane

    View Product

    OZWALL2

    Wall mount base for OZ1000DAV and OZCF1200DAV davit cranes

    View Product

    OZBACK2

    Wall mount base back for use with OZWALL2 and OZWALL2-TP

    View Product

    OZSOC1-TP

    Socket base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZSOC2-TP

    Socket base for OZTP500DAV Tele-Pro® davit crane

    View Product

    OZSOC3

    Socket base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

    View Product

    OZSOC4

    Socket base for OZ2500DAV and OZTP2500DAV davit cranes

    View Product

    OZSOC1

    Socket base for OZ1200DAV davit crane

    View Product

    OZSOC2

    Socket base for OZ1000DAV and OZCF1200DAV davit cranes

    View Product

    OZPED1-TP

    Pedestal base for use with OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

    View Product

    OZPED2-TP

    Pedestal base for OZTP500DAV Tele-Pro® davit crane

    View Product

    OZPED3

    Pedestal base for OZ500DAV, OZA500DAV, and OZXR500DAV davit cranes

    View Product

    OZPED4

    Pedestal base for OZ2500DAV and OZTP2500DAV davit cranes

    View Product

    OZPED1

    Pedestal base for OZ1200DAV davit crane

    View Product

    OZPED2

    Pedestal base for OZ1000DAV and OZCF1200DAV davit cranes

    View Product

    OZEXT2-TP

    Mast extension for OZTP500DAV davit cranes (Adds 24 inches of height to davit crane)

    View Product

    OZEXT1-TP

    Mast extension for OZTP1200DAV, OZA1000DAV, and OZXR1000DAV davit cranes (Adds 24 inches of height to davit crane)

    View Product

    OZEXT2

    Mast extension for OZCF1200DAV davit cranes and OZ1000DAV davit cranes

    View Product

    OZEXT1-COMP

    Mast extension for OZ1200DAV, OZ1200DAV-ACW, & OZ1200DAV-DCW (Adds 24 inches to height of davit crane)

    View Product

    OZBACK1

    Backing plate for use with OZPED1, OZWALL1, OZPED1-TP, & OZWALL1-TP

    View Product

    OZTP500DAV

    500 lb Tele-Pro® davit crane with carbon steel brake winch

    View Product

    OZTP500DAV-HND2

    500 lb Tele-Pro® davit crane with 2500 lb carbon steel brake winch

    View Product

    OZTP500DAV-DCW

    500 lb Tele-Pro® davit crane with 12V DC electric winch

    View Product

    OZTP500DAV-ACW

    500 lb Tele-Pro® davit crane with 115V AC electric winch

    View Product

    OZ500DAV

    500 lb steel davit crane with carbon steel brake winch

    View Product

    System Components

    Specs & Ratings

    Product Weight
    Boom Mast Net
    OZCF1200DAV - lb (kg) 18 (8.18) 13 (5.91) 31 (14.09)
    * Weights excluding winch
    Load Ratings
    Based on 1/4″ wire rope or 3/16" synthetic rope
    First Layer Mid Drum Full Drum
    Position 1 (0°) - lb (kg) 500 (227.27) 500 (227.27) 500 (227.27)
    Position 2 (+22.5°) - lb (kg) 700 (318.18) 700 (318.18) 550 (250)
    Position 3 (+45°) - lb (kg) 1200 (545.45) 875 (397.73) 550 (250)
    Crane Reactions/Moments
    Model Mast Moments (in-lb) Mast Moment (N-m) Suggested Bolt Size
    OZCF1200DAV 24,180 2,732 1/2″ Grade 5 (M12)
    Floor Mount Base Wall Mount Base
    Model Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Axial Force per Bolt - lb (kg) Axial Force per Bolt (N) Shear Force per Bolt - lb (kg) Shear Force per Bolt (N)
    OZCF1200DAV 957 (435) 4,257 1048 (476.36) 4,662 736 (334.55) 3,274

    Get a Custom Davit Crane Recommendation

    Tell us about your needs and we will match you with the ideal lifting solution

    Start Now

    IMPORTANT!

    Load ratings will vary depending on wire or synthetic rope length and diameter. The listed load rating reflects the davit crane boom position as well as manual winch operation, assuming average lifting effort. Handle effort will increase as the cable is spooled onto the drum. Load rating and ease of lifting depend on the boom position, specific winch style, and the user’s lifting effort.

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
